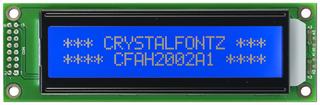

20x2 Character LCD White on Blue

Part Number: CFAH2002A1-TMI-JT

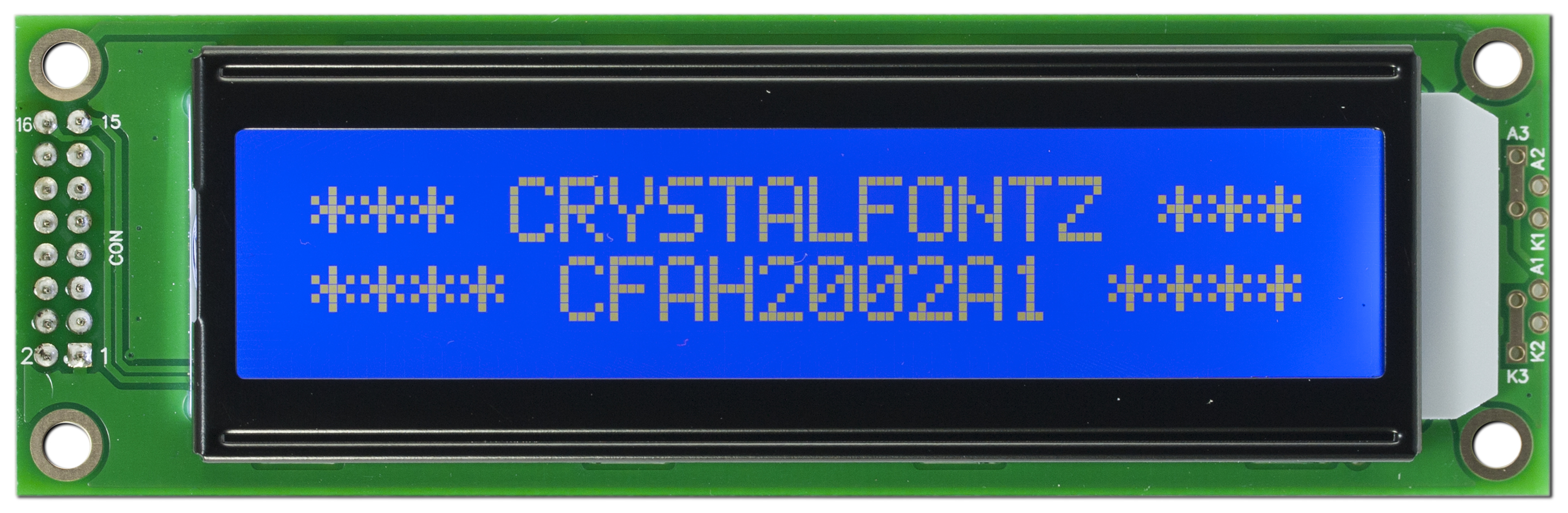

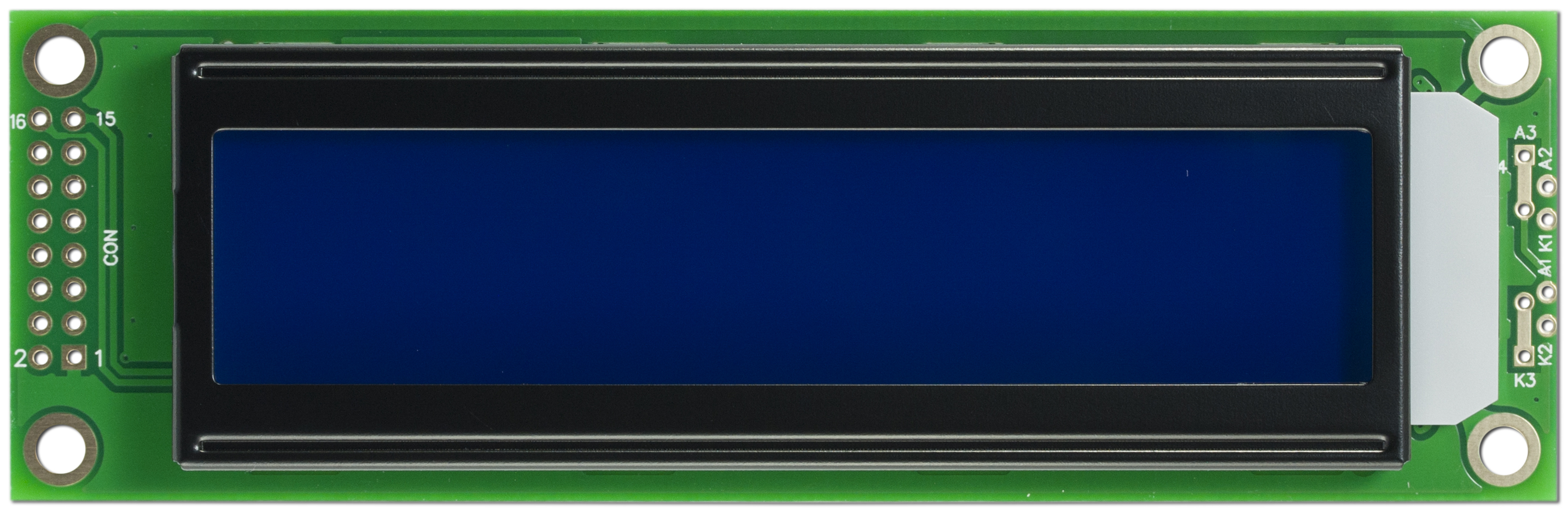

This parallel character LCD has 20 characters by 2 rows. It has white characters with a blue background and white L.E.D. backlight.

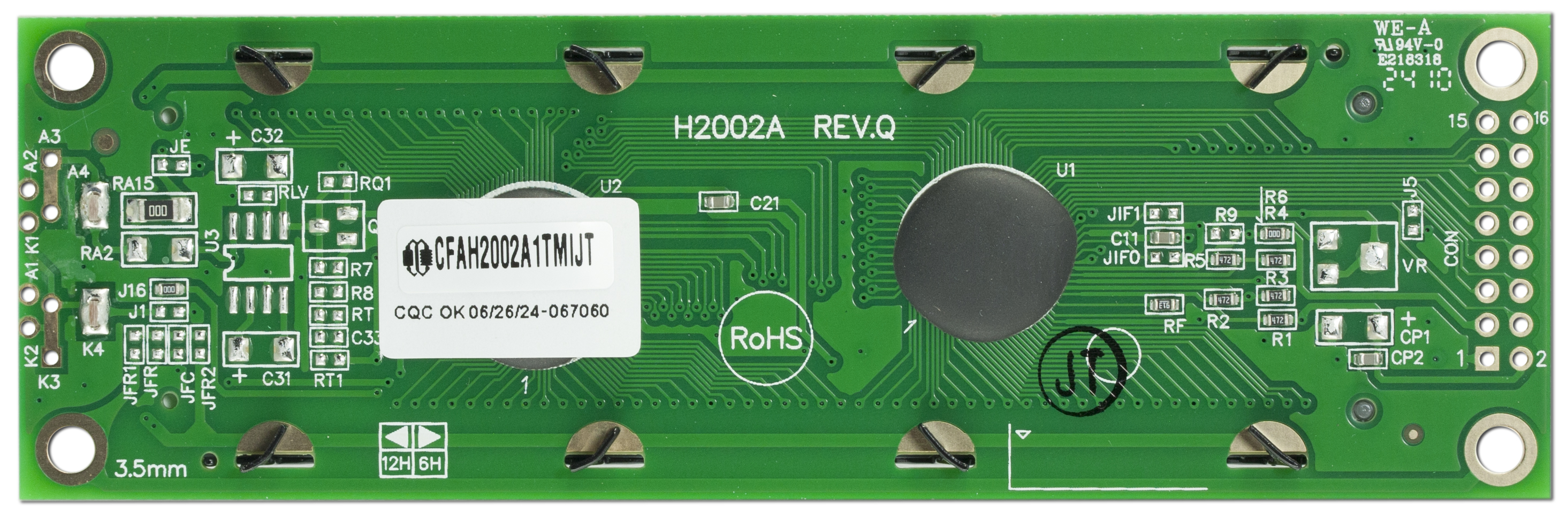

Four mounting holes allow this display to be integrated into your product. The 2x8 0.1" through holes allow for easy use with a standard header like the 8x2 Pin Dual Row Header.

• Form compatible with the CFAG19232C Series of Graphic LCD modules. Upgrade your product that uses this CFAH2002A1 character display by switching to the graphic CFAG19232C1, or lower your costs by replacing that graphic with this character module
• Available in several variations of backlight and polarizer (minimum order may be required)
• 8-bit or 4-bit parallel interface
• Industry-standard HD44780 compatible controller

CFA - Crystalfontz America
H - Character Display
2002 - 20 characters by 2 rows
A1 - Family and revision (replaces CFAH2002A-TMI-JT)
T - White LED backlight
M - STN Negative, Blue
I - Transmissive, 6:00 viewing direction, -20°C to +70°C operating temperature
JT - English and Japanese font table

• square_foot Physical Characteristics

  Physical Characteristics

  Characters x Lines

  20 x 2

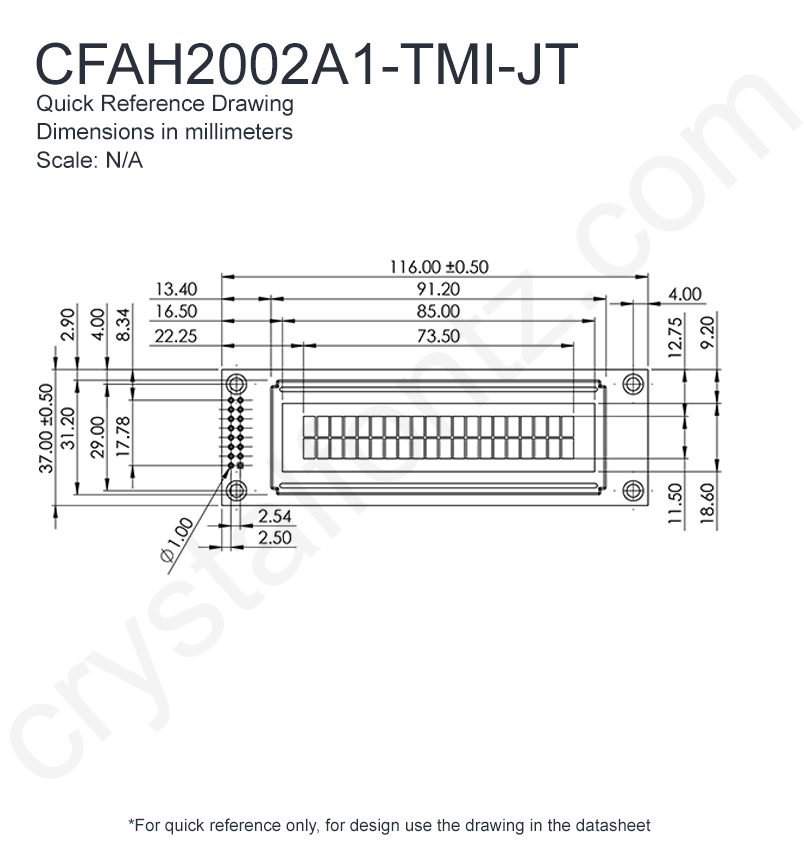

  Module Overall	width	height	depth
  millimeters	116	37	13.9
  inches	4.57	1.46	0.55

  PCB Outline	width	height
  millimeters	116	37
  inches	4.57	1.46

  Diagonal Dimension

  2.93"

  Viewing Area	Width	Height
  millimeters	85	18.6
  inches	3.35	0.73

  Active Area	Width	Height
  millimeters	73.5	11.5
  inches	2.89	0.45

  Character Size	Width	Height
  millimeters	3.2	5.55
  inches	0.126	0.219

  Character Pitch	Width	Height
  millimeters	3.7	5.95
  inches	0.146	0.234

  Dot Size	Width	Height
  millimeters	0.6	0.65
  inches	0.024	0.026

  Dot Pitch	Width	Height
  millimeters	0.65	0.7
  inches	0.026	0.028

  Weight	52g
  Pin Count	16

• visibility Optical Characteristics

  Optical Characteristics

  Glass Type/Glass Color	STN/Blue
  Polarizer	Transmissive
  View Direction	6 o'clock
  View Angle	60°

  Backlight Color	White
  Backlight Type	LED
  Mode	Negative
  Foreground Color	White
  Background Color	Blue

• electric_bolt Electrical Specification

  Electrical Specifications

  Supply Voltage for Logic Minimum	4.5V
  Supply Voltage for Logic Maximum	5.5V
  Supply Voltage for Logic Typical	5V
  Supply Voltage for Driving Panel Typical	4.35V

  Supply Current Minimum	1mA
  Supply Current Maximum	1.5mA
  Supply Current Typical	1.2mA
  Module Connector Pitch	2.54mm

• electric_bolt Backlight Specification

  Backlight Electrical Specifications

  Forward Voltage Minimum	3.4V
  Forward Voltage Maximum	3.6V
  Forward Voltage Typical	3.5V

  Forward Current Minimum	24mA
  Forward Current Maximum	40mA
  Forward Current Typical	32mA

• nature Environmental

  Environmental

  Operating Temperatures	min	max
  Celsius	-20°	70°
  Fahrenheit	-4°	158°

  Storage Temperatures	min	max
  Celsius	-30°	80°
  Fahrenheit	-22°	176°

• cable Electronics

  Electronics

  Controller Documents	Sitronix ST7066U Dot Matrix LCD Controller/Driver
  Interface	4-bit Parallel, 8-bit Parallel

• picture_as_pdf Datasheets
  picture_as_pdf

  CFAH2002A1TMIJT Datasheet




• download Files and Downloads
  folder_zip Hardware Design - 3D Model


  link Demo Code Repository on Github

• assured_workload Compliance Documents
  picture_as_pdf Declaration of Conformity RoHS2

  picture_as_pdf Declaration of Conformity REACH
