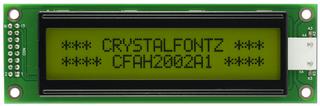

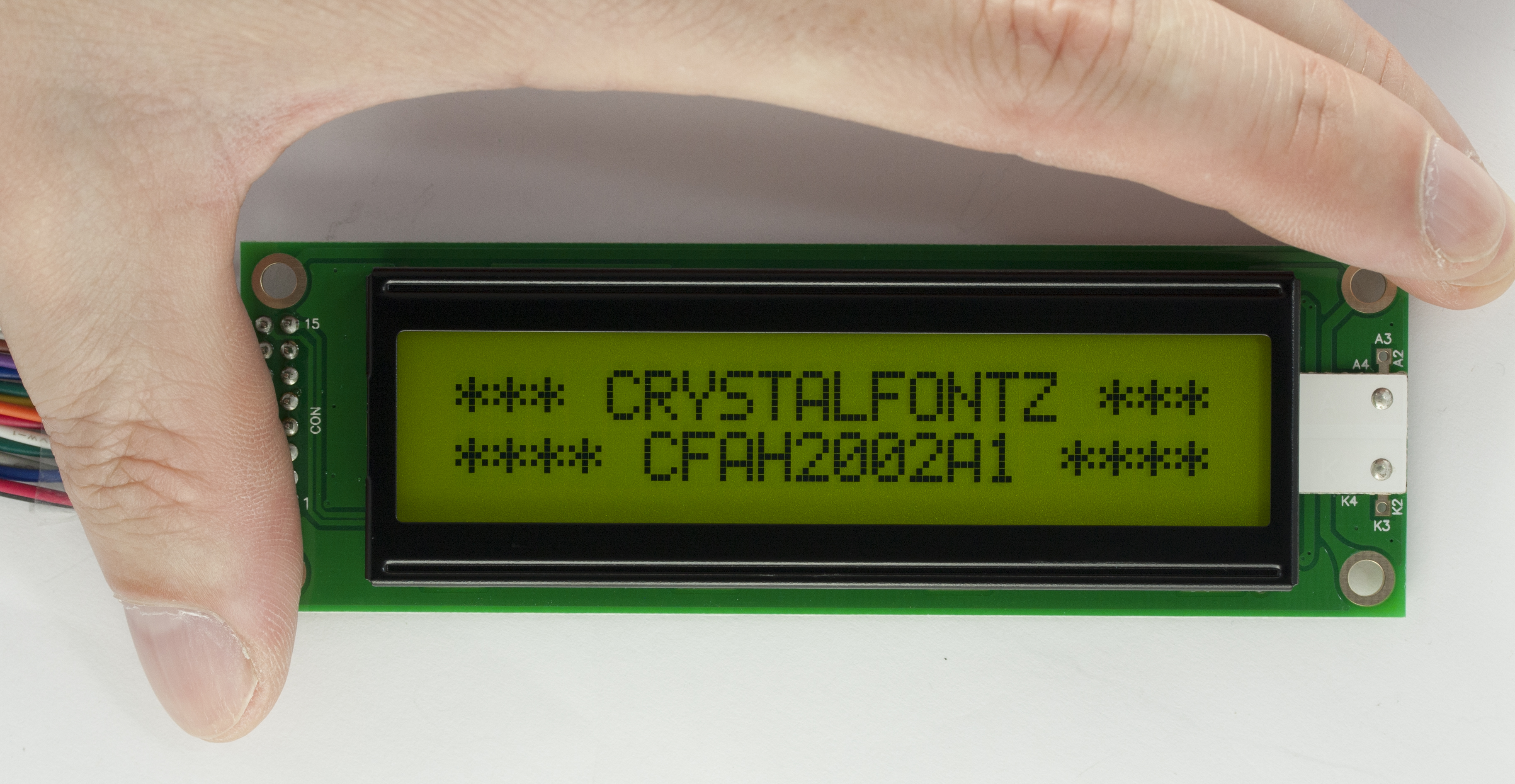

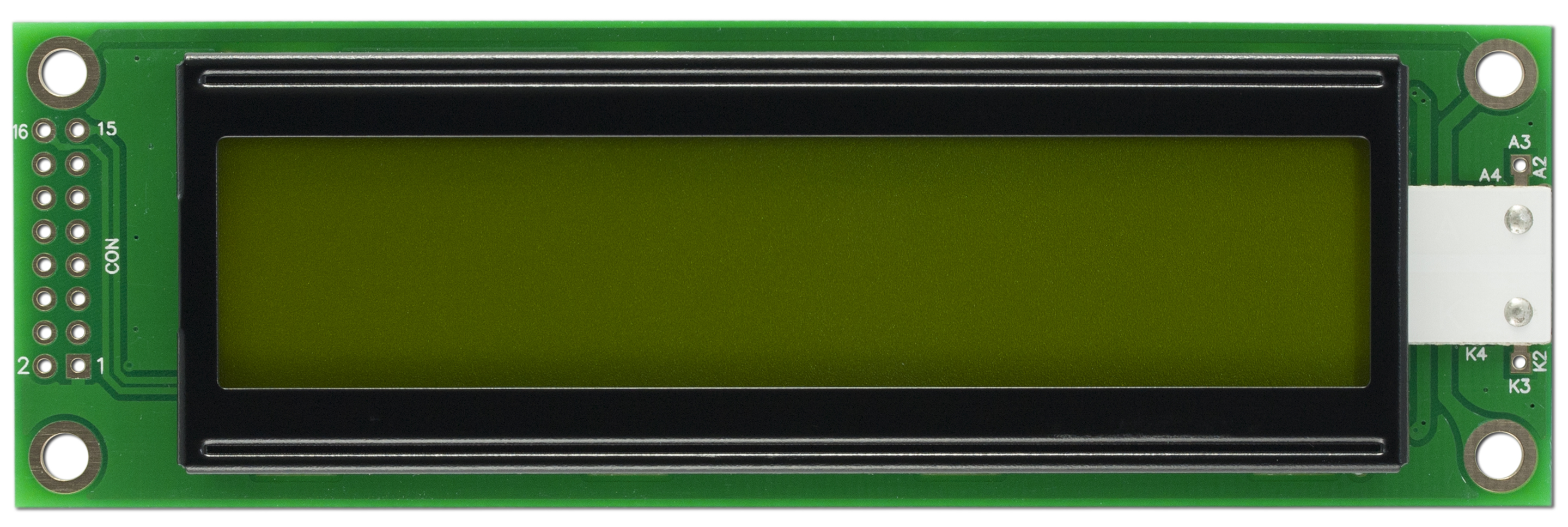

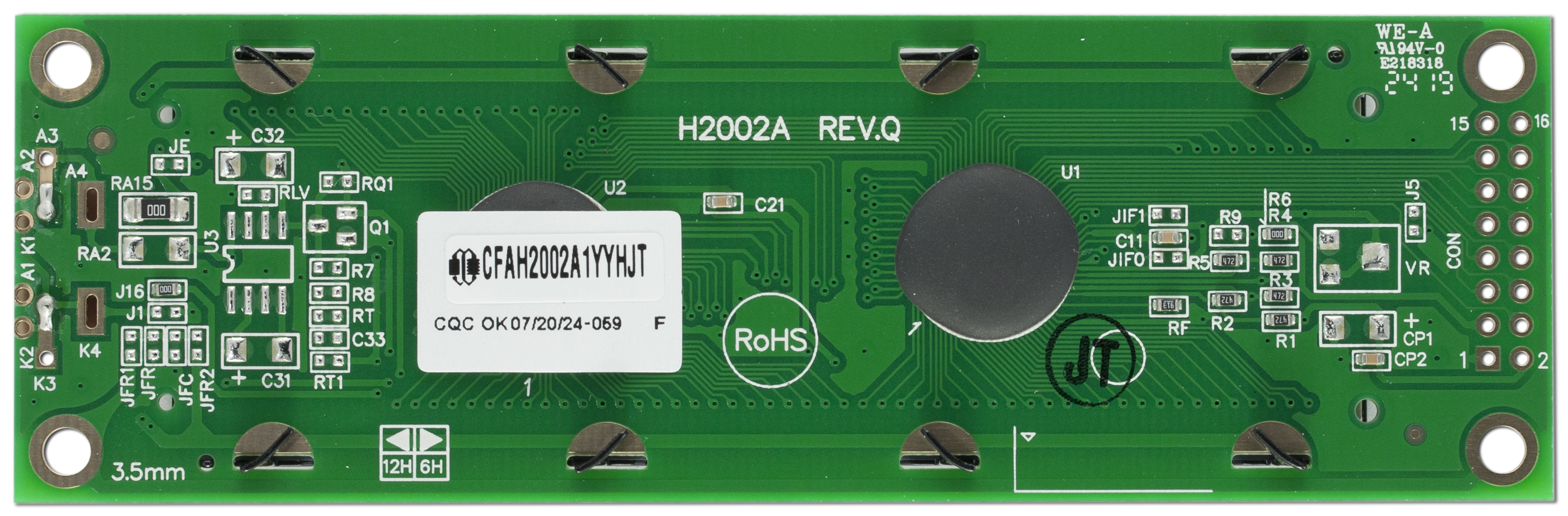

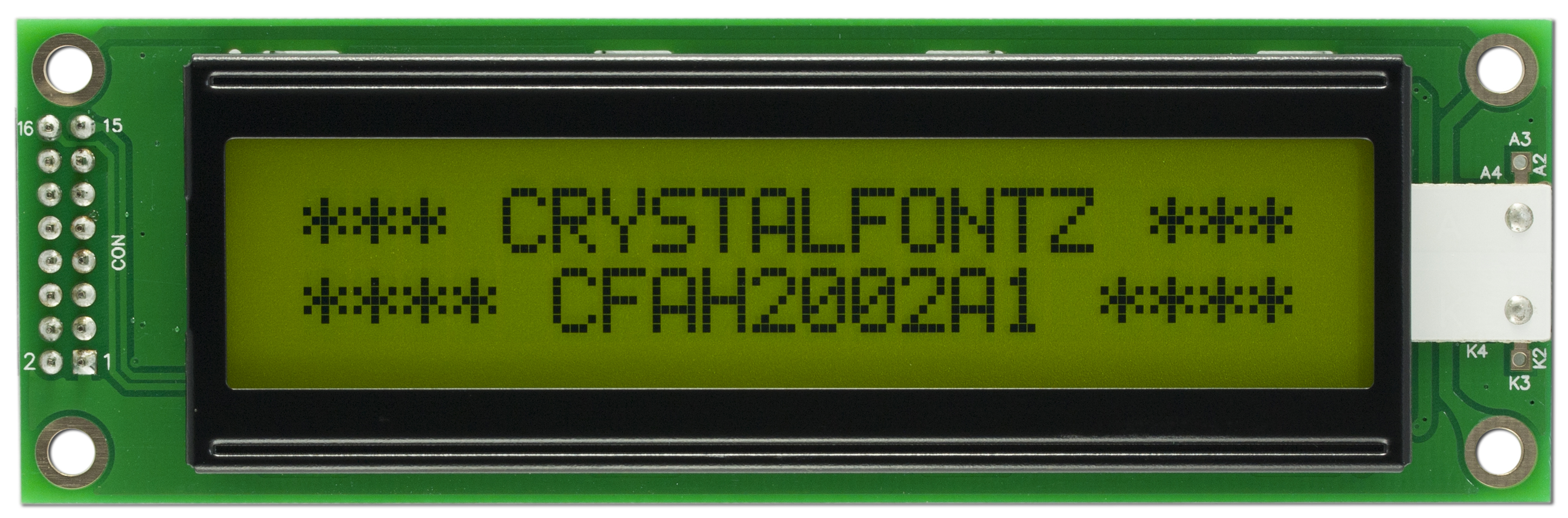

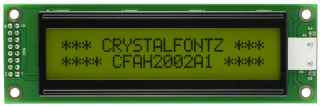

Black on Yellow 20x2 Character LCDPart Number: CFAH2002A1-YYH-JT

                        This 2-row by 20 character LCD, is STN Positive with black characters on a yellow-green background with a yellow-green backlight.
Yellow/Green LED Backlight
6:00 viewing angle
8-bit or 4-bit parallel interface
ST7066U controller, industry-standard Hitachi HD44780 compatible
Operating temperature range is from -20°C to +70°C


CFA - Crystalfontz America
H - Character Display
2002 - 20 characters by 2 rows
A1 - Family and revision (replaces CFAH2002A-YYH-JT)
Y - Yellow LED backlight
Y - STN Positive, Yellow-Green
H - Transflective, 6:00 viewing direction, -20°C to +70°C operating temperature
JT - English and Japanese font table
Product VariationsColorsDark on Yellow-Green
Yellow-Green LED BacklightYellow-Green on Blue
Yellow-Green LED BacklightWhite on Blue
White LED BacklightDark on Gray
White LED BacklightBlack on Yellow-Green
Yellow-Green LED BacklightYellow-Green on Dark
Yellow-Green LED BacklightDark on Yellow-Green
No Backlight

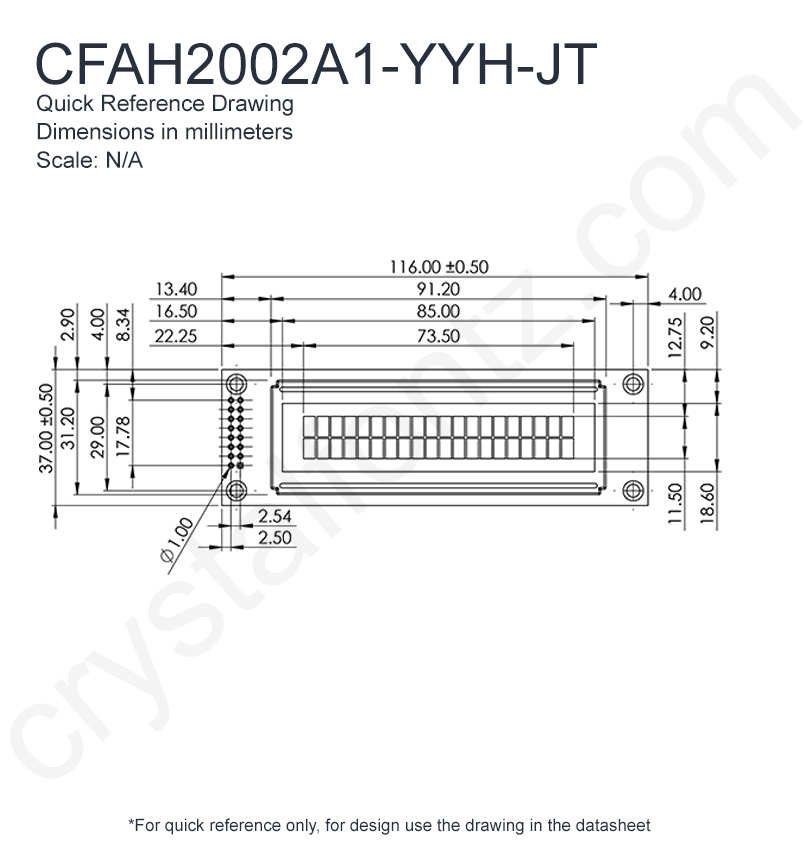

 square_foot Physical Characteristics
Physical Characteristics

        Characters x Lines
            20 x 2


    Module Overall        width
        height
        depth


        millimeters
        116
        37
        13.9


        inches
        4.57
        1.46
        0.55



    PCB Outline        width
        height


        millimeters
        116
        37


        inches
        4.57
        1.46



        Diagonal Dimension
            2.93"


    Viewing Area        Width
        Height


        millimeters
        85
        18.6


        inches
        3.35
        0.73



    Active Area        Width
        Height


        millimeters
        73.5
        11.5


        inches
        2.89
        0.45



    Character Size        Width
        Height


        millimeters
        3.2
        5.55


        inches
        0.126
        0.219



    Character Pitch        Width
        Height


        millimeters
        3.7
        5.95


        inches
        0.146
        0.234



    Dot Size        Width
        Height


        millimeters
        0.6
        0.65


        inches
        0.024
        0.026



    Dot Pitch        Width
        Height


        millimeters
        0.6
        0.65


        inches
        0.024
        0.026



        Weight
            52g
Pin Count
            16

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Yellow-Green
Polarizer
            Transflective
View Direction
            6 o'clock
View Angle
            40°
Sunlight Readable
            Yes


        Backlight Color
            Yellow-Green
Backlight Type
            LED
Mode
            Positive
Foreground Color
            Dark
Background Color
            Yellow-Green

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            4.5V
Supply Voltage for Logic Maximum
            5.5V
Supply Voltage for Logic Typical
            5V
Supply Voltage for Driving Panel Typical
            4.35V


        Supply Current Minimum
            1mA
Supply Current Maximum
            1.5mA
Supply Current Typical
            1.2mA
Module Connector Pitch
            2.54mm

 electric_bolt Backlight Specification
Backlight Electrical Specifications

        Forward Voltage Minimum
            4V
Forward Voltage Maximum
            4.4V
Forward Voltage Typical
            4.2V


        Forward Current Minimum
            168mA
Forward Current Maximum
            252mA
Forward Current Typical
            210mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -20°
        70°


        Fahrenheit
        -4°
        158°



    Storage Temperatures        min
        max


        Celsius
        -30°
        80°


        Fahrenheit
        -22°
        176°


 cable Electronics
Electronics

        Controller Documents
            Sitronix ST7066U
Dot Matrix LCD Controller/Driver
Interface
            4-bit Parallel, 8-bit Parallel

picture_as_pdf Datasheets
picture_as_pdfCFAH2002A1-YYH-JT Datasheet

download Files and Downloads
folder_zip Hardware Design - 3D Model
link Demo Code Repository on Github
assured_workload Compliance Documents

picture_as_pdf Declaration
                                    of Conformity RoHS2
picture_as_pdf Declaration
                                    of Conformity REACH
















Need a written quote? Add to cart, then enter
                            your email address in the "request a quote" box.
Quantity:


Price:



            Quantity
            Unit Price


            1 *
            $13.91

            10 *
            $12.24

            20 *
            $11.88

            50 *
            $11.45

            100 *
            $11.30

            200 *
            $11.23

            300 *
            $10.60

            500 *
            $10.53

            1000 *
            $9.74

0 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
* Sign up to be notified when we these are back in-stock.
Other components worth
                    considering


						LCD Starter Kit with Potentiometer
Add a development kit? $11.06 ea.






						Seeeduino 4.3
Add a microprocessor? $10.00 ea.






						6-inch Female to Female Jumper Wires
Add jumper wires? $2.76 ea.






						8x2 Pin Dual Row Header
Add header pins? $0.28 ea.





Colors	Dark on Yellow-Green Yellow-Green LED Backlight Yellow-Green on Blue Yellow-Green LED Backlight White on Blue White LED Backlight Dark on Gray White LED Backlight Black on Yellow-Green Yellow-Green LED Backlight Yellow-Green on Dark Yellow-Green LED Backlight Dark on Yellow-Green No Backlight

Module Overall	width	height	depth
millimeters	116	37	13.9
inches	4.57	1.46	0.55

PCB Outline	width	height
millimeters	116	37
inches	4.57	1.46

Viewing Area	Width	Height
millimeters	85	18.6
inches	3.35	0.73

Active Area	Width	Height
millimeters	73.5	11.5
inches	2.89	0.45

Character Size	Width	Height
millimeters	3.2	5.55
inches	0.126	0.219

Character Pitch	Width	Height
millimeters	3.7	5.95
inches	0.146	0.234

Dot Size	Width	Height
millimeters	0.6	0.65
inches	0.024	0.026

Dot Pitch	Width	Height
millimeters	0.6	0.65
inches	0.024	0.026

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Quantity	Unit Price
1 *	$13.91
10 *	$12.24
20 *	$11.88
50 *	$11.45
100 *	$11.30
200 *	$11.23
300 *	$10.60
500 *	$10.53
1000 *	$9.74

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #11287: Black on Yellow 20x2 Character LCD is now available

New Product:	CFAH2002A1-YYH-JT
Date Issued:	September 17, 2024
Summary:	Black on Yellow 20x2 Character LCD is now available
Description:	CFAH2002A1-YYH-JT has been released on our website (https://www.crystalfontz.com/product/cfah2002a1yyhjt-character-20x2-display-module) and is now available for sale. Orders can be placed directly from our website or by submitting a purchase order to sales@crystalfontz.com. Contact support@crystalfontz.com for any technical questions.
