20x2 Dark on Yellow Character LCD (3.3v)

Part Number: CFAH2002A1-YYH-JTV

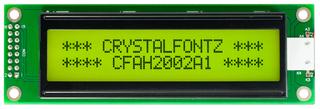

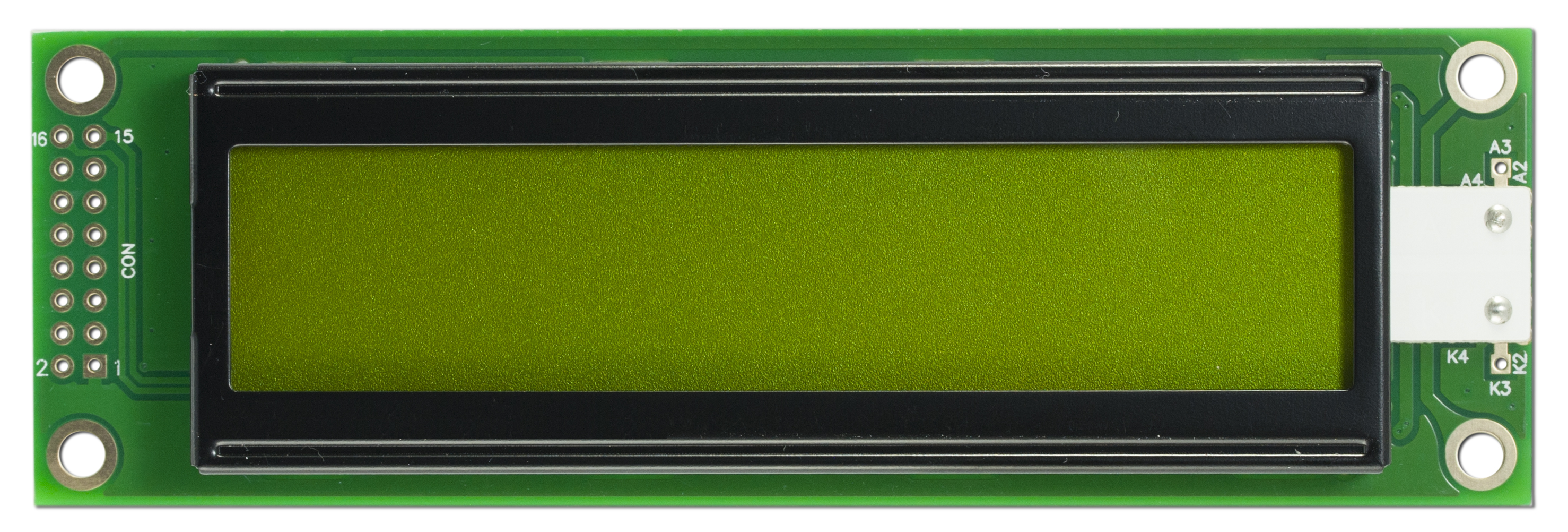

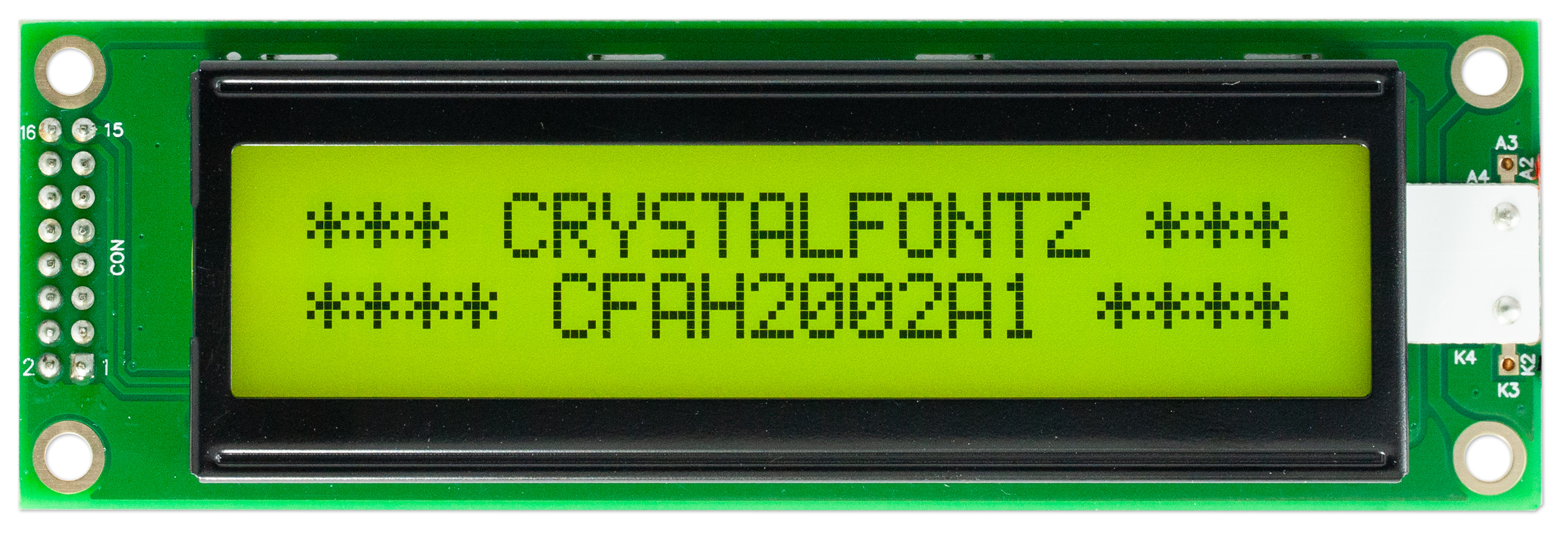

This 3.3 volt, 20-character by 2-row LCD display features dark characters on a yellow-green background, providing excellent visibility. It comes equipped with four mounting holes and a 2x8 through-hole connection, compatible with an 8x2 dual-row header. Designed for easy integration, it is form-compatible with the CFAG19232C series of graphic LCD modules, allowing for seamless upgrades or cost-saving downgrades. Replace your CFAH2002A1 character display with the graphic CFAG19232C1 for enhanced functionality or reduce expenses by switching to this character module. Available in multiple backlight and polarizer options (minimum order may apply), it supports 8-bit or 4-bit parallel interfaces and uses the industry-standard HD44780 compatible controller.

This LCD is ideal for a wide range of applications, including industrial control panels, medical equipment, and consumer electronics, where clear and efficient information display is crucial. Its dark characters on a yellow-green background offer excellent readability in both low-light and standard lighting conditions. The robust design, with four mounting holes and compatibility with industry-standard connectors, makes it suitable for harsh environments and easy integration into existing systems. Additionally, its compatibility with both 8-bit and 4-bit parallel interfaces, as well as the HD44780 controller, ensures it can be used in a variety of legacy and modern devices.

• Four mounting holes
• 2x8 through hole connection compatible with 8x2 Dual Row Header
• 8-bit or 4-bit parallel interface
• Requires 3.3 volts
• Industry-standard HD44780 compatible controller

CFA - Crystalfontz America
H - Character Display
2002 - 20 characters by 2 rows
A1 - Family and revision (replaces CFAH2002A-YYH-JTV)
Y - Yellow LED backlight
Y - STN Positive, Yellow-Green
H - Transflective, 6:00 viewing direction, -20°C to +70°C operating temperature
JT - English and Japanese font table
V - Negative Voltage Generator

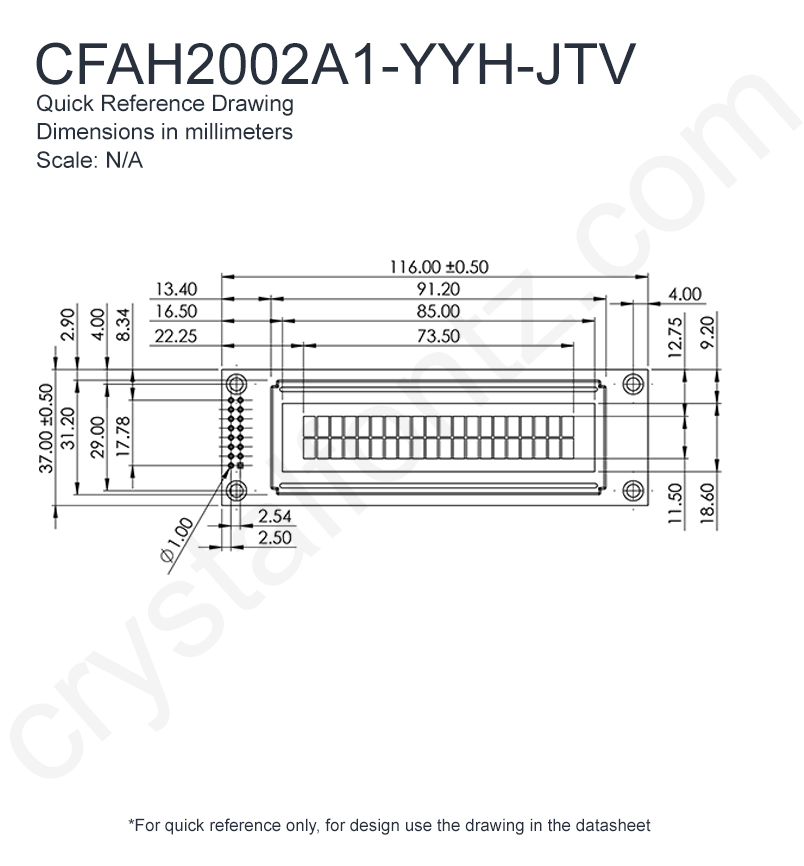

• square_foot Physical Characteristics

  Physical Characteristics

  Characters x Lines

  20 x 2

  Module Overall	width	height	depth
  millimeters	116	37	13.9
  inches	4.57	1.46	0.55

  Viewing Area	Width	Height
  millimeters	85	18.6
  inches	3.35	0.73

  Active Area	Width	Height
  millimeters	73.5	11.5
  inches	2.89	0.45

  Character Size	Width	Height
  millimeters	3.2	5.55
  inches	0.126	0.219

  Character Pitch	Width	Height
  millimeters	3.7	5.95
  inches	0.146	0.234

  Dot Size	Width	Height
  millimeters	0.60	0.65
  inches	0.024	0.026

  Dot Pitch	Width	Height
  millimeters	0.65	0.7
  inches	0.026	0.028

  Weight	53g
  Pin Count	16

• visibility Optical Characteristics

  Optical Characteristics

  Glass Type/Glass Color	STN/Yellow-Green
  Polarizer	Transflective
  View Direction	6 o'clock
  View Angle	40°
  Sunlight Readable	Yes

  Backlight Color	Yellow-Green
  Backlight Type	LED
  Mode	Positive
  Foreground Color	Black
  Background Color	Yellow-Green

• electric_bolt Electrical Specification

  Electrical Specifications

  Supply Voltage for Logic Minimum	3V
  Supply Voltage for Logic Maximum	3.6V
  Supply Voltage for Logic Typical	3.3V
  Supply Voltage for Driving Panel Typical	4.35V

  Supply Current Minimum	1mA
  Supply Current Maximum	1.5mA
  Supply Current Typical	1.2mA
  Module Connector Pitch	2.54mm

• electric_bolt Backlight Specification

  Backlight Electrical Specifications

  Forward Voltage Minimum	4V
  Forward Voltage Maximum	4.4V
  Forward Voltage Typical	4.2V

  Forward Current Minimum	168mA
  Forward Current Maximum	252mA
  Forward Current Typical	210mA

• nature Environmental

  Environmental

  Operating Temperatures	min	max
  Celsius	-20°	70°
  Fahrenheit	-4°	158°

  Storage Temperatures	min	max
  Celsius	-30°	80°
  Fahrenheit	-22°	176°

• cable Electronics

  Electronics

  Controller Documents	Sitronix ST7066U Dot Matrix LCD Controller/Driver
  Interface	4-bit Parallel, 8-bit Parallel

• picture_as_pdf Datasheets
  picture_as_pdf

  CFAH2002A1YYHJTV Datasheet




• download Files and Downloads
  link Demo Code Repository on Github

• assured_workload Compliance Documents
  picture_as_pdf Declaration of Conformity RoHS2

  picture_as_pdf Declaration of Conformity REACH
