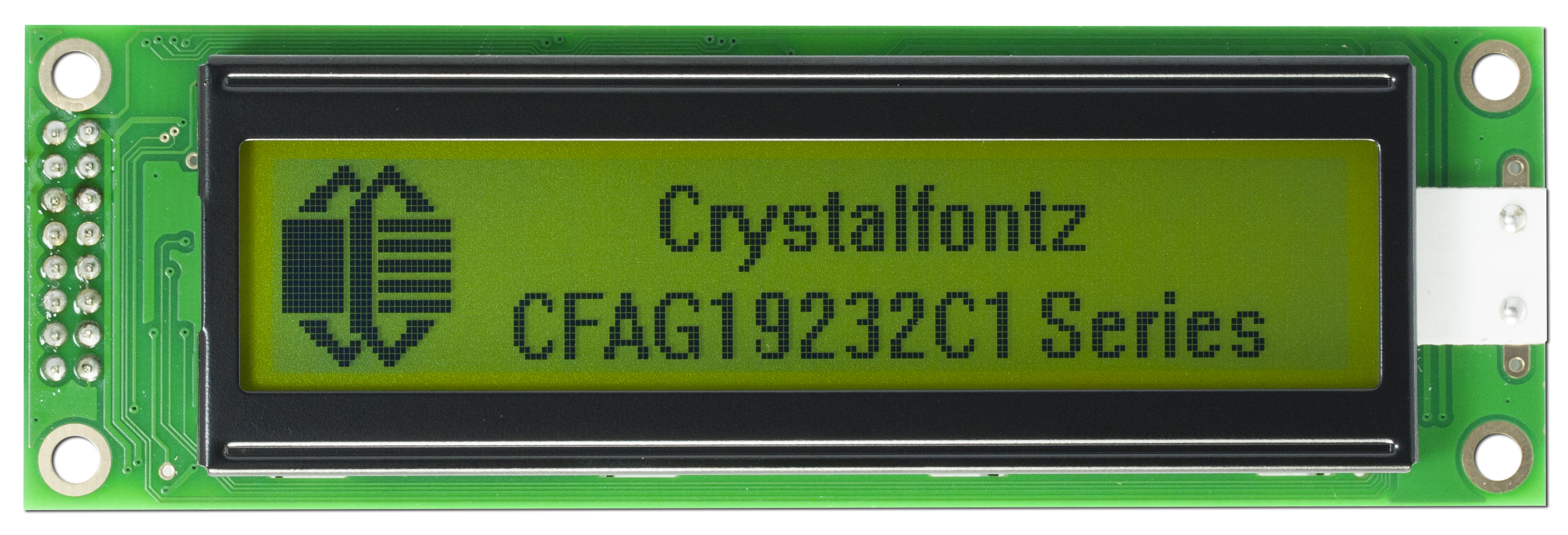

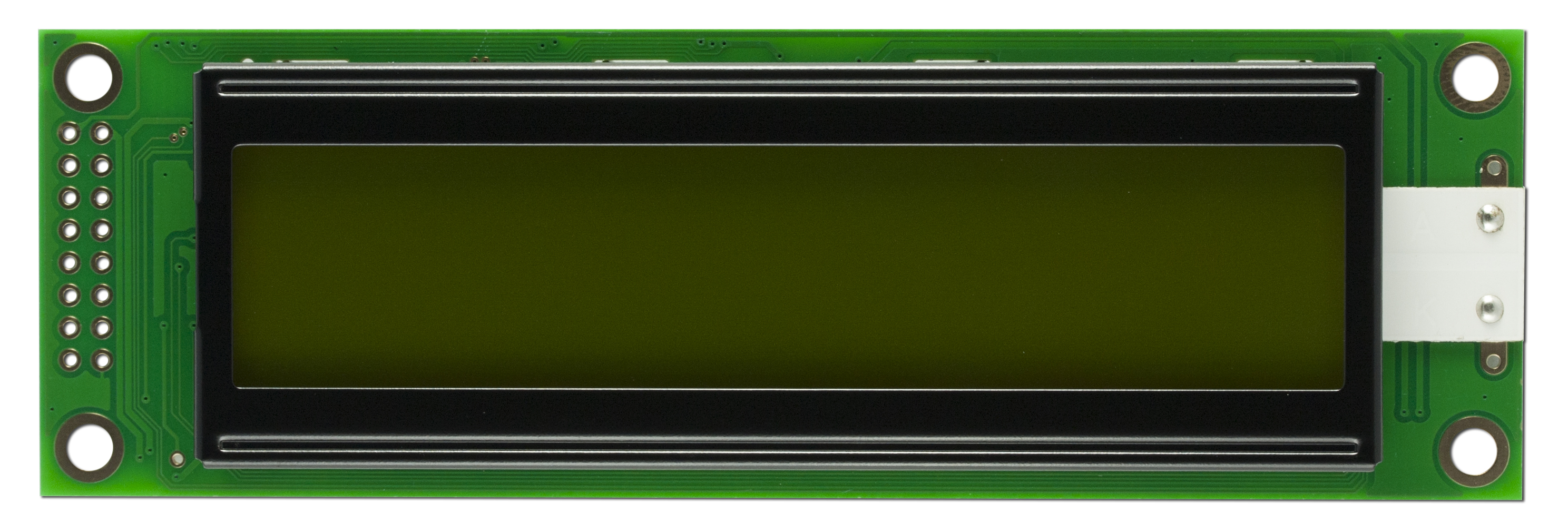

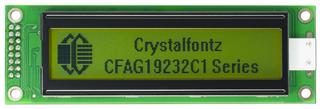

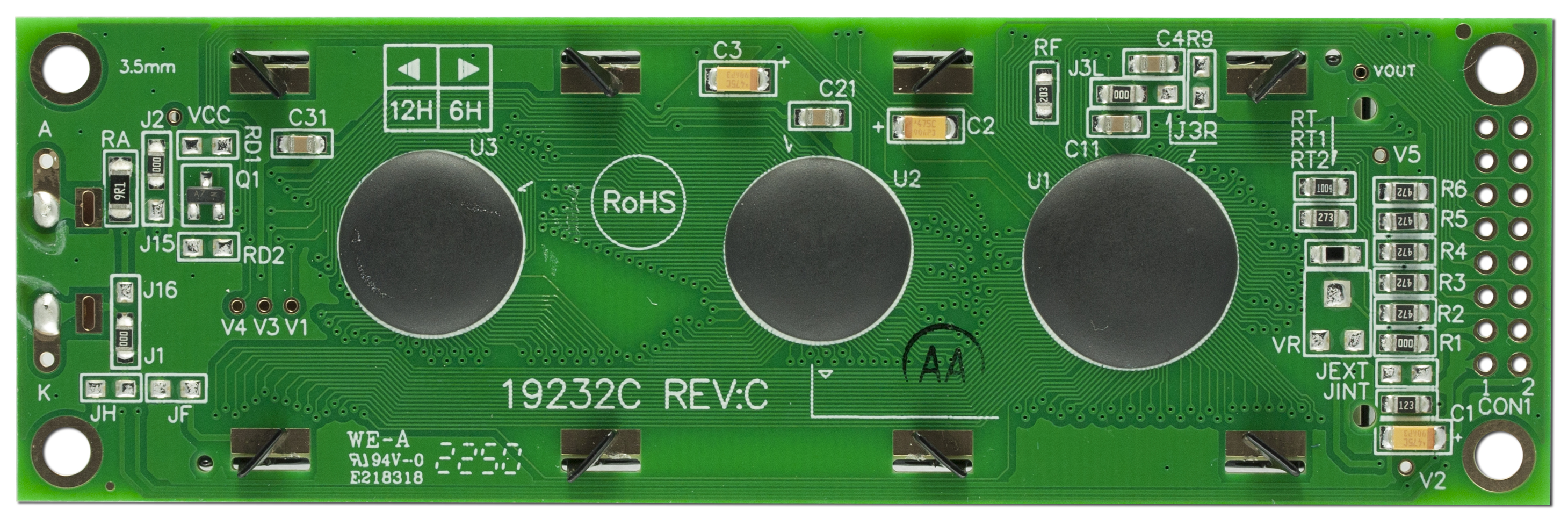

Yellow-Green 192x32 Serial Graphic LCD

Part Number: CFAG19232C1-YYH-TT

This graphic LCD has 192x32 black pixels on a yellow-green background. It is a transflective display, which means it will be readable in direct sunlight. The yellow-green LED backlight ensures it is also readable in the dark.

Graphic LCDs are a great choice when flexibility in what is being displayed is needed. Plus, this display includes a Character Generation ROM that supports English and Chinese fonts. That makes this display the perfect hybrid of ease of use and flexibility, so there's no need to choose between a character display and a graphic display.

• Resolution: 192x32 pixels
• Logic Voltage: 5v
• Optics: 6:00 viewing direction
• Backlight: Yellow-green LED
• Glass: STN Positive, Transflective
• Controller: Sitronix ST7920 (Hitachi HD44780 Compatible) Controller
• Character Generator: Chinese and English
• Operating Temp: -20°C to +70°C

Part Number:
CFA - Crystalfontz America
G - Graphic LCD
19232 - 192 x 32 pixel resolution
C1 - Family and revision (replaces CFAG19232C-YYH-TT)
Y - Yellow-green LED backlight
Y - STN Positive, yellow-green
H - Transflective
T - Built-in Voltage and temperature compensation
T - Sitronix controller

• square_foot Physical Characteristics

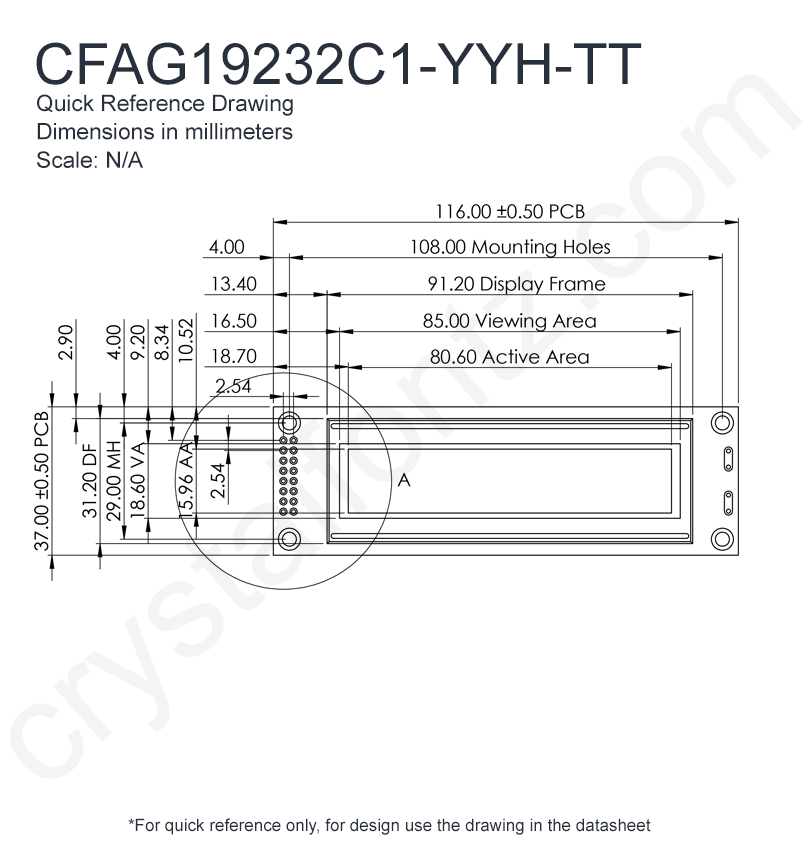

  Physical Characteristics

  Column Dots x Row Dots

  192 x 32

  Module Overall	width	height	depth
  millimeters	116	37	13.9
  inches	4.57	1.46	0.55

  Viewing Area	Width	Height
  millimeters	85	18.6
  inches	3.35	0.73

  Active Area	Width	Height
  millimeters	80.6	15.96
  inches	3.17	0.63

  Dot Size	Width	Height
  millimeters	0.38	0.46
  inches	0.015	0.018

  Dot Pitch	Width	Height
  millimeters	0.42	0.5
  inches	0.017	0.020

  Weight	52g
  Pin Count	16

• visibility Optical Characteristics

  Optical Characteristics

  Glass Type/Glass Color	STN/Yellow-Green
  Polarizer	Transflective
  View Direction	6 o'clock
  View Angle	60°
  Sunlight Readable	Yes

  Backlight Color	Yellow-Green
  Backlight Type	LED
  Mode	Positive
  Foreground Color	Black
  Background Color	Yellow-Green

• electric_bolt Electrical Specification

  Electrical Specifications

  Supply Voltage for Logic Minimum	-0.3V
  Supply Voltage for Logic Maximum	5.5V
  Supply Voltage for Logic Typical	5V
  Supply Voltage for Driving Panel Typical	5V

  Supply Current Minimum	168mA
  Supply Current Maximum	252mA
  Supply Current Typical	210mA

• electric_bolt Backlight Specification

  Backlight Electrical Specifications

  Forward Voltage Minimum	4.9V
  Forward Voltage Maximum	5.1V
  Forward Voltage Typical	5V

  Forward Current Minimum	168mA
  Forward Current Maximum	252mA
  Forward Current Typical	210mA

• nature Environmental

  Environmental

  Operating Temperatures	min	max
  Celsius	-20°	70°
  Fahrenheit	-4°	158°

  Storage Temperatures	min	max
  Celsius	-30°	80°
  Fahrenheit	-22°	176°

• cable Electronics

  Electronics

  Controller Documents	Sitronix ST7920 ST7920 Chinese Fonts built in LCD controller/driver
  Interface	4-bit Parallel, 8-bit Parallel

• picture_as_pdf Datasheets
  picture_as_pdf

  CFAG19232C1-YYH-TT Datasheet




• download Files and Downloads
  link Demo Code Repository on Github

• assured_workload Compliance Documents
  picture_as_pdf Declaration of Conformity RoHS2

  picture_as_pdf Declaration of Conformity REACH
