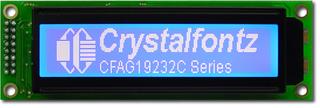

Blue 192x32 Serial Graphic LCDPart Number: CFAG19232C-TMI-TTWhite on blue monochrome 192x32 graphic LCD with negative voltage generator and temperature compensation.
Resolution: 192x32 pixels
Optics: 6:00 viewing direction
Backlight: White LED
Glass: STN Negative, Transmissive
Controller: Sitronix ST7920 (Hitachi HD44780 Compatible) Controller
Character Generator: Chinese and English
Operating Temp:  -20°C to +70°C
Compliance: REACH & RoHS Compliant
Product VariationsColorsBlack on Yellow-Green
Yellow-Green LED BacklightWhite on Blue
White LED Backlight

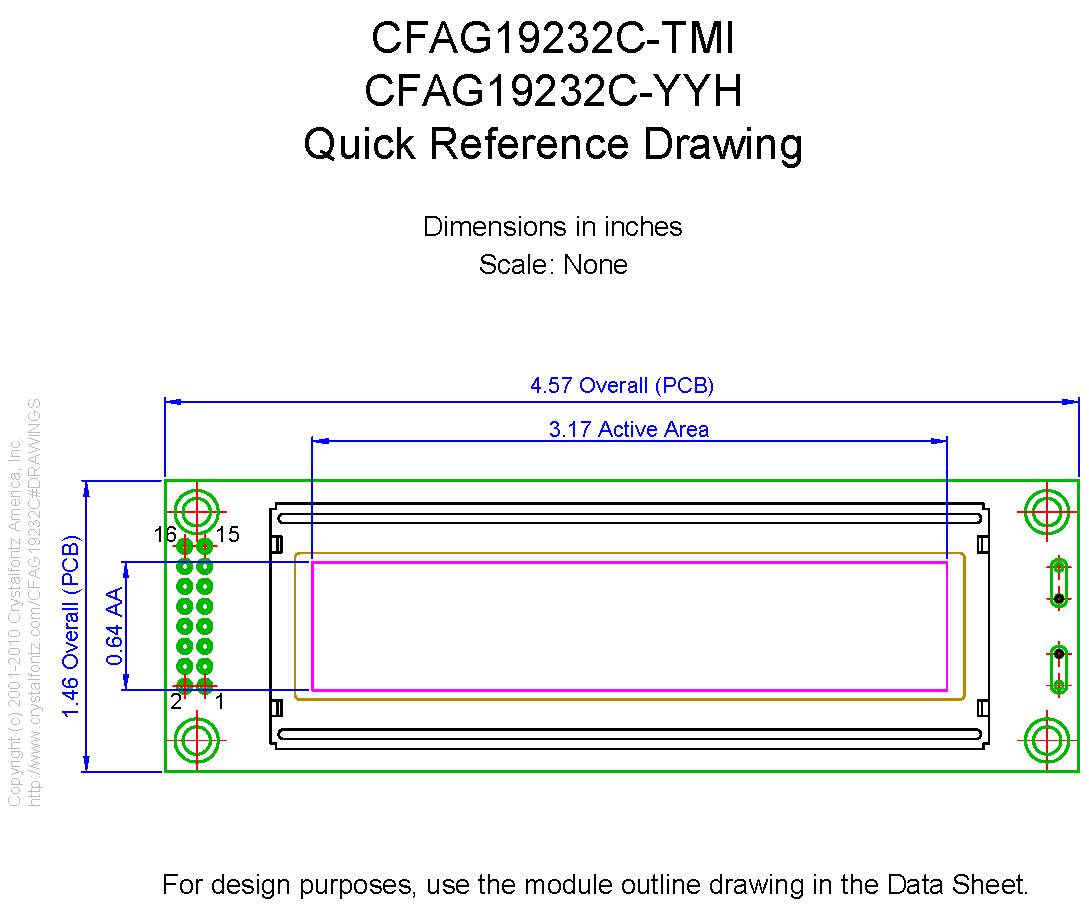

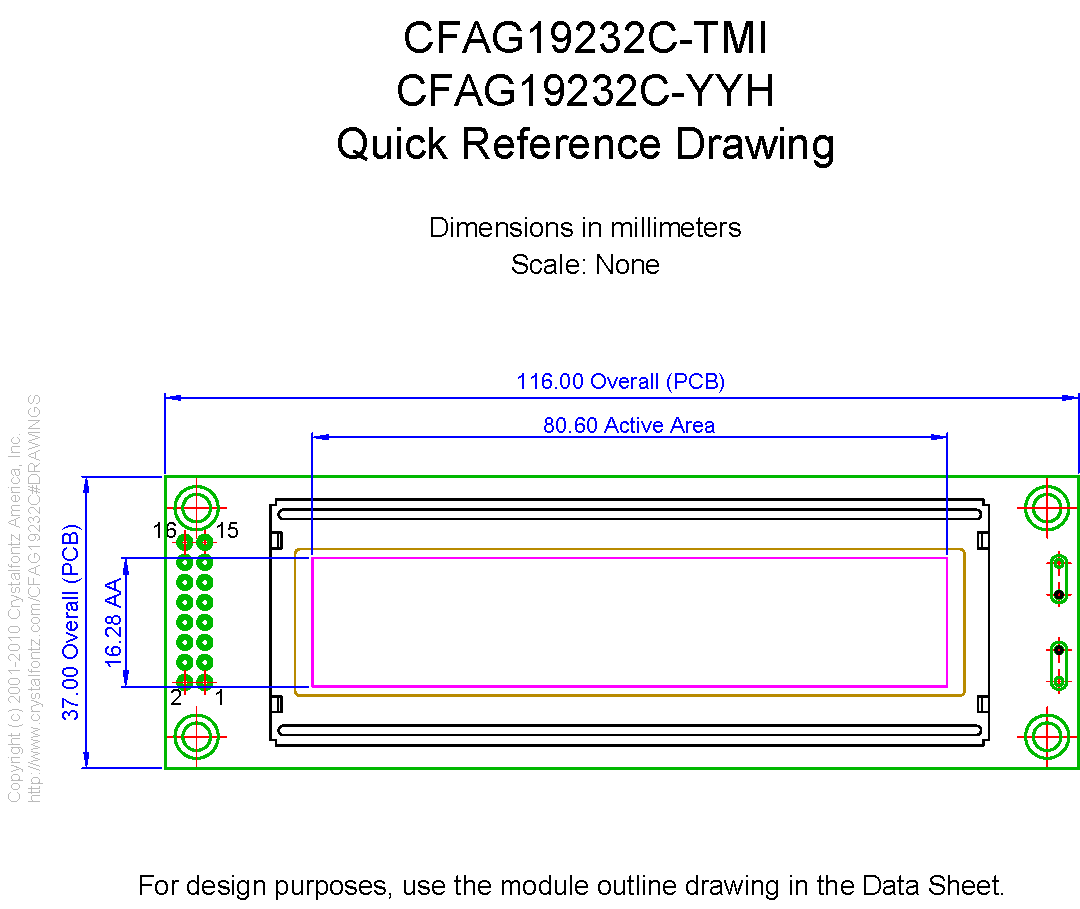

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            192 x 32


    Module Overall        width
        height
        depth


        millimeters
        116
        37
        13.9


        inches
        4.57
        1.46
        0.55



    PCB Outline        width
        height
        depth


        millimeters
        116
        37
        13.9


        inches
        4.57
        1.46
        0.55



        Diagonal Dimension
            3.23"


    Viewing Area        Width
        Height


        millimeters
        85
        18.6


        inches
        3.35
        0.73



    Active Area        Width
        Height


        millimeters
        80.6
        15.96


        inches
        3.17
        0.63



    Dot Size        Width
        Height


        millimeters
        0.38
        0.46


        inches
        0.015
        0.018



    Dot Pitch        Width
        Height


        millimeters
        0.42
        0.5


        inches
        0.017
        0.020



        Weight
            53g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Blue
Polarizer
            Transmissive
View Direction
            6 o'clock


        Backlight Color
            White
Backlight Type
            LED
Mode
            Negative
Foreground Color
            White
Background Color
            Blue

 electric_bolt Electrical Specification
Electrical Specifications

        Module Connector Pitch
            0.1mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -20°
        70°


        Fahrenheit
        -4°
        158°



    Storage Temperatures        min
        max


        Celsius
        -30°
        80°


        Fahrenheit
        -22°
        176°



    Humidity        min
        max


        Non-condensing
        0%
        90%


 cable Electronics
Electronics

        Controller Documents
            Sitronix ST7920
ST7920

Chinese Fonts built in LCD controller/driver
Interface
            4-bit Parallel, 8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAG19232CTMITT Datasheet

 download Files and Downloads
folder_zip Software Source - Example code - ATMEGA2561 and SPI interface
folder_zip Hardware Design - 3D Model
folder_zip CAD Export - CFAG19232C-TMI-YYH 2D CAD
picture_as_pdf 1 to 1 Template - CFAG19232C-TMI-YYH 1 TO 1.pdf
 assured_workload Compliance Documents
 picture_as_pdf Declaration of Conformity RoHS2
 picture_as_pdf Declaration of Conformity REACH











Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
 Quantity:


Price:



            Quantity
            Unit Price


            1
            $36.64

            5
            $30.69

            10
            $29.76

            20 *
            $28.94

            50 *
            $27.89

            100 *
            $27.54

            200 *
            $27.31

            300 *
            $25.83

            500 *
            $25.71

            1000 *
            $23.23

19 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
Other components worth considering


						LCD Starter Kit with Potentiometer
Everything you need to connect $12.59 ea.





Colors	Black on Yellow-Green Yellow-Green LED Backlight White on Blue White LED Backlight

Module Overall	width	height	depth
millimeters	116	37	13.9
inches	4.57	1.46	0.55

PCB Outline	width	height	depth
millimeters	116	37	13.9
inches	4.57	1.46	0.55

Viewing Area	Width	Height
millimeters	85	18.6
inches	3.35	0.73

Active Area	Width	Height
millimeters	80.6	15.96
inches	3.17	0.63

Dot Size	Width	Height
millimeters	0.38	0.46
inches	0.015	0.018

Dot Pitch	Width	Height
millimeters	0.42	0.5
inches	0.017	0.020

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Quantity	Unit Price
1	$36.64
5	$30.69
10	$29.76
20 *	$28.94
50 *	$27.89
100 *	$27.54
200 *	$27.31
300 *	$25.83
500 *	$25.71
1000 *	$23.23

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #11109: Glass Change

Product Affected:	CFAG19232C-TMI-TT
Date Issued:	November 11, 2021
Summary:	Glass Change
Description:	The glass is changing to a different manufacturer. Please contact support@crystalfontz.com if you would like a sample of the display with the new glass.
Reason:	The original glass manufacturer is no longer supporting the glass production of this particular glass.

Part Change Notice #10422: CAG19232C-TMI-TT being revised to Rev.014 to improve visual quality.

Product Affected:	CFAG19232C-TMI-TT
Date Issued:	June 6, 2012
Summary:	CAG19232C-TMI-TT being revised to Rev.014 to improve visual quality.
Last revision:	Rev.011
Description:	Current revision, Rev.011 exhibits a cross talk issue resulting in reduced visual quality. A new revision, Rev.014 has been released and approved.

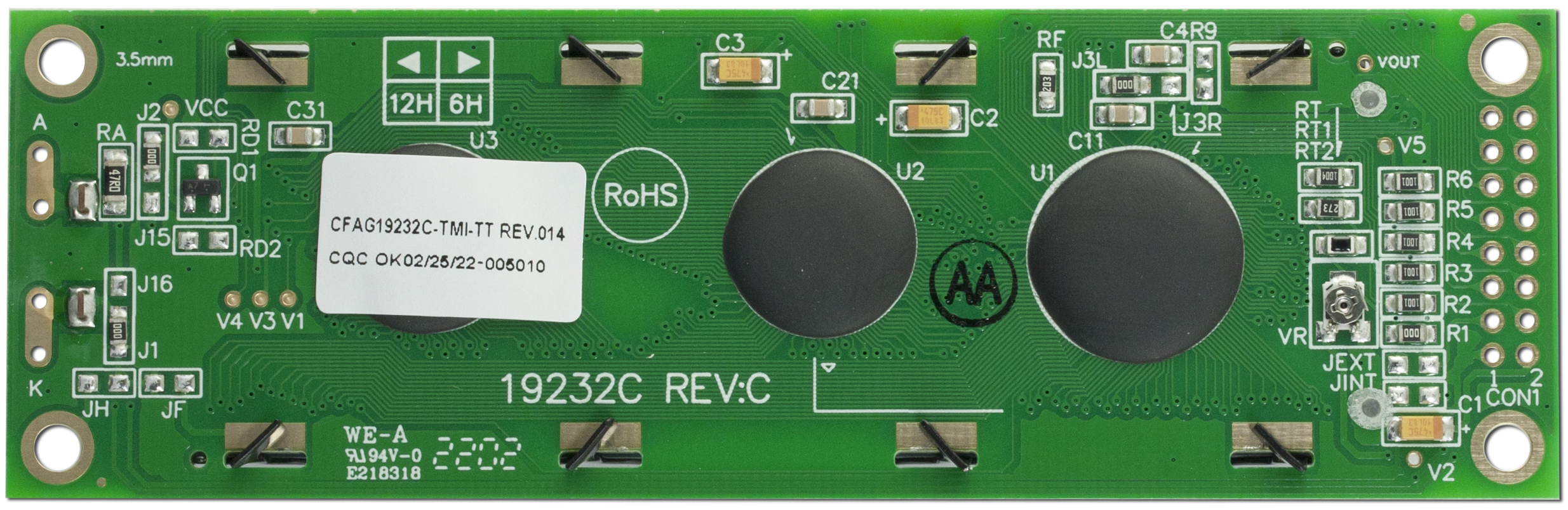

Reason:	New revision resolves the cross-talk issue with the following changes: 1 - New LCD glass 2 - JINT removed 3 - R2 through R6 values changed to 1KΩ 4 - VR added
Impact:	CFAG19232C-TMI-TT Rev.014 should work as a drop in replacement for the CFAG19232C-TMI-TT Rev.011. The only changes to the module effected the LCD bias circuit. Since the module is shipped with fixed (controlled by ST7920) contrast, we do not anticipate any issues migrating to the new revision.
Availability:	Current revision of CFAG19232C-TMI-TT are unavailable for shipment. New revision CFAG19232C-TMI-TT are expected Q3 2012.
Price Change:	Revision does not effect price. Pricing reviewed and updated on a regular basis.
