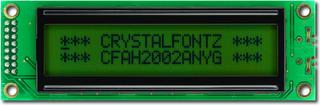

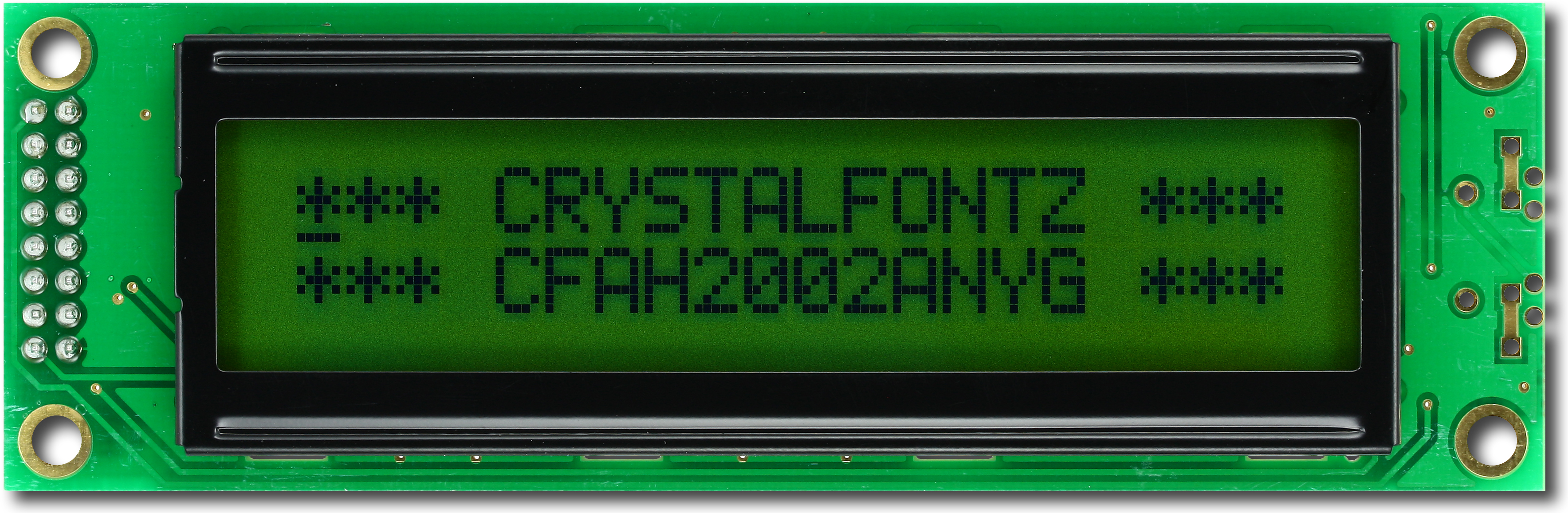

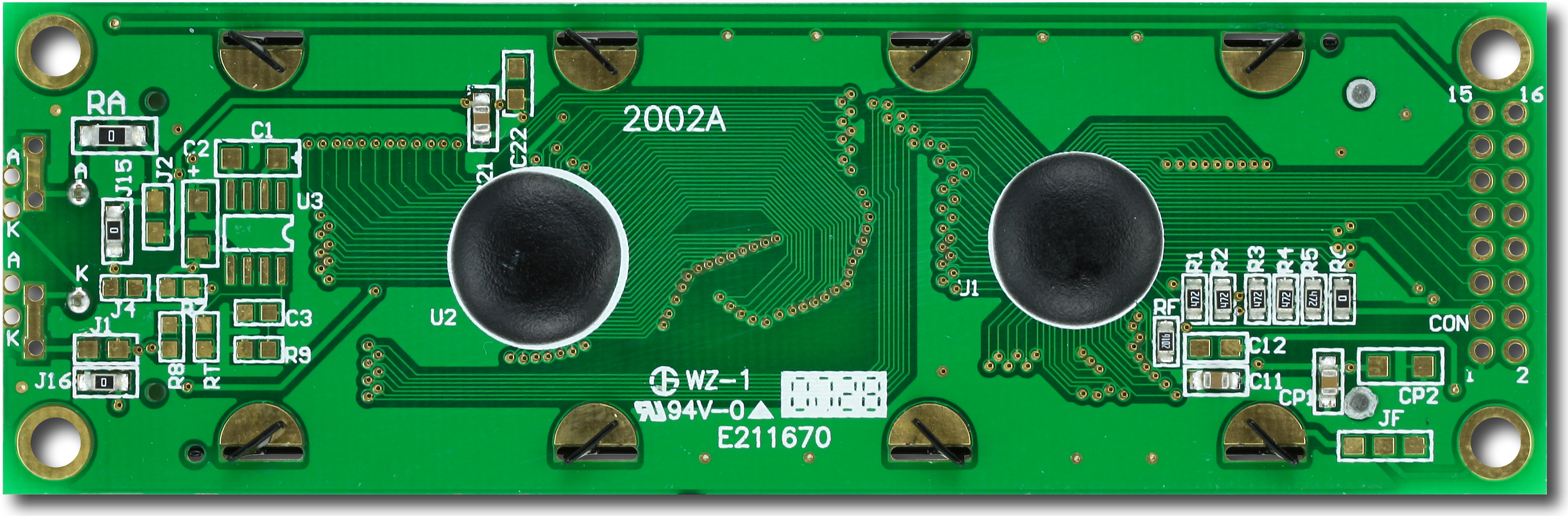

Green 20x2 Standard Character  LCDPart Number: CFAH2002A-NYG-JTParallel Character LCD 20x2, RoHS Compliant, No Backlight, STN Positive, Yellow/Green, Reflective -20°C to +70°C 6:00
Form compatible with the CFAG19232C Series of Graphic LCD modules. Upgrade your product that uses this CFAH2002A character display by switching to the graphic CFAG19232C, or, lower your costs by replacing that graphic with this character module
Available in several variations of backlight and polarizer  (minimum order may be required)
8-bit or 4-bit parallel interface
Industry-standard HD44780 compatible controller
Product VariationsColorsDark on Yellow-Green
Yellow-Green LED BacklightYellow-Green on Blue
Yellow-Green LED BacklightWhite on Blue
White LED BacklightDark on Gray
White LED BacklightBlack on Yellow-Green
Yellow-Green LED BacklightYellow-Green on Dark
Yellow-Green LED BacklightDark on Yellow-Green
No Backlight

 square_foot Physical Characteristics
Physical Characteristics

        Characters x Lines
            20 x 2


    Module Overall        width
        height
        depth


        millimeters
        116
        37
        9.5


        inches
        4.57
        1.46
        0.37



    PCB Outline        width
        height
        depth


        millimeters
        116
        37
        9.5


        inches
        4.57
        1.46
        0.37



        Diagonal Dimension
            2.93"


    Viewing Area        Width
        Height


        millimeters
        85
        18.6


        inches
        3.35
        0.73



    Active Area        Width
        Height


        millimeters
        73.5
        11.5


        inches
        2.89
        0.45



    Character Size        Width
        Height


        millimeters
        3.2
        5.55


        inches
        0.126
        0.219



    Character Pitch        Width
        Height


        millimeters
        3.7
        5.95


        inches
        0.146
        0.234



    Dot Size        Width
        Height


        millimeters
        0.6
        0.65


        inches
        0.024
        0.026



    Dot Pitch        Width
        Height


        millimeters
        0.65
        0.7


        inches
        0.026
        0.028



        Weight
            52g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Yellow-Green
Polarizer
            Reflective
View Direction
            6 o'clock
Sunlight Readable
            Yes


        Mode
            Positive
Foreground Color
            Dark
Background Color
            Yellow-Green

 electric_bolt Electrical Specification
Electrical Specifications

        Module Connector Pitch
            0.1mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -20°
        70°


        Fahrenheit
        -4°
        158°



    Storage Temperatures        min
        max


        Celsius
        -30°
        80°


        Fahrenheit
        -22°
        176°



    Humidity        min
        max


        Non-condensing
        0%
        90%


 cable Electronics
Electronics

        Controller Documents
            Sitronix ST7066U
Dot Matrix LCD Controller/Driver
Interface
            4-bit Parallel, 8-bit Parallel

picture_as_pdf Datasheets
picture_as_pdfCFAH2002ANYGJT Datasheet

download Files and Downloads
folder_zip CAD Export - CFAH2002A 2D CAD
picture_as_pdf 1 to 1 Template - CFAH2002A 1 TO 1.PDF
assured_workload Compliance Documents

picture_as_pdf Declaration
                                    of Conformity RoHS2
picture_as_pdf Declaration
                                    of Conformity REACH









Need a written quote? Add to cart, then enter
                            your email address in the "request a quote" box.
Quantity:


Price:



            Quantity
            Unit Price


            1
            $10.24

            10
            $9.00

            20
            $8.74

            50
            $8.42

            100
            $8.31

            200
            $8.26

            300 *
            $7.81

            500 *
            $7.76

            1000 *
            $7.18

211 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
Compatible Software
CFAHWINTEST

Colors	Dark on Yellow-Green Yellow-Green LED Backlight Yellow-Green on Blue Yellow-Green LED Backlight White on Blue White LED Backlight Dark on Gray White LED Backlight Black on Yellow-Green Yellow-Green LED Backlight Yellow-Green on Dark Yellow-Green LED Backlight Dark on Yellow-Green No Backlight

Module Overall	width	height	depth
millimeters	116	37	9.5
inches	4.57	1.46	0.37

PCB Outline	width	height	depth
millimeters	116	37	9.5
inches	4.57	1.46	0.37

Viewing Area	Width	Height
millimeters	85	18.6
inches	3.35	0.73

Active Area	Width	Height
millimeters	73.5	11.5
inches	2.89	0.45

Character Size	Width	Height
millimeters	3.2	5.55
inches	0.126	0.219

Character Pitch	Width	Height
millimeters	3.7	5.95
inches	0.146	0.234

Dot Size	Width	Height
millimeters	0.6	0.65
inches	0.024	0.026

Dot Pitch	Width	Height
millimeters	0.65	0.7
inches	0.026	0.028

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Quantity	Unit Price
1	$10.24
10	$9.00
20	$8.74
50	$8.42
100	$8.31
200	$8.26
300 *	$7.81
500 *	$7.76
1000 *	$7.18

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Product Update #10941: The parts listed are being updated.

Products Affected:	CFAH2002A-NGG-JT, CFAH2002A-NYG-JT, CFAH2002A-NYG-JTV, CFAH2002A-TFH-JT, CFAH2002A-TMI-JT, CFAH2002A-YMI-JT, CFAH2002A-YYH-JT, CFAH2002A-YYH-JTV
Date Issued:	March 23, 2018
Summary:	The parts listed are being updated.
Description:	The PCB will be revised to improve manufacturability and performance. The PCB will be marked as REV Q.
Reason:	Continuous product improvement
Impact:	There is no impact. The functionality of the module will not change.
Recommendation:	None
Availability:	Modules with the revised PCBs will be available when current stocks are depleted.
Price Change:	TBD
Response:	None Required
