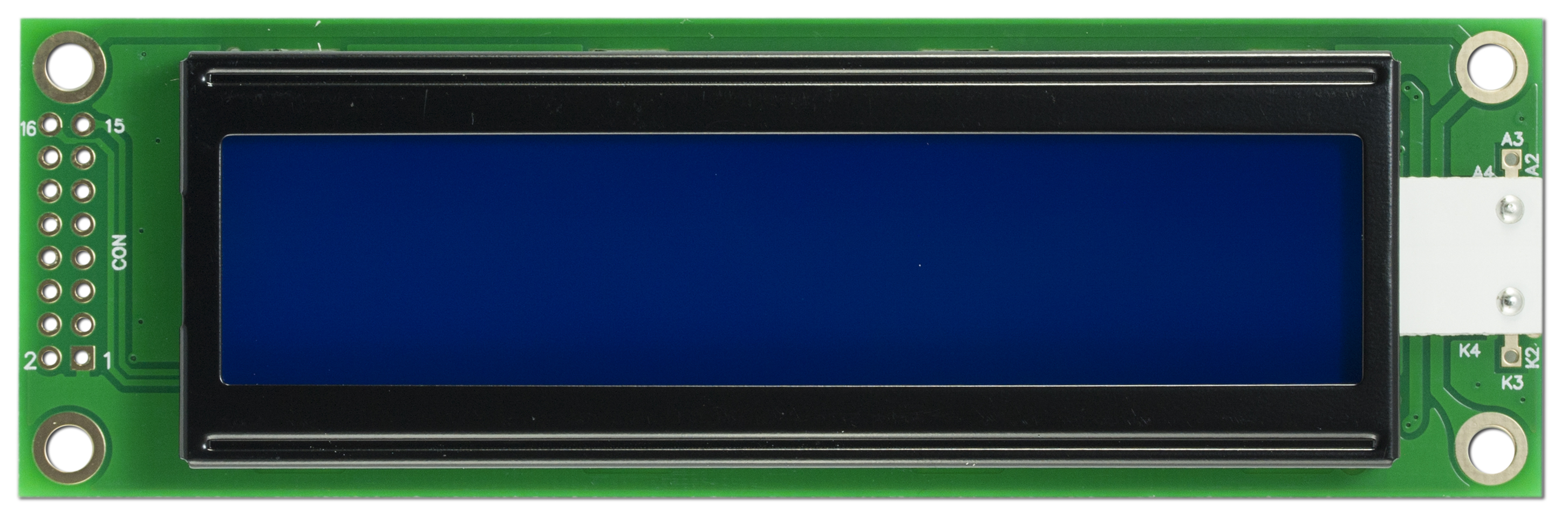

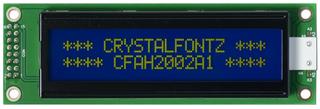

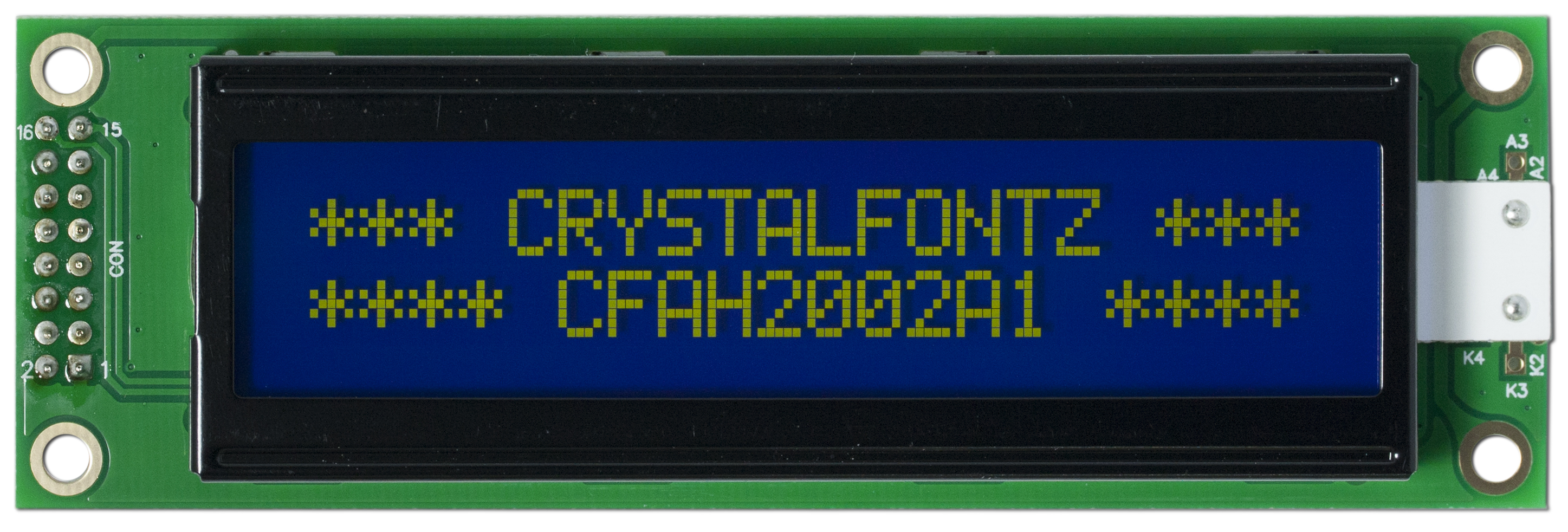

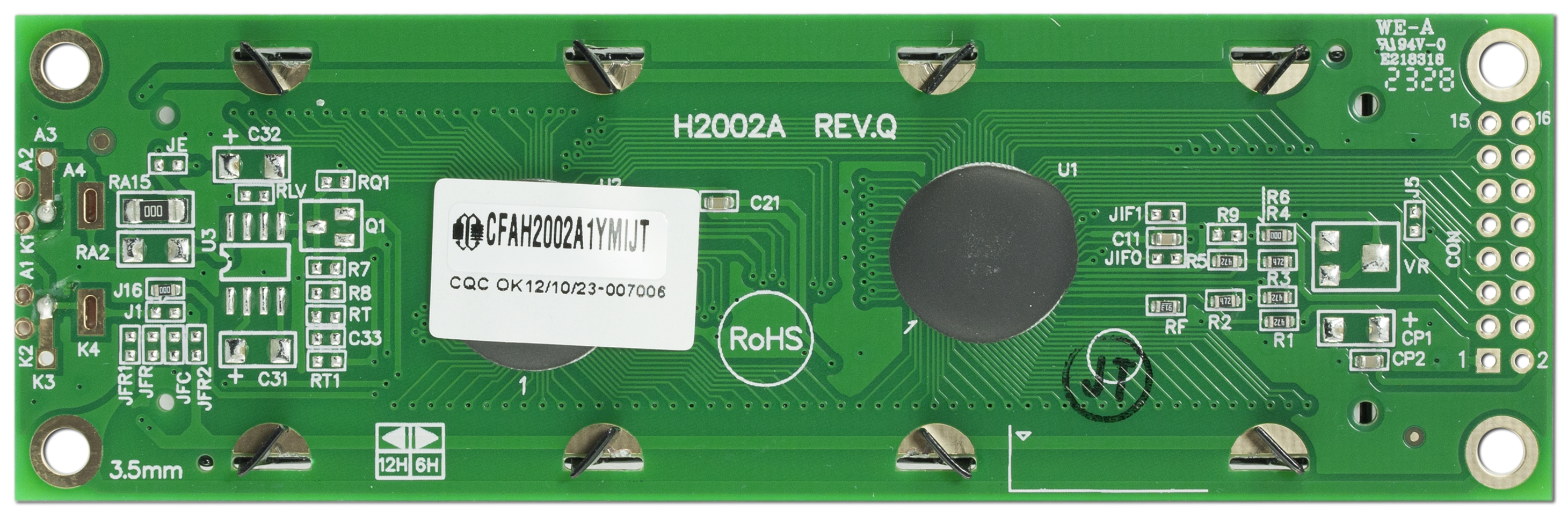

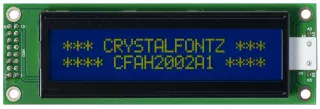

Yellow-Green 20x2 Character LCD

Part Number: CFAH2002A1-YMI-JT

This 2-row x 20-character display has yellow characters on a dark background. The 2x8 0.1" header makes it easy to integrate this display into your product. Plus, this character LCD has a Sitronix ST7066U controller, which is compatible with most character display controllers. That means existing code libraries will be easy to use with this display.

• Yellow/Green LED Backlight
• 6:00 o'clock view direction.
• 8-bit or 4-bit parallel interface.
• Industry-standard Hitachi HD44780 compatible controller: (Sitronix ST7066U)
• Operating temperature range is from -20°C to +70°C.

If you use this character module and want to upgrade to a graphic module we recommend the CFAG19232C Series of graphic LCDs.

CFA - Crystalfontz America
H - Character Display
2002 - 20 characters by 2 rows
A1 - Family and revision (replaces CFAH2002A-YMI-JT)
Y - Yellow LED backlight
M - STN Negative, Blue
I - Transmissive, 6:00 viewing direction, -20°C to +70°C operating temperature
JT - English and Japanese font table

• square_foot Physical Characteristics

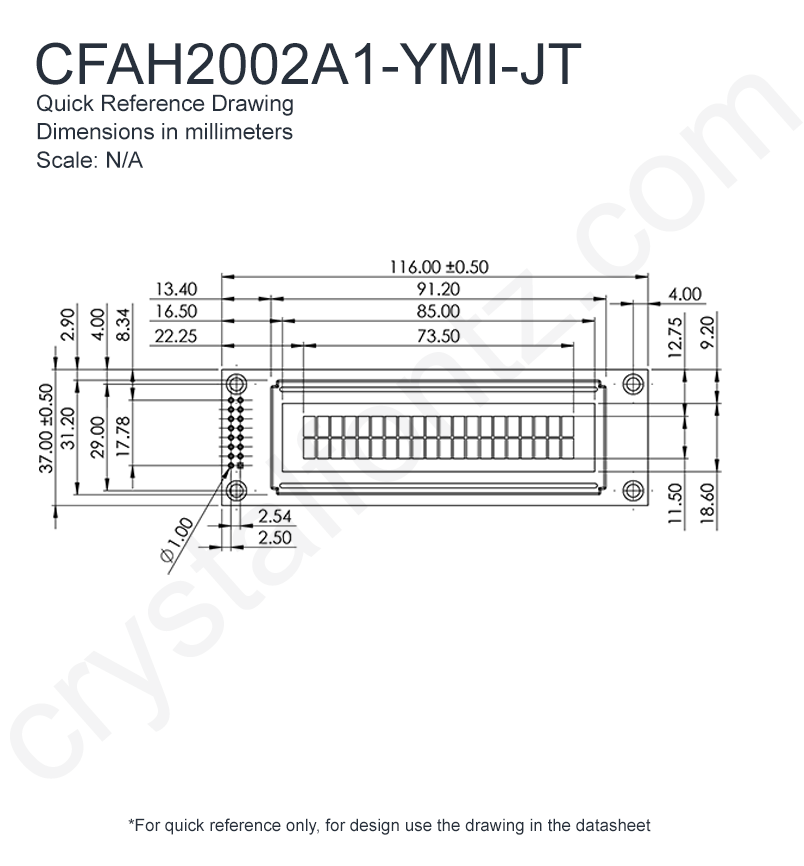

  Physical Characteristics

  Characters x Lines

  20 x 2

  Module Overall	width	height	depth
  millimeters	116	37	13.9
  inches	4.57	1.46	0.55

  Viewing Area	Width	Height
  millimeters	85	18.6
  inches	3.35	0.73

  Active Area	Width	Height
  millimeters	73.5	11.5
  inches	2.89	0.45

  Character Size	Width	Height
  millimeters	3.2	5.55
  inches	0.126	0.219

  Character Pitch	Width	Height
  millimeters	3.7	5.95
  inches	0.146	0.234

  Dot Size	Width	Height
  millimeters	0.6	0.65
  inches	0.024	0.026

  Dot Pitch	Width	Height
  millimeters	0.65	0.7
  inches	0.026	0.028

  Weight	52g
  Pin Count	16

• visibility Optical Characteristics

  Optical Characteristics

  Glass Type	STN
  Polarizer	Transmissive
  View Direction	6 o'clock
  View Angle	60°
  Sunlight Readable	Yes

  Backlight Color	Yellow-Green
  Backlight Type	LED
  Mode	Negative
  Foreground Color	Yellow-Green
  Background Color	Blue

• electric_bolt Electrical Specification

  Electrical Specifications

  Supply Voltage for Logic Minimum	4.5V
  Supply Voltage for Logic Maximum	5.5V
  Supply Voltage for Logic Typical	5V
  Supply Voltage for Driving Panel Typical	4.35V

  Supply Current Minimum	1mA
  Supply Current Maximum	1.5mA
  Supply Current Typical	1.2mA
  Module Connector Pitch	2.54mm

• electric_bolt Backlight Specification

  Backlight Electrical Specifications

  Forward Voltage Minimum	4V
  Forward Voltage Maximum	4.4V
  Forward Voltage Typical	4.2V

  Forward Current Minimum	168mA
  Forward Current Maximum	252mA
  Forward Current Typical	210mA

• nature Environmental

  Environmental

  Operating Temperatures	min	max
  Celsius	-20°	70°
  Fahrenheit	-4°	158°

  Storage Temperatures	min	max
  Celsius	-30°	80°
  Fahrenheit	-22°	176°

• cable Electronics

  Electronics

  Controller Documents	Sitronix ST7066U Dot Matrix LCD Controller/Driver
  Interface	4-bit Parallel, 8-bit Parallel

• picture_as_pdf Datasheets
  picture_as_pdf

  CFAH2002A1-YMI-JT Datasheet




• download Files and Downloads
  link Demo Code Repository on Github

• assured_workload Compliance Documents
  picture_as_pdf Declaration of Conformity RoHS2

  picture_as_pdf Declaration of Conformity REACH
