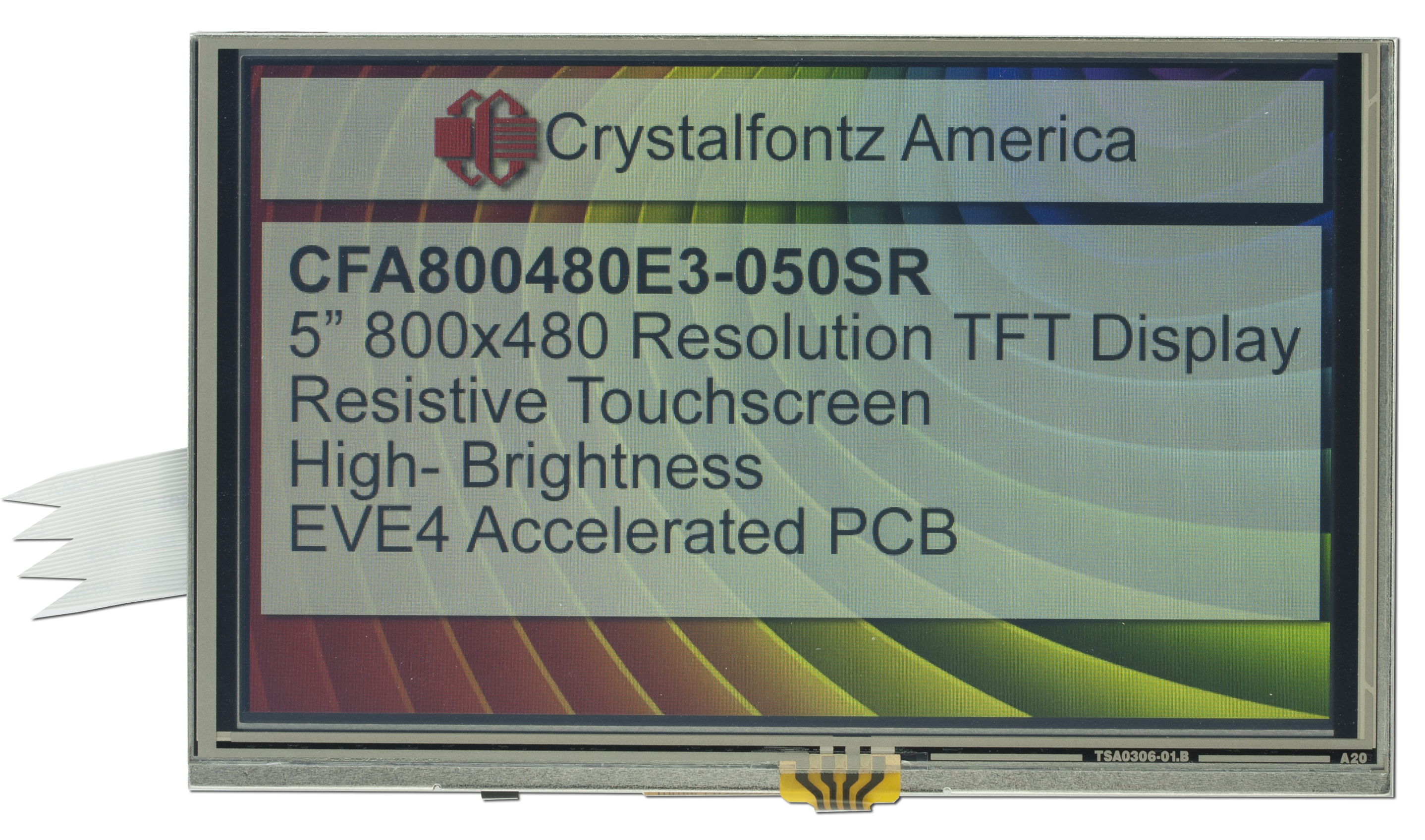

5" Resistive Touchscreen EVE Development KitPart Number: CFA800480E3-050SR-KIT

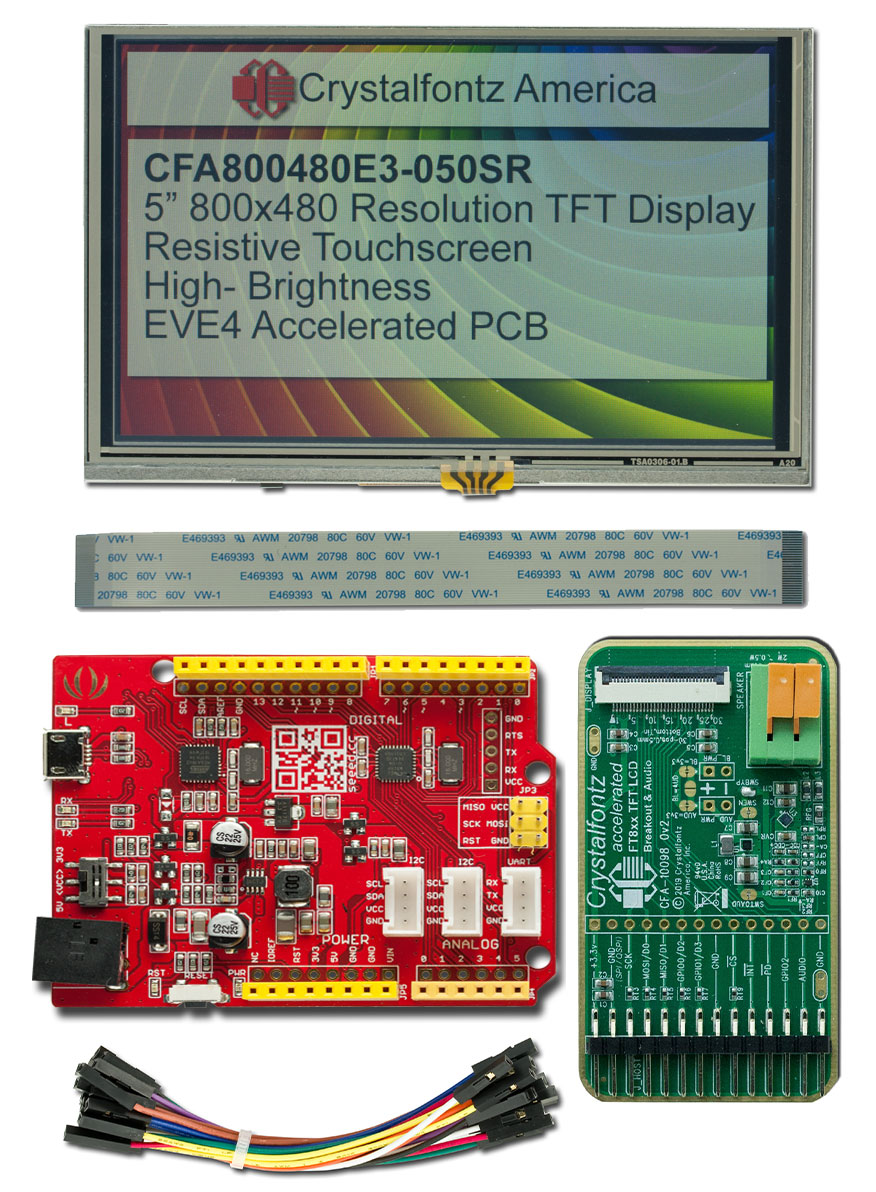

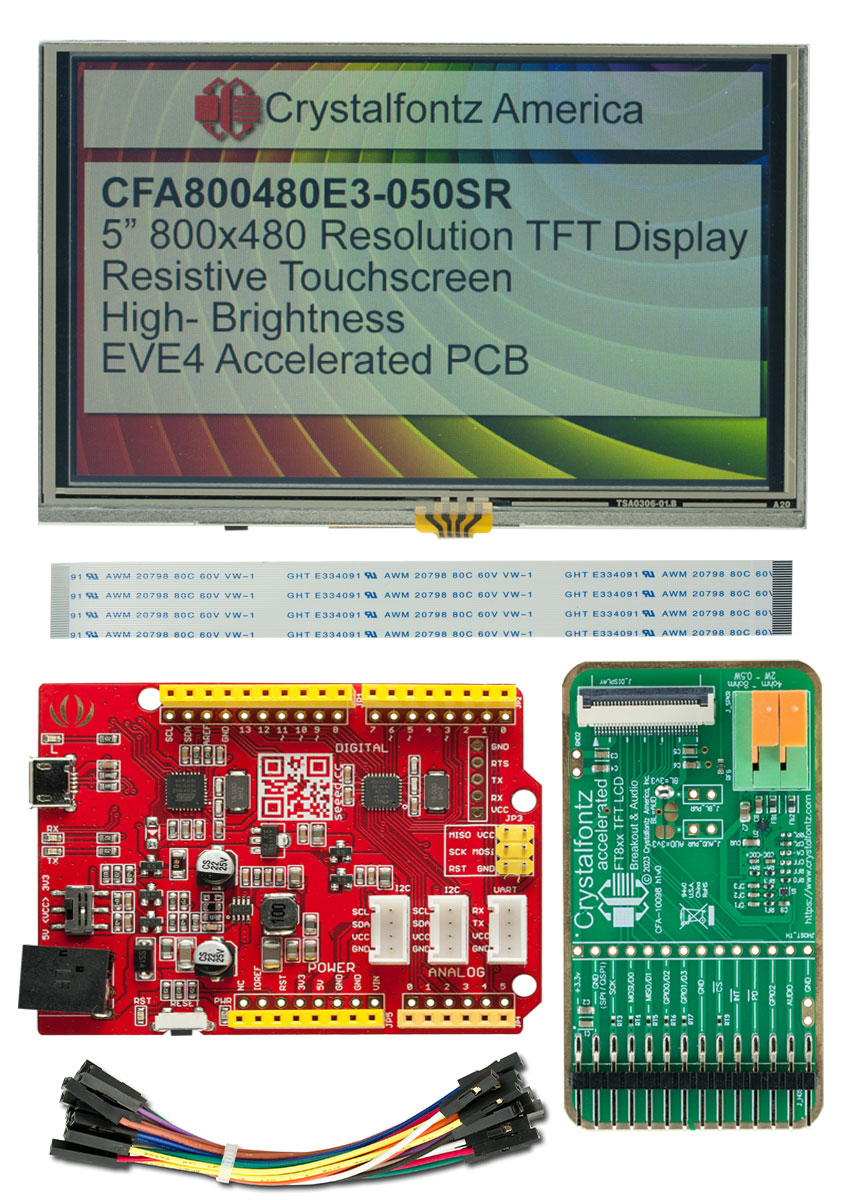

                        This full Seeeduino development kit for the 5" resistive touch EVE display module makes it easy to start developing or tinkering with the EVE module. It includes the display wired up and a Seeeduino loaded with a demo sketch, so once power is applied, you can see the display in action.

Key features:
Seeeduino demo kit including an EVE breakout board, all wires/headers required, the Seeeduino, and display module
Graphics accelerating BT817 chip for easy graphics control
Sunlight Readable
SPI interface
IPS
Full color TFT
Resistive Touchscreen
Product VariationsTouchscreenCapacitive Extended GlassResistiveNoneCapacitive

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            800 x 480

    Module Overall        width
        height
        depth

        millimeters
        193.2
        75.8
        8.75

        inches
        7.61
        2.98
        0.34

        Diagonal Dimension
            5"

    Viewing Area        Width
        Height

        millimeters
        110
        66.8

        inches
        4.33
        2.63

    Active Area        Width
        Height

        millimeters
        108
        64.8

        inches
        4.25
        2.55

    Dot Pitch        Width
        Height

        millimeters
        0.135
        0.135

        inches
        0.0053
        0.0053

        Weight
            100g
Pin Count
            30

 visibility Optical Characteristics
Optical Characteristics

        Glass Type
            TFT
Polarizer
            Transmissive
View Angle
            160°
Sunlight Readable
            Yes

        Backlight Color
            White
Backlight Type
            LED
Foreground Color
            RGB
Background Color
            Dark

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            3V
Supply Voltage for Logic Maximum
            3.6V

        Supply Voltage for Logic Typical
            3.3V
Supply Current Typical
            20mA

 electric_bolt Backlight Specification
Backlight Electrical Specifications

        Forward Voltage Minimum
            2.7V
Forward Voltage Maximum
            5.5V
Forward Voltage Typical
            5V

        Forward Current Minimum
            70mA
Forward Current Maximum
            140mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

 cable Electronics
Electronics

        Controller Documents
            Bridgetek BT81x
BT817/8 Advanced

Embedded Video

Engine Datasheet
Interface
            SPI

picture_as_pdf Datasheets
picture_as_pdfCFA800480E3-050Sx Series Datasheet

download Files and Downloads
picture_as_pdf Other Document - ESP32 and XIAO App Note for CFA10100 boards
picture_as_pdf Other Document - Getting Started Guide
link Demo Code Repository on Github

Need a written quote? Add to cart, then enter
                            your email address in the "request a quote" box.
Quantity:

Price:

            Quantity
            Unit Price

            1 *
            $121.23

0 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
* Sign up to be notified when we these are back in-stock.
Other components worth
                    considering

						5" 800x480 Resistive Touchscreen TFT with EVE
Add an additional EVE Display? $77.73 ea.

						USB-A to Micro-B Cable
Need a USB Cable? $5.75 ea.

						MicroSD Card Reader
Need a MicroSD Card Reader? $8.14 ea.

						12-inch 30-pin FFC
Add a ribbon cable? $2.30 ea.

Module Overall	width	height	depth
millimeters	193.2	75.8	8.75
inches	7.61	2.98	0.34

Viewing Area	Width	Height
millimeters	110	66.8
inches	4.33	2.63

Active Area	Width	Height
millimeters	108	64.8
inches	4.25	2.55

Dot Pitch	Width	Height
millimeters	0.135	0.135
inches	0.0053	0.0053

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Quantity	Unit Price
1 *	$121.23

Additional Options
Notices

Additional Options

Purchase the EVE-powered TFT display module separately.

5" 800x480 Resistive Touchscreen TFT with EVE
Part Number: CFA800480E3050SR

Details

Quantity	1 *	10 *	20 *	50 *	100 *	200 *	300 *	500 *	1000 *
Unit Price	$77.73	$75.51	$73.28	$70.62	$69.73	$69.29	$68.40	$67.95	$67.51

Quantity:

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #11316: Manufacturing Location Change

Products Affected:	CFA800480E3050SR, CFA800480E3-050SR-KIT
Date Issued:	January 22, 2025
Summary:	Manufacturing Location Change
Description:	The manufacturing location is changing for the displays. The new materials used cause the metal bezel to appear slightly different and the TFT color tones to appear warmer.
Reason:	The manufacturing location is changing for the displays.
Impact:	Warmer tones when displaying images Metal Bezel is slightly darker
Availability:	Contact Crystalfontz Support for up-to-date information by emailing support@crystalfontz.com.

Product Update #11220: Changing Manufacturing Facility

Products Affected:	WR-FFC-Y50, CFAF320240F-035T-TS-A1-2, CFAF320240F-035T-A1-2, CFAF480128A0-039TN-A1-2, CFAF1024600B0-070SC-A1-2, CFA240320E0-024SC-KIT, CFA240320E0-024SN-KIT, CFA480128E0-039TC-KIT, CFA800480E3-050SC-KIT, CFA800480E3-050SN-KIT, CFA800480E3-050SR-KIT, CFA800480E3-050SW-KIT
Date Issued:	August 7, 2023
Summary:	Changing Manufacturing Facility
Description:	The WR-FFC-Y50 will be manufactured at a different facility. There are no changes to the functionality of the Flat Flex Cable.
Reason:	Continuous improvement
Availability:	Contact Crystalfontz Support for up-to-date information by emailing support@crystalfontz.com.

Part Change Notice #11209: 5" Resistive Touchscreen EVE Development Kit is now available

New Product:	CFA800480E3-050SR-KIT
Date Issued:	June 28, 2023
Summary:	5" Resistive Touchscreen EVE Development Kit is now available
Description:	CFA800480E3-050SR-KIT has been released on our website (https://www.crystalfontz.com/product/cfa800480e3050srkit-5-inch-resitive-touchscreen-eve-dev-kit) and is now available for sale. Orders can be placed directly from our website or by submitting a purchase order to sales@crystalfontz.com. Contact support@crystalfontz.com for any technical questions.

Part Change Notice #11202: Audio Power Supply Removed

Products Affected:	CFA10098, CFAF240400C0-030SC-A1-2, CFAF320240F-035T-A1-2, CFAF480128A0-039TN-A1-2, CFAF1024600B0-070SC-A1-2, CFA240320E0-024SC-KIT, CFA240320E0-024SN-KIT, CFA480128E0-039TC-KIT, CFA240400E1-030TC-KIT, CFA240400E1-030TN-KIT, CFA800480E3-050SC-KIT, CFA800480E3-050SN-KIT, CFA800480E3-050SR-KIT, CFA800480E3-050SW-KIT
Date Issued:	May 25, 2023
Summary:	Audio Power Supply Removed
Description:	The audio power supply has been removed from the board. Audio power will now only be able to be supplied externally. Hardware Version Changes: h0v2 to h1v0
Reason:	The audio power supply chip is no longer available and it was determined that it would be better for external power supplies to be used to demonstrate the EVE's audio capabilities.
Availability:	Contact Crystalfontz Support for up-to-date information by emailing support@crystalfontz.com.

Part Change Notices

Subscribe to Part Change Notices by
email or RSS for CFA800480E3-050SR-KIT
