800x480 5" EVE Display Dev KitPart Number: CFA800480E3-050SN-KIT

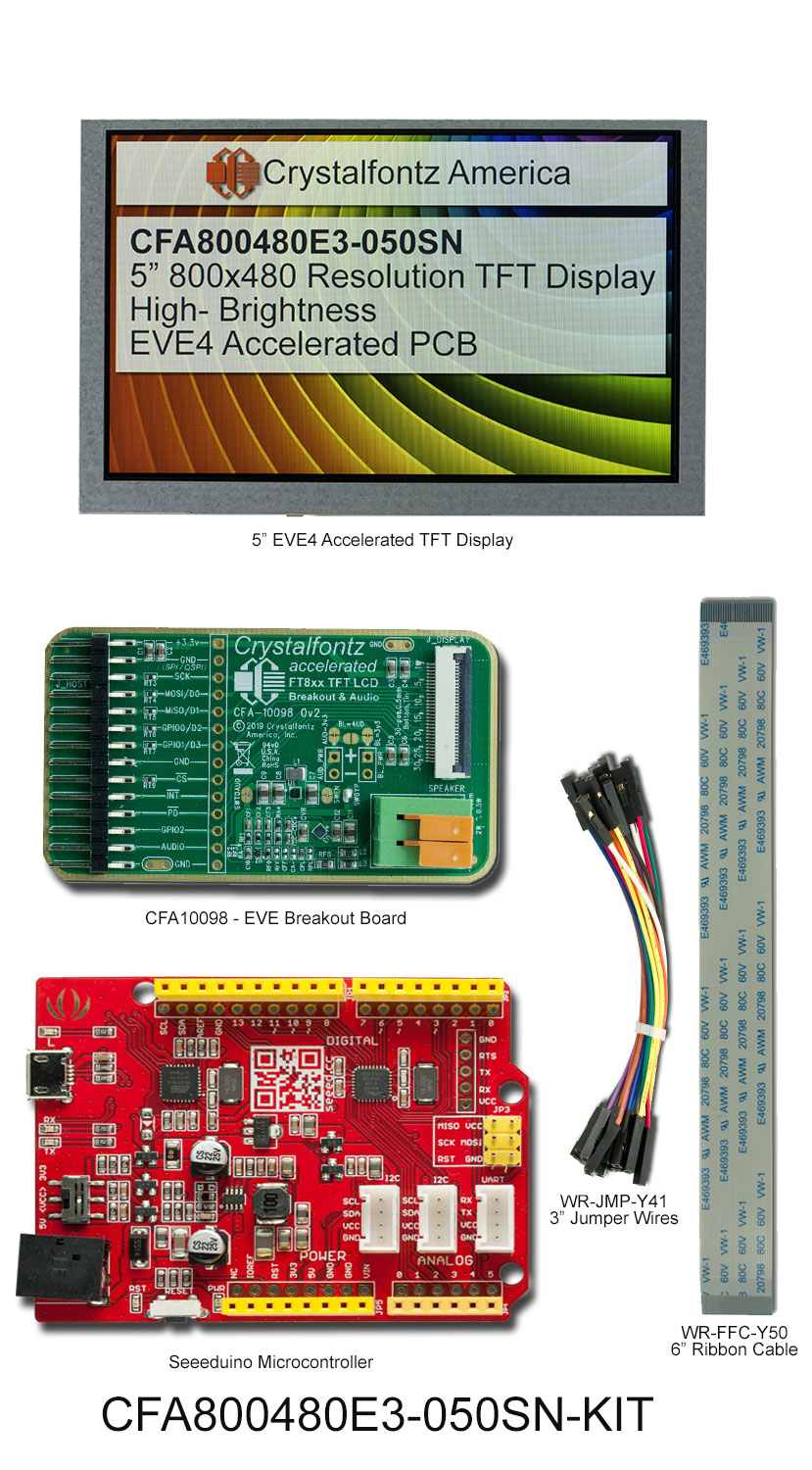

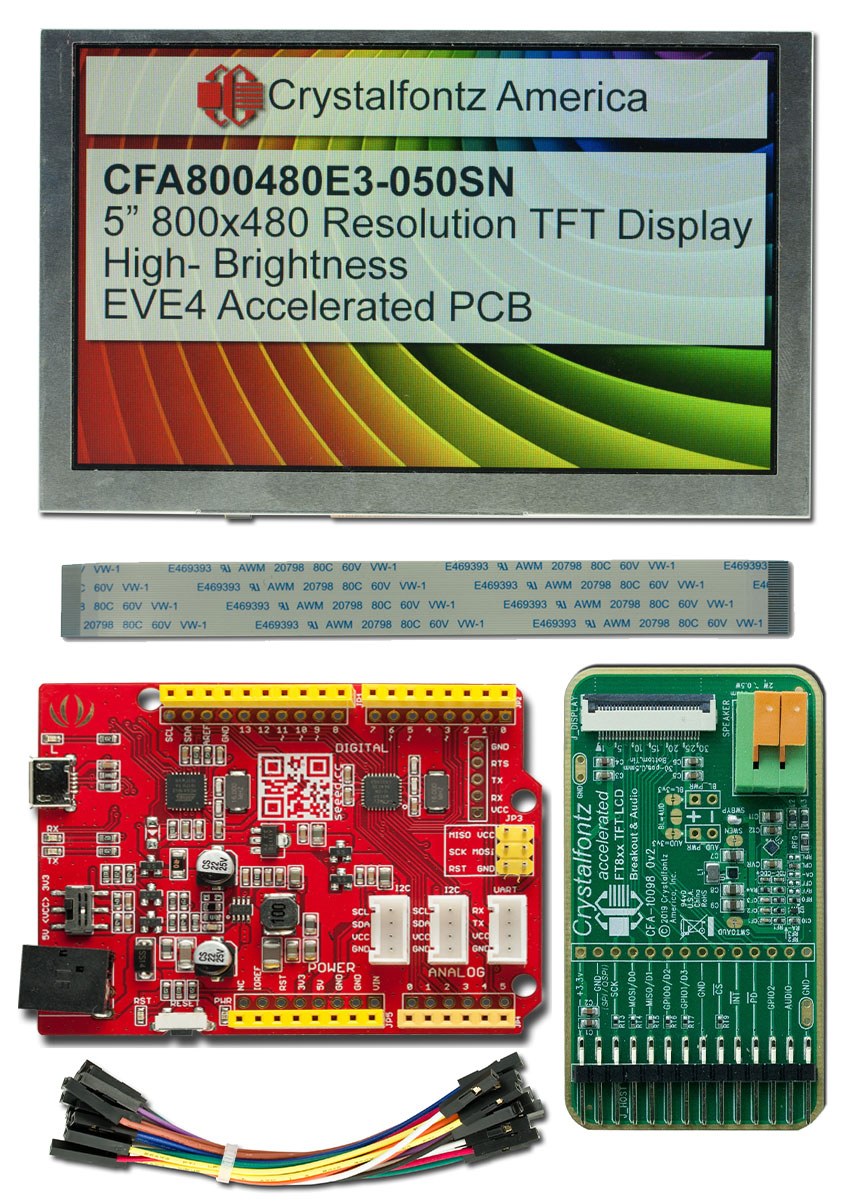

                        This development kit makes getting started with the 5" EVE module as easy as can be. The kit includes the fantastic 5" TFT EVE display module, an EVE breakout board, and a Seeeduino wired together and running a demonstration for the display. This display is sunlight readable and requires more current for the backlight than the Seeeduino can supply, so the demonstration requires that you supply power to the breakout board to power the display backlight.

In addition to being sunlight-readable, the included display is IPS, so it has extremely wide viewing angles. Additionally, the module includes the BT817 EVE chip. Read more about the benefits of EVE displays on our blog.

This part is a replacement for the CFAF800480E1-050SN-A2-2. For more information, please see the PCN that describes the change.

Features to note:
5" EVE TFT Display
Sunlight readable (1000 nits)
IPS
TFT
16M colors
Bridgetek's BT817 EVE integrated
4-wire SPI / Quad SPI
Needs only an external 5V supply to function out of the box
Product VariationsTouchscreenCapacitive Extended GlassResistiveNoneCapacitive

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            800 x 480

    Module Overall        width
        height
        depth

        millimeters
        120.7
        78.8
        8.75

        inches
        4.75
        3.10
        0.34

        Diagonal Dimension
            5"

    Viewing Area        Width
        Height

        millimeters
        110
        66.8

        inches
        4.33
        2.63

    Active Area        Width
        Height

        millimeters
        108
        64.8

        inches
        4.25
        2.55

    Dot Pitch        Width
        Height

        millimeters
        0.135
        0.135

        inches
        0.0053
        0.0053

        Weight
            179.4g
Pin Count
            30

 visibility Optical Characteristics
Optical Characteristics

        Glass Type
            TFT
Polarizer
            Transmissive
View Direction
            12 o'clock
View Angle
            160°
Sunlight Readable
            Yes

        Backlight Color
            White
Backlight Type
            LED
Foreground Color
            RGB
Background Color
            Dark

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            3V
Supply Voltage for Logic Maximum
            3.6V

        Supply Voltage for Logic Typical
            3.3V
Supply Current Typical
            20mA

 electric_bolt Backlight Specification
Backlight Electrical Specifications

        Forward Voltage Minimum
            2.7V
Forward Voltage Maximum
            5.5V

        Forward Voltage Typical
            5V

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

 cable Electronics
Electronics

        Controller Documents
            Bridgetek BT81x
BT817/8 Advanced

Embedded Video

Engine Datasheet
Interface
            SPI

picture_as_pdf Datasheets
picture_as_pdfCFA800480E3-050Sx Series Datasheet

download Files and Downloads
picture_as_pdf Other Document - ESP32 and XIAO App Note for CFA10100 boards
picture_as_pdf Other Document - Getting Started Guide
link Demo Code Repository on Github
