5" Touchscreen EVE Development KitPart Number: CFA800480E3-050SW-KIT

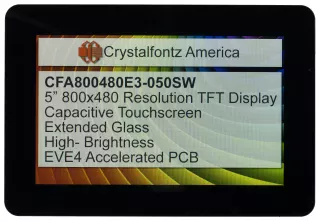

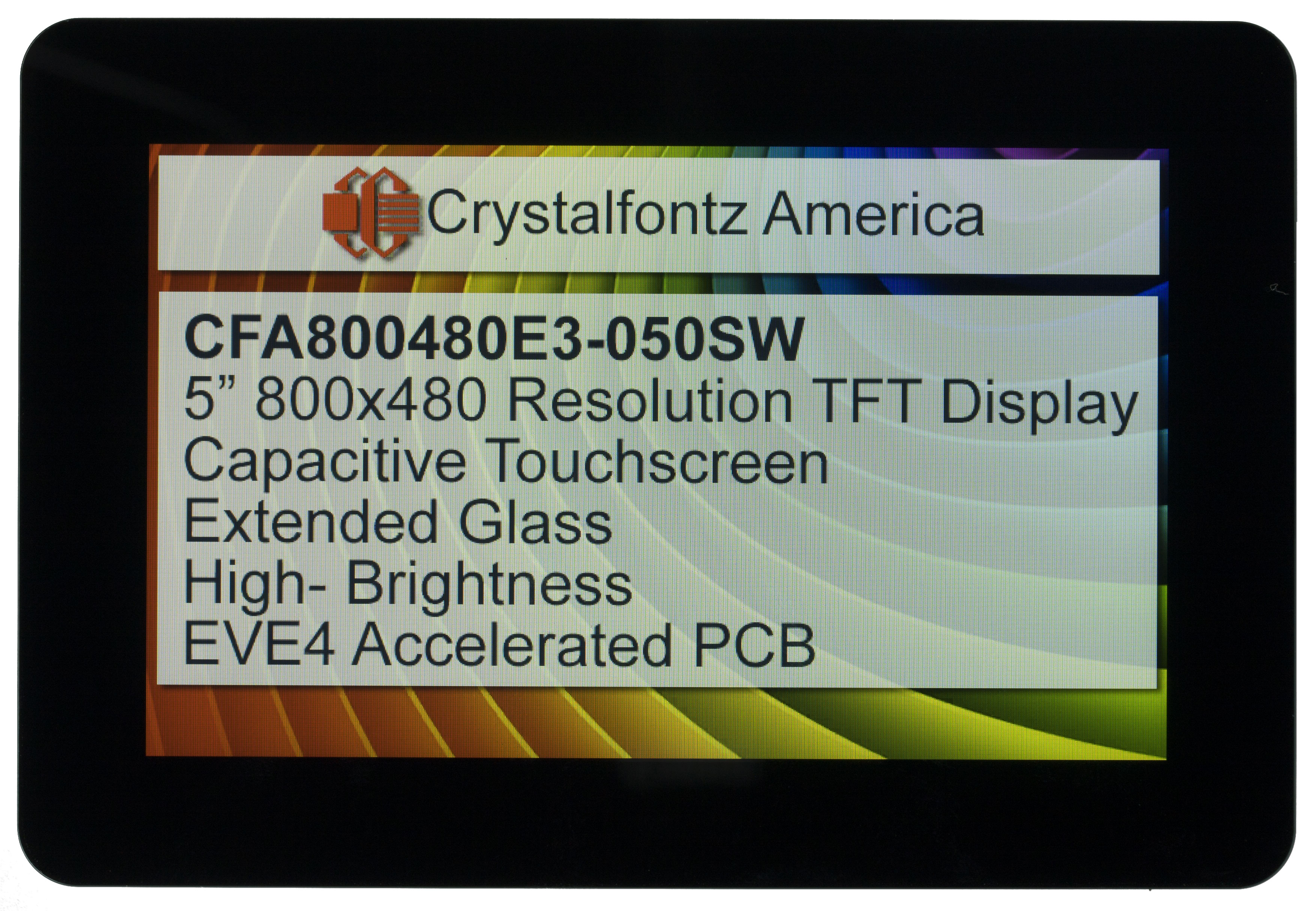

                        This Bridgetek/FTDI EVE development kit includes a 5" EVE display module with a large bezel. This kit is perfect for demonstrating the EVE module (CFAF800480E2-050SC-A2) or the base display (CFAF800480E2-050SC), simply plug the included Seeeduino to a 5v power source!

The included display is sunlight-readable, has extremely wide viewing angles, large color depth, and the touchscreen glass extends past the edge of the display for smooth mounting.

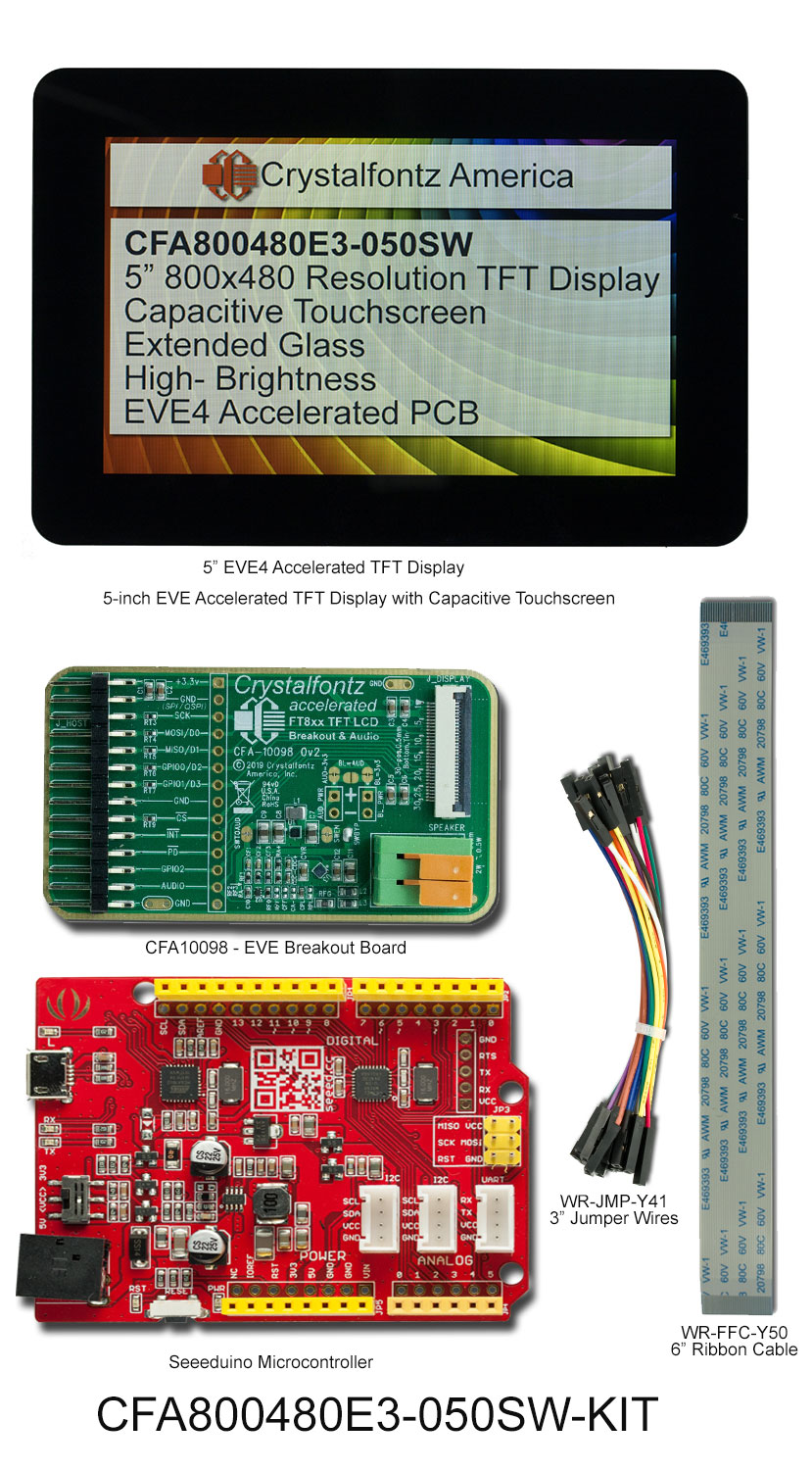

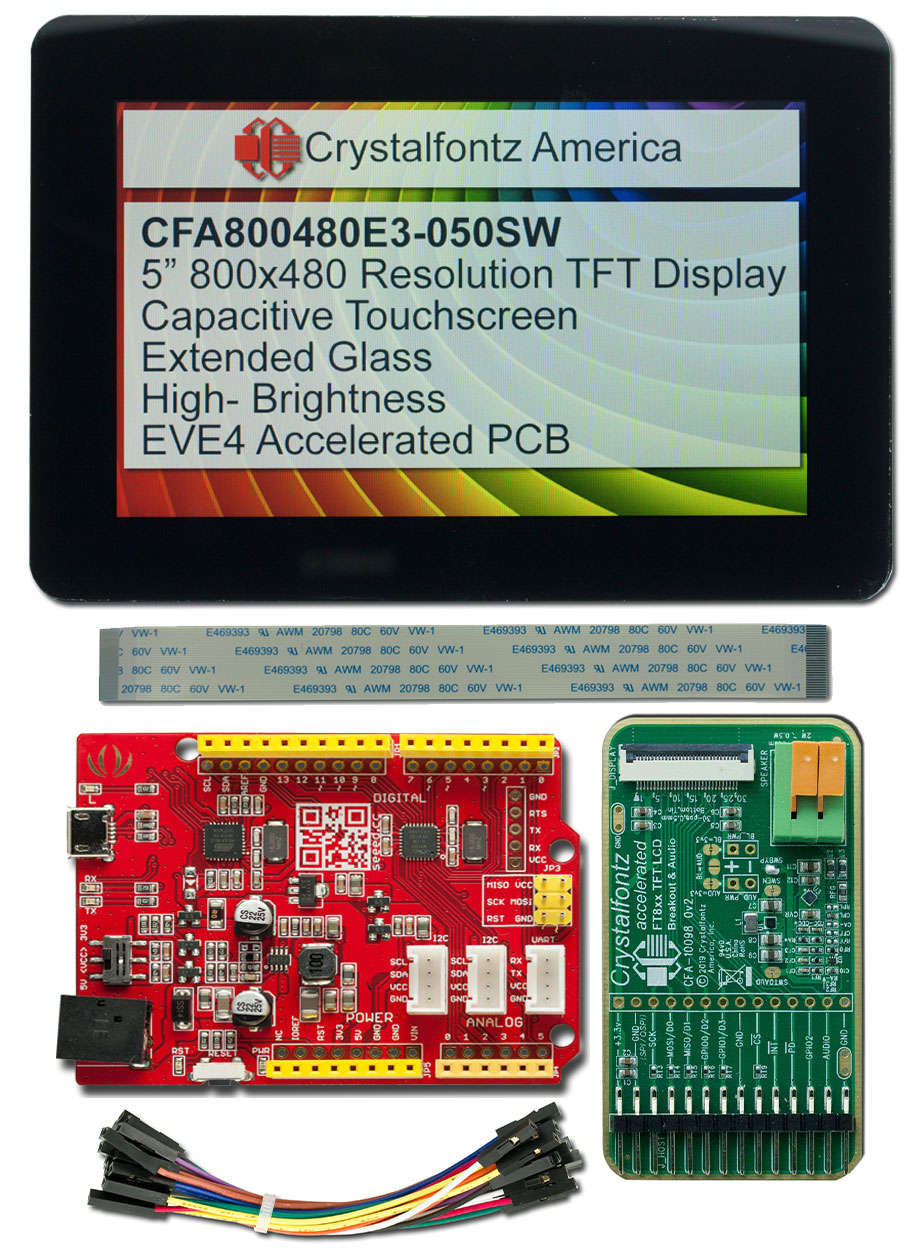

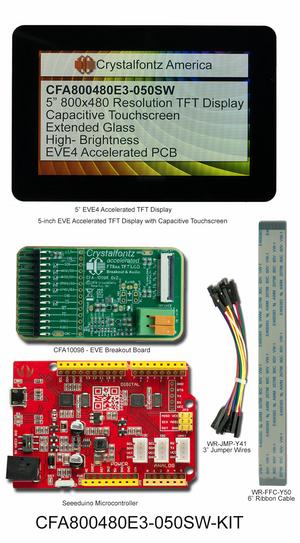

Included in this kit:
5" EVE display module with overhanging bezel
EVE Breakout Board
30-pin flat flex cable
Seeeduino with pre-loaded demo code
Necessary cables, wires, etc.


Key Features:
Overhanging capacitive touchscreen
Graphics accelerating BT817 chip for easy graphics control
Sunlight Readable
SPI interface
IPS
Full color TFT
Seeeduino demo kit including a CFA10098 and all wires/headers required
Product VariationsTouchscreenCapacitive Extended GlassResistiveNoneCapacitive

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            800 x 480


    Module Overall        width
        height
        depth


        millimeters
        120.7
        76.3
        10.75


        inches
        4.75
        3.00
        0.42



        Diagonal Dimension
            5"


    Viewing Area        Width
        Height


        millimeters
        109
        65.8


        inches
        4.29
        2.59



    Active Area        Width
        Height


        millimeters
        108
        64.8


        inches
        4.25
        2.55



    Dot Pitch        Width
        Height


        millimeters
        0.135
        0.135


        inches
        0.0053
        0.0053



        Weight
            223g
Pin Count
            30

 visibility Optical Characteristics
Optical Characteristics

        Glass Type
            TFT
Polarizer
            IPS
View Angle
            160°
Sunlight Readable
            Yes


        Backlight Color
            White
Backlight Type
            LED
Foreground Color
            RGB
Background Color
            Dark

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            3V
Supply Voltage for Logic Maximum
            3.6V


        Supply Voltage for Logic Typical
            3.3V
Supply Current Typical
            20mA

 electric_bolt Backlight Specification
Backlight Electrical Specifications

        Forward Voltage Minimum
            2.7V
Forward Voltage Maximum
            5.5V


        Forward Voltage Typical
            5V
Forward Current Typical
            70mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -20°
        70°


        Fahrenheit
        -4°
        158°



    Storage Temperatures        min
        max


        Celsius
        -30°
        80°


        Fahrenheit
        -22°
        176°


 cable Electronics
Electronics

        Controller Documents
            Bridgetek BT81x
BT817/8 Advanced

Embedded Video

Engine Datasheet
Interface
            SPI

picture_as_pdf Datasheets
picture_as_pdfCFA800480E3-050Sx Series Datasheet

download Files and Downloads
picture_as_pdf Other Document - ESP32 and XIAO App Note for CFA10100 boards
picture_as_pdf Other Document - Getting Started Guide
link Demo Code Repository on Github






Need a written quote? Add to cart, then enter
                            your email address in the "request a quote" box.
Quantity:


Price:



            Quantity
            Unit Price


            1 *
            $131.43

0 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
* Sign up to be notified when we these are back in-stock.
