      EVE Breakout Board
      Part Number: CFA10098

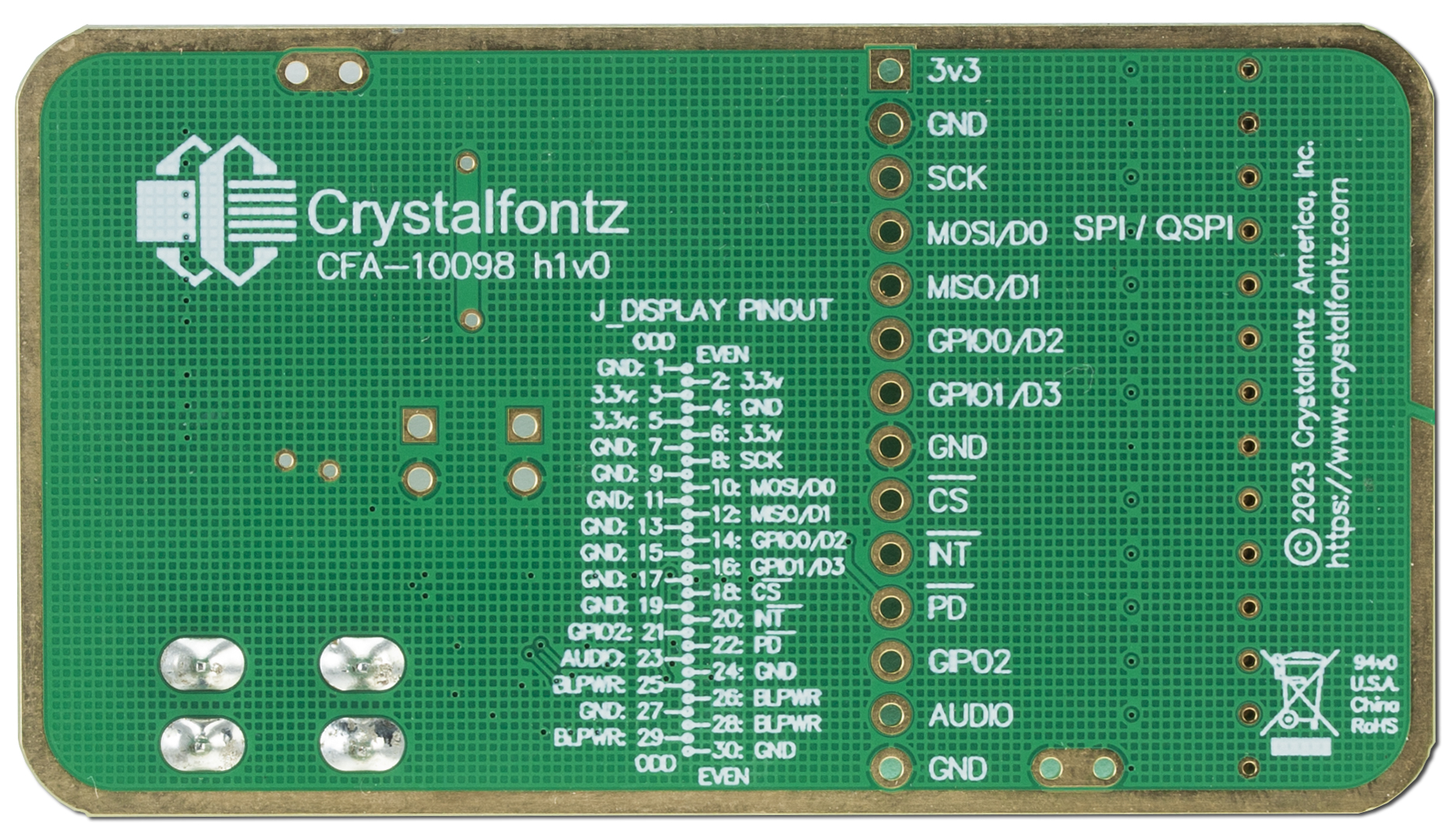

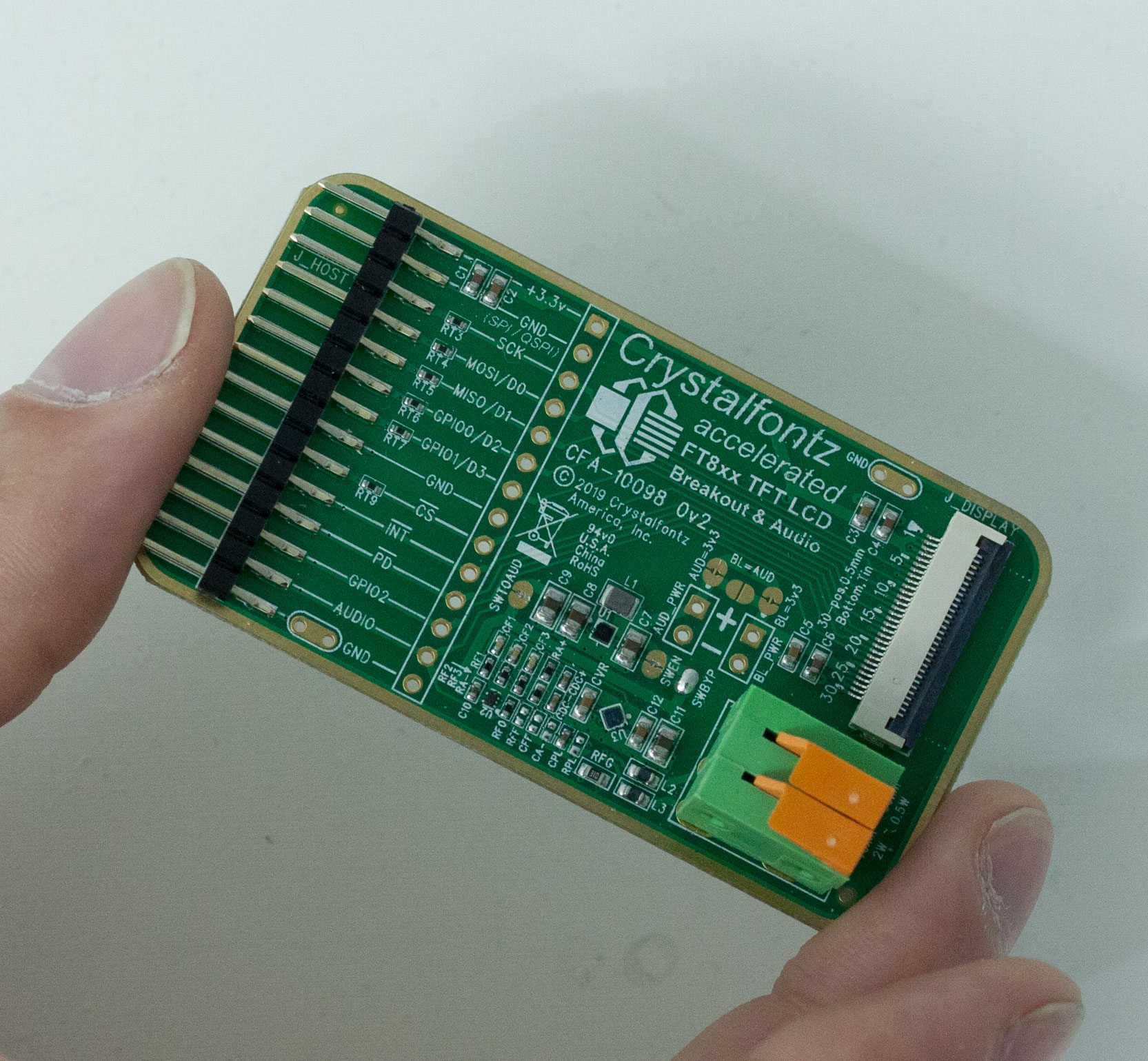

         This EVE Breakout Board simplifies connecting any of our EVE TFT displays to the controller of your choice. The 30-pin ZIF connector is reduced to a 14-pin 0.1" header that can easily be used with our jumper wires.

Add a set of jumper wires for wiring between this breakout board and your controller. The 30-pin FFC for connecting between this breakout board and any of our EVE boards is available in a 6-inch ribbon cable and a 12-inch ribbon cable.

All of our EVE TFT modules have a demonstration kit available using this PCB. We'll wire the EVE module of your choice to this breakout board and a Seeeduino so all you have to do to see a functional demonstration is apply power. If you're having trouble finding the demonstration kit you're looking for, reach out to our support team.

The schematic for this breakout board is available in the datasheet to make moving from prototyping with this board to your custom PCB as easy as possible. square_foot Physical Characteristics

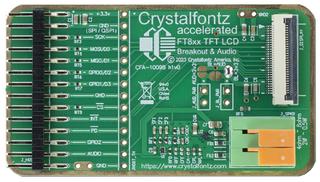

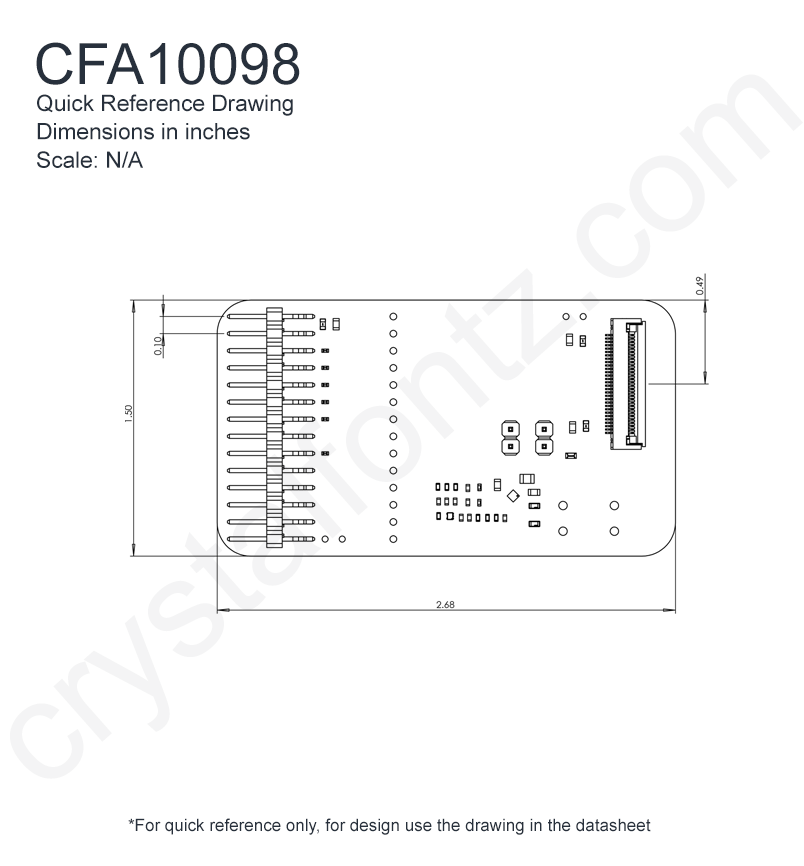

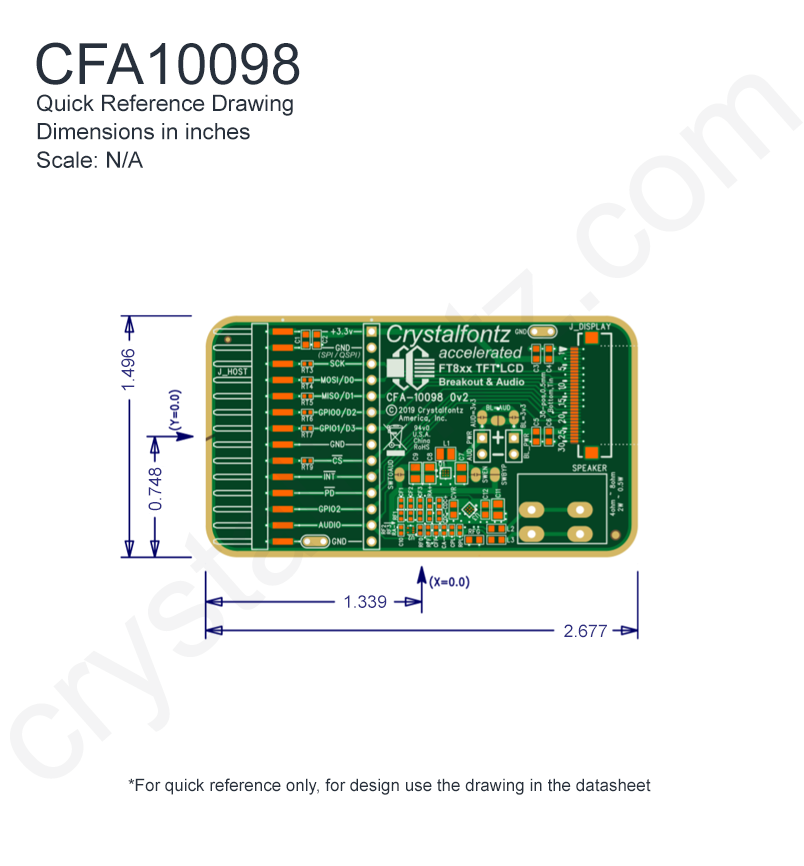

Physical Characteristics

    Module Overall        width
        height

        millimeters
        68
        38

        inches
        2.68
        1.50

        Optional Connectors
            CS050Y30TB0

        Weight
            8.6g
Pin Count
            14

 picture_as_pdf Datasheets
picture_as_pdfCFA10098 Datasheet
(Hardware 1v0)
 assured_workload Compliance Documents
 picture_as_pdf Declaration of Conformity RoHS2

Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
 Quantity:

Price:

            Quantity
            Unit Price

            1
            $24.63

            10
            $21.41

            20 *
            $20.65

            50 *
            $19.88

            100 *
            $19.57

            200 *
            $19.27

            500 *
            $14.56

            1000 *
            $12.31

10 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
Other components worth considering

						12-inch 30-pin FFC
Add a 12-inch ribbon cable? $2.30 ea.

						6-inch 30-pin FFC Cable
Add a 6-inch Ribbon Cable? $2.30 ea.

						6-inch Female to Female Jumper Wires
Add jumper wires? $2.76 ea.

Module Overall	width	height
millimeters	68	38
inches	2.68	1.50

Quantity	Unit Price
1	$24.63
10	$21.41
20 *	$20.65
50 *	$19.88
100 *	$19.57
200 *	$19.27
500 *	$14.56
1000 *	$12.31

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

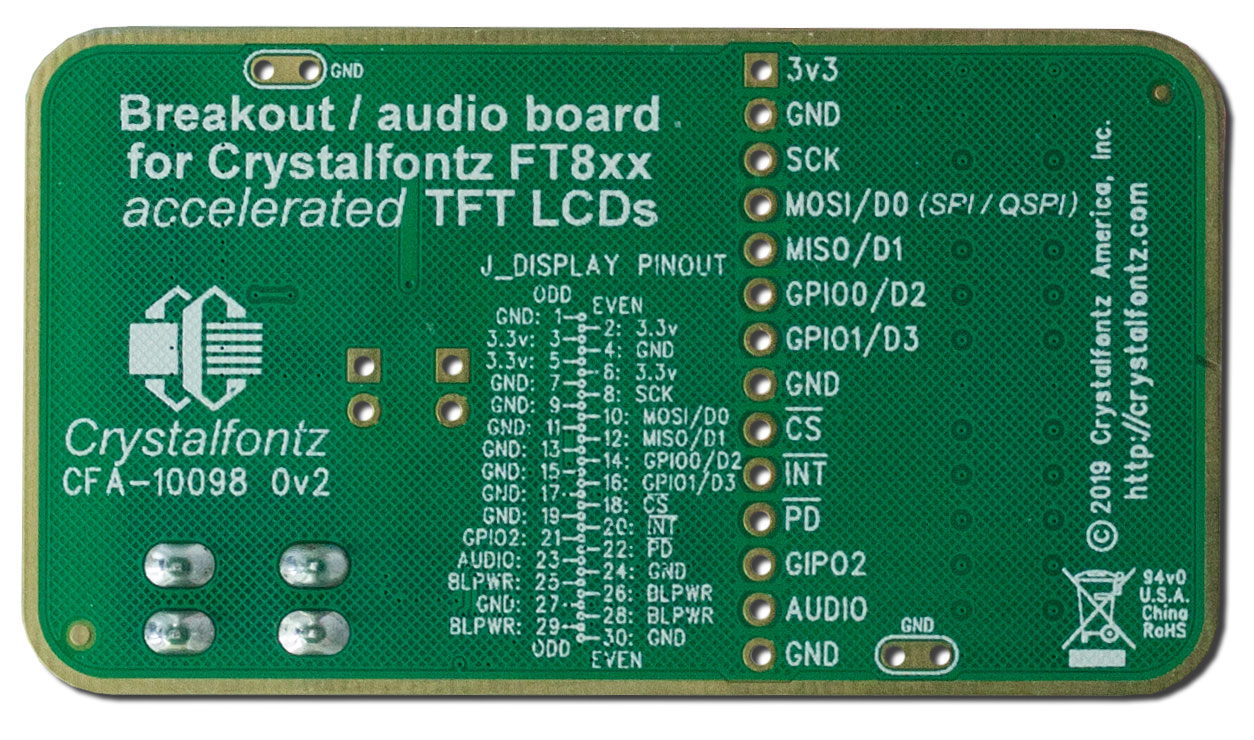

Part Change Notice #11202: Audio Power Supply Removed

Products Affected:	CFA10098, CFAF240400C0-030SC-A1-2, CFAF320240F-035T-A1-2, CFAF480128A0-039TN-A1-2, CFAF1024600B0-070SC-A1-2, CFA240320E0-024SC-KIT, CFA240320E0-024SN-KIT, CFA480128E0-039TC-KIT, CFA240400E1-030TC-KIT, CFA240400E1-030TN-KIT, CFA800480E3-050SC-KIT, CFA800480E3-050SN-KIT, CFA800480E3-050SR-KIT, CFA800480E3-050SW-KIT
Date Issued:	May 25, 2023
Summary:	Audio Power Supply Removed
Description:	The audio power supply has been removed from the board. Audio power will now only be able to be supplied externally. Hardware Version Changes: h0v2 to h1v0
Reason:	The audio power supply chip is no longer available and it was determined that it would be better for external power supplies to be used to demonstrate the EVE's audio capabilities.
Availability:	Contact Crystalfontz Support for up-to-date information by emailing support@crystalfontz.com.
