5" 800x480 Resistive Touchscreen TFT with EVE from Crystalfontz

Product

Home » Products » TFT LCD Displays » Resolution » 800x480

                This 5" 800x480 Resistive Touchscreen TFT with EVE is End-Of-Life and has been replaced with the CFA800480E3050SR. Contact support@crystalfontz.com with any questions.

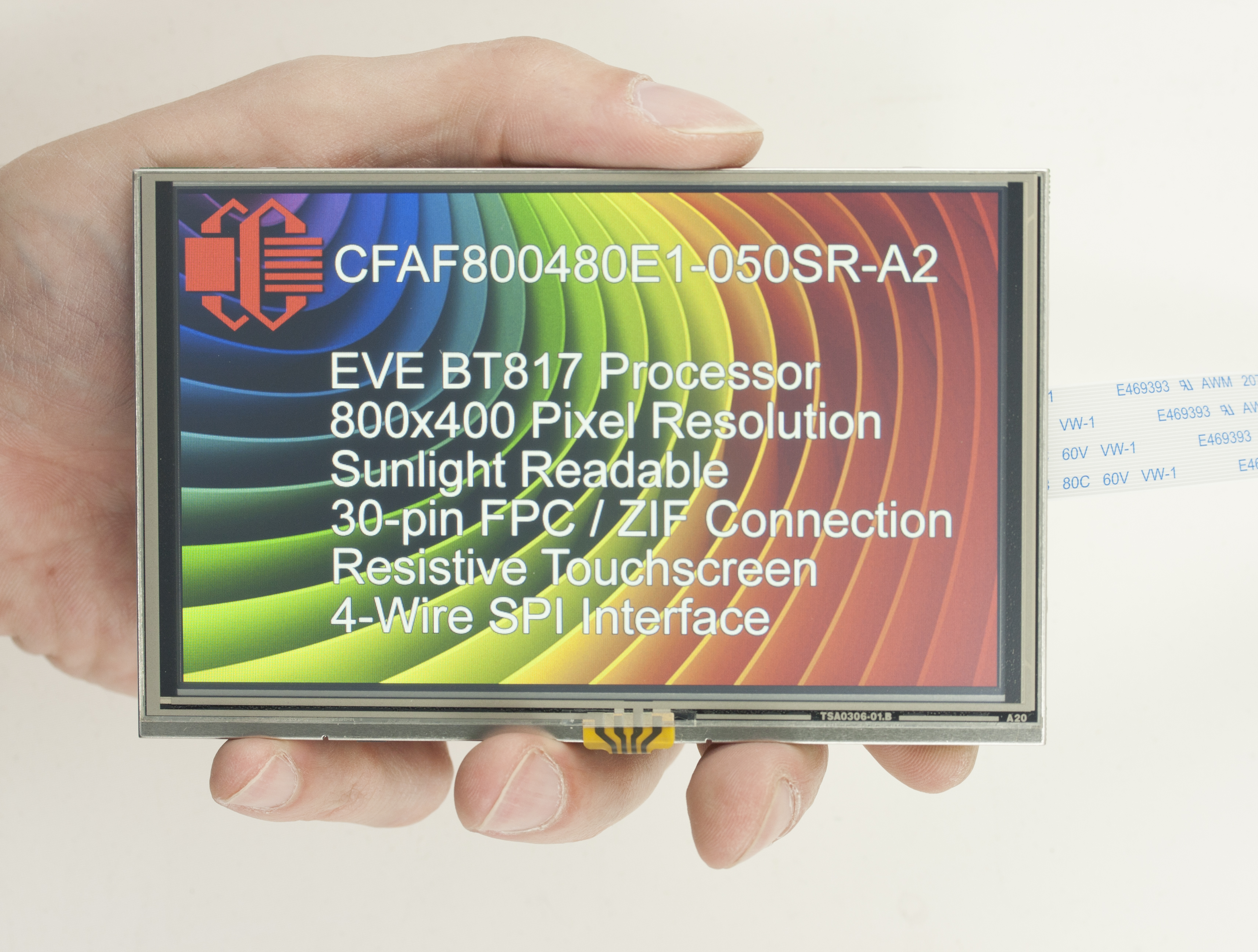

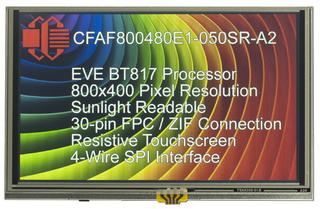

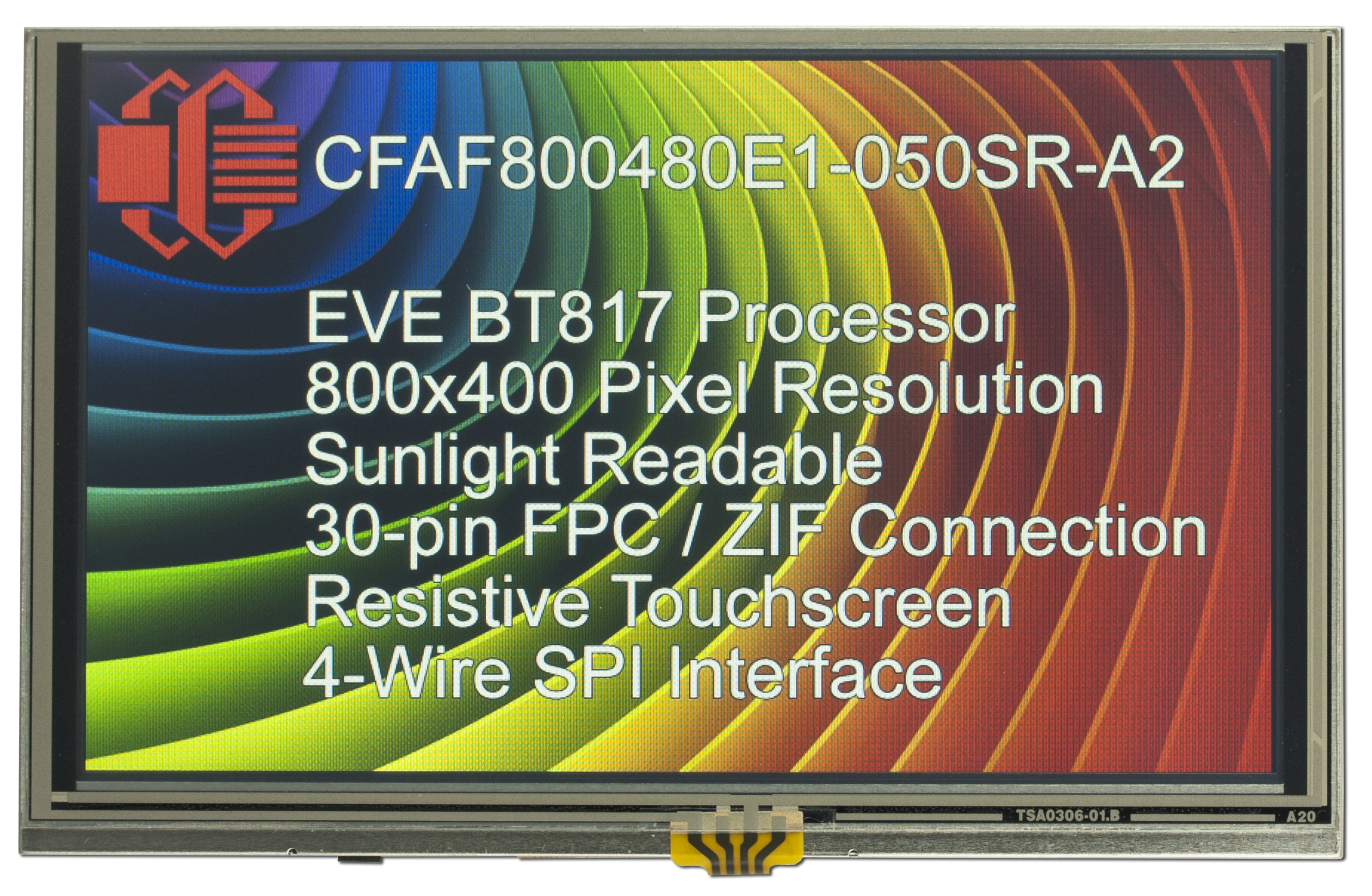

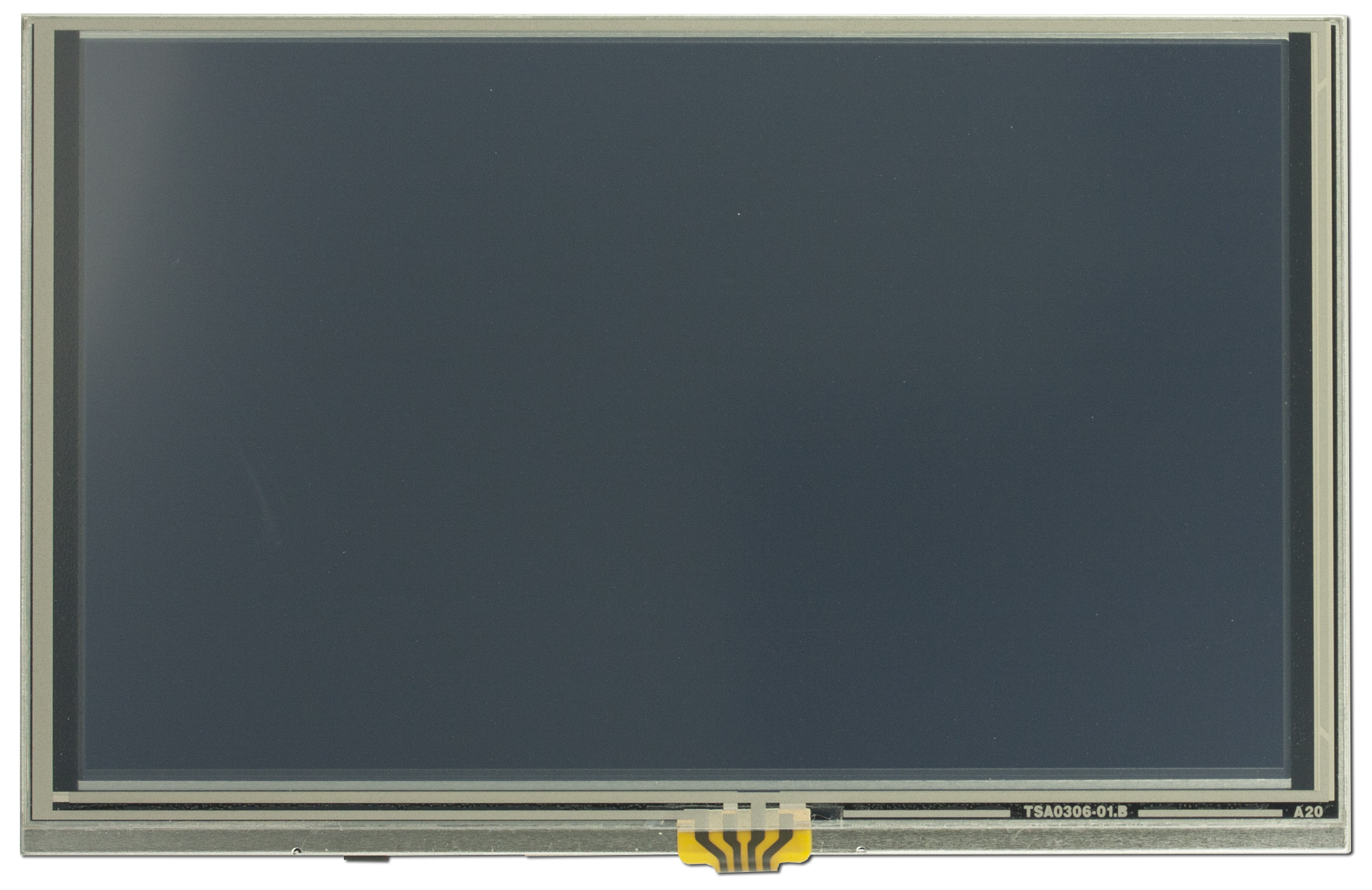

5" 800x480 Resistive Touchscreen TFT with EVEPart Number: CFAF800480E1-050SR-A2
    Do you need a display with beautiful graphics and touch capabilities in a tough environment? This resistive touch IPSEVETFT module is a fantastic choice. The BT817 EVE chip helps simplify sending complex graphics to the display and also handles the touchscreen sensing and communication to the host. Read more about the benefits of an EVE module.

Not sure if you want resistive or capacitive touch? Read our blog post comparing the pros and cons of resistive vs capacitive touch displays.

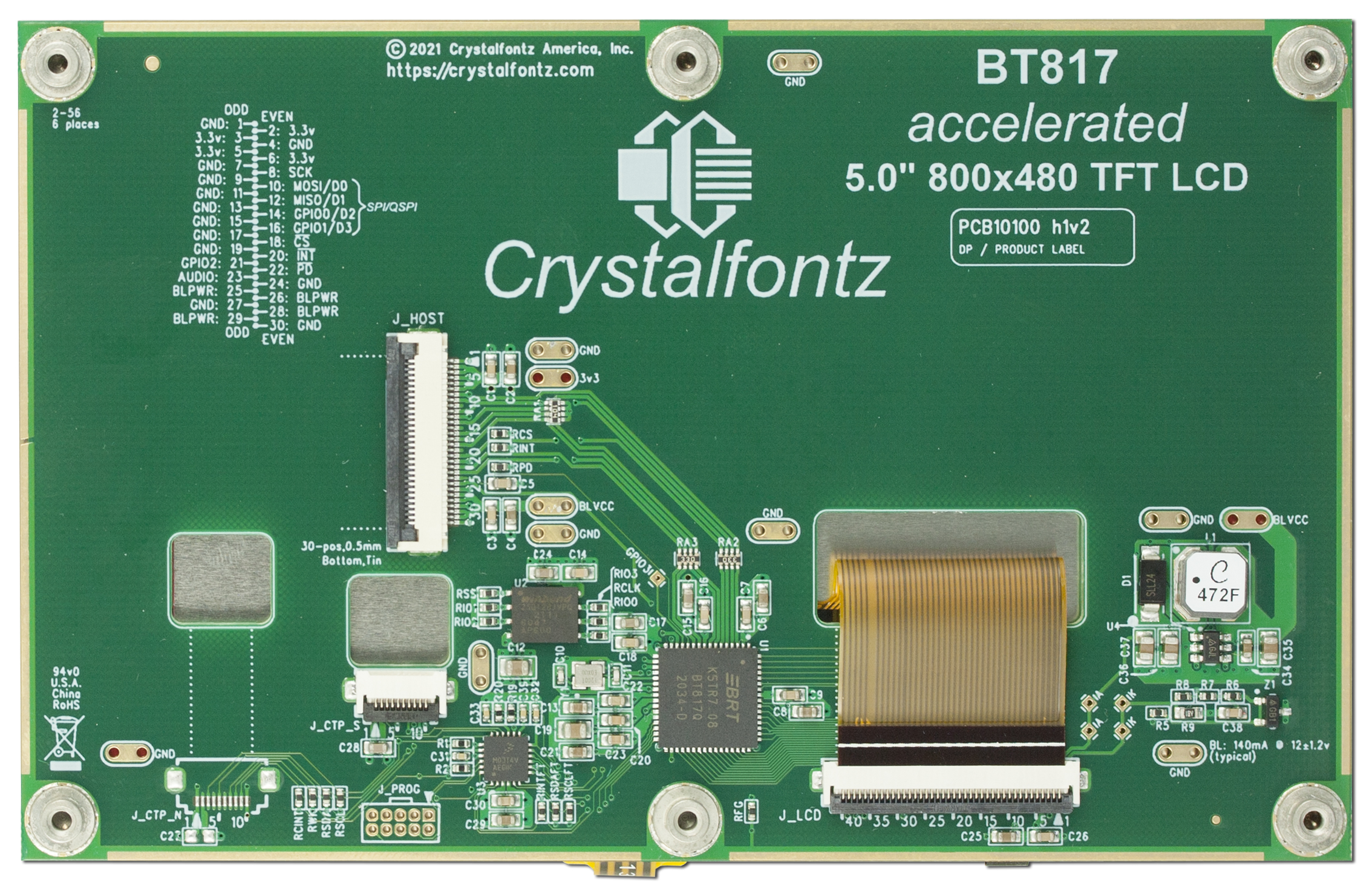

This is the 800x480 5" IPS TFT Display with an EVE accelerated board attached.

Key features:
5" Diagonal Active Area
Graphics accelerating BT817 chip for easy graphics control
Sunlight Readable
SPI Interface
IPS
16M Color TFT
Resistive Touch screen
Six threaded mounts (size 2-56)
Currently Shipping: HW Version 1v2, Firmware Version: 1v0

Product Variations

 square_foot Physical Characteristics

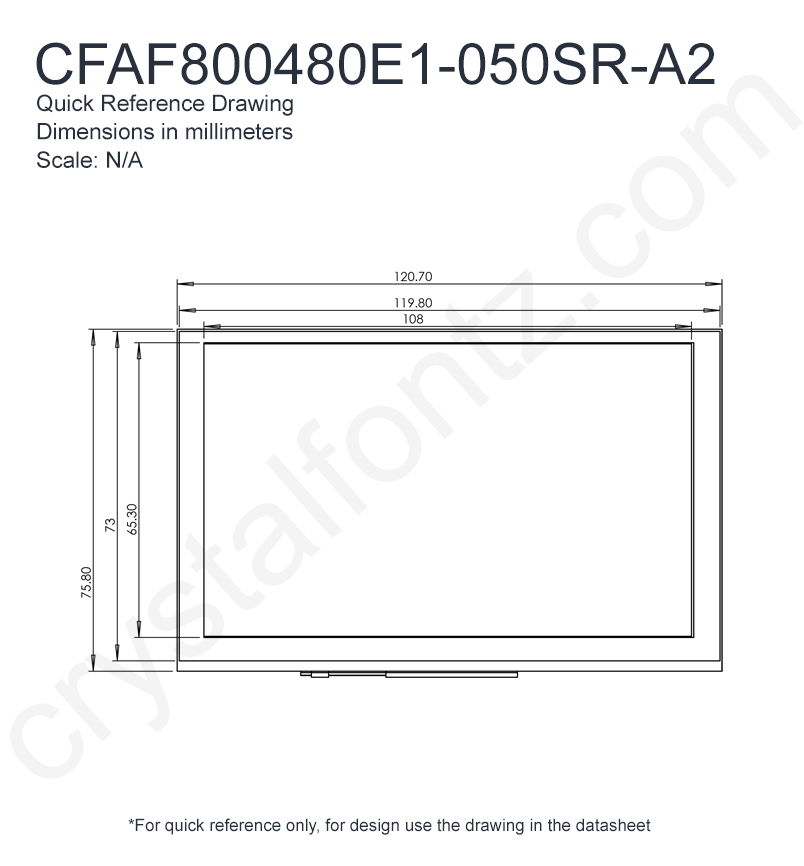

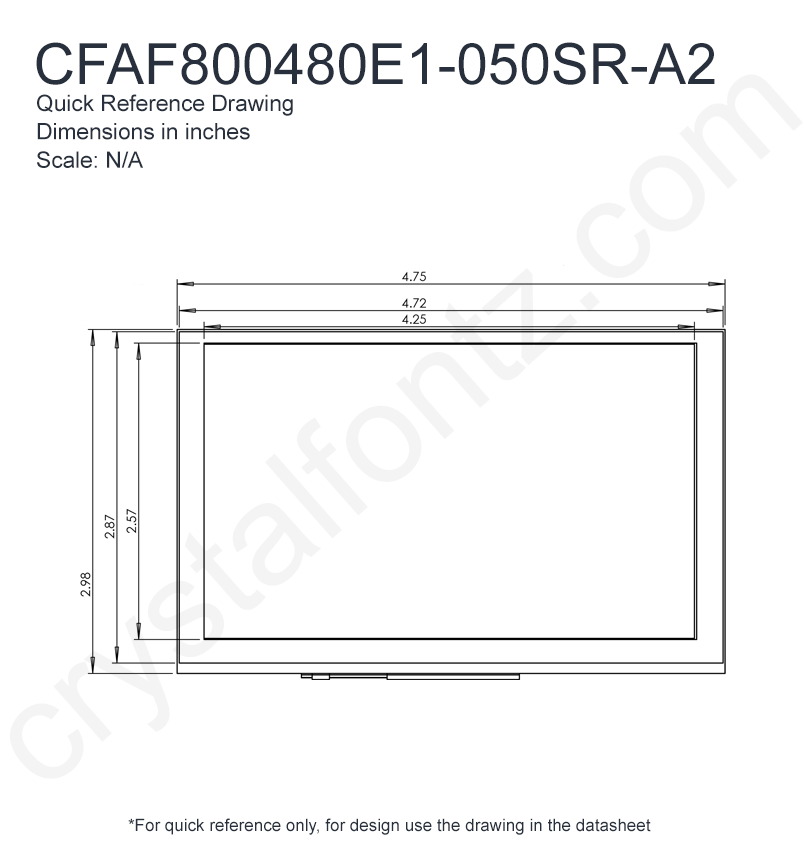

Physical Characteristics

        Column Dots x Row Dots
            800 x 480

    Module Overall        width
        height
        depth

        millimeters
        120.7
        75.8
        8.75

        inches
        4.75
        2.98
        0.34

    Viewing Area        Width
        Height

        millimeters
        110
        66.8

        inches
        4.33
        2.63

    Active Area        Width
        Height

        millimeters
        108
        64.8

        inches
        4.25
        2.55

    Dot Pitch        Width
        Height

        millimeters
        0.135
        0.135

        inches
        0.0053
        0.0053

        Weight
            100g
Pin Count
            30

 visibility Optical Characteristics
Optical Characteristics

        Glass Type
            TFT
Polarizer
            Transmissive
View Angle
            160°
Sunlight Readable
            Yes

        Backlight Color
            White
Backlight Type
            LED
Foreground Color
            RGB
Background Color
            Dark

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            3V
Supply Voltage for Logic Maximum
            3.6V

        Supply Voltage for Logic Typical
            3.3V
Supply Current Typical
            20mA

 electric_bolt Backlight Specification
Backlight Electrical Specifications

        Forward Voltage Minimum
            2.7V
Forward Voltage Maximum
            5.5V
Forward Voltage Typical
            5V

        Forward Current Minimum
            70mA
Forward Current Maximum
            140mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

 cable Electronics
Electronics

        Interface
            SPI

 picture_as_pdf Datasheets
picture_as_pdfCFAF800480E1-050SR-A2 Datasheet

 download Files and Downloads
folder_zip Hardware Design - 3D Model
link Demo Code Download on Github
link Demo Code Repository on Github

Other components worth considering

						EVE Breakout Board
Add an EVE Breakout Board? $24.63 ea.

						30 Position, 0.5mm Pitch, Tin, FCC FPC ZIF connector
Add ZIF connectors? $0.61 ea.

						12-inch 30-pin FFC
Add a ribbon cable? $2.30 ea.

						Assorted Imperial Screws
Need mounting screws? $3.08 ea.

Module Overall	width	height	depth
millimeters	120.7	75.8	8.75
inches	4.75	2.98	0.34

Viewing Area	Width	Height
millimeters	110	66.8
inches	4.33	2.63

Active Area	Width	Height
millimeters	108	64.8
inches	4.25	2.55

Dot Pitch	Width	Height
millimeters	0.135	0.135
inches	0.0053	0.0053

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

End-Of-Life #11178: PCB Change

Products Affected:	CFAF800480E1-050SN-A2-2, CFAF800480E1-050SN-A2, CFAF800480E1-050SR-A2-2, CFAF800480E1-050SR-A2, CFAF800480E1-050SC-A2, CFAF800480E1-050SC-A2-2, CFAF800480E2-050SC-A2, CFAF800480E2-050SC-A2-2
Date Issued:	March 2, 2023
Summary:	PCB Change
Description:	The PCB is changing due to a critical component going EOL. The new PCB design will not affect the functionality of the product and it will continue to use the same BT817Q graphical processor. Additional hardware features are added to the new design including land patterns for an ESP32 or XIAO to remove the need for an external processor to drive the EVE4 chip. The part numbers will be updated as follows to reflect this change. CFAF800480E1-050SC-A2 -> CFA800480E3-050SC CFAF800480E1-050SC-A2-2 -> CFA800480E3-050SC-KIT CFAF800480E1-050SN-A2 -> CFA800480E3-050SN CFAF800480E1-050SN-A2-2 -> CFA800480E3-050SN-KIT CFAF800480E1-050SR-A2 -> CFA800480E3-050SR CFAF800480E1-050SR-A2-2 -> CFA800480E3-050SR-KIT CFAF800480E2-050SC-A2 -> CFA800480E3-050SW CFAF800480E2-050SC-A2-2 -> CFA800480E3-050SW-KIT
Reason:	The helper processor on this display has gone EOL and needed to be replaced.
Availability:	Contact Crystalfontz Support for up-to-date information by emailing support@crystalfontz.com.
