5" 800x480 Resistive Touchscreen TFT with EVEPart Number: CFA800480E3050SR

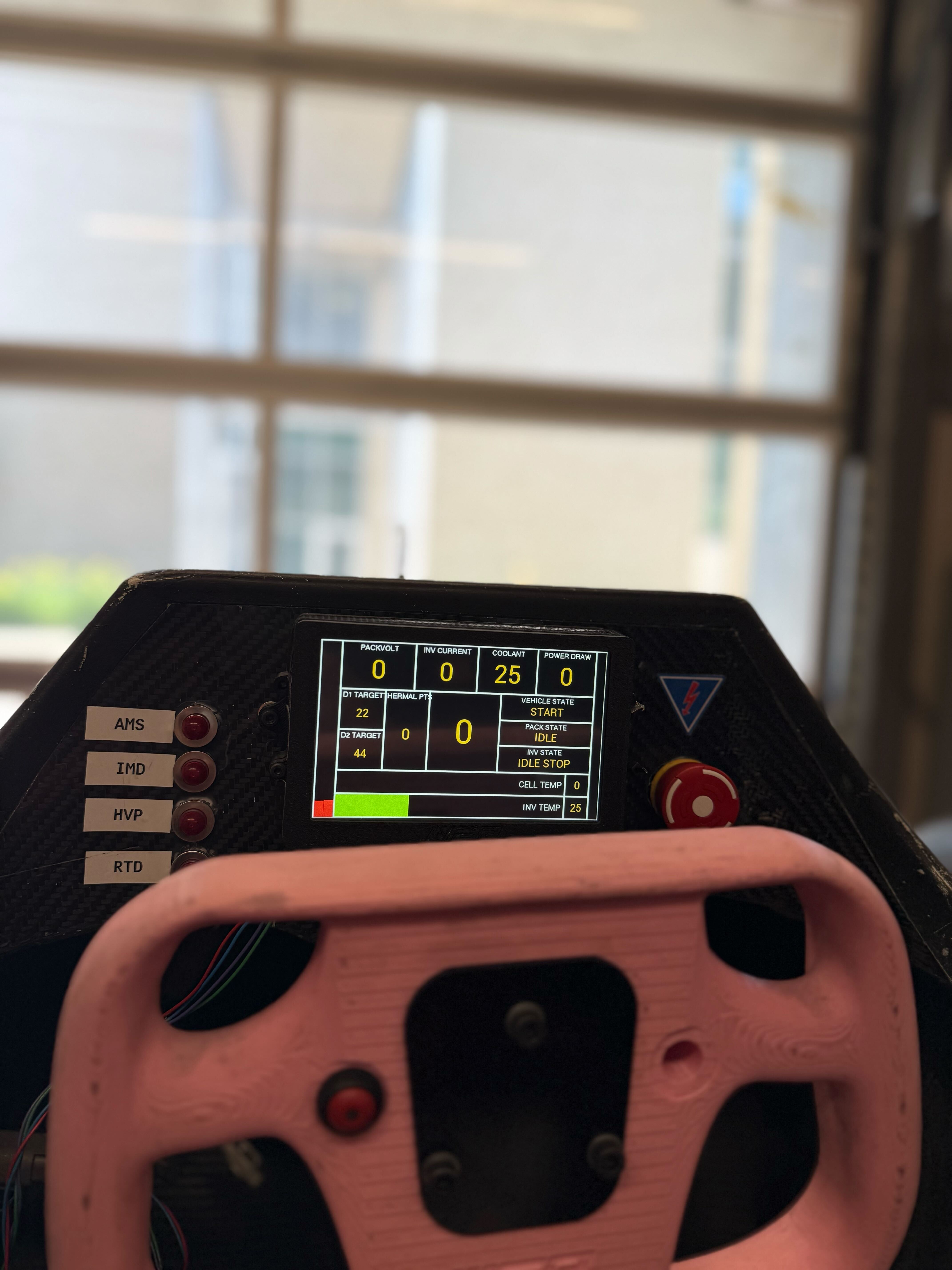

         Do you need a display with beautiful graphics and touch capabilities in a tough environment? This resistive touch IPSEVETFT module is a fantastic choice. The BT817 EVE chip helps simplify sending complex graphics to the display and also handles the touchscreen sensing and communication to the host. Read more about the benefits of an EVE module.

Not sure if you want resistive or capacitive touch? Read our blog post comparing the pros and cons of resistive vs capacitive touch displays.

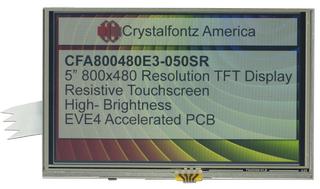

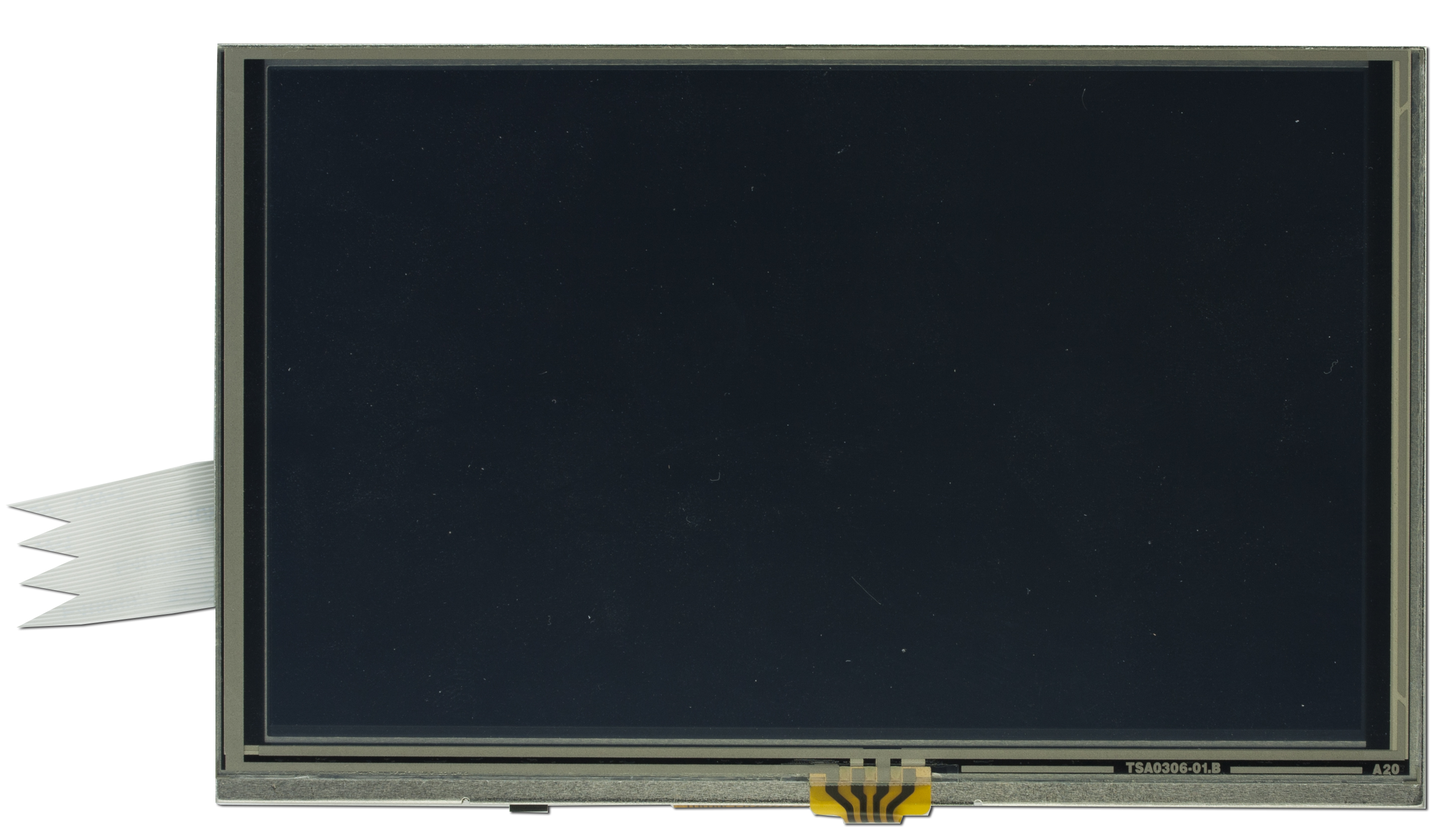

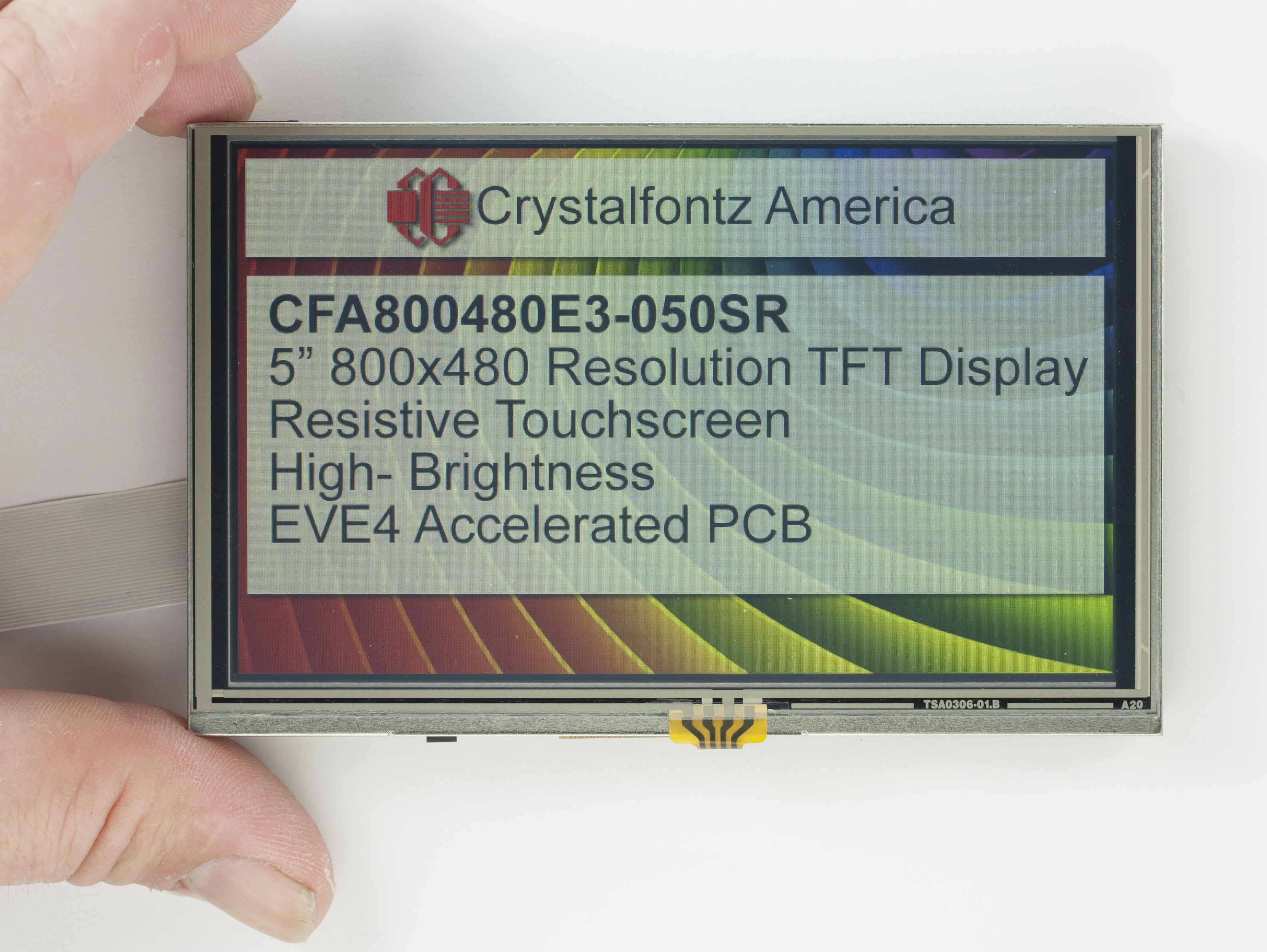

This is the 800x480 5" IPS TFT Display with an EVE accelerated board attached.

Key features:
5" Diagonal Active Area

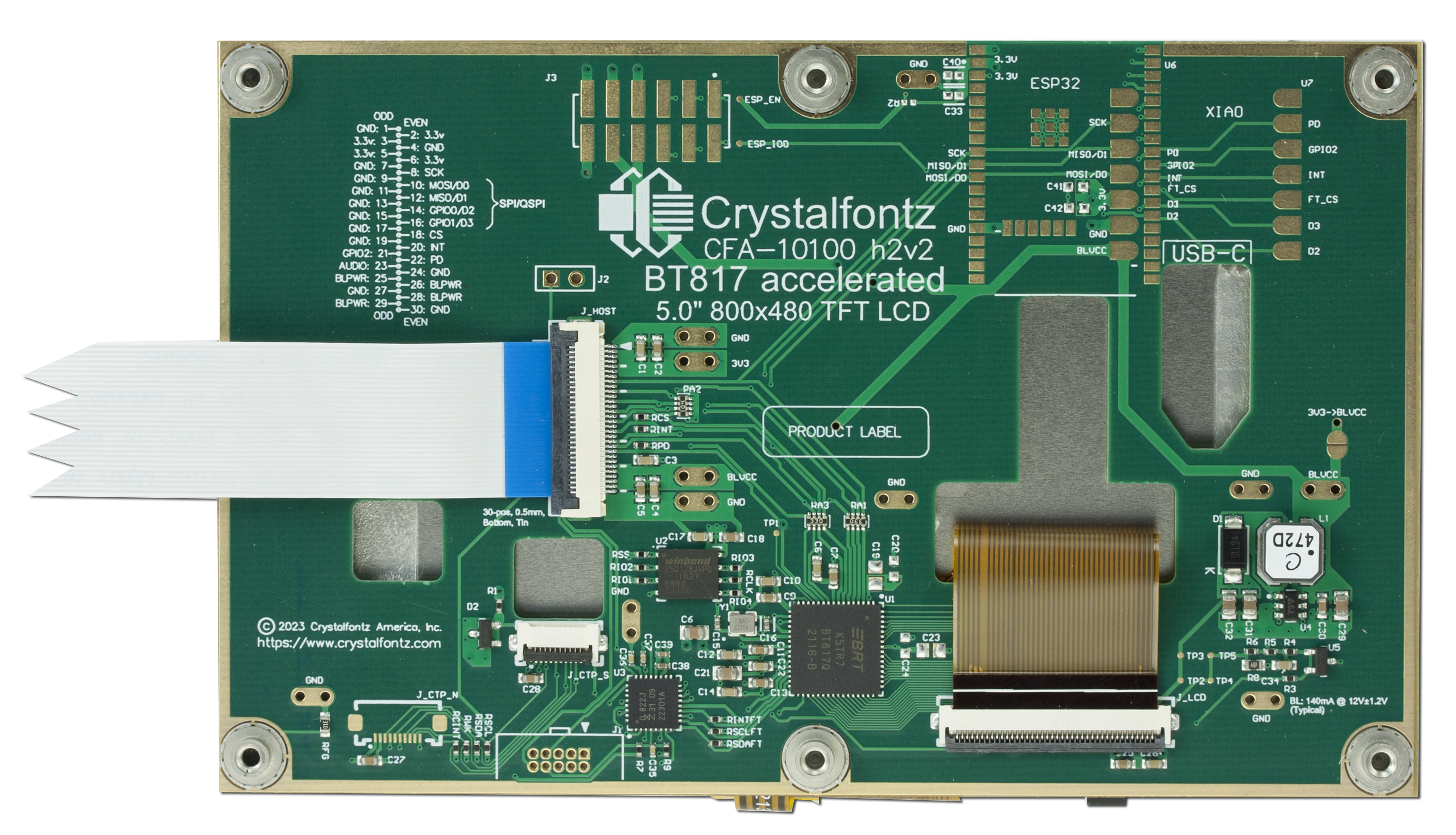

Graphics accelerating BT817 chip for easy graphics control
Sunlight Readable
SPI Interface
IPS
16M Color TFT
Resistive Touch screen
Six threaded mounts (size 2-56)
Currently Shipping: HW Version 2v2, Firmware Version: 1v0

Product VariationsTouchscreenCapacitive Extended GlassResistiveNoneCapacitive

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            800 x 480

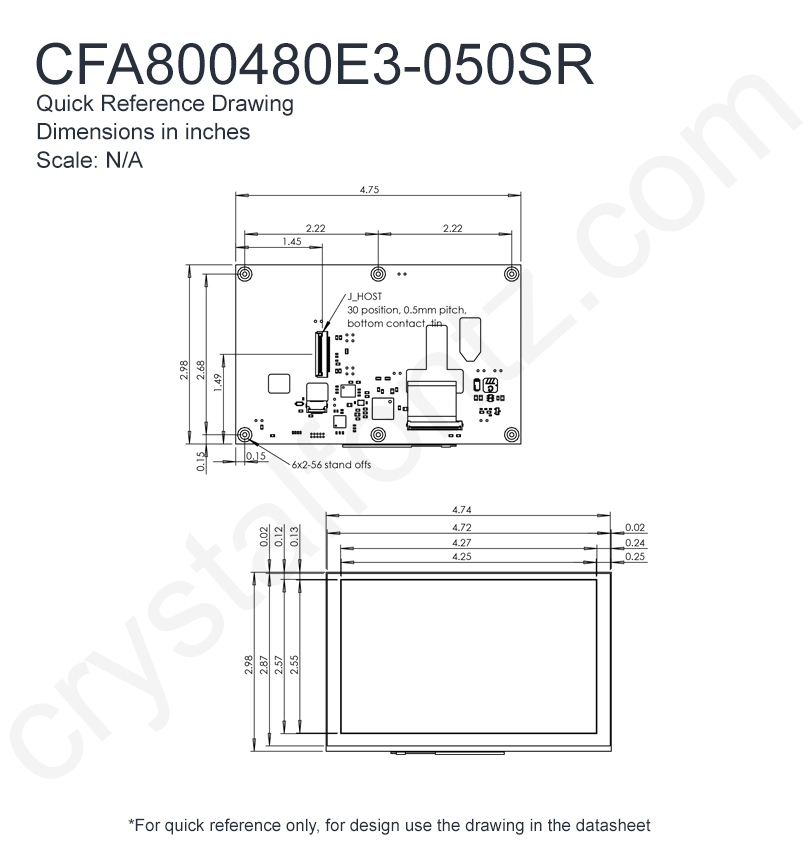

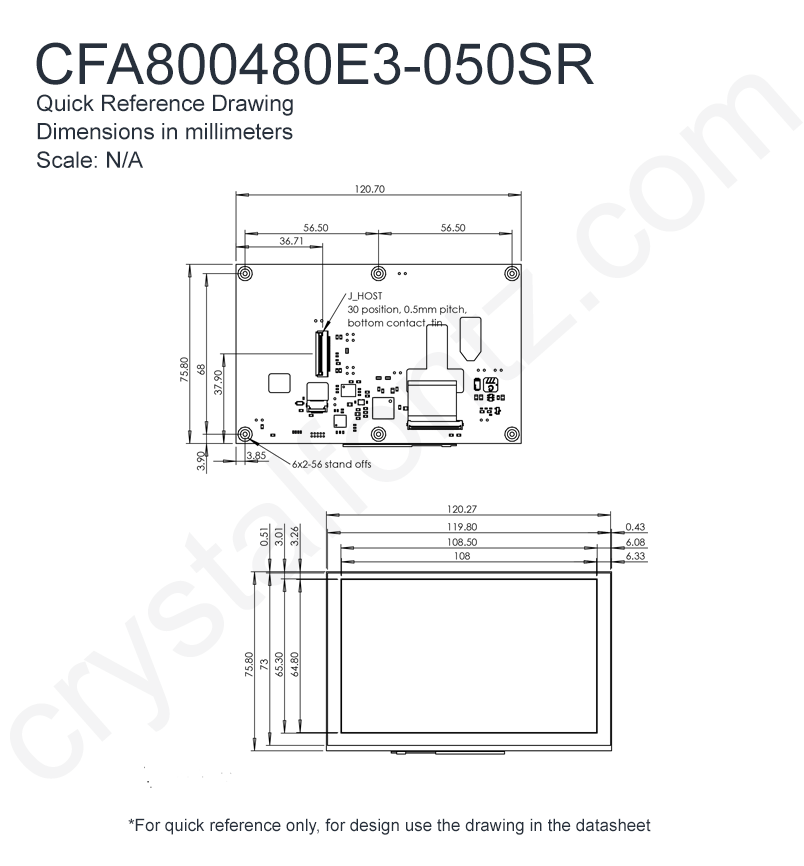

    Module Overall        width
        height
        depth

        millimeters
        120.7
        75.8
        8.75

        inches
        4.75
        2.98
        0.34

        Diagonal Dimension
            5"

    Viewing Area        Width
        Height

        millimeters
        110
        66.8

        inches
        4.33
        2.63

    Active Area        Width
        Height

        millimeters
        108
        64.8

        inches
        4.25
        2.55

    Dot Pitch        Width
        Height

        millimeters
        0.135
        0.135

        inches
        0.0053
        0.0053

        Weight
            100g
Pin Count
            30

 visibility Optical Characteristics
Optical Characteristics

        Glass Type
            TFT
Polarizer
            Transmissive
View Angle
            160°
Sunlight Readable
            Yes

        Backlight Color
            White
Backlight Type
            LED
Foreground Color
            RGB
Background Color
            Dark

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            3V
Supply Voltage for Logic Maximum
            3.6V

        Supply Voltage for Logic Typical
            3.3V
Supply Current Typical
            20mA

 electric_bolt Backlight Specification
Backlight Electrical Specifications

        Forward Voltage Minimum
            2.7V
Forward Voltage Maximum
            5.5V
Forward Voltage Typical
            5V

        Forward Current Minimum
            70mA
Forward Current Maximum
            140mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

 cable Electronics
Electronics

        Interface
            SPI

 picture_as_pdf Datasheets
picture_as_pdfCFA800480E3-050Sx Series Datasheet

 download Files and Downloads
folder_zip Hardware Design - 3D Model
picture_as_pdf Other Document - ESP32 and XIAO App Note for CFA10100 boards
link Demo Code Repository on Github
 assured_workload Compliance Documents
 picture_as_pdf Declaration of Conformity RoHS2
 picture_as_pdf Declaration of Conformity REACH

Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
 Quantity:

Price:

            Quantity
            Unit Price

            1
            $93.37

            5
            $77.73

            10
            $75.51

            20
            $73.28

            50
            $70.62

            100
            $69.73

            200
            $69.29

            300 *
            $68.40

            500 *
            $67.95

            1000 *
            $67.51

225 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
Other components worth considering

						EVE Breakout Board
Need an EVE Breakout Board? $24.63 ea.

						Assorted Imperial Screws
Mounting screws? $3.08 ea.

						30 Position, 0.5mm Pitch, Tin, FCC FPC ZIF connector
Need ZIF Connectors? $0.61 ea.

						12-inch 30-pin FFC
Add a ribbon cable? $2.30 ea.

Module Overall	width	height	depth
millimeters	120.7	75.8	8.75
inches	4.75	2.98	0.34

Viewing Area	Width	Height
millimeters	110	66.8
inches	4.33	2.63

Active Area	Width	Height
millimeters	108	64.8
inches	4.25	2.55

Dot Pitch	Width	Height
millimeters	0.135	0.135
inches	0.0053	0.0053

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Quantity	Unit Price
1	$93.37
5	$77.73
10	$75.51
20	$73.28
50	$70.62
100	$69.73
200	$69.29
300 *	$68.40
500 *	$67.95
1000 *	$67.51

Additional Options
Notices

Additional Options

Purchase this EVE Display in a development kit and speed up your prototyping.

5" Resistive Touchscreen EVE Development Kit
Part Number: CFA800480E3-050SR-KIT

Details

Quantity	1
Unit Price	$121.23

Quantity:

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #11208: 5" 800x480 Resistive Touchscreen TFT with EVE is now available

New Product:	CFA800480E3050SR
Date Issued:	June 28, 2023
Summary:	5" 800x480 Resistive Touchscreen TFT with EVE is now available
Description:	CFA800480E3-050SR has been released on our website (https://www.crystalfontz.com/product/cfa800480e3050sr-800x480-5in-resistive-touchscreen-tft) and is now available for sale. Orders can be placed directly from our website or by submitting a purchase order to sales@crystalfontz.com. Contact support@crystalfontz.com for any technical questions.
