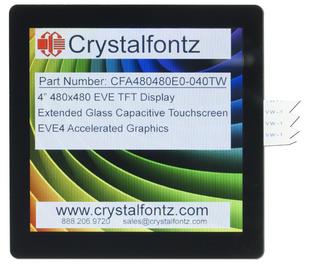

4-inch 480x480 Resolution Capacitive Touchscreen EVE TFT
Part Number: CFA480480E0-040TW
Quickly integrate this full-color capacitive touch display into your product! This TFT display uses a powerful Bridgetek EVE chip to simplify running complex graphics and interpreting the touch. This allows the module to communicate with your system using quad SPI while the RGB data for the display is handled on-board.

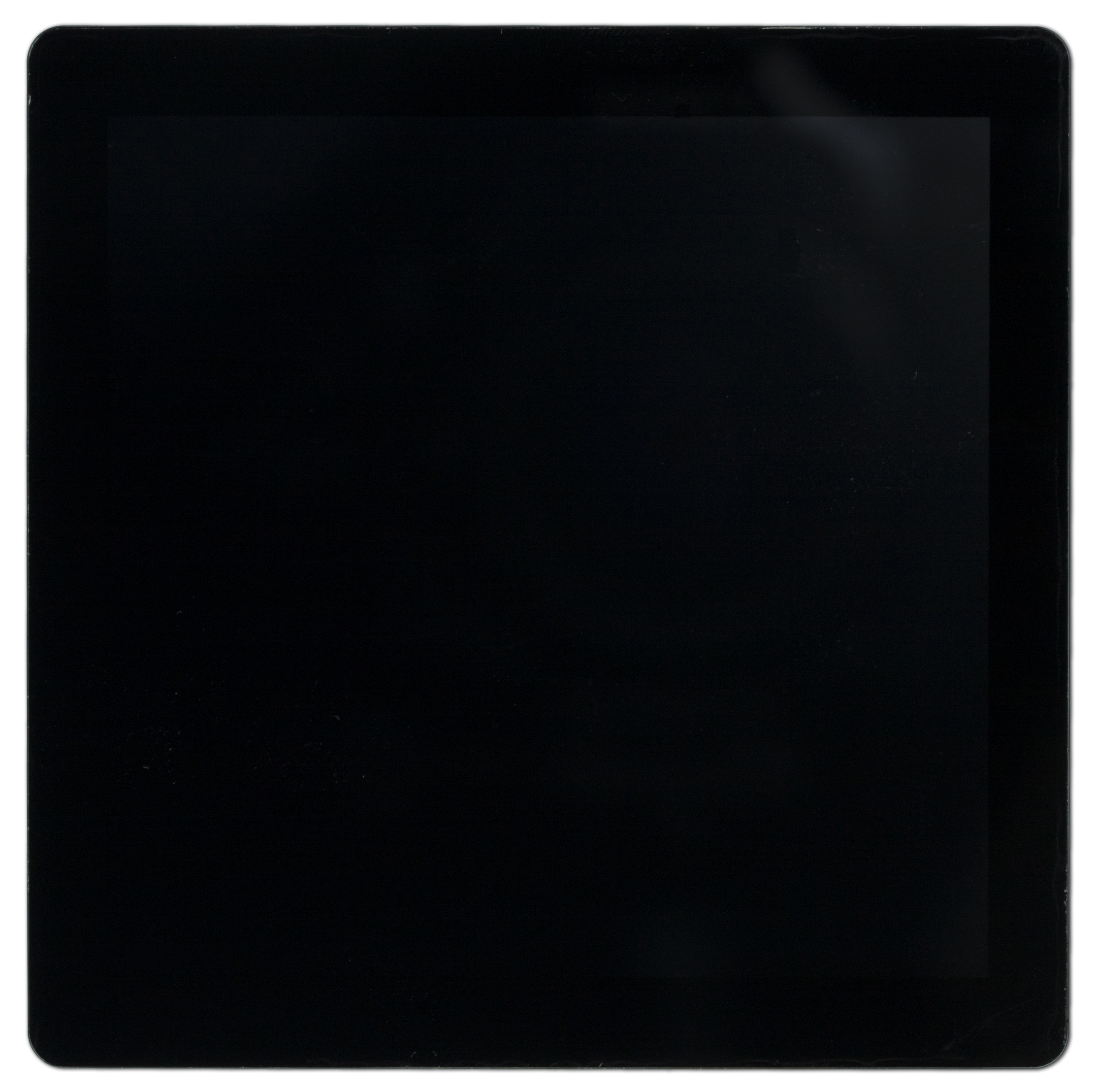

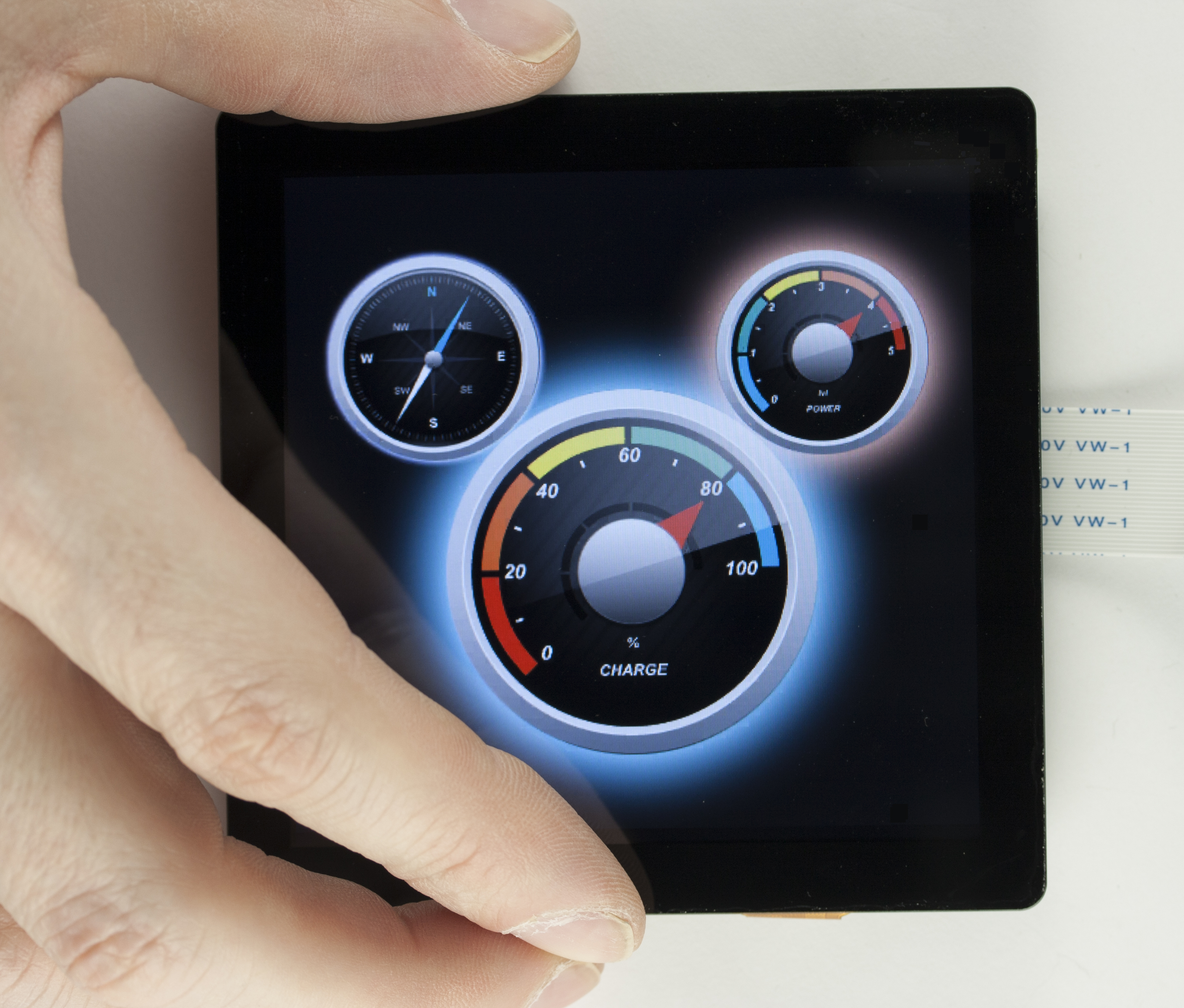

At 4" on the diagonal, this square display looks great as a wall-mounted GUI. The overhanging touchscreen helps make this display look seamless.
Key Features:
- Five-point touch

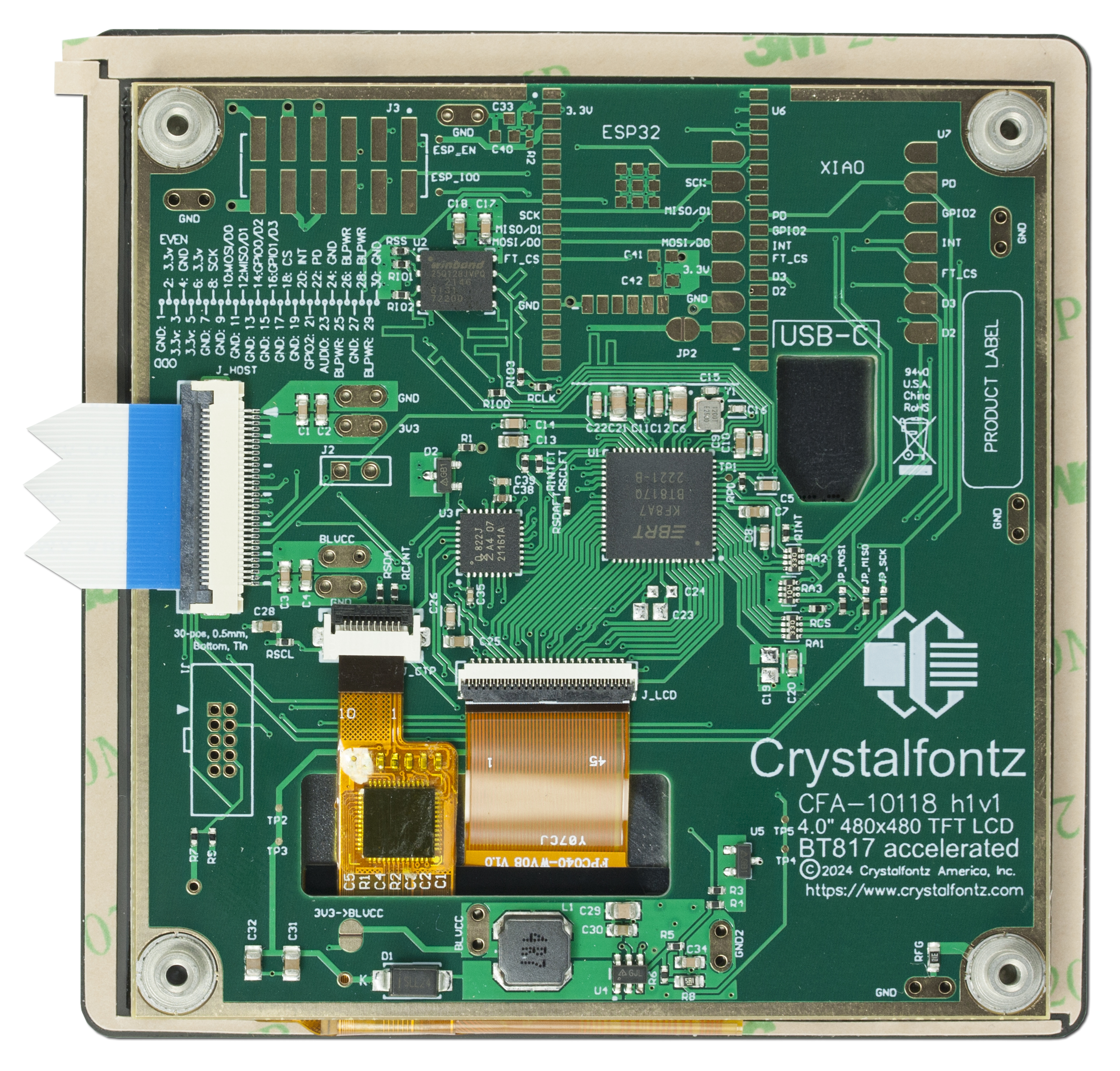

- Graphics accelerating BT817 chip for easy graphics control
- SPI/Quad SPI interface
- Full-color TFT
- Can be powered off of a single voltage source
EVE Graphics Accelerator Features:

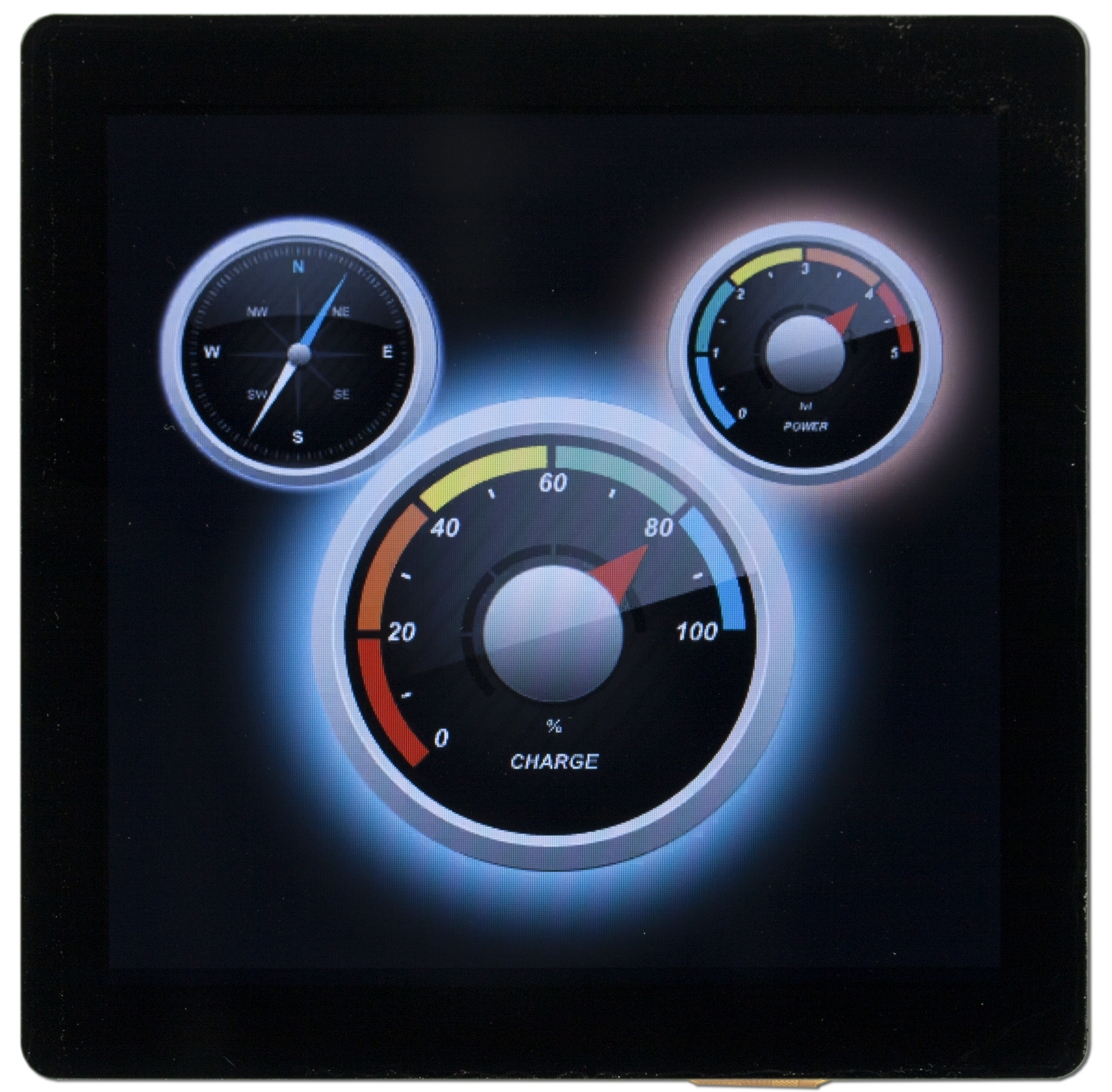

- Supports multiple widgets for simplified design implementation
- User interface design software (PC) simplifies the design process
- Hardware engine can recognize touch tags and track touch movement
- Enhanced sketch processing
- Anti-aliasing of primitive displayed objects for higher-quality graphics
- Assorted graphical effects such as alpha-blending, shadows, transitions, wipes, etc.
- Programmable interrupt controller provides interrupts to host MCU
- Support playback of motion-JPEG encoded AVI videos
- Mono audio channel output with wave playback and built-in sound synthesizer
- PWM output for display backlight dimming control

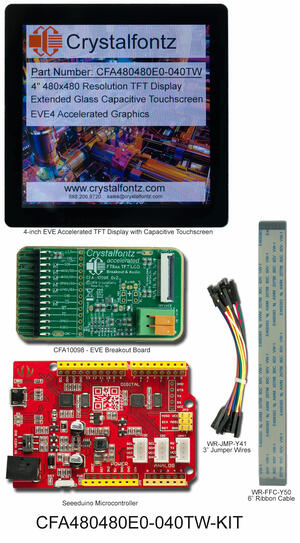

Looking for accessories for your EVE TFT display module? We have 2 sizes of FFC cables 6-inch 30-pin FFC cables and 12-inch 30-pin FFC cables, plus an EVE breakout board.
Part Number:
CFA - Crystalfontz America
480480 - 480x480 pixel resolution
E0 - An EVE-based display module

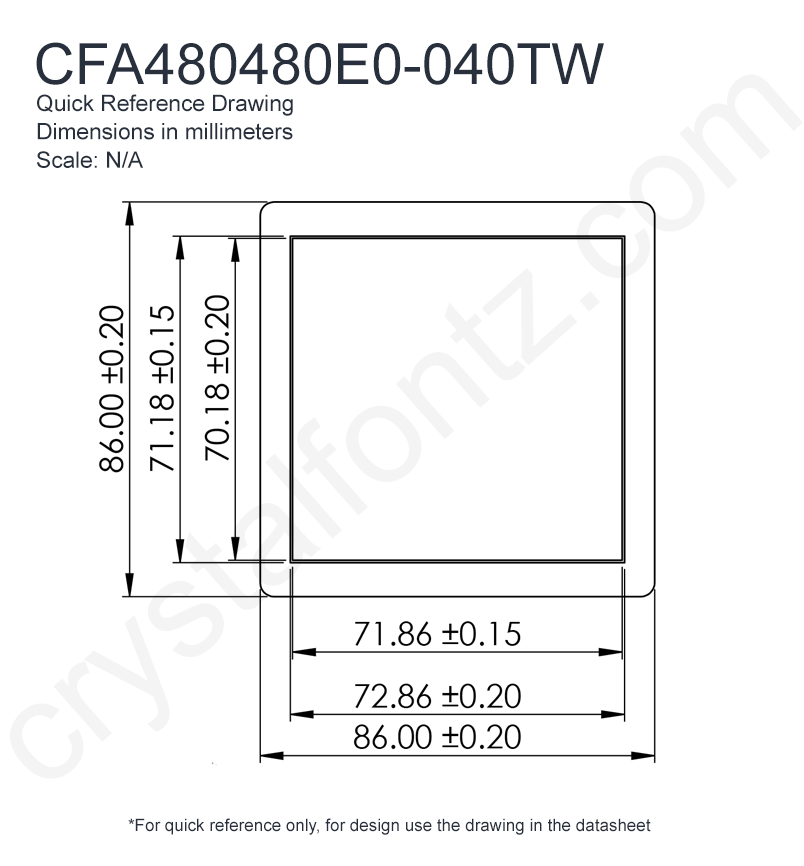

040 - 4" diagonal display
T - Standard brightness
W - Wide capacitive touchscreen
