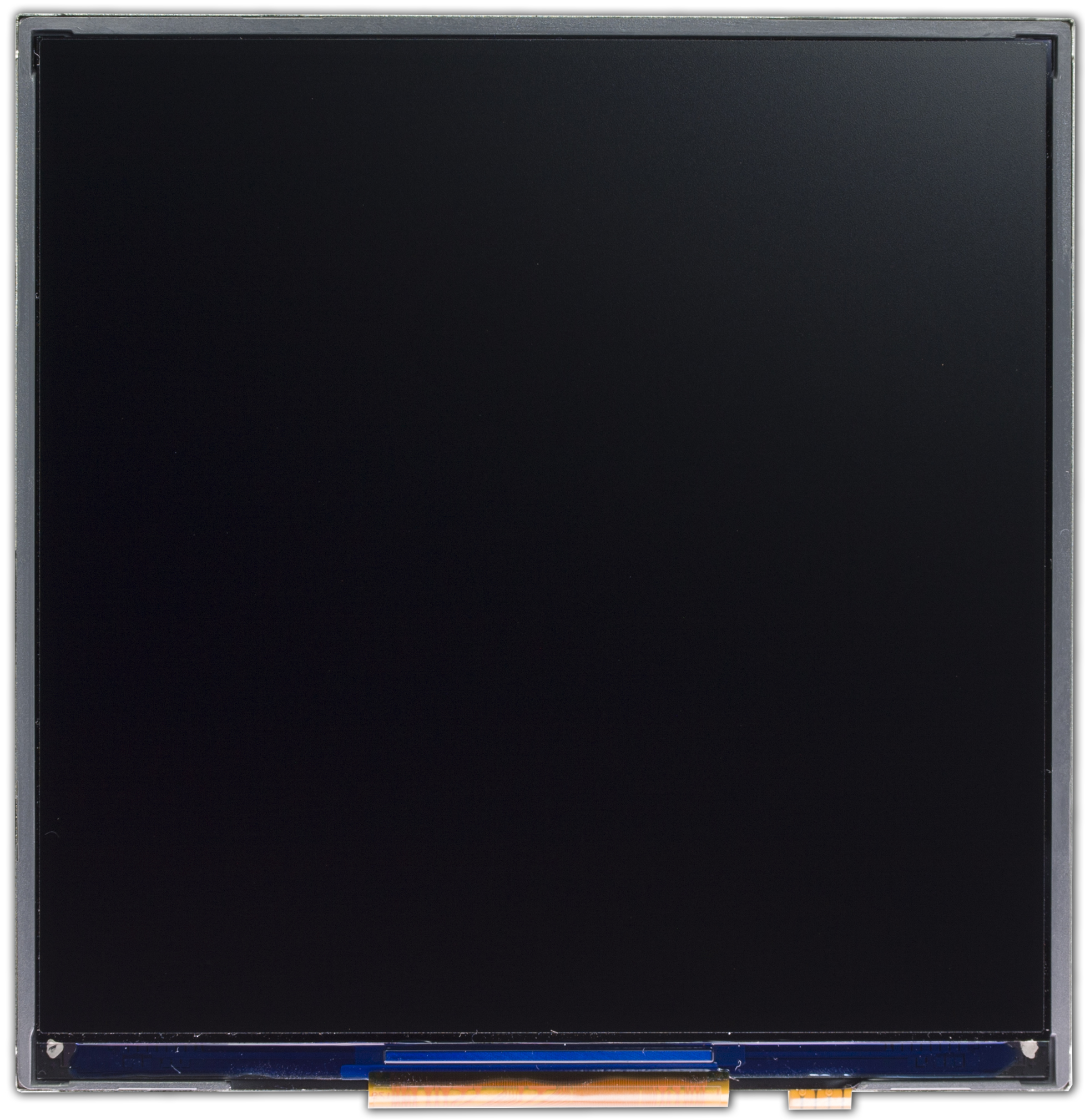

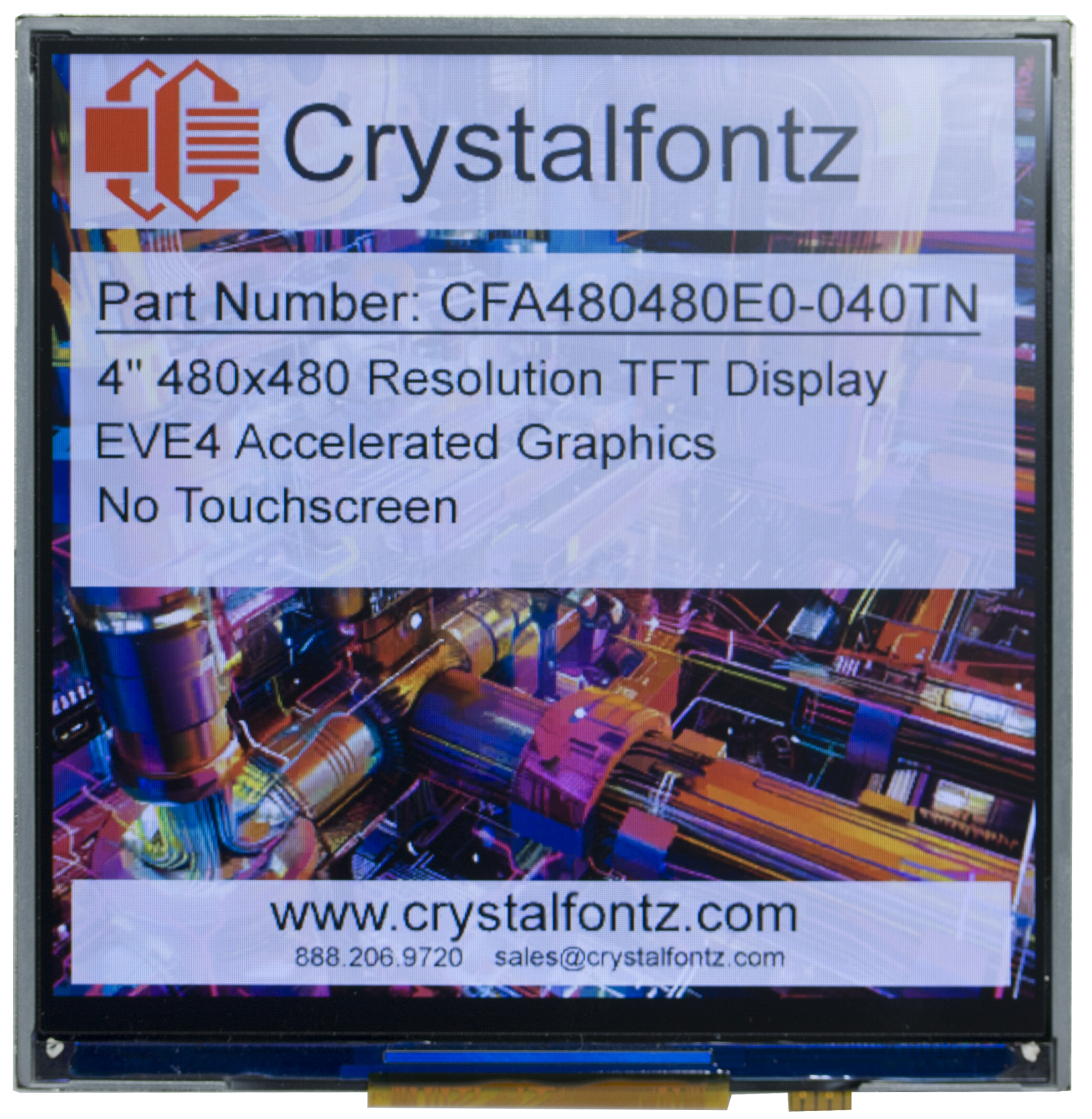

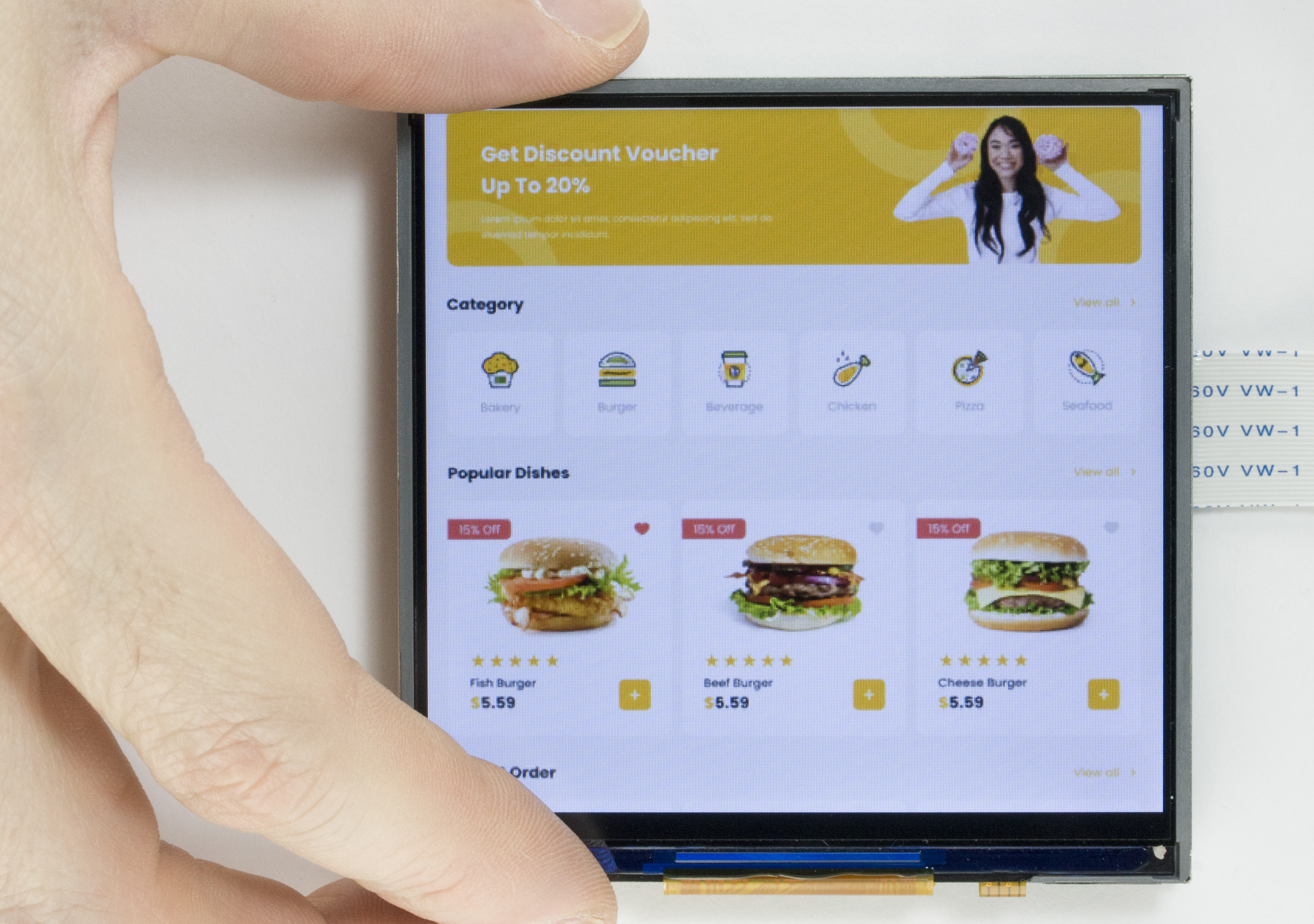

480x480 4" EVE Powered TFT Display

Part Number: CFA480480E0-040TN

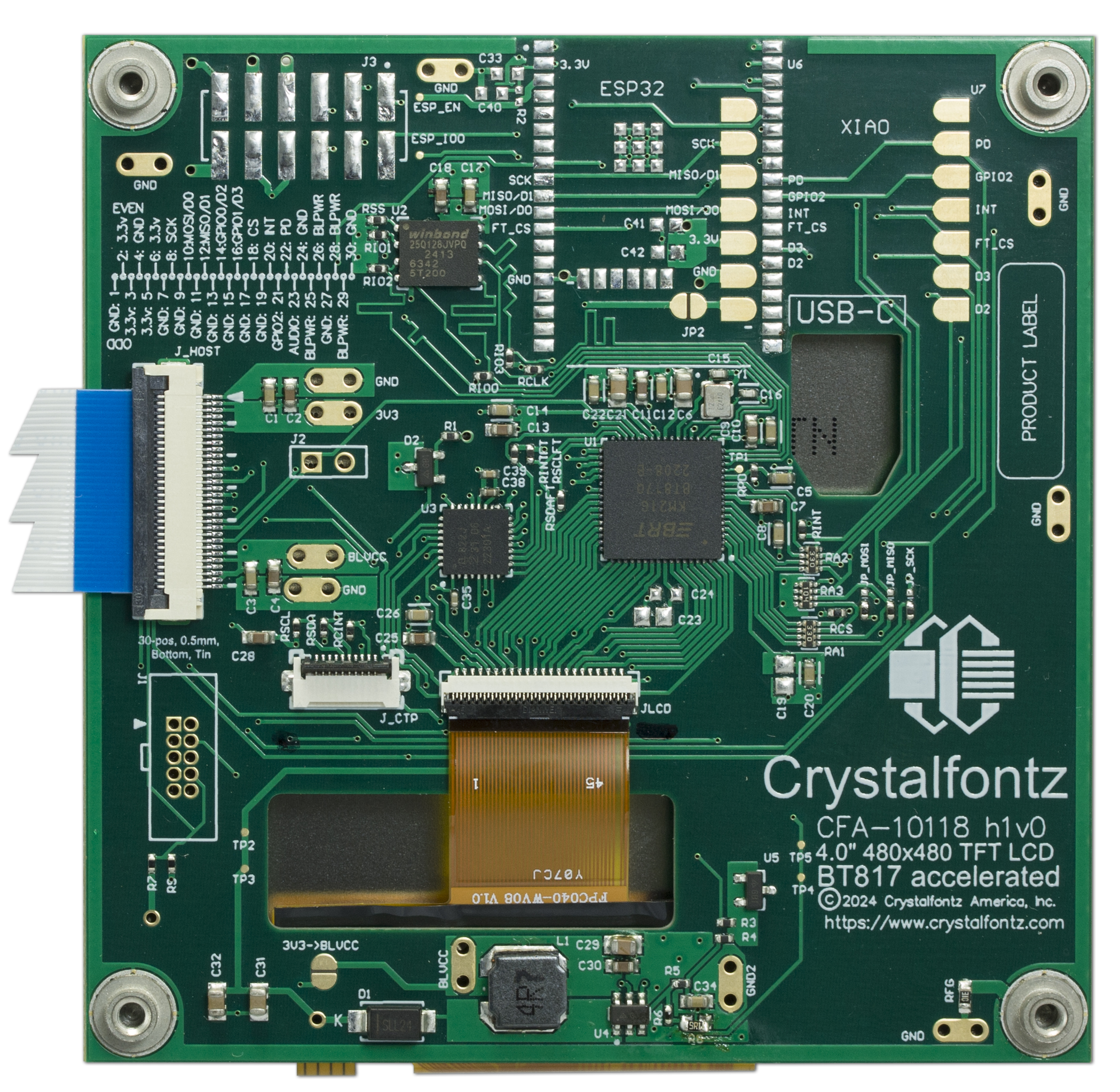

This 4" square TFT LCD is backed by the powerful EVE graphics accelerator. This module simplifies full-color graphics, allowing simple commands to enable scalable, anti-aliased graphics and text. The onboard flash memory can store graphics to enable quick display of complex graphics and videos. See our demo code for implementation examples.

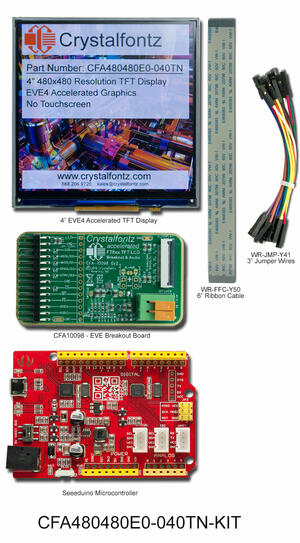

Crystalfontz offers a wide variety of EVE display solutions in different sizes and touch variations.

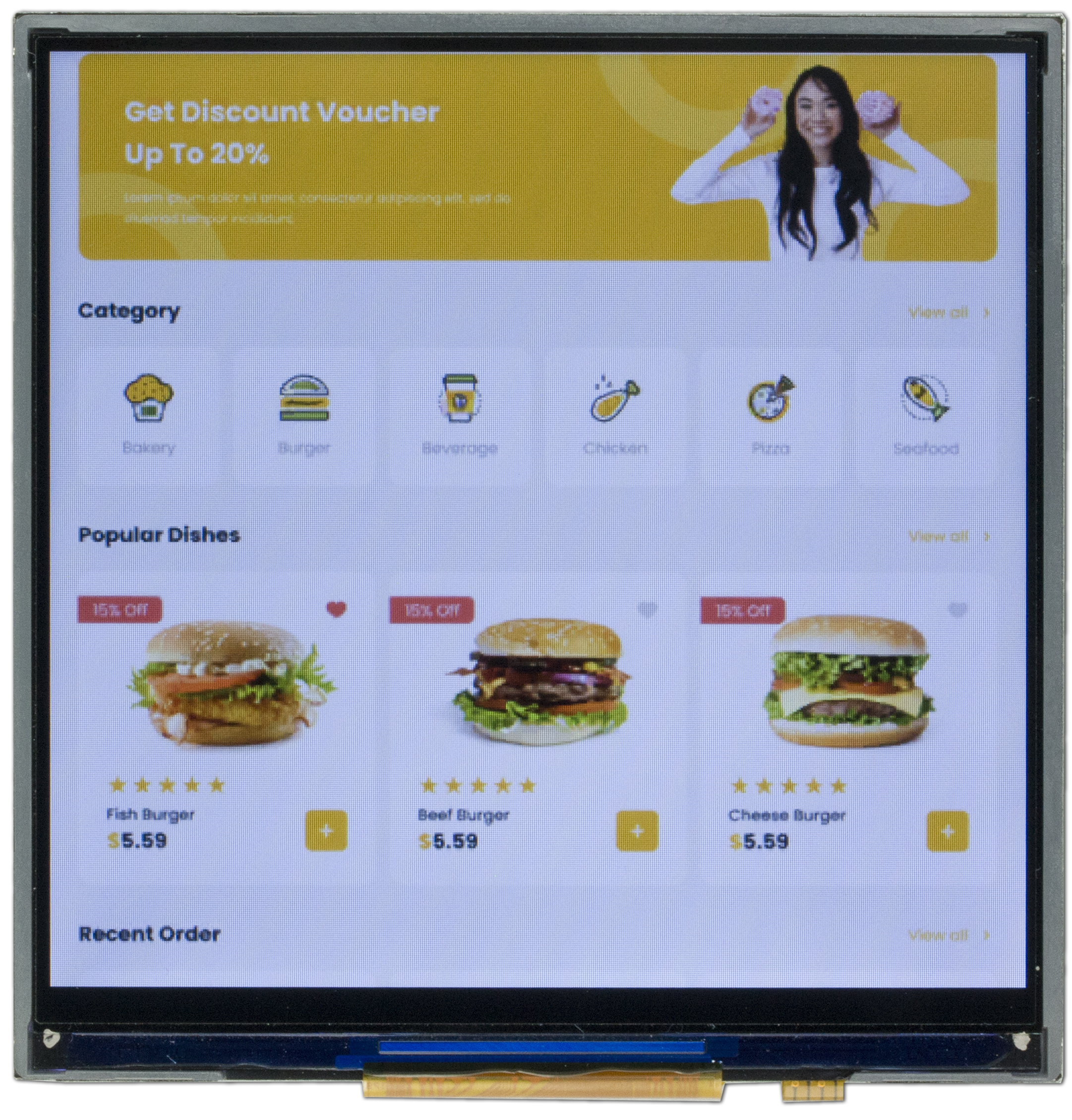

This square TFT LCD would be a great choice for a wide variety of products, it would make a great gauge, clock, polaroid-style picture display, or would be neat as part of a tiled display solution.

• square_foot Physical Characteristics

  Physical Characteristics

  Column Dots x Row Dots

  480 x 480

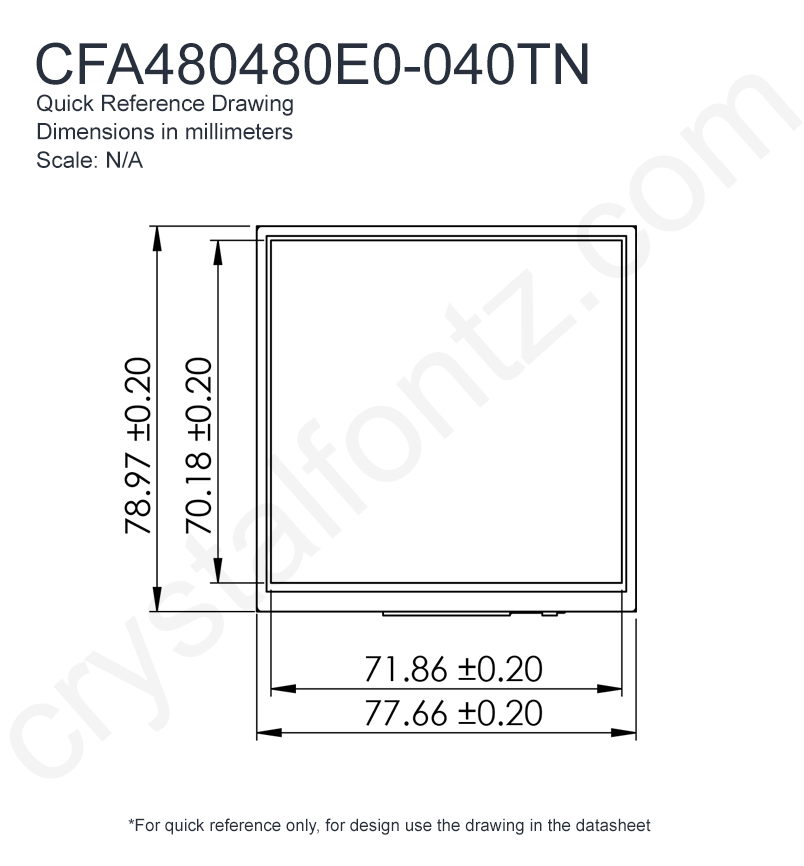

  Module Overall	width	height	depth
  millimeters	78.97	77.66	8.1
  inches	3.11	3.06	0.32

  Diagonal Dimension

  4"

  Active Area	Width	Height
  millimeters	71.86	70.18
  inches	2.83	2.76

  Dot Pitch	Width	Height
  millimeters	0.149	0.146
  inches	0.0059	0.0057

  Weight	55g
  Pin Count	30

• visibility Optical Characteristics

  Optical Characteristics

  Glass Type	TFT
  Polarizer	Transmissive - IPS
  View Angle	160°

  Backlight Color	White
  Backlight Type	LED
  Foreground Color	RGB
  Background Color	Black

• electric_bolt Electrical Specification

  Electrical Specifications

  Supply Voltage for Logic Minimum	3V
  Supply Voltage for Logic Maximum	3.6V

  Supply Voltage for Logic Typical	3.3V
  Supply Current Typical	80mA

• electric_bolt Backlight Specification

  Backlight Electrical Specifications

  Forward Voltage Minimum	2.7V
  Forward Voltage Maximum	9V
  Forward Voltage Typical	5V

  Forward Current Minimum	165mA
  Forward Current Maximum	200mA
  Forward Current Typical	180mA

• nature Environmental

  Environmental

  Operating Temperatures	min	max
  Celsius	-20°	70°
  Fahrenheit	-4°	158°

  Storage Temperatures	min	max
  Celsius	-30°	80°
  Fahrenheit	-22°	176°

• cable Electronics

  Electronics

  Interface

  SPI

• picture_as_pdf Datasheets
  picture_as_pdf

  CFA480480E0-040Tx Datasheet




• download Files and Downloads
  folder_zip Hardware Design - 3D Model
