4-inch Capacitive Touchscreen EVE Development Kit

Part Number: CFA480480E0-040TW-KIT

Want to get started with our 4" capacitive touchscreen EVE display module quickly? This kit is for you! It comes connected and pre-programmed with a demonstration sketch.

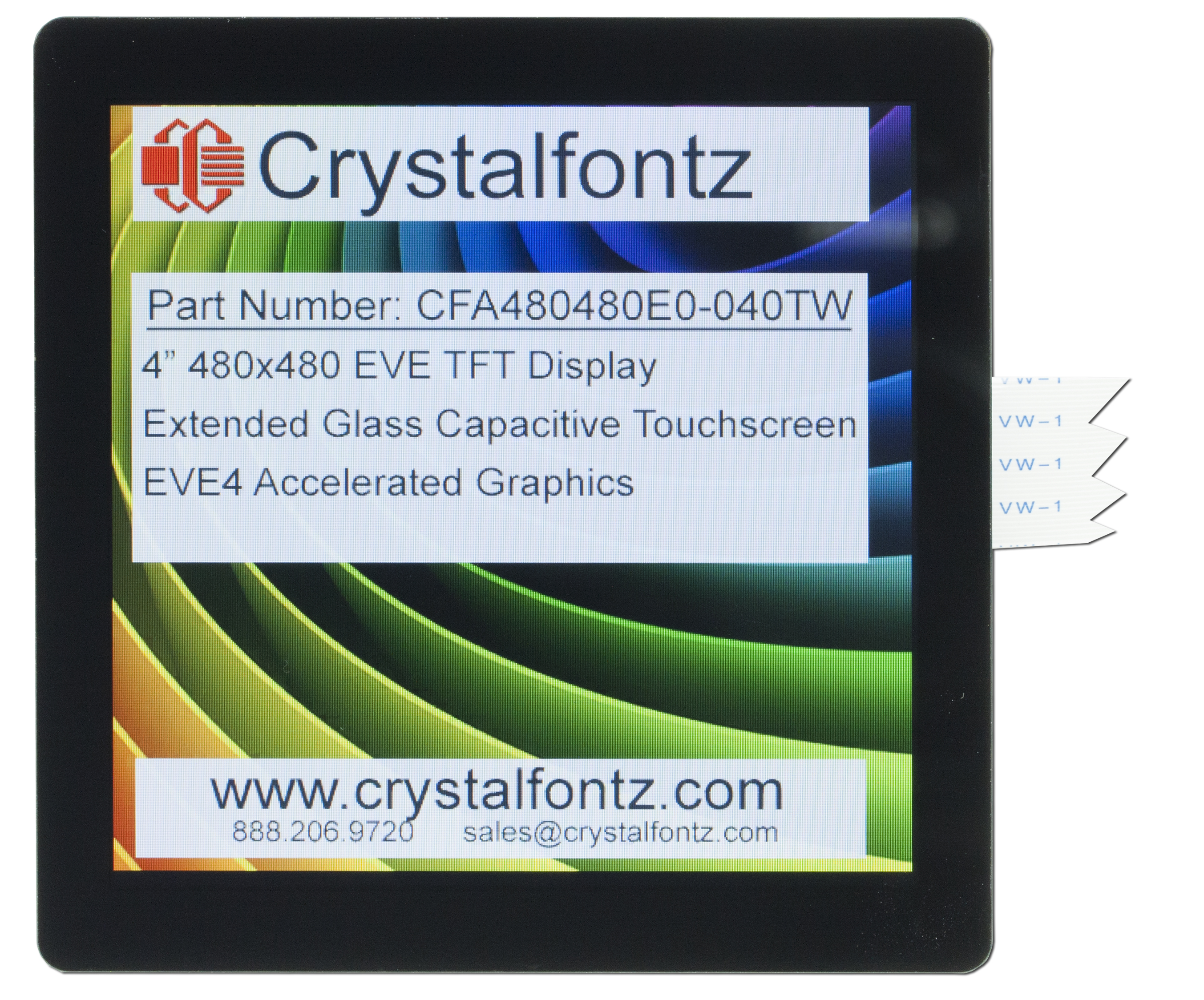

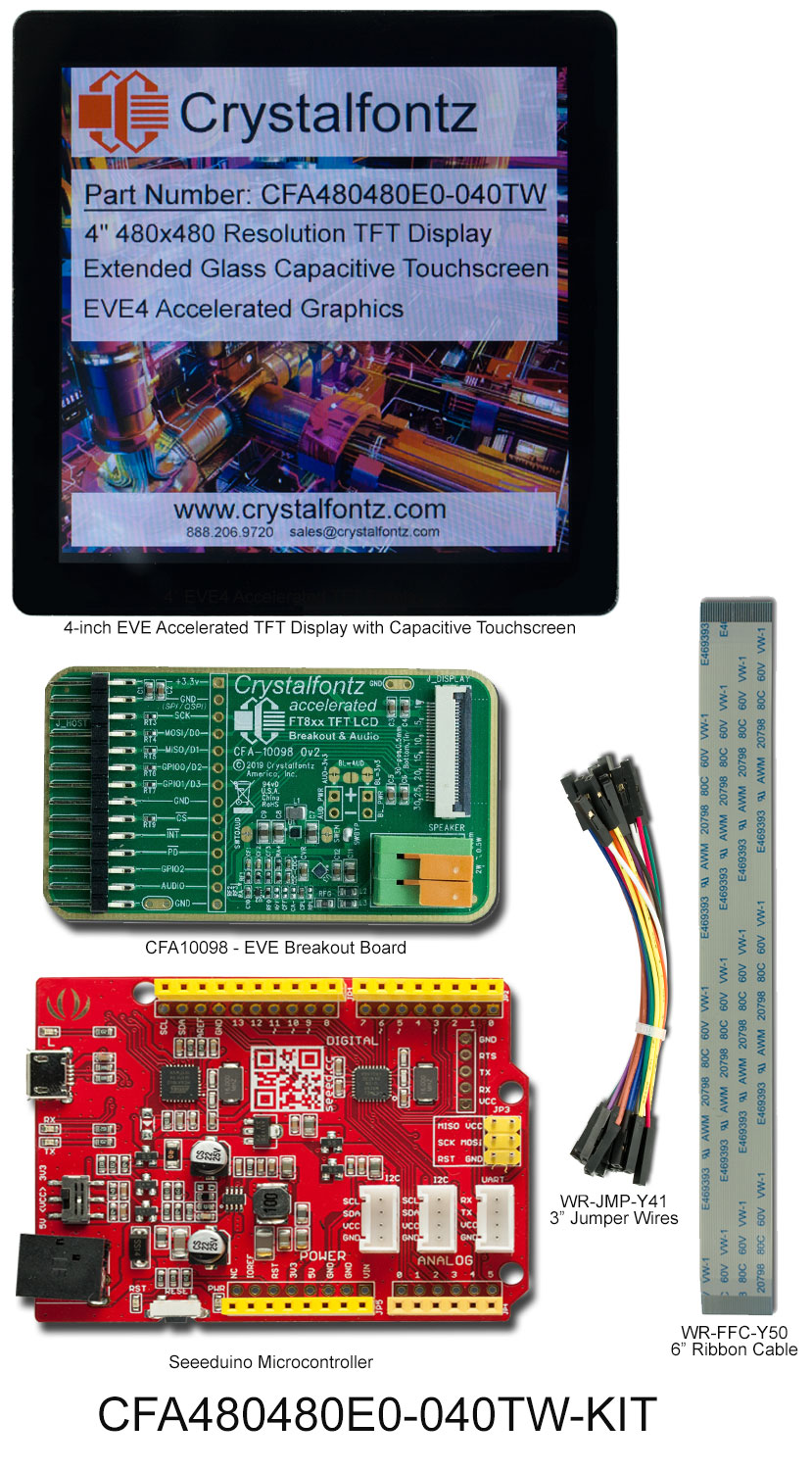

Included in the kit:

• CFA480480E0-040TW
• Seeeduino microcontroller programmed with our demonstration code
• EVE Breakout Board
• Headers, connectors, and flex cables needed

Part Number:
CFA - Crystalfontz America
480480 - 480x480 pixel resolution
E0 - An EVE-based display module
040 - 4" diagonal display
T - Standard brightness
W - Wide capacitive touchscreen
KIT - includes a breakout board and programmed Seeeduino for easy testing

• square_foot Physical Characteristics

  Physical Characteristics

  Column Dots x Row Dots

  480 x 480

  Module Overall	width	height	depth
  millimeters	86	86	9.7
  inches	3.39	3.39	0.38

  Diagonal Dimension

  4"

  Active Area	Width	Height
  millimeters	71.86	70.18
  inches	2.83	2.76

  Dot Pitch	Width	Height
  millimeters	0.149	0.146
  inches	0.0059	0.0057

  Weight	122g
  Pin Count	30

• visibility Optical Characteristics

  Optical Characteristics

  Glass Type	TFT
  Polarizer	Transmissive - IPS
  View Angle	160°

  Backlight Color	White
  Backlight Type	LED
  Foreground Color	RGB
  Background Color	Black

• electric_bolt Electrical Specification

  Electrical Specifications

  Supply Voltage for Logic Minimum	3V
  Supply Voltage for Logic Maximum	3.6V

  Supply Voltage for Logic Typical	3.3V
  Supply Current Typical	80mA

• electric_bolt Backlight Specification

  Backlight Electrical Specifications

  Forward Voltage Minimum	2.7V
  Forward Voltage Maximum	9V
  Forward Voltage Typical	5V

  Forward Current Minimum	165mA
  Forward Current Maximum	200mA
  Forward Current Typical	180mA

• nature Environmental

  Environmental

  Operating Temperatures	min	max
  Celsius	-20°	70°
  Fahrenheit	-4°	158°

  Storage Temperatures	min	max
  Celsius	-30°	80°
  Fahrenheit	-22°	176°

• cable Electronics

  Electronics

  Interface

  SPI

• picture_as_pdf Datasheets
  picture_as_pdf

  CFA480480E0-040Tx Datasheet
