128x64 Small OLED from Crystalfontz

Product

Home » Products » OLED Displays » Graphic » Resolution » 256x64

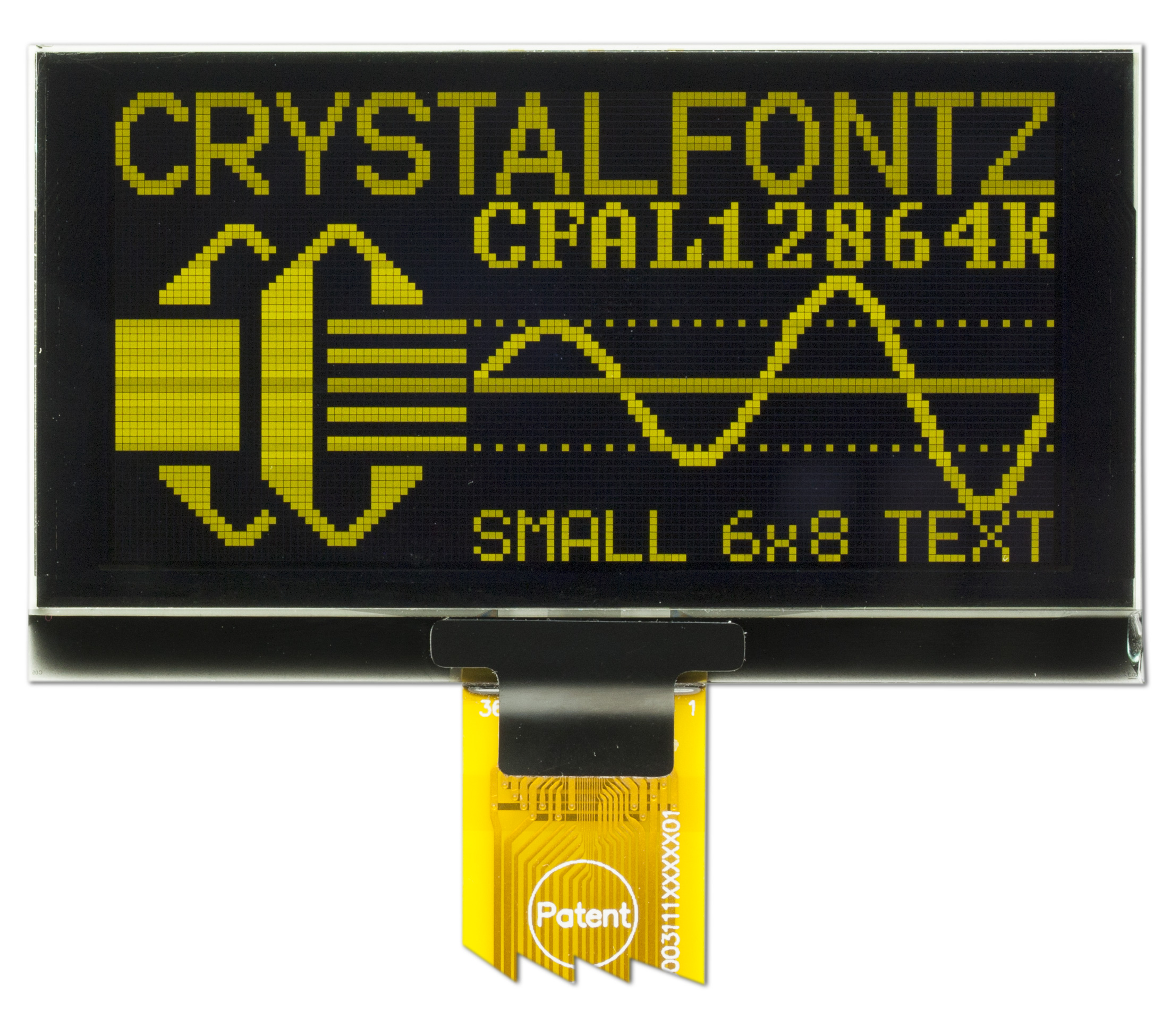

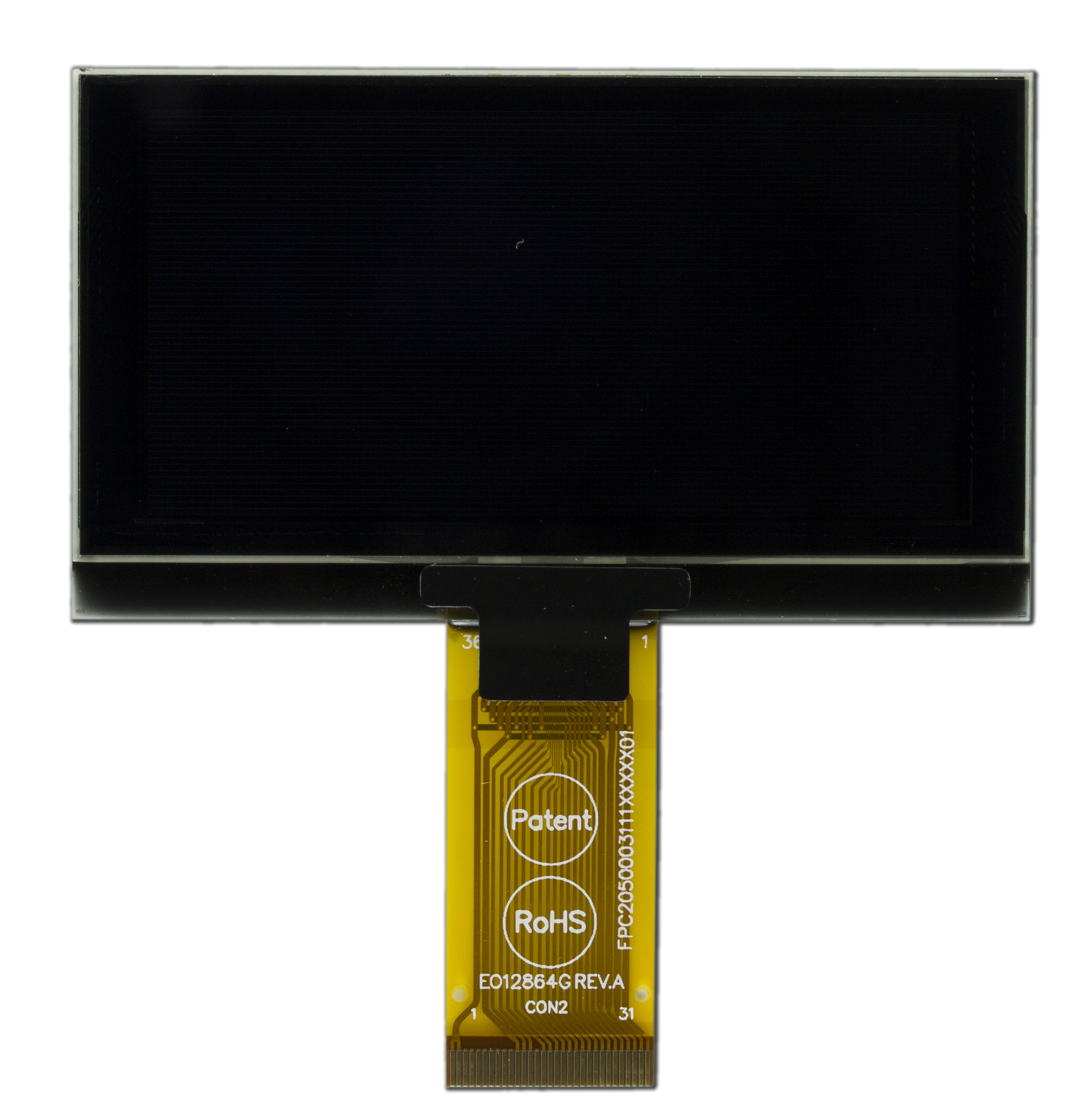

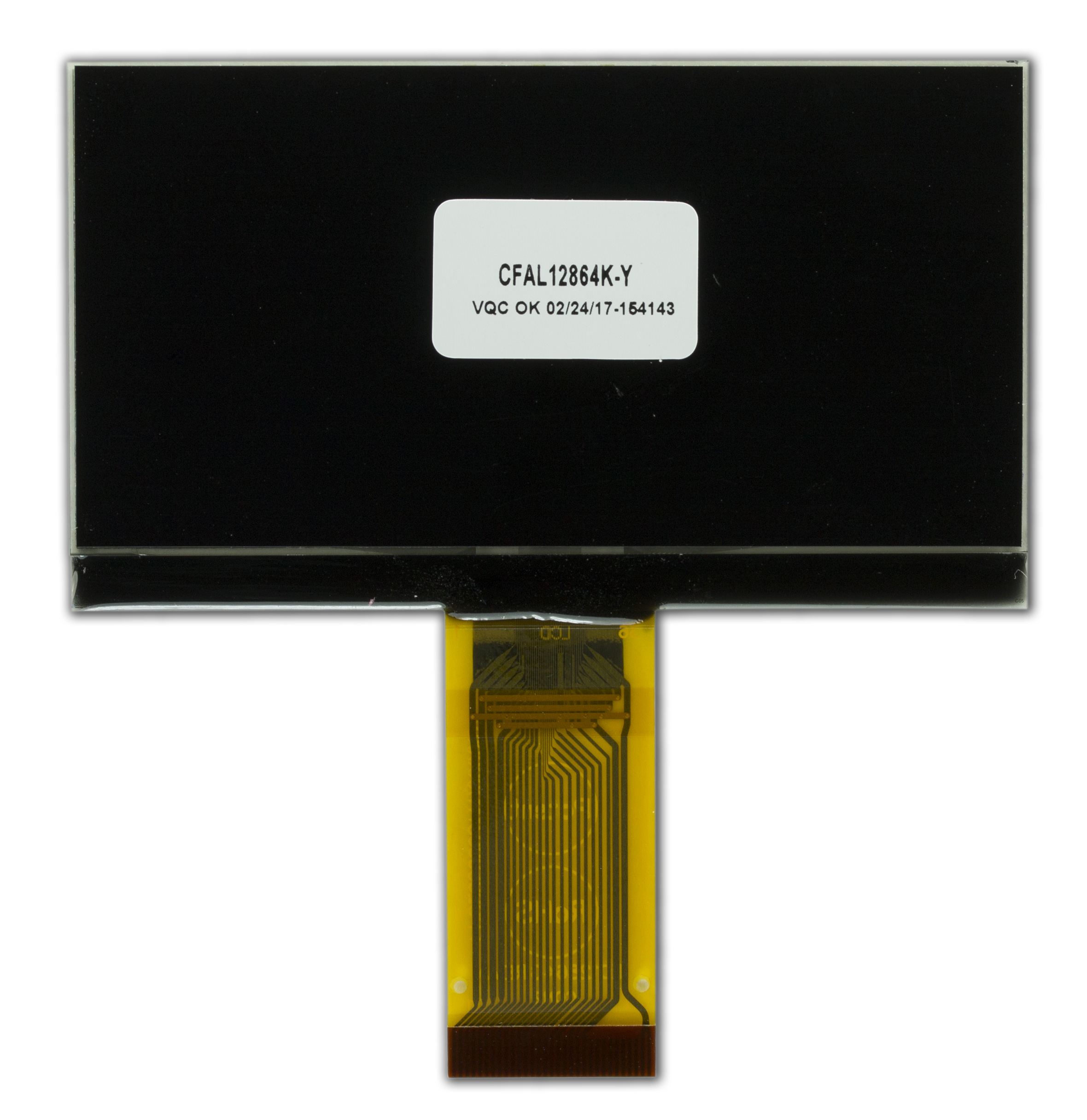

128x64 Small OLEDPart Number: CFAL12864K-YA beautiful yellow  monochrome 2.7 inch 128x64 Graphic OLED display module. This small OLED module is designed with chip-on-glass technology, making it super thin only 2.15mm! and has over 50,000 hour lifetime!
128x64 brilliant yellow pixels!
Built-in SSD1309ZC Controller
3 volt logic and 13 volt display
Interfaces: 8-bit Parallel, 6800, 8080, SPI, I2C
Product VariationsColorsWhite on Black
No backlightYellow on Black
No backlight

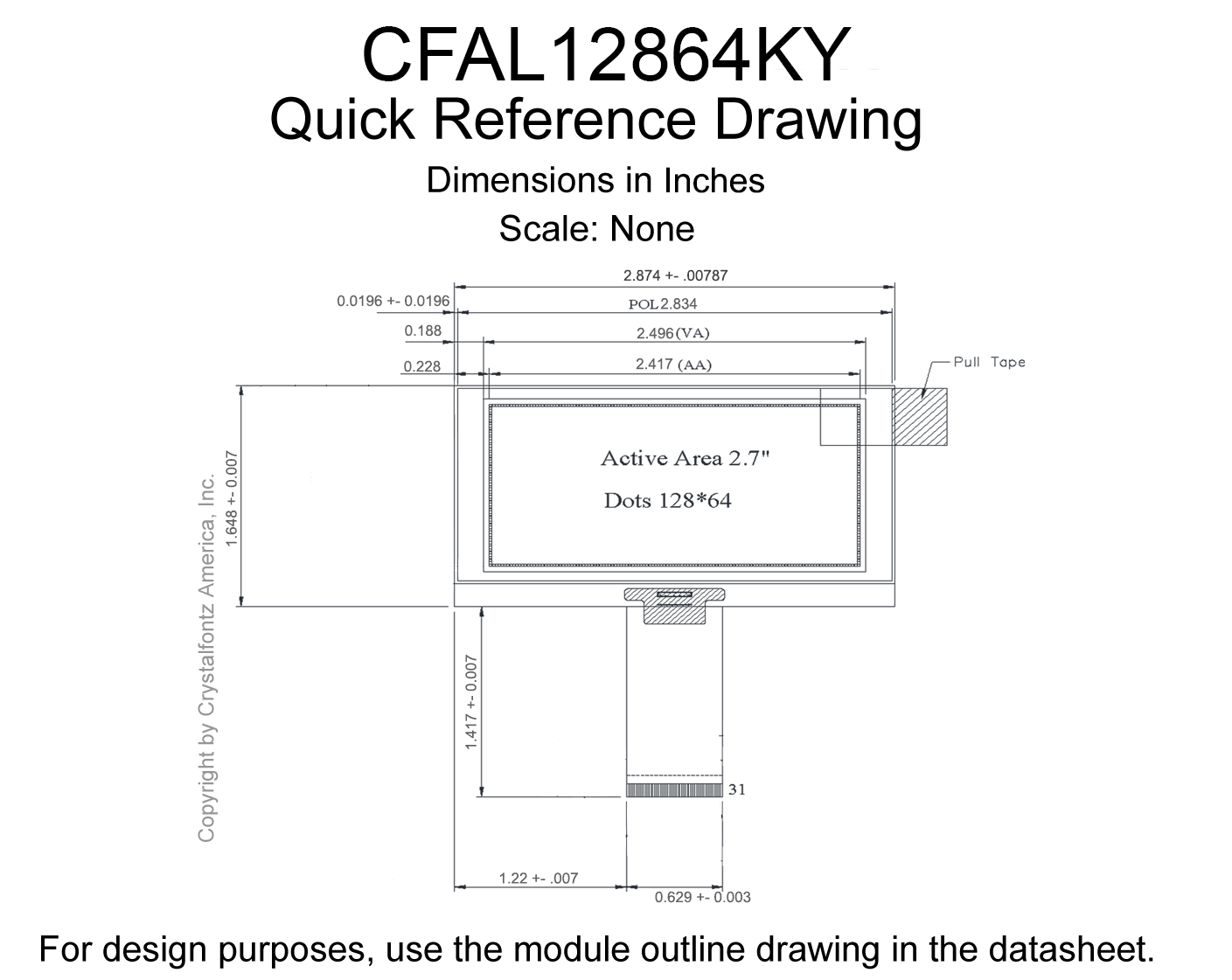

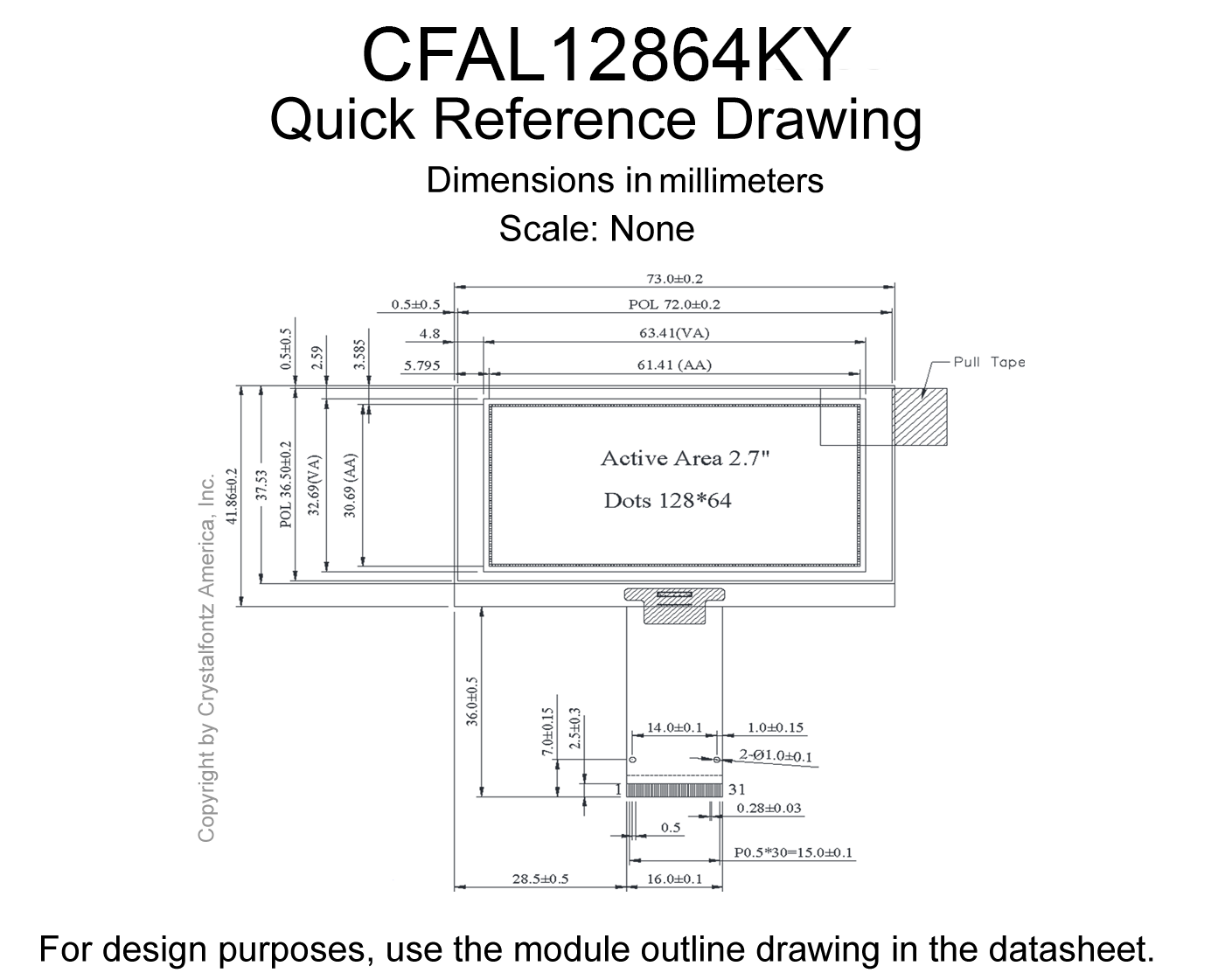

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            128 x 64

    Module Overall        width
        height

        millimeters
        73
        41.86

        inches
        2.87
        1.65

        Diagonal Dimension
            2.7"

    Viewing Area        Width
        Height

        millimeters
        63.41
        32.69

        inches
        2.50
        1.29

    Active Area        Width
        Height

        millimeters
        61.41
        30.69

        inches
        2.42
        1.21

    Dot Size        Width
        Height

        millimeters
        0.45
        0.45

        inches
        0.018
        0.018

    Dot Pitch        Width
        Height

        millimeters
        0.48
        0.48

        inches
        0.019
        0.019

        Weight
            14.4g
Pin Count
            31

 visibility Optical Characteristics
Optical Characteristics

        Glass Type
            OLED
Polarizer
            Emissive
View Angle
            160°
Sunlight Readable
            yes

        Mode
            Positive
Foreground Color
            Yellow
Background Color
            Black

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            2.8V
Supply Voltage for Logic Typical
            3.3V

        Supply Voltage for Driving Panel Typical
            13V

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -40°
        80°

        Fahrenheit
        -40°
        176°

    Storage Temperatures        min
        max

        Celsius
        -40°
        80°

        Fahrenheit
        -40°
        176°

 cable Electronics
Electronics

        Controller Documents
            Solomon Systech SSD1309
SSD1309 128 x 64 Dot Matrix

OLED/PLED Segment/Common Driver with Controller
Interface
            8-bit Parallel, I2C, SPI

 picture_as_pdf Datasheets
picture_as_pdfCFAL12864K Datasheet

Previous Versions of Datasheetpicture_as_pdfCFAL12864KY Datasheet
(Datasheet V 1.0)
 download Files and Downloads
folder_zip Hardware Design - 3D Model
picture_as_pdf 1 to 1 Template
picture_as_pdf Other Document - I2C Wiring Guide on CFA10102
picture_as_pdf Other Document - SPI Wiring Guide on CFA10102 (Schematic)
link Arduino Demo Code on Github
link Demo Code Repository on Github
 assured_workload Compliance Documents
 picture_as_pdf Declaration of Conformity RoHS2
 picture_as_pdf Declaration of Conformity REACH

Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
 Quantity:

Price:

            Quantity
            Unit Price

            1
            $38.85

            5
            $34.27

            10
            $31.58

            20
            $30.51

            50 *
            $29.45

            100 *
            $27.80

            200 *
            $27.60

            300 *
            $26.19

            500 *
            $25.99

            1000 *
            $24.30

43 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
Other components worth considering

						Multi-use ZIF Breakout Board
Add a breakout $22.34 ea.

						40-Position ZIF Breakout Board
Add a 40-pin ZIF Breakout Board? $6.43 ea.

Colors	White on Black No backlight Yellow on Black No backlight

Module Overall	width	height
millimeters	73	41.86
inches	2.87	1.65

Viewing Area	Width	Height
millimeters	63.41	32.69
inches	2.50	1.29

Active Area	Width	Height
millimeters	61.41	30.69
inches	2.42	1.21

Dot Size	Width	Height
millimeters	0.45	0.45
inches	0.018	0.018

Dot Pitch	Width	Height
millimeters	0.48	0.48
inches	0.019	0.019

Operating Temperatures	min	max
Celsius	-40°	80°
Fahrenheit	-40°	176°

Storage Temperatures	min	max
Celsius	-40°	80°
Fahrenheit	-40°	176°

Quantity	Unit Price
1	$38.85
5	$34.27
10	$31.58
20	$30.51
50 *	$29.45
100 *	$27.80
200 *	$27.60
300 *	$26.19
500 *	$25.99
1000 *	$24.30

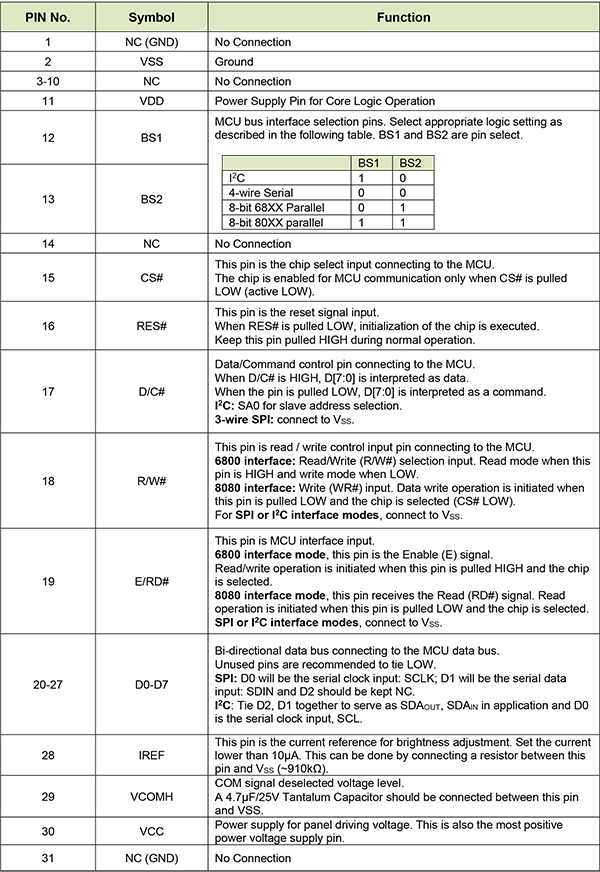

Pin Table
Notices

Part Change Notice

Subscribe to Part Change Notices by email or RSS

Product Update #10845: (New Product) CFAL12864K-Y

New Product:	CFAL12864K-Y
Date Issued:	March 29, 2017
Summary:	(New Product) CFAL12864K-Y
Description:	OLED Modules: A beautiful yellow monochrome 2.7 inch 128x64 Graphic OLED display module. This small OLED module is designed with chip-on-glass technology, making it super thin only 2.15mm! and has over 50,000 hour lifetime! 128x64 brilliant yellow pixels! Only +3V Power! Built-in SSD1309ZC Controller +3V Power Supply Interfaces: 8-bit Parallel, 6800, 8080, SPI, I2C

Part Change Notices

Subscribe to Part Change Notices by
email or RSS for CFAL12864K-Y

128x64 Small OLED

Part Number: CFAL12864K-Y

Product Variations

Colors

Physical Characteristics

Optical Characteristics

Electrical Specifications

Environmental

Electronics

Part Change Notice

Subscribe to Part Change Notices by email or RSS

Product Update #10845: (New Product) CFAL12864K-Y

Part Change Notices

LCD Software

User Forum

Tech Support

Glass Type	OLED
Polarizer	Emissive
View Angle	160°
Sunlight Readable	yes

Mode	Positive
Foreground Color	Yellow
Background Color	Black

Supply Voltage for Logic Minimum	2.8V
Supply Voltage for Logic Typical	3.3V

Controller Documents	Solomon Systech SSD1309 SSD1309 128 x 64 Dot Matrix OLED/PLED Segment/Common Driver with Controller
Interface	8-bit Parallel, I2C, SPI

Weight	14.4g
Pin Count	31
