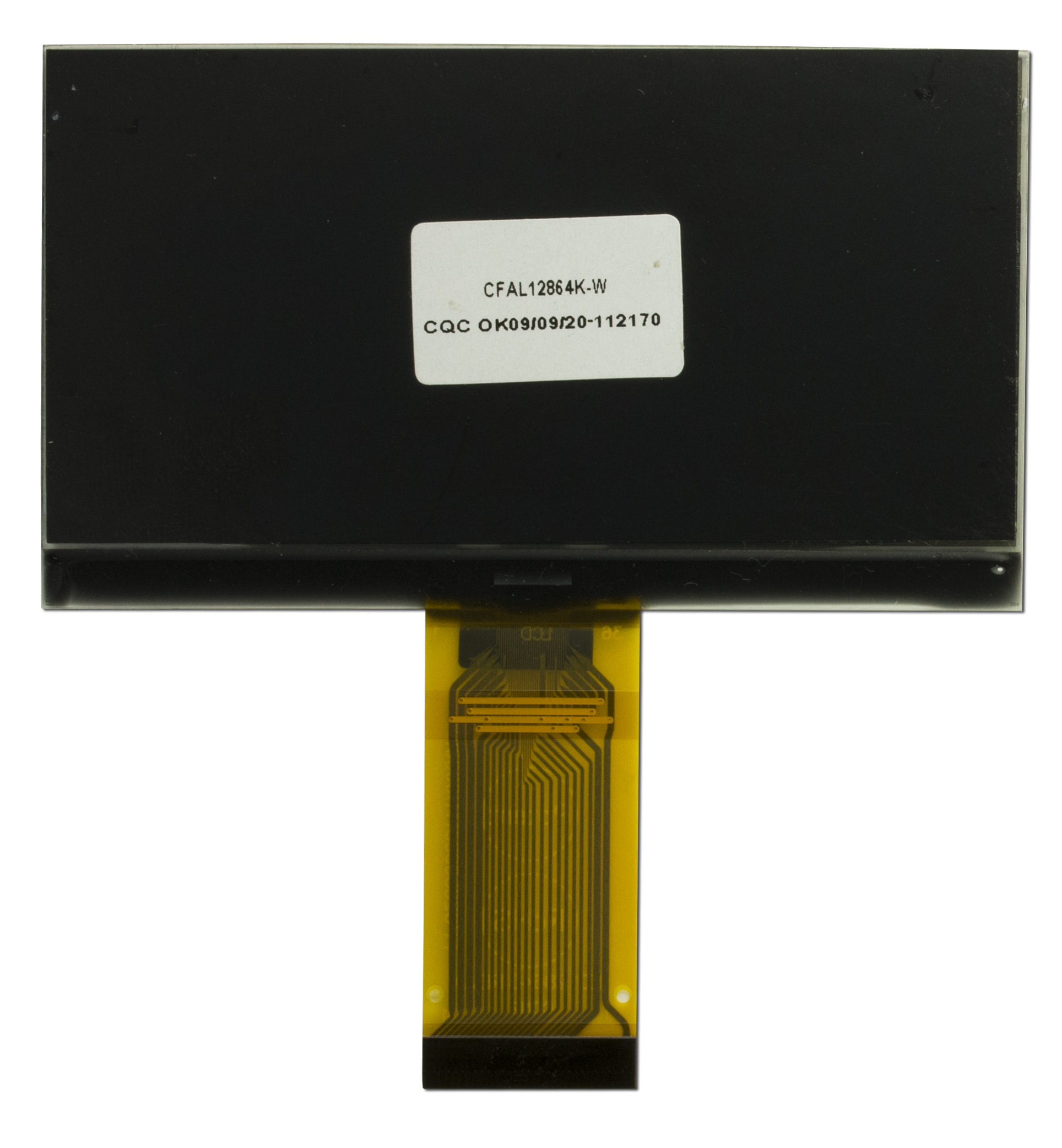

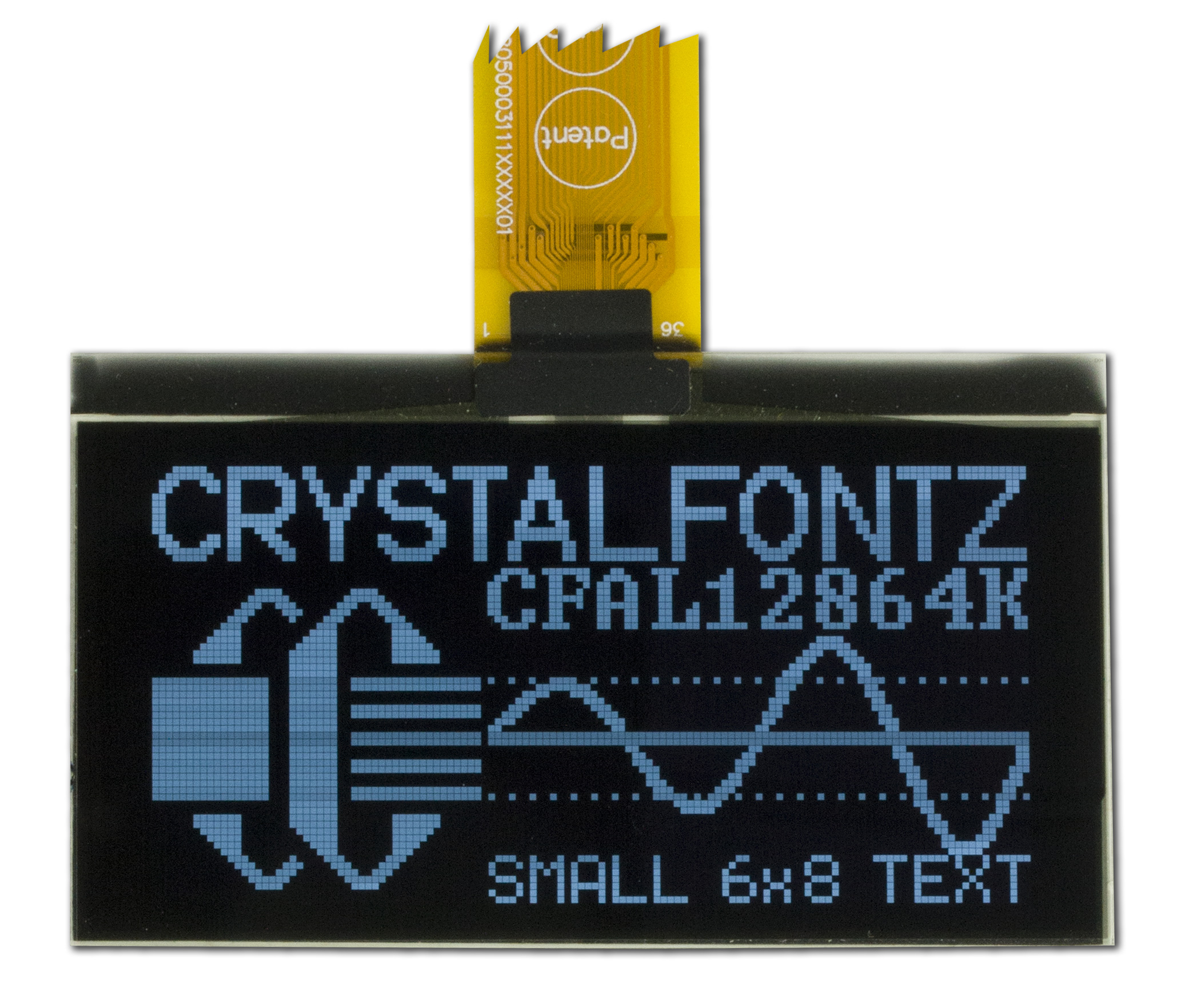

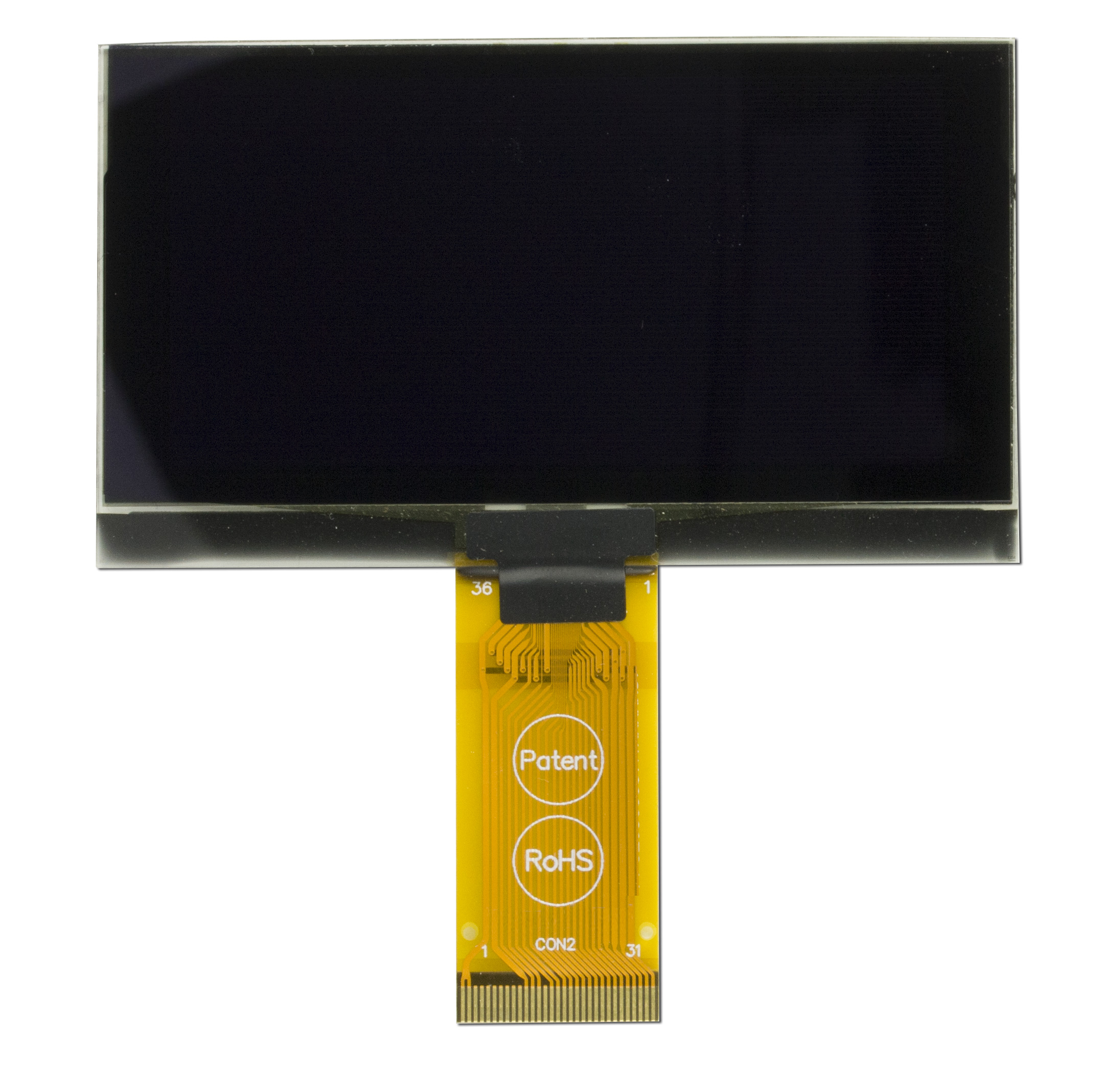

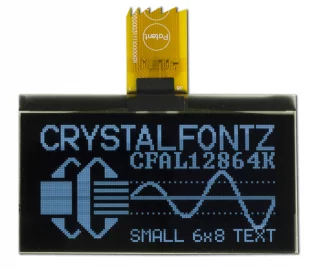

128x64 White Graphic OLED DisplayPart Number: CFAL12864K-W

                        A crisp white monochrome 2.7 inch 128x64 Graphic OLED display module. Thanks to chip-on-glass technology, this module is super thin (2.15mm) and has a 50,000 hour lifetime.

The SSD1309 LCD controller is a popular controller, so in addition to our demo code, it's easy to find bring up examples across the web for using this display with a wide variety of microcontrollers including Raspberry Pi and ESP32.

128x64 brilliant white pixels
Built-in SSD1309ZC Controller
3.3 volt logic and 13 volt display
Interfaces: 8-bit Parallel, 6800, 8080, SPI, I2C
Product VariationsColorsWhite on Black
No BacklightYellow on Black
No Backlight

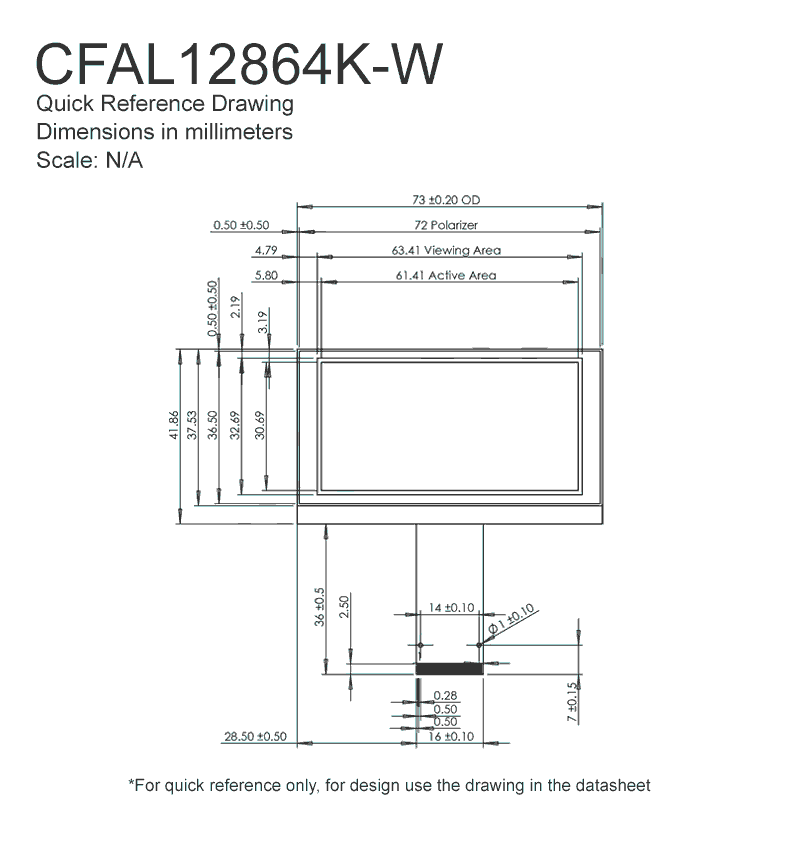

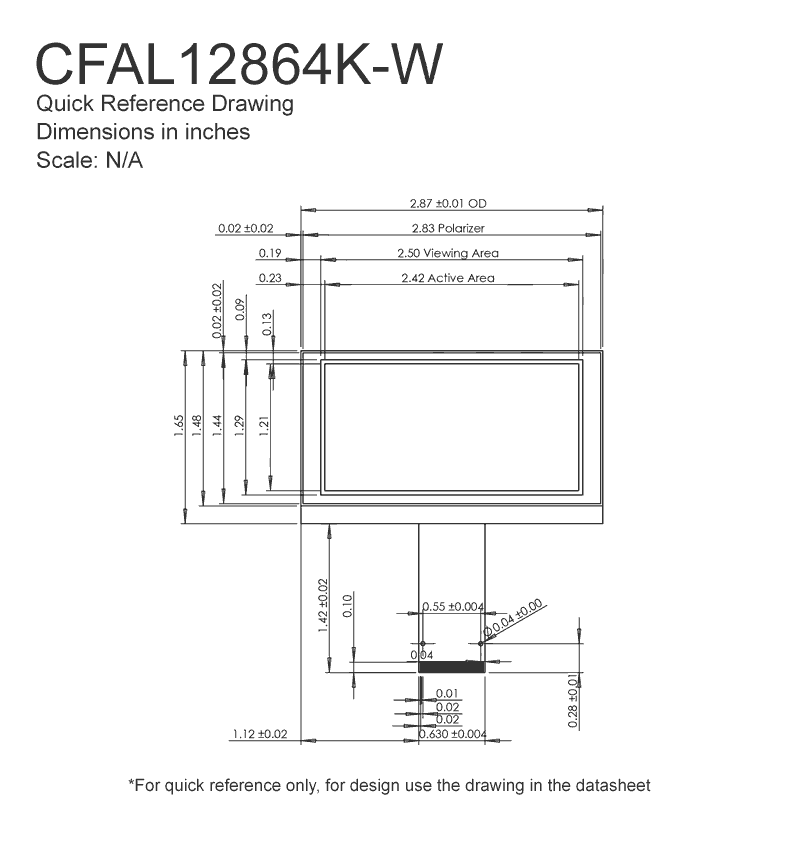

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            128 x 64

    Module Overall        width
        height

        millimeters
        73
        41.86

        inches
        2.87
        1.65

        Diagonal Dimension
            2.7"

    Viewing Area        Width
        Height

        millimeters
        63.41
        32.69

        inches
        2.50
        1.29

    Active Area        Width
        Height

        millimeters
        61.41
        30.69

        inches
        2.42
        1.21

    Dot Size        Width
        Height

        millimeters
        0.45
        0.45

        inches
        0.018
        0.018

    Dot Pitch        Width
        Height

        millimeters
        0.48
        0.48

        inches
        0.019
        0.019

        Weight
            14.4g
Pin Count
            31

 visibility Optical Characteristics
Optical Characteristics

        Glass Type
            OLED
Polarizer
            Emissive
View Angle
            160°
Sunlight Readable
            yes

        Mode
            Positive
Foreground Color
            White
Background Color
            Black

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            2.8V
Supply Voltage for Logic Typical
            3.3V

        Supply Voltage for Driving Panel Typical
            13V

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -40°
        80°

        Fahrenheit
        -40°
        176°

    Storage Temperatures        min
        max

        Celsius
        -40°
        80°

        Fahrenheit
        -40°
        176°

 cable Electronics
Electronics

        Controller Documents
            Solomon Systech SSD1309
SSD1309 128 x 64 Dot Matrix

OLED/PLED Segment/Common Driver with Controller
Interface
            8-bit Parallel, I2C, SPI

picture_as_pdf Datasheets
picture_as_pdfCFAL12864K Datasheet

download Files and Downloads
folder_zip Hardware Design - 3D Model
picture_as_pdf 1 to 1 Template
picture_as_pdf Other Document - Getting Started Guide
picture_as_pdf Other Document - I2C Wiring Guide on CFA10102
link Arduino Demo Code on Github
link Demo Code Repository on Github
assured_workload Compliance Documents

picture_as_pdf Declaration
                                    of Conformity RoHS2
picture_as_pdf Declaration
                                    of Conformity REACH

Need a written quote? Add to cart, then enter
                            your email address in the "request a quote" box.
Quantity:

Price:

            Quantity
            Unit Price

            1
            $35.02

            10
            $32.21

            20
            $31.26

            50 *
            $30.12

            100 *
            $28.50

            200 *
            $28.31

            300 *
            $26.70

            500 *
            $26.53

            1000 *
            $25.15

36 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
Other components worth
                    considering

						40-Position ZIF Breakout Board
Add a 40-pin ZIF Breakout Board? $6.43 ea.

Colors	White on Black No Backlight Yellow on Black No Backlight

Module Overall	width	height
millimeters	73	41.86
inches	2.87	1.65

Viewing Area	Width	Height
millimeters	63.41	32.69
inches	2.50	1.29

Active Area	Width	Height
millimeters	61.41	30.69
inches	2.42	1.21

Dot Size	Width	Height
millimeters	0.45	0.45
inches	0.018	0.018

Dot Pitch	Width	Height
millimeters	0.48	0.48
inches	0.019	0.019

Operating Temperatures	min	max
Celsius	-40°	80°
Fahrenheit	-40°	176°

Storage Temperatures	min	max
Celsius	-40°	80°
Fahrenheit	-40°	176°

Quantity	Unit Price
1	$35.02
10	$32.21
20	$31.26
50 *	$30.12
100 *	$28.50
200 *	$28.31
300 *	$26.70
500 *	$26.53
1000 *	$25.15
