128x128 Round OLED display - Yellow from Crystalfontz

Product

Home » Products » OLED Displays » Graphic

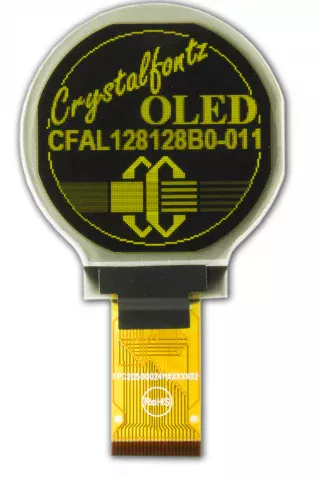

128x128 Round OLED display - YellowPart Number: CFAL128128B0-011Y

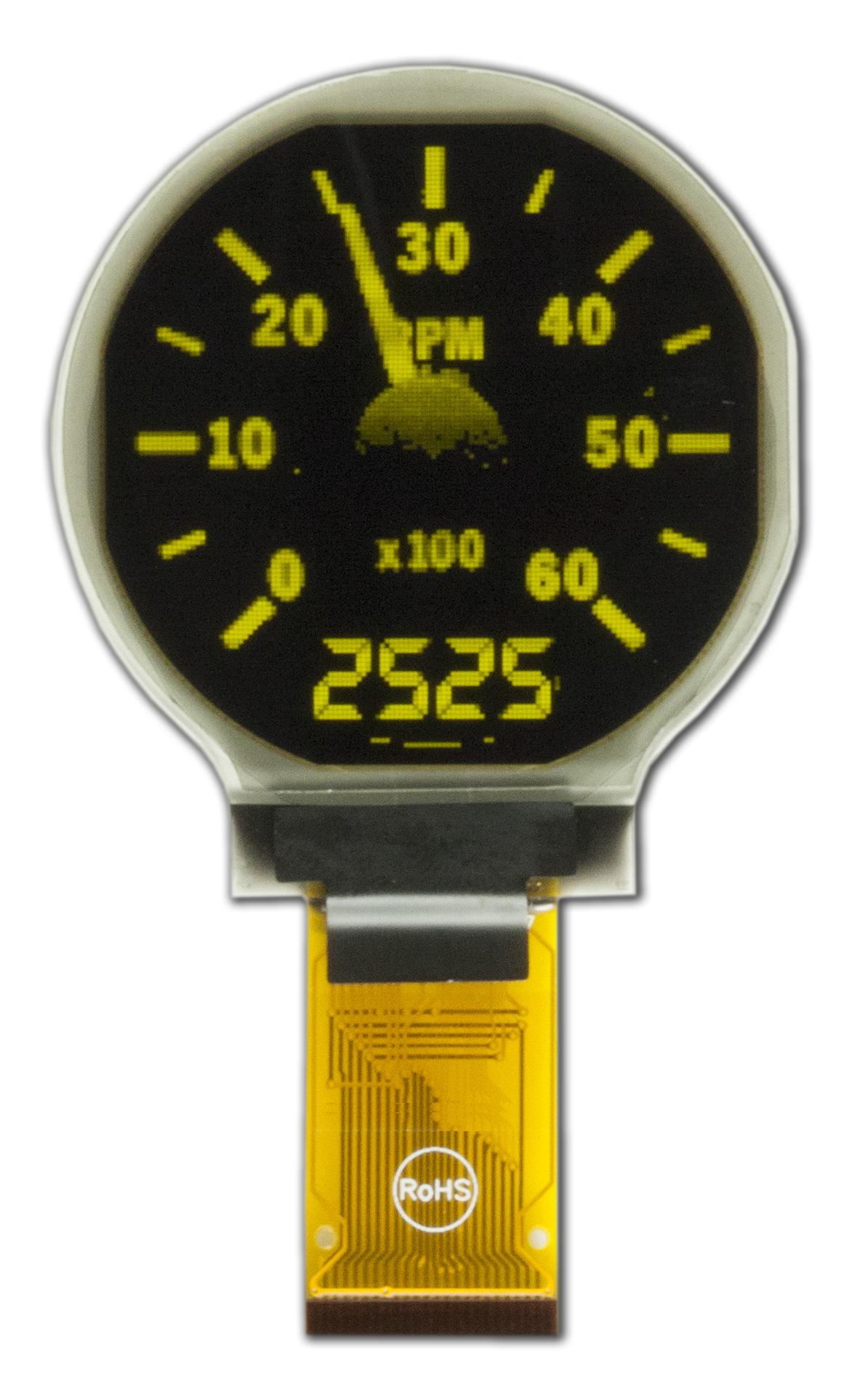

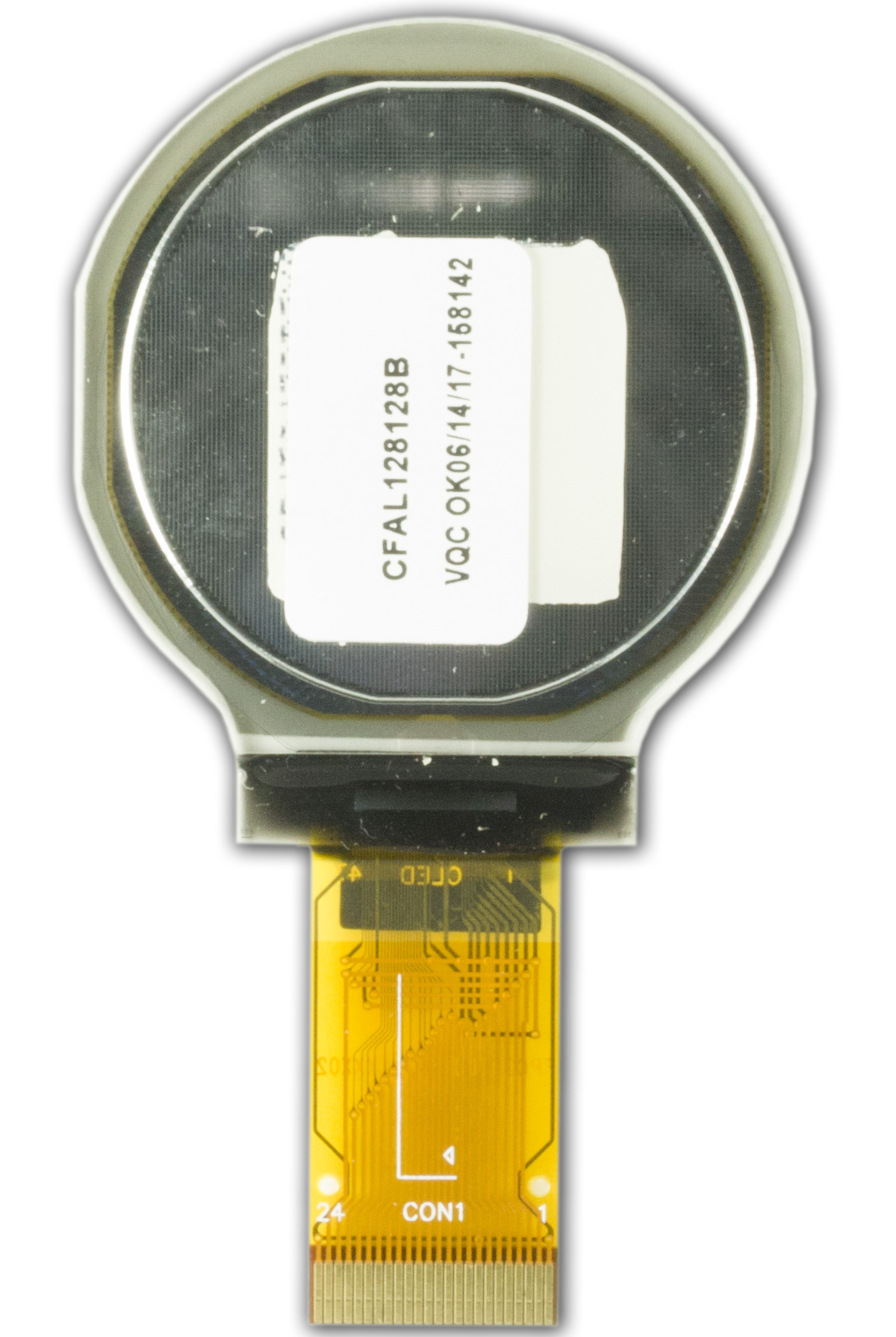

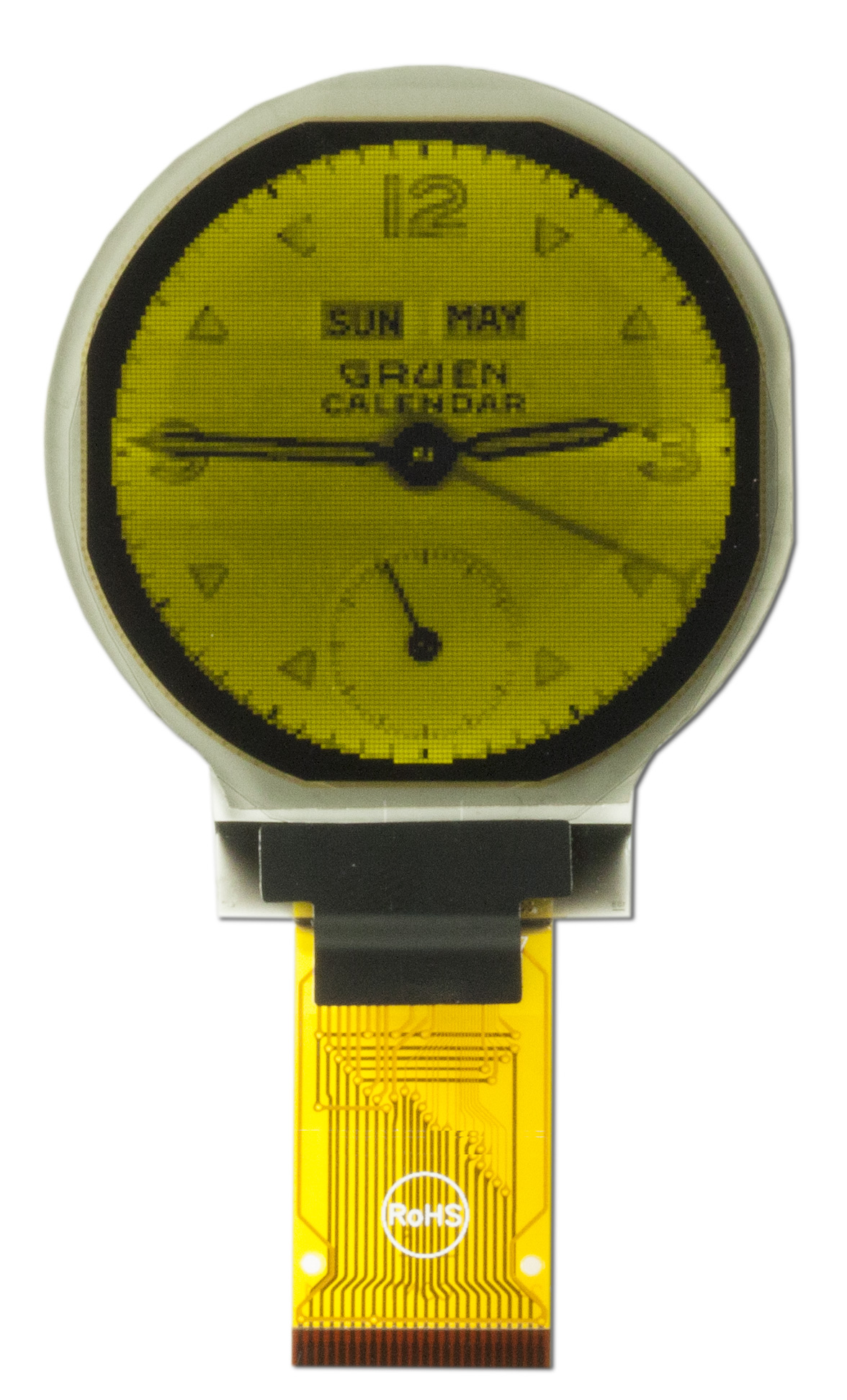

                        This round yellow-on-black OLED would be perfect for a smart watch or other wearable. The active area is about 1.1 inches in diameter and the entire module is about 1.5 inches across.

128x128px 1.1 inch diagonal active area
Ultra-thin and super lightweight!
Multiple interfaces, including SPI, I2C, 8080 and 6800
SSD1327 integrated controller

We have a very similar OLED display in a square form factor: 128x128 Square Yellow OLED or 128x128 Square White OLED.Product VariationsColorsYellow on Black
No BacklightWhite on Black
No Backlight

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            128 x 128

    Module Overall        width
        height
        depth

        millimeters
        37.18
        41.23
        2.05

        inches
        1.46
        1.62
        0.08

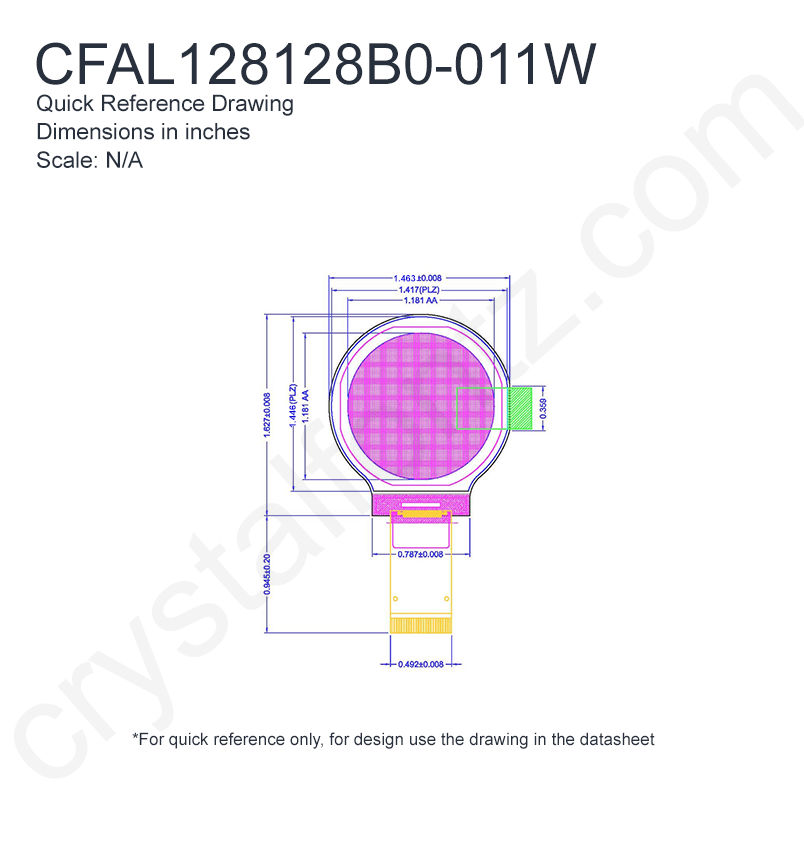

*width / height does not include Foldable Tab

        Diagonal Dimension
            1.67"

    Viewing Area        Width
        Height

        millimeters
        30
        30

        inches
        1.18
        1.18

    Active Area        Width
        Height

        millimeters
        30
        30

        inches
        1.18
        1.18

    Dot Size        Width
        Height

        millimeters
        0.21
        0.21

        inches
        0.008
        0.008

    Dot Pitch        Width
        Height

        millimeters
        0.235
        0.235

        inches
        0.0093
        0.0093

        Optional Connectors
            CS050Z24GA0

    Flexible Cable (FFC/FPC)        length

        millimeters
        24

        inches
        0.945

        Weight
            5.2g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type
            OLED
Polarizer
            Emissive
View Angle
            160°

        Foreground Color
            Yellow
Background Color
            Black

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            2.8V
Supply Voltage for Logic Maximum
            3.3V

        Supply Voltage for Logic Typical
            3V
Supply Voltage for Driving Panel Typical
            14.5V

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -40°
        80°

        Fahrenheit
        -40°
        176°

    Storage Temperatures        min
        max

        Celsius
        -40°
        80°

        Fahrenheit
        -40°
        176°

 cable Electronics
Electronics

        Controller Documents
            Solomon Systech SSD1327
SSD1327 V1.8
Interface
            8-bit Parallel, I2C, SPI

picture_as_pdf Datasheets
picture_as_pdfCFAL128128B0011Y Datasheet

download Files and Downloads
folder_zip Software Source - Arduino Sample Code
folder_zip Hardware Design - 3D Model
picture_as_pdf Other Document - CFA10102 Wiring Guide
link Fork this on Github
assured_workload Compliance Documents

picture_as_pdf Declaration
                                    of Conformity RoHS2
picture_as_pdf Declaration
                                    of Conformity REACH

Need a written quote? Add to cart, then enter
                            your email address in the "request a quote" box.
Quantity:

Price:

            Quantity
            Unit Price

            1
            $23.61

            10
            $20.53

            20
            $19.80

            50 *
            $19.07

            100 *
            $17.94

            200 *
            $17.65

            300 *
            $16.70

            500 *
            $16.57

            1000 *
            $15.24

20 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
Other components worth
                    considering

						Multi-use ZIF Breakout Board
Add a breakout $22.34 ea.

						24 Position, 0.5mm Pitch, Gold, FCC FPC ZIF Connector
Add 5 ZIF Connectors $0.97 ea.

						24-Position ZIF Breakout Board
Add a 24-pin ZIF Breakout Board? $6.08 ea.

Colors	Yellow on Black No Backlight White on Black No Backlight

Module Overall	width	height	depth
millimeters	37.18	41.23	2.05
inches	1.46	1.62	0.08
*width / height does not include Foldable Tab

Viewing Area	Width	Height
millimeters	30	30
inches	1.18	1.18

Active Area	Width	Height
millimeters	30	30
inches	1.18	1.18

Dot Size	Width	Height
millimeters	0.21	0.21
inches	0.008	0.008

Dot Pitch	Width	Height
millimeters	0.235	0.235
inches	0.0093	0.0093

Flexible Cable (FFC/FPC)	length
millimeters	24
inches	0.945

Operating Temperatures	min	max
Celsius	-40°	80°
Fahrenheit	-40°	176°

Storage Temperatures	min	max
Celsius	-40°	80°
Fahrenheit	-40°	176°

Quantity	Unit Price
1	$23.61
10	$20.53
20	$19.80
50 *	$19.07
100 *	$17.94
200 *	$17.65
300 *	$16.70
500 *	$16.57
1000 *	$15.24
