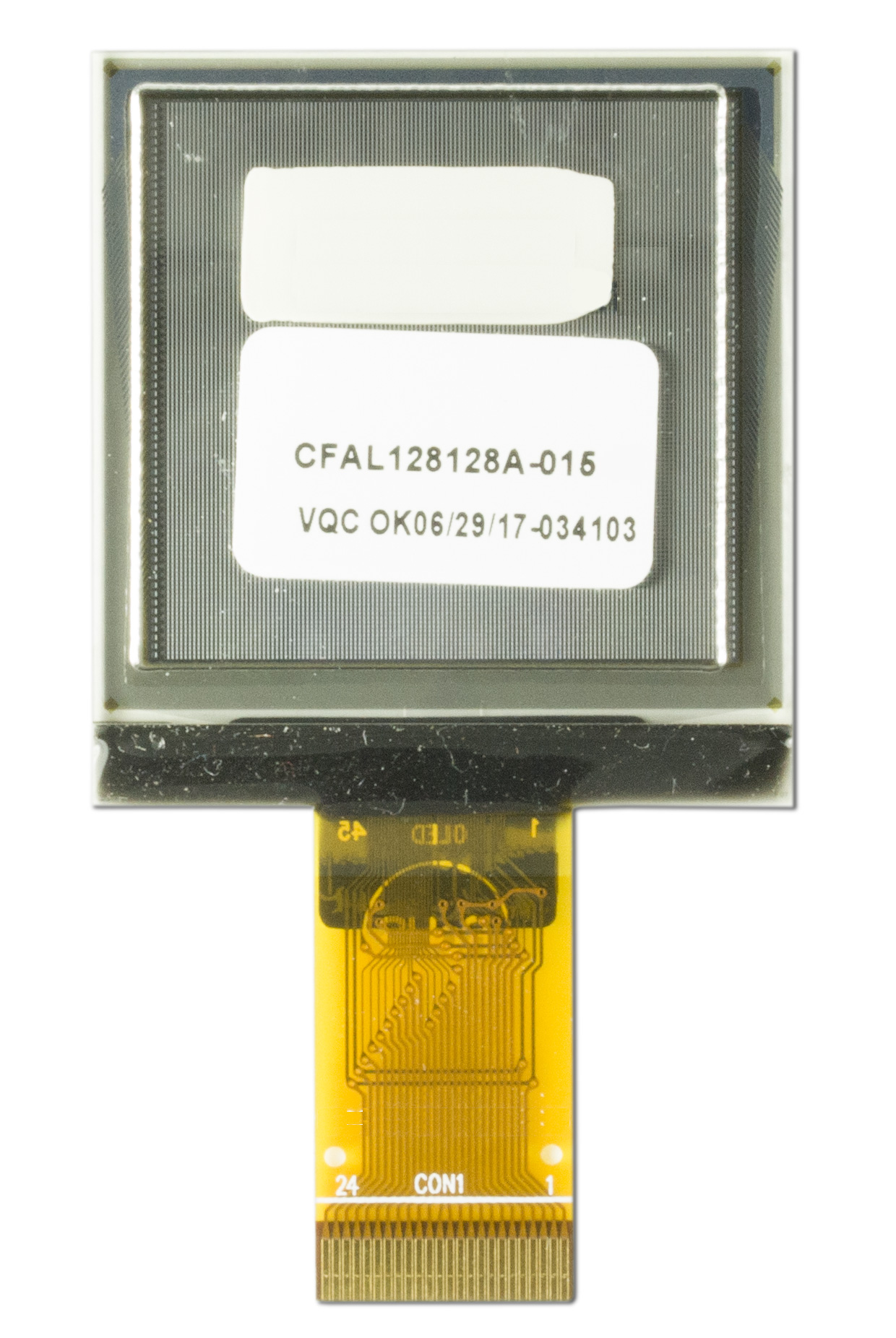

128x128 Square Graphic OLED displayPart Number: CFAL128128A0-015Y

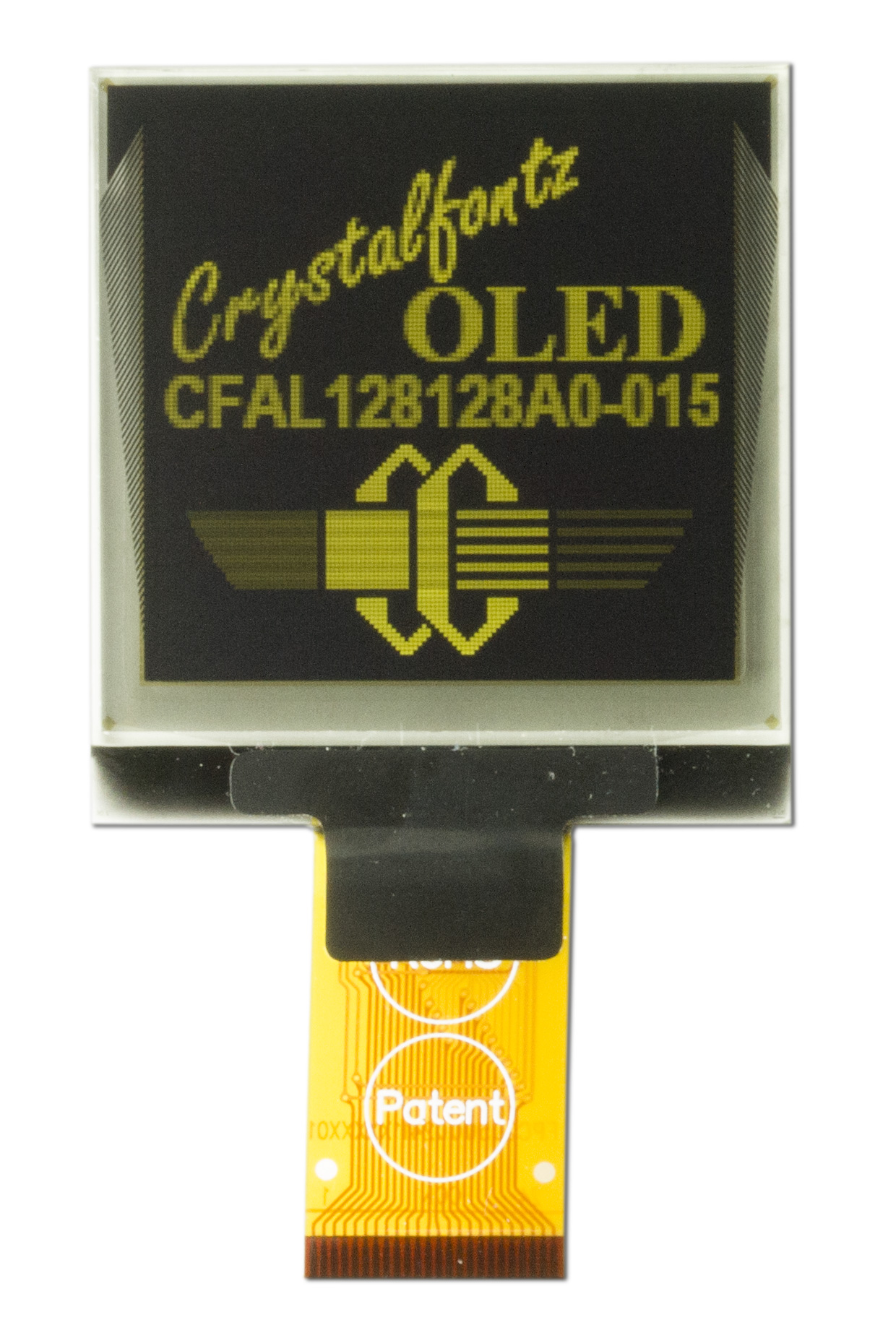

                        Yellow on black OLED display module. 128x128 pixel, square.
1.5 inch diagonal dimensions
SSD1327 Integrated display controller
6800, 8080, SPI and I2C interfaces

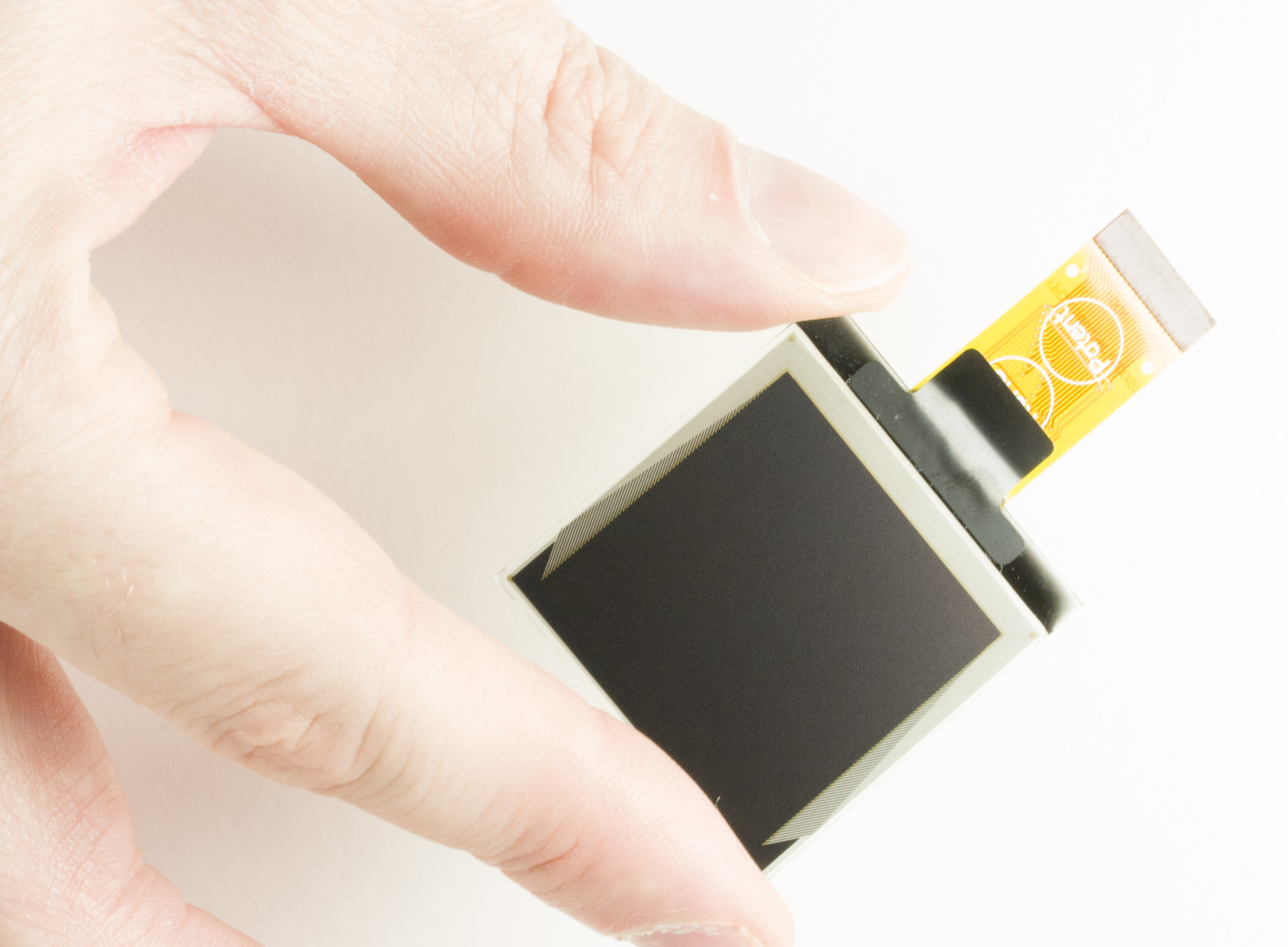

Ultra-thin and lightweight, perfect for small or handheld devices

We have a very similar OLED display in a round form factor: 128x128 Round Yellow OLED or 128x128 Round White OLED.Product VariationsColorsYellow on Black
No BacklightWhite on Black
No Backlight

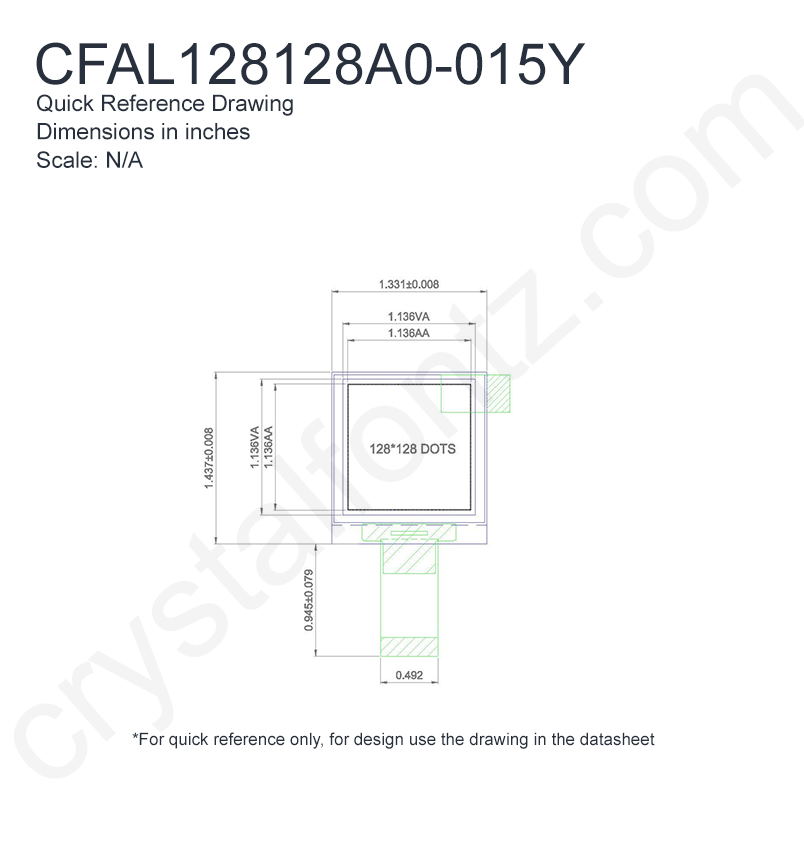

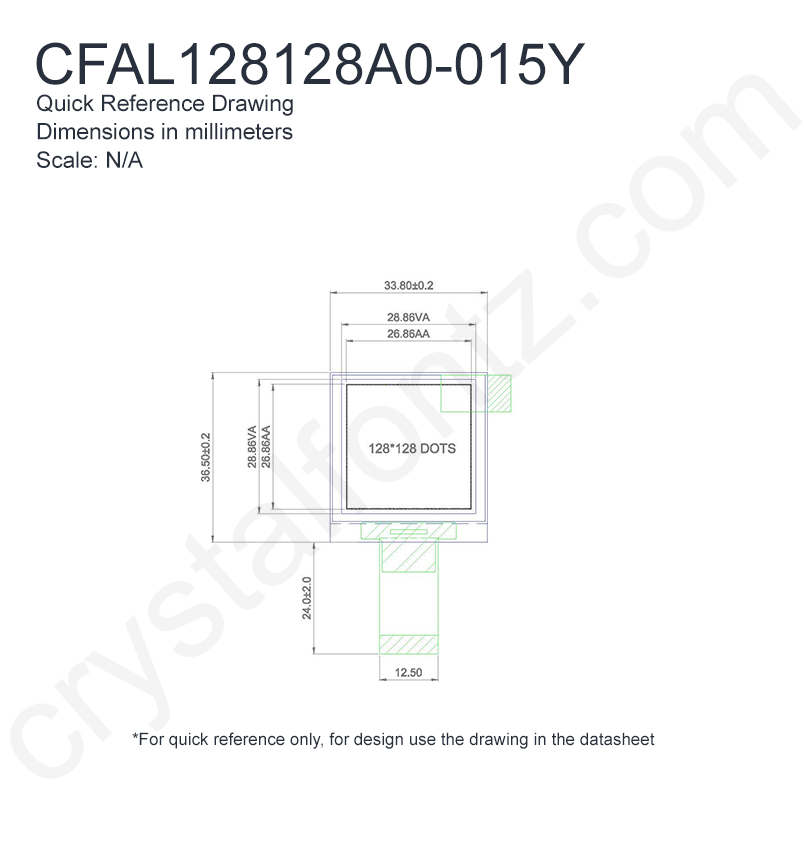

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            128 x 128

    Module Overall        width
        height
        depth

        millimeters
        33.8
        36.5
        2.05

        inches
        1.33
        1.44
        0.08

*width / height does not include Foldable Tab

        Diagonal Dimension
            1.5"

    Viewing Area        Width
        Height

        millimeters
        28.86
        28.86

        inches
        1.14
        1.14

    Active Area        Width
        Height

        millimeters
        26.86
        26.86

        inches
        1.06
        1.06

    Dot Size        Width
        Height

        millimeters
        0.185
        0.185

        inches
        0.0073
        0.0073

    Dot Pitch        Width
        Height

        millimeters
        0.21
        0.21

        inches
        0.008
        0.008

        Optional Connectors
            CS050Z24GA0

    Flexible Cable (FFC/FPC)        length

        millimeters
        24

        inches
        0.945

        Weight
            5.2g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type
            OLED
View Angle
            160°

        Foreground Color
            Yellow
Background Color
            Black

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            2.8V
Supply Voltage for Logic Maximum
            3.3V

        Supply Voltage for Logic Typical
            3V
Supply Voltage for Driving Panel Typical
            14.5V

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -40°
        80°

        Fahrenheit
        -40°
        176°

    Storage Temperatures        min
        max

        Celsius
        -40°
        80°

        Fahrenheit
        -40°
        176°

 cable Electronics
Electronics

        Controller Documents
            Solomon Systech SSD1327
SSD1327 V1.8
Interface
            8-bit Parallel, I2C, SPI

picture_as_pdf Datasheets
picture_as_pdfCFAL128128A0015Y Datasheet

download Files and Downloads
folder_zip Software Source - Arduino Sample Code
folder_zip Hardware Design - 3D Model
picture_as_pdf Other Document - CFA10102 Wiring Guide
link Fork this on Github
assured_workload Compliance Documents

picture_as_pdf Declaration
                                    of Conformity RoHS2
picture_as_pdf Declaration
                                    of Conformity REACH

Need a written quote? Add to cart, then enter
                            your email address in the "request a quote" box.
Quantity:

Price:

            Quantity
            Unit Price

            1
            $17.59

            10
            $16.59

            20 *
            $15.13

            50 *
            $14.94

            100 *
            $14.81

            200 *
            $14.00

            300 *
            $13.94

            500 *
            $13.22

            1000 *
            $12.55

11 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
Other components worth
                    considering

						24 Position, 0.5mm Pitch, Gold, FCC FPC ZIF Connector
Add 5 ZIF Connectors $0.97 ea.

						Multi-use ZIF Breakout Board
Add a breakout $22.34 ea.

						24-Position ZIF Breakout Board
Add a 24-pin ZIF Breakout Board? $6.08 ea.

Colors	Yellow on Black No Backlight White on Black No Backlight

Module Overall	width	height	depth
millimeters	33.8	36.5	2.05
inches	1.33	1.44	0.08
*width / height does not include Foldable Tab

Viewing Area	Width	Height
millimeters	28.86	28.86
inches	1.14	1.14

Active Area	Width	Height
millimeters	26.86	26.86
inches	1.06	1.06

Dot Size	Width	Height
millimeters	0.185	0.185
inches	0.0073	0.0073

Dot Pitch	Width	Height
millimeters	0.21	0.21
inches	0.008	0.008

Flexible Cable (FFC/FPC)	length
millimeters	24
inches	0.945

Operating Temperatures	min	max
Celsius	-40°	80°
Fahrenheit	-40°	176°

Storage Temperatures	min	max
Celsius	-40°	80°
Fahrenheit	-40°	176°

Quantity	Unit Price
1	$17.59
10	$16.59
20 *	$15.13
50 *	$14.94
100 *	$14.81
200 *	$14.00
300 *	$13.94
500 *	$13.22
1000 *	$12.55

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Product Update #10903: (New Product) CFAL128128A0-015Y

New Product:	CFAL128128A0-015Y
Date Issued:	November 28, 2017
Summary:	(New Product) CFAL128128A0-015Y
Description:	OLED Modules: Yellow on black 128x128px 1.5 inch square OLED display module.
