128x128 1.5 Inch Square OLEDPart Number: CFAL128128A0-015W

                        White letters on black background. 128px by 128px. Ultra thin, Chip-on-Glass OLED display module.
128x128 pixel square OLED display
1.5 inch diagonal measurements
SSD1327 Integrated display controller
Anti-Glare polarizer for excellent readability
1/128 Duty Cycle
Small and lightweight, perfect for handheld devices

We have a very similar OLED display in a round form factor: 128x128 Round Yellow OLED or 128x128 Round White OLED.Product VariationsColorsYellow on Black
No BacklightWhite on Black
No Backlight

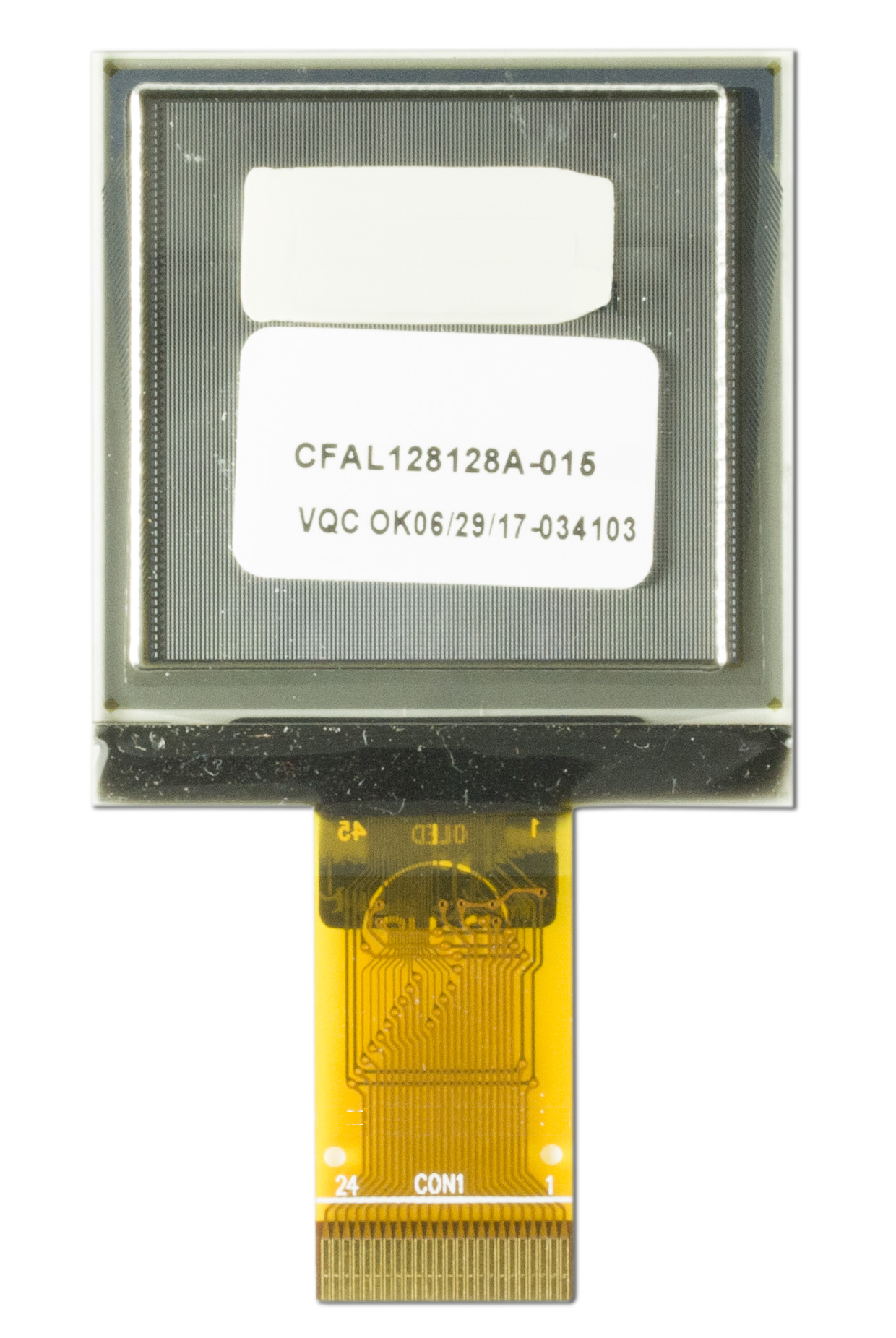

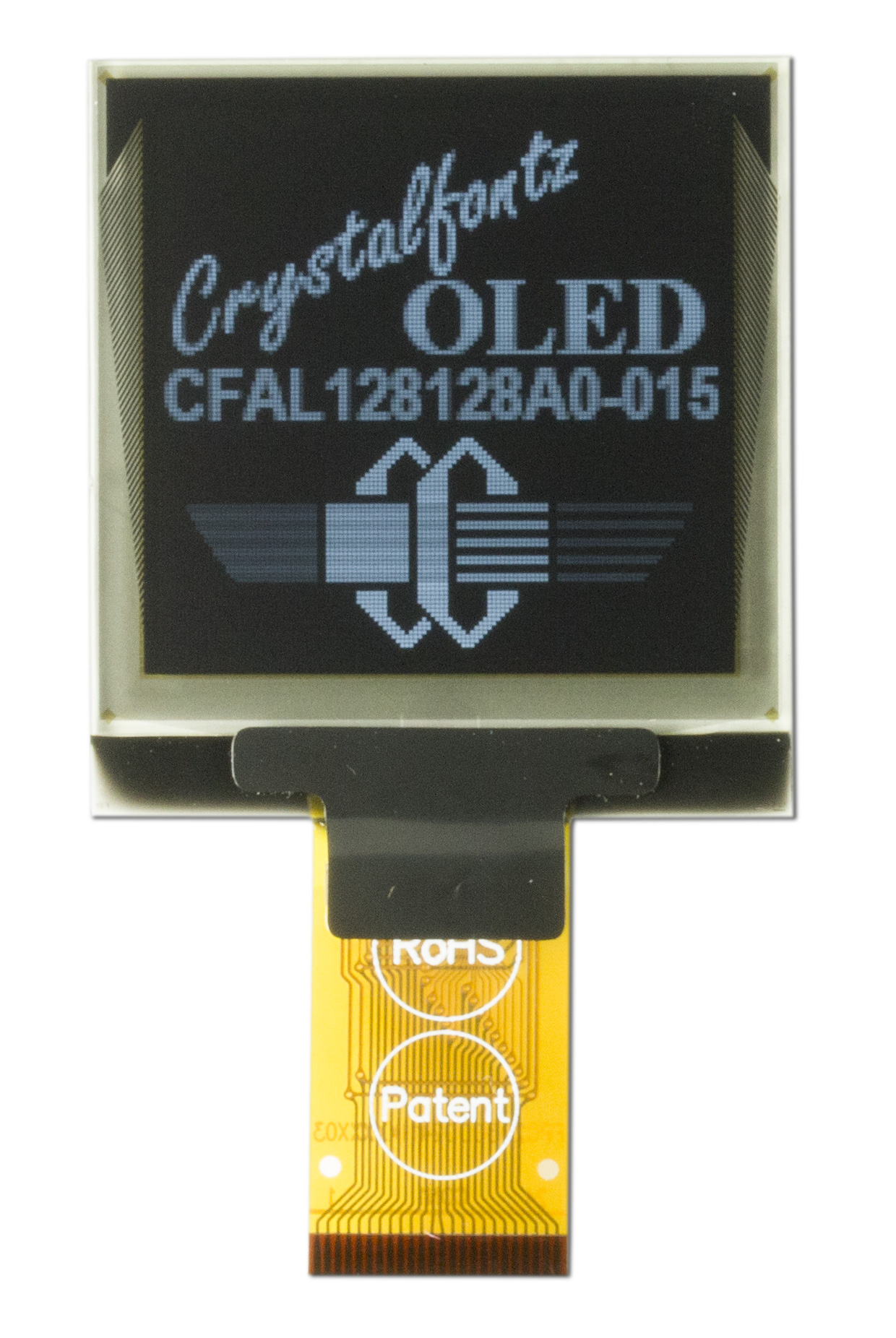

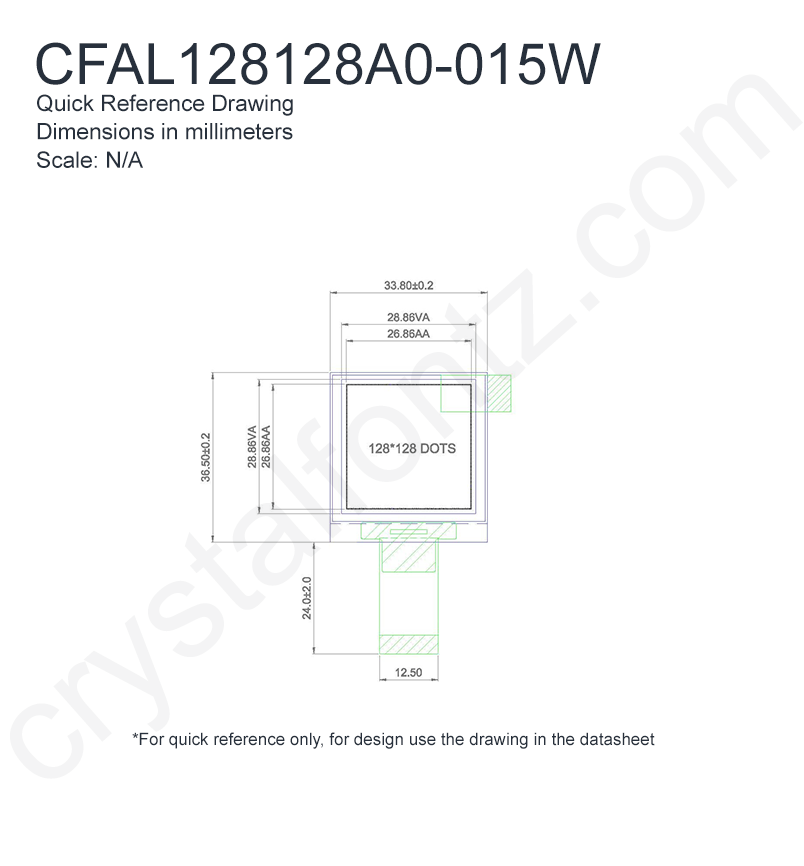

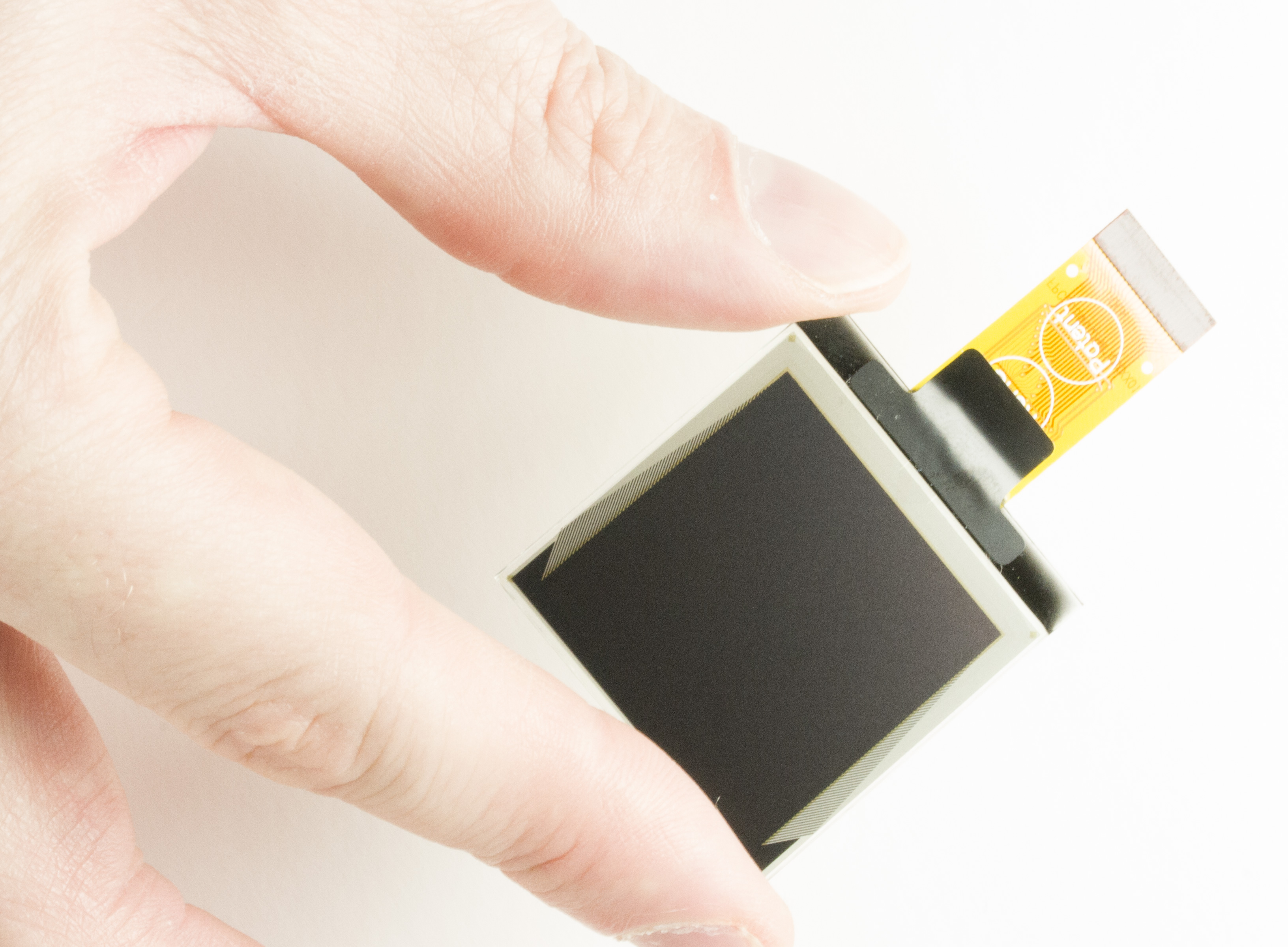

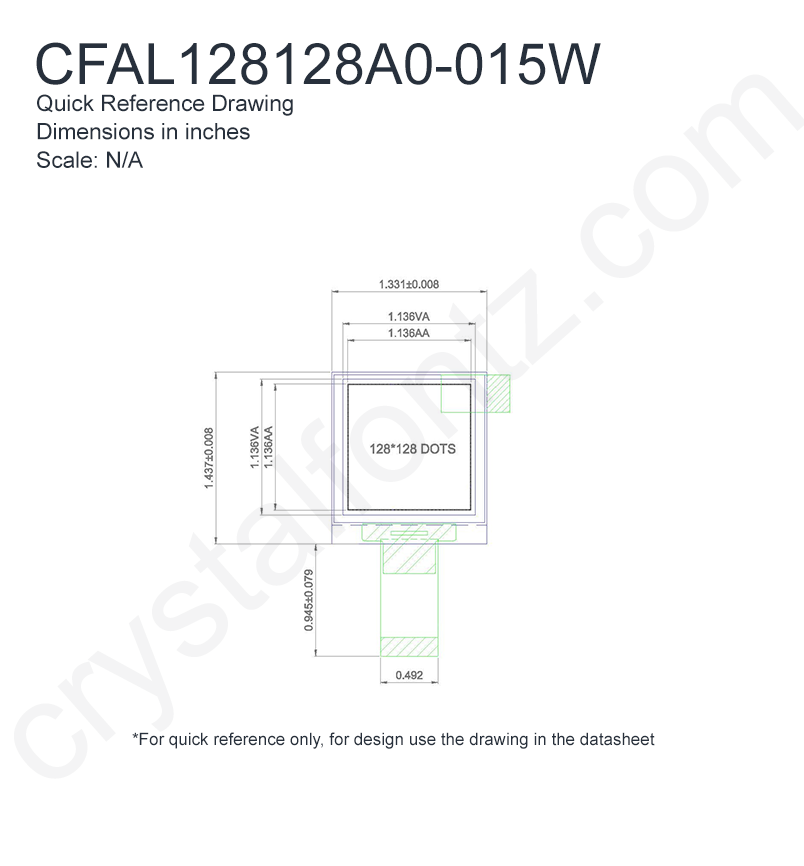

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            128 x 128

    Module Overall        width
        height
        depth

        millimeters
        33.8
        36.5
        2.05

        inches
        1.33
        1.44
        0.08

*width / height does not include Foldable Tab

        Diagonal Dimension
            1.5"

    Viewing Area        Width
        Height

        millimeters
        28.86
        28.86

        inches
        1.14
        1.14

    Active Area        Width
        Height

        millimeters
        26.86
        26.86

        inches
        1.06
        1.06

    Dot Size        Width
        Height

        millimeters
        0.185
        0.185

        inches
        0.0073
        0.0073

    Dot Pitch        Width
        Height

        millimeters
        0.21
        0.21

        inches
        0.008
        0.008

        Optional Connectors
            CS050Z24GA0

    Flexible Cable (FFC/FPC)        length

        millimeters
        24

        inches
        0.945

        Weight
            5.2g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type
            OLED
View Angle
            160°

        Foreground Color
            White
Background Color
            Black

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            2.8V
Supply Voltage for Logic Maximum
            3.3V

        Supply Voltage for Logic Typical
            3V
Supply Voltage for Driving Panel Typical
            14.5V

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -40°
        80°

        Fahrenheit
        -40°
        176°

    Storage Temperatures        min
        max

        Celsius
        -40°
        80°

        Fahrenheit
        -40°
        176°

 cable Electronics
Electronics

        Controller Documents
            Solomon Systech SSD1327
SSD1327 V1.8
Interface
            8-bit Parallel, I2C, SPI

picture_as_pdf Datasheets
picture_as_pdfCFAL128128A0015W Datasheet

download Files and Downloads
folder_zip Software Source - Arduino Sample Code
folder_zip Hardware Design - 3D Model
picture_as_pdf Other Document - CFA10102 Wiring Guide
link Fork this on Github
assured_workload Compliance Documents

picture_as_pdf Declaration
                                    of Conformity RoHS2
picture_as_pdf Declaration
                                    of Conformity REACH

Need a written quote? Add to cart, then enter
                            your email address in the "request a quote" box.
Quantity:

Price:

            Quantity
            Unit Price

            1 *
            $17.83

            10 *
            $16.45

            20 *
            $15.88

            50 *
            $15.33

            100 *
            $14.48

            200 *
            $14.36

            300 *
            $13.62

            500 *
            $13.51

            1000 *
            $12.64

0 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
* Sign up to be notified when we these are back in-stock.
Other components worth
                    considering

						24 Position, 0.5mm Pitch, Gold, FCC FPC ZIF Connector
Add 5 ZIF Connectors $0.97 ea.

						Multi-use ZIF Breakout Board
Add a breakout $22.34 ea.

						24-Position ZIF Breakout Board
Add a 24-pin ZIF Breakout Board? $6.08 ea.
