Reflective 16x4 Character LCD from Crystalfontz

Product

Home » Products » Sunlight Readable Displays » Character

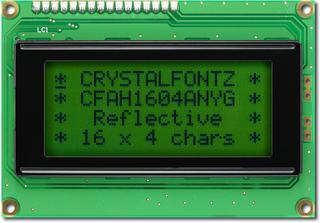

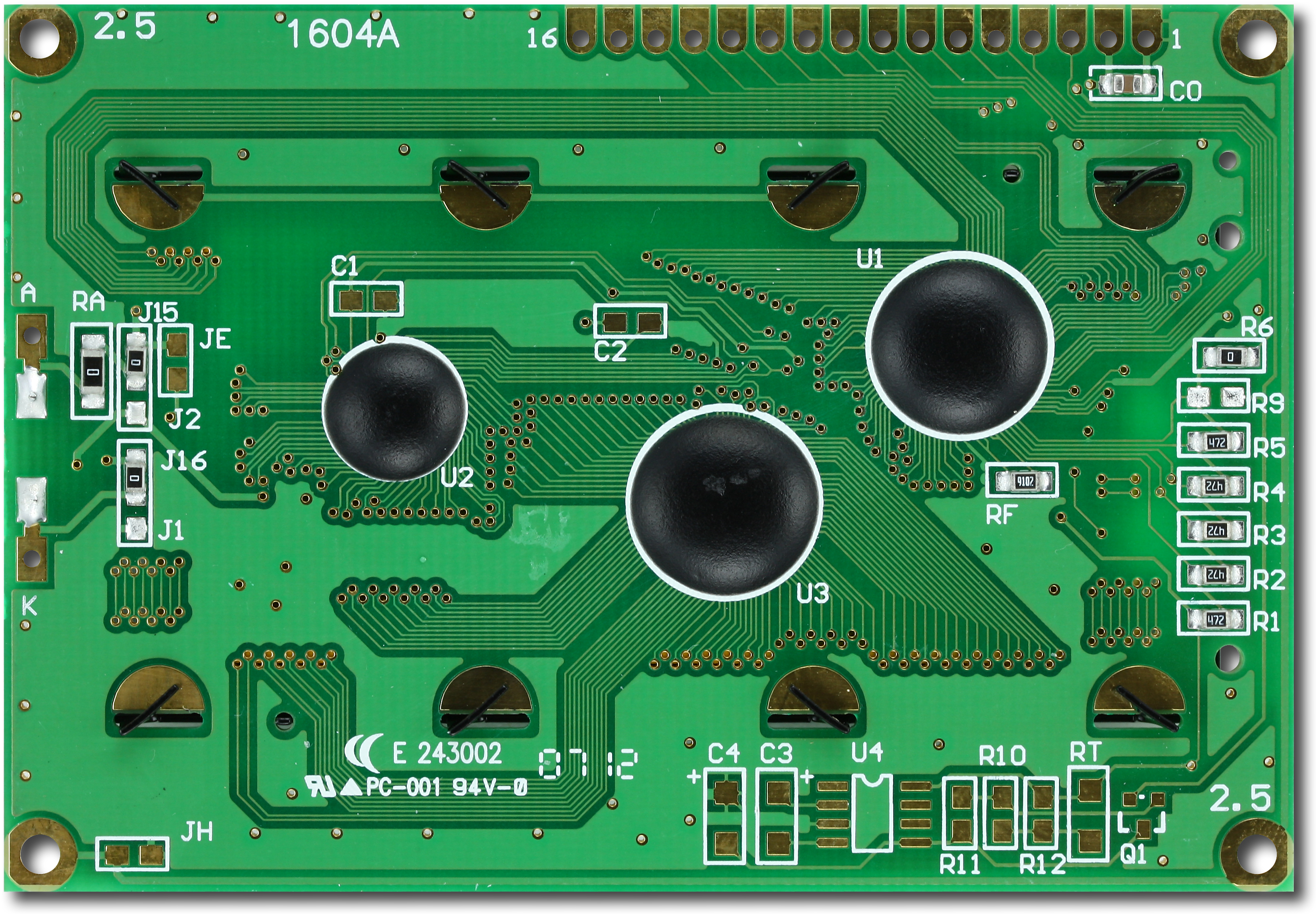

Reflective 16x4 Character LCDPart Number: CFAH1604A-NYG-JTReflective character LCD 16x4, No Backlight, STN Positive, Yellow/Green, -20°C to +70°C operating temp and 6:00 o'clock viewing direction.
Available in several variations of backlight and polarizer  (minimum order may be required)
8-bit or 4-bit parallel interface
Industry-standard HD44780 compatible controller
Product VariationsColorsWhite on Blue
White LED BacklightDark on Yellow-Green
Yellow-Green LED BacklightDark on Yellow-Green
No Backlight

 square_foot Physical Characteristics
Physical Characteristics

        Characters x Lines
            16 x 4


    Module Overall        width
        height
        depth


        millimeters
        87
        60
        9.3


        inches
        3.43
        2.36
        0.37



    PCB Outline        width
        height
        depth


        millimeters
        87
        60
        9.3


        inches
        3.43
        2.36
        0.37



        Diagonal Dimension
            2.36"


    Viewing Area        Width
        Height


        millimeters
        62
        26


        inches
        2.44
        1.02



    Active Area        Width
        Height


        millimeters
        56.2
        20.8


        inches
        2.21
        0.82



    Character Size        Width
        Height


        millimeters
        2.95
        4.75


        inches
        0.116
        0.187



    Character Pitch        Width
        Height


        millimeters
        3.55
        5.35


        inches
        0.140
        0.211



    Dot Size        Width
        Height


        millimeters
        0.55
        0.55


        inches
        0.022
        0.022



    Dot Pitch        Width
        Height


        millimeters
        0.6
        0.6


        inches
        0.024
        0.024



        Weight
            42g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Yellow-Green
Polarizer
            Reflective
View Direction
            6 o'clock
Sunlight Readable
            Yes


        Mode
            Positive
Foreground Color
            Dark
Background Color
            Yellow-Green

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            4.5V
Supply Voltage for Logic Maximum
            5.5V


        Supply Voltage for Logic Typical
            5V
Module Connector Pitch
            0.1mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -20°
        70°


        Fahrenheit
        -4°
        158°



    Storage Temperatures        min
        max


        Celsius
        -30°
        80°


        Fahrenheit
        -22°
        176°



    Humidity        min
        max


        Non-condensing
        0%
        90%


 cable Electronics
Electronics

        Controller Documents
            Sitronix ST7066U
Dot Matrix LCD Controller/Driver
Interface
            4-bit Parallel, 8-bit Parallel

picture_as_pdf Datasheets
picture_as_pdfCFAH1604A-NYG-JT Datasheet

Previous Versions of Datasheetpicture_as_pdfCFAH1604ANYGJT Datasheet

download Files and Downloads
folder_zip CAD Export - CFAH1604A 2D CAD
picture_as_pdf 1 to 1 Template - CFAH1604A 1 TO 1.PDF
link Demo Code Repository on Github
assured_workload Compliance Documents

picture_as_pdf Declaration
                                    of Conformity RoHS2
picture_as_pdf Declaration
                                    of Conformity REACH











Need a written quote? Add to cart, then enter
                            your email address in the "request a quote" box.
Quantity:


Price:



            Quantity
            Unit Price


            1 *
            $11.60

            10 *
            $10.23

            20 *
            $9.92

            50 *
            $9.56

            100 *
            $9.44

            200 *
            $9.38

            300 *
            $8.85

            500 *
            $8.79

            1000 *
            $8.34

0 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
* Sign up to be notified when we these are back in-stock.
Compatible Software
CFAHWINTEST

Colors	White on Blue White LED Backlight Dark on Yellow-Green Yellow-Green LED Backlight Dark on Yellow-Green No Backlight

Module Overall	width	height	depth
millimeters	87	60	9.3
inches	3.43	2.36	0.37

PCB Outline	width	height	depth
millimeters	87	60	9.3
inches	3.43	2.36	0.37

Viewing Area	Width	Height
millimeters	62	26
inches	2.44	1.02

Active Area	Width	Height
millimeters	56.2	20.8
inches	2.21	0.82

Character Size	Width	Height
millimeters	2.95	4.75
inches	0.116	0.187

Character Pitch	Width	Height
millimeters	3.55	5.35
inches	0.140	0.211

Dot Size	Width	Height
millimeters	0.55	0.55
inches	0.022	0.022

Dot Pitch	Width	Height
millimeters	0.6	0.6
inches	0.024	0.024

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Quantity	Unit Price
1 *	$11.60
10 *	$10.23
20 *	$9.92
50 *	$9.56
100 *	$9.44
200 *	$9.38
300 *	$8.85
500 *	$8.79
1000 *	$8.34
