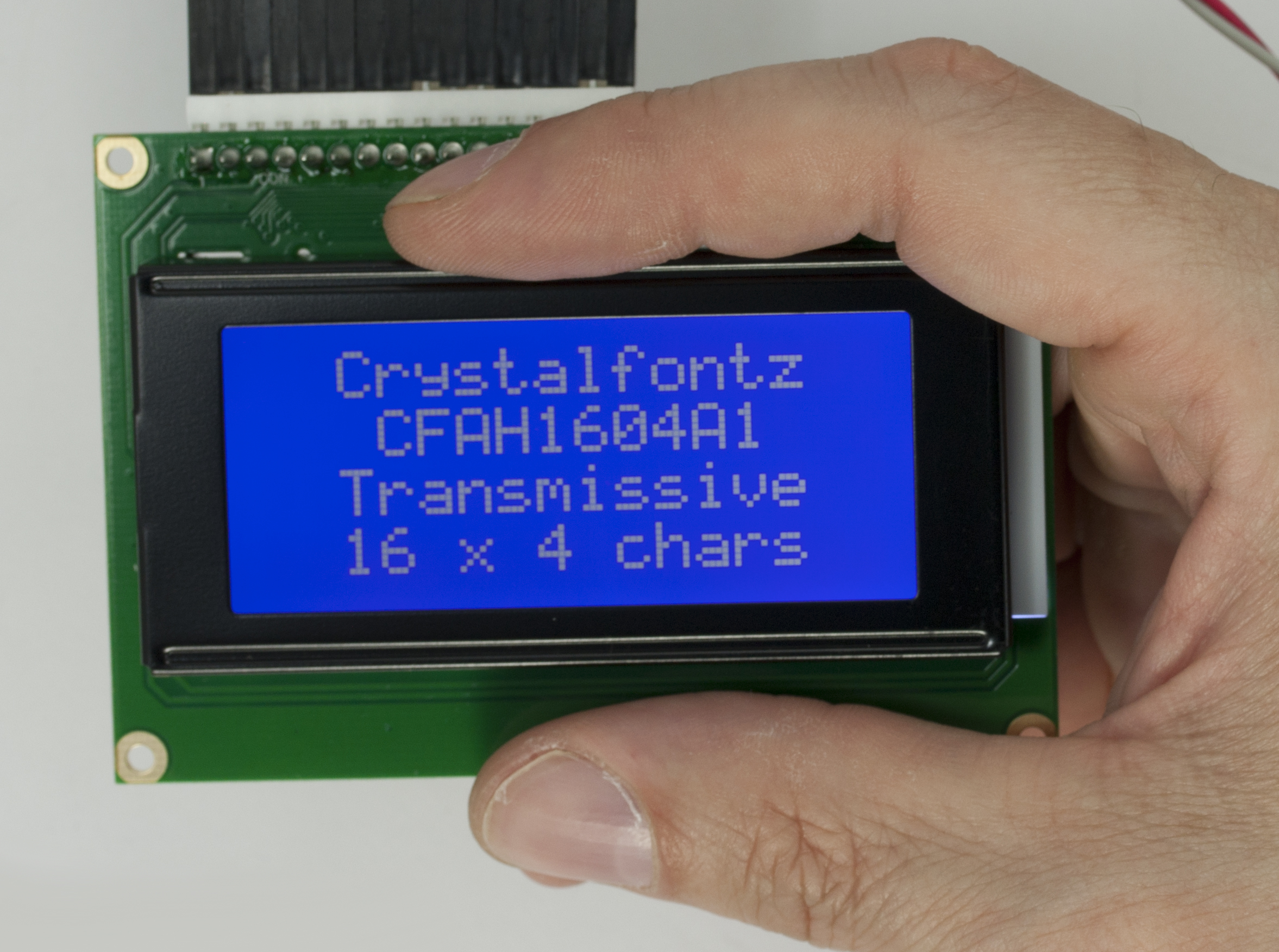

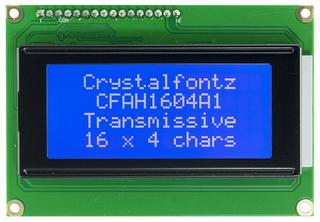

Blue 16x4 Edge-Lit Character LCD
Part Number: CFAH1604A1-TMI-JT
This 16-character by 4-row display lets you quickly add a text display to your product. This display uses 4-bit or 8-bit parallel communication. This display uses an ST7066U LCD controller, which is an industry-standard HD44780-compatible controller.

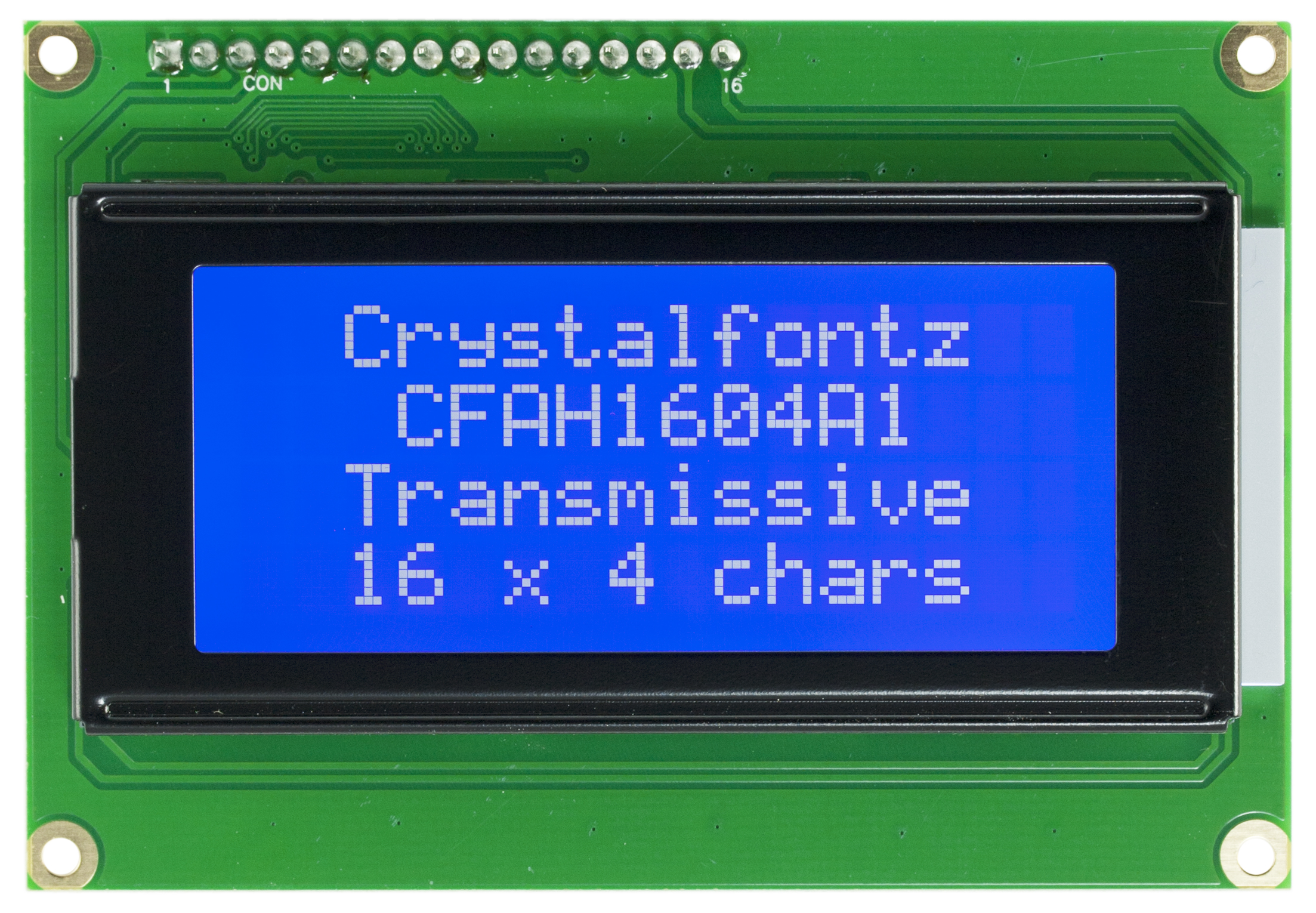

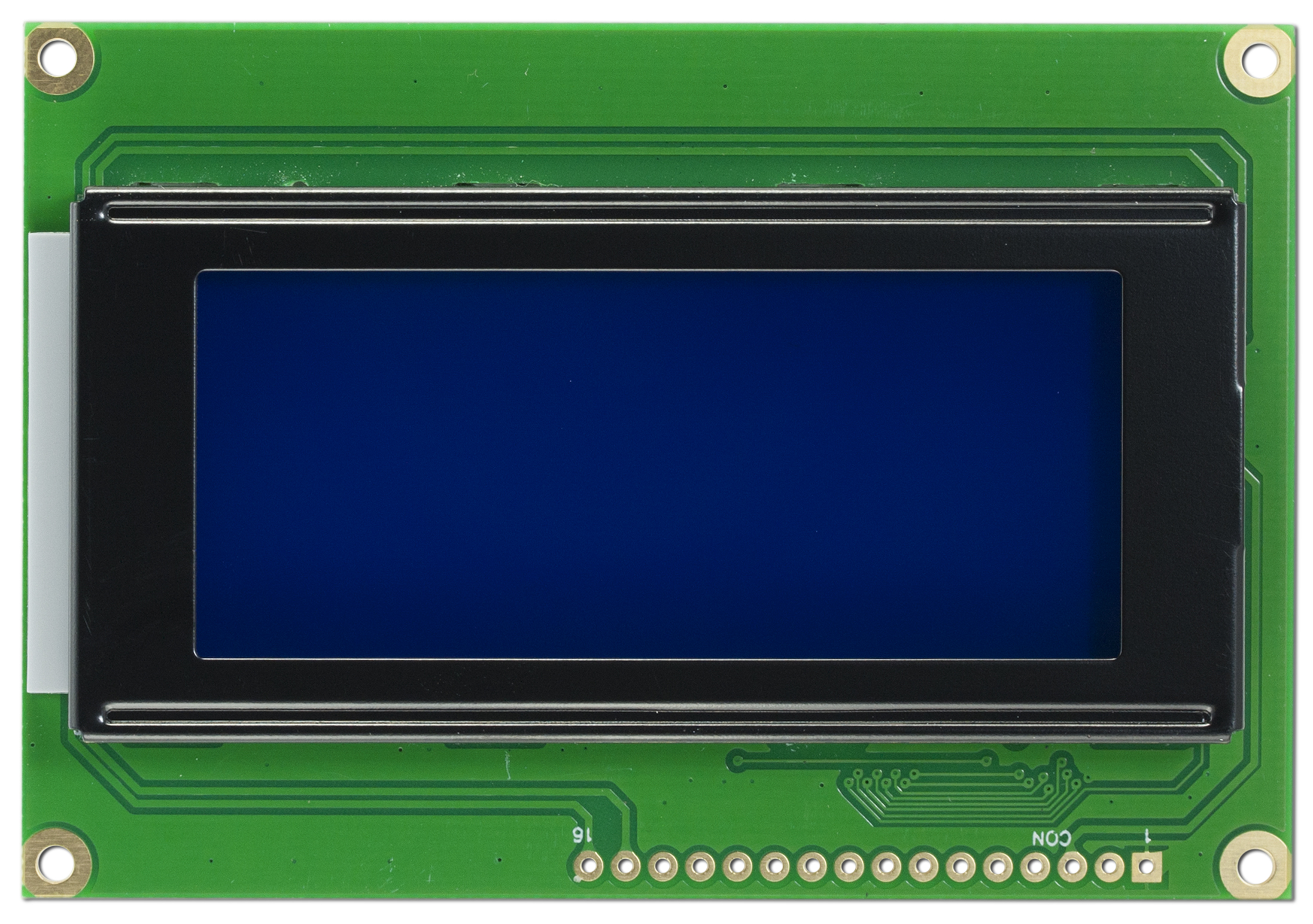

This display has a white edge LED, white characters, and a blue background. It is an STN negative, transmissive display. Other colors are available, reach out to our support team for information.

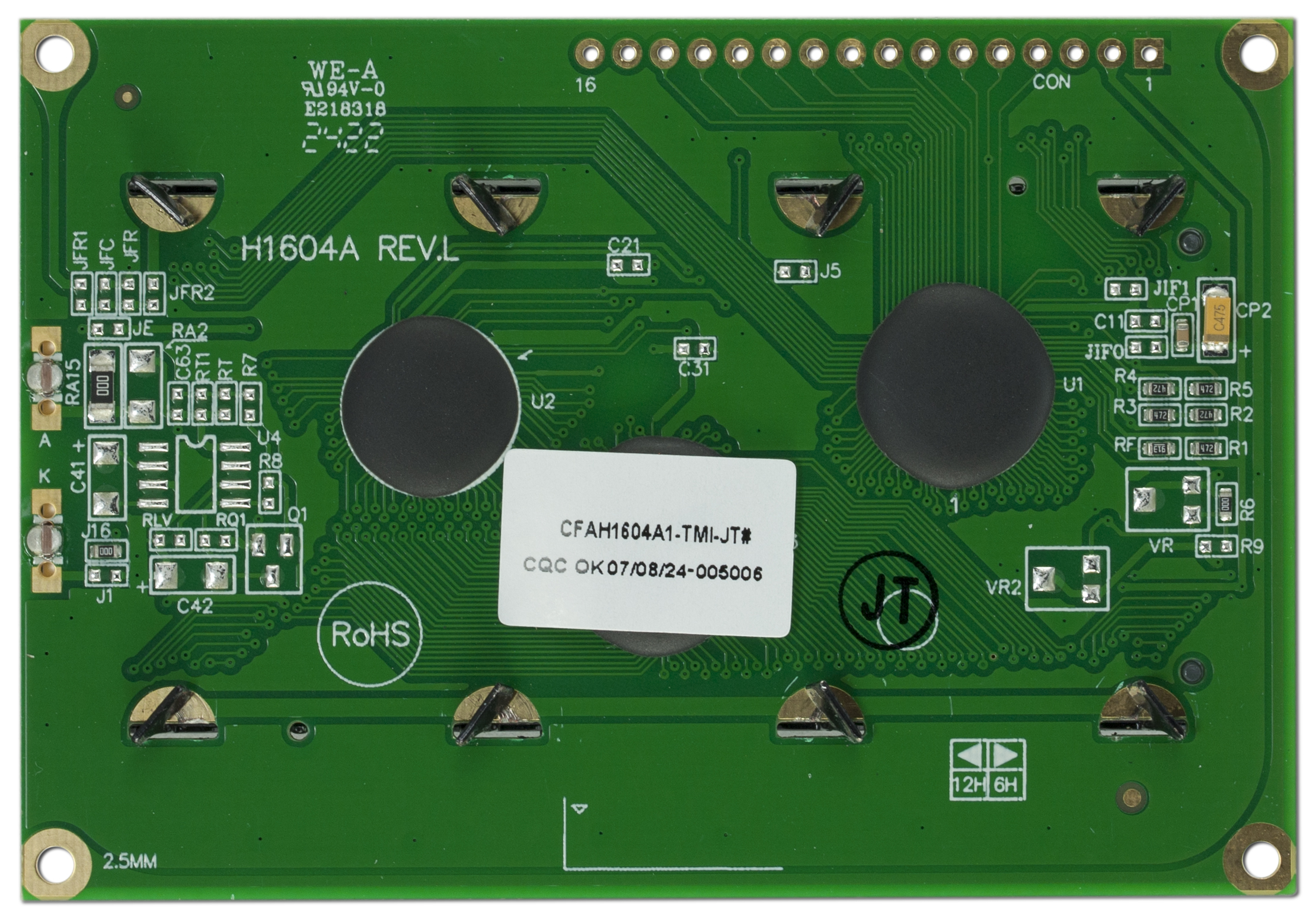

The black frame for the display and mounting holes on the PCB make this display simple to physically integrate.
Part Number:
CFA - Crystalfontz America
H - Character display
1604 - 16x4 display
A1 - Family and version (replaces the CFAH1604A-TMI-JT)
T - White LED backlight
M - STN Negative, Blue
I - Transmissive polarizer, 6:00 viewing angle
JT - English and Japanese font tables
Product Variations
Colors | White on Blue White LED backlightDark on Yellow-Green Yellow-Green LED backlightDark on Yellow-Green None backlight |
---|
- square_foot Physical Characteristics
Physical Characteristics

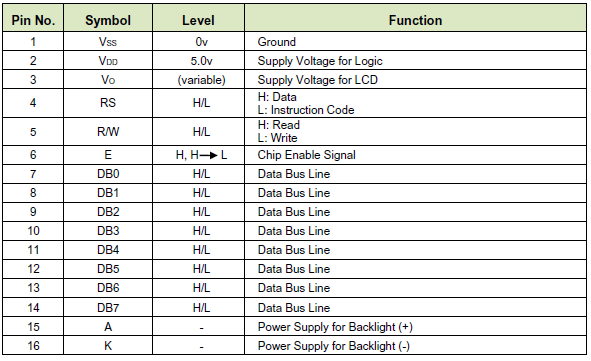

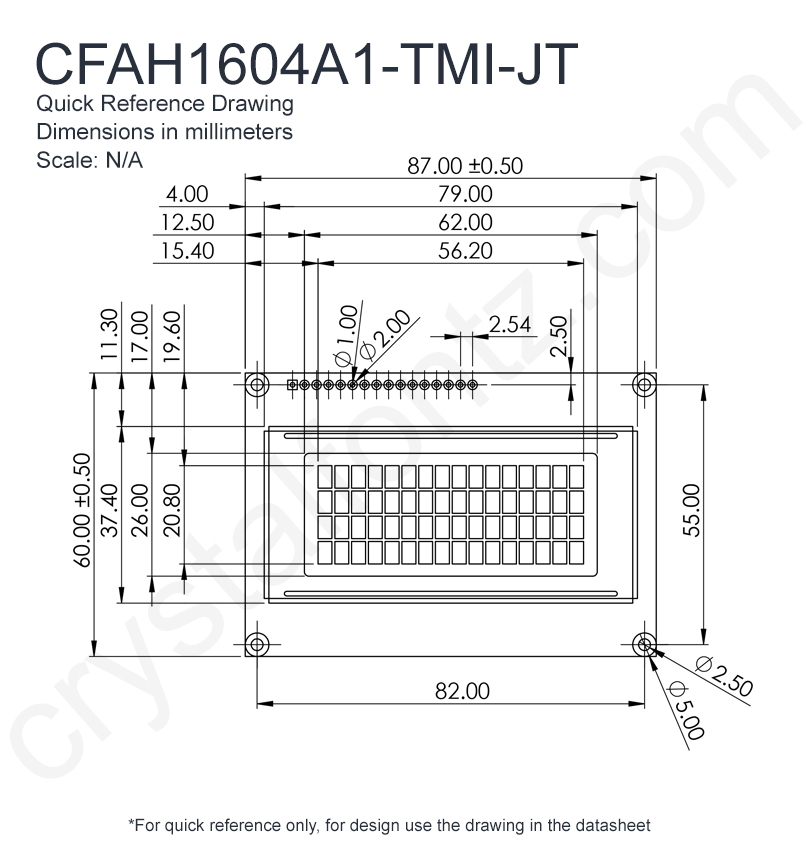

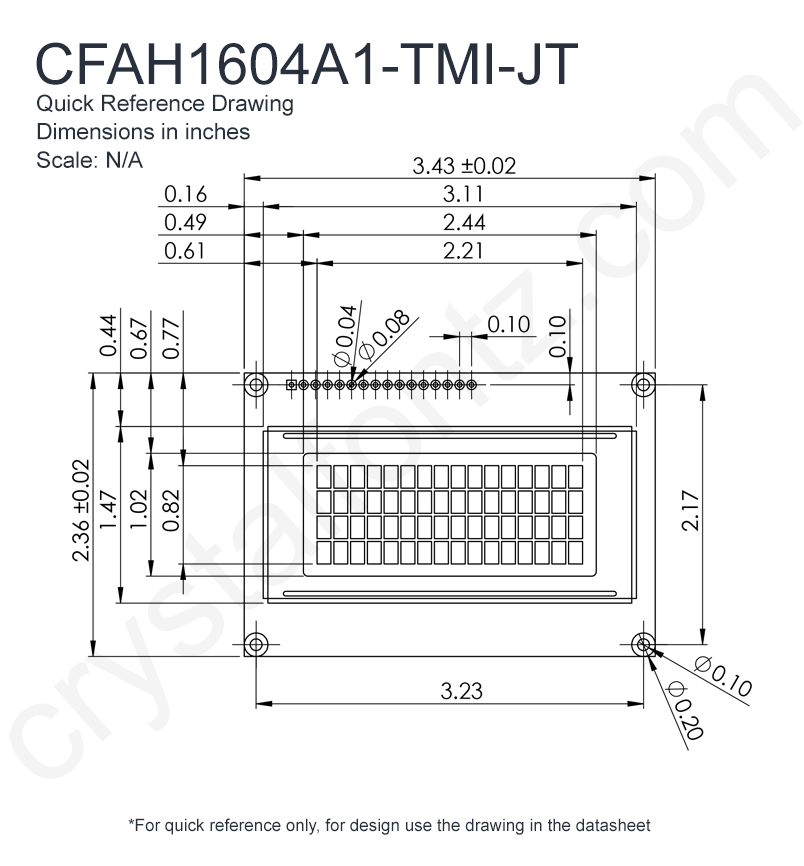

Characters x Lines 16 x 4 Module Overall width height depth millimeters 87 60 13.6 inches 3.43 2.36 0.54 Viewing Area Width Height millimeters 62 26 inches 2.44 1.02 Active Area Width Height millimeters 56.2 20.8 inches 2.21 0.82 Character Size Width Height millimeters 2.95 5.35 inches 0.116 0.211 Character Pitch Width Height millimeters 3.55 5.35 inches 0.140 0.211 Dot Size Width Height millimeters 0.55 0.55 inches 0.022 0.022 Dot Pitch Width Height millimeters 0.6 0.6 inches 0.024 0.024 Weight 57g Pin Count 16 - visibility Optical Characteristics
Optical Characteristics
Glass Type/Glass Color STN/Blue Polarizer Transmissive View Direction 6 o'clock View Angle 30° Backlight Color White Backlight Type LED Mode Negative Foreground Color White Background Color Blue - electric_bolt Electrical Specification
Electrical Specifications
Supply Voltage for Logic Minimum 4.5V Supply Voltage for Logic Maximum 5.5V Supply Voltage for Logic Typical 5V Supply Voltage for Driving Panel Typical 4.35V Supply Current Minimum 1mA Supply Current Maximum 1.5mA Supply Current Typical 1.2mA - electric_bolt Backlight Specification
Backlight Electrical Specifications
Forward Voltage Minimum 3.4V Forward Voltage Maximum 3.6V Forward Voltage Typical 3.5V Forward Current Minimum 15mA Forward Current Maximum 60mA Forward Current Typical 48mA - nature Environmental
Environmental
Operating Temperatures min max Celsius -20° 70° Fahrenheit -4° 158° Storage Temperatures min max Celsius -30° 80° Fahrenheit -22° 176° - cable Electronics
Electronics
Controller Documents Sitronix ST7066U
Dot Matrix LCD Controller/DriverInterface 4-bit Parallel, 8-bit Parallel -
picture_as_pdf Datasheets
-
download Files and Downloads
-
assured_workload Compliance Documents
Part Change Notice
Subscribe to Part Change Notices by email or RSS
- text_snippet
Product Update #11284: Blue 16x4 Edge-Lit Character LCD is now available
New Product: CFAH1604A1-TMI-JT Date Issued: August 12, 2024 Summary: Blue 16x4 Edge-Lit Character LCD is now available Description: CFAH1604A1-TMI-JT has been released on our website (https://www.crystalfontz.com/product/cfah1604a1tmijt-character-display-16x4) and is now available for sale. Orders can be placed directly from our website or by submitting a purchase order to sales@crystalfontz.com. Contact support@crystalfontz.com for any technical questions.
