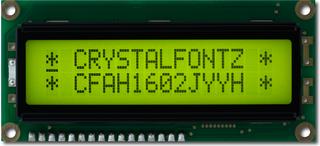

16x2 Character LCD Yellow-GreenPart Number: CFAH1602J-YYH-JTSunlight readable 16x2 character LCD with an LED backlight.
Characters / Columns: 16x2
Optics: 6:00 viewing direction
Backlight: Yellow-green LED
Glass: STN Positive, Reflective
Controller: Sitronix ST7066U (HD44780 compatible)
Operating Temp: -20°C to +70°C
Interfaces: 4 & 8 bit parallel
Compliance: REACH & RoHS Compliant
Product VariationsColorsDark on Yellow-Green

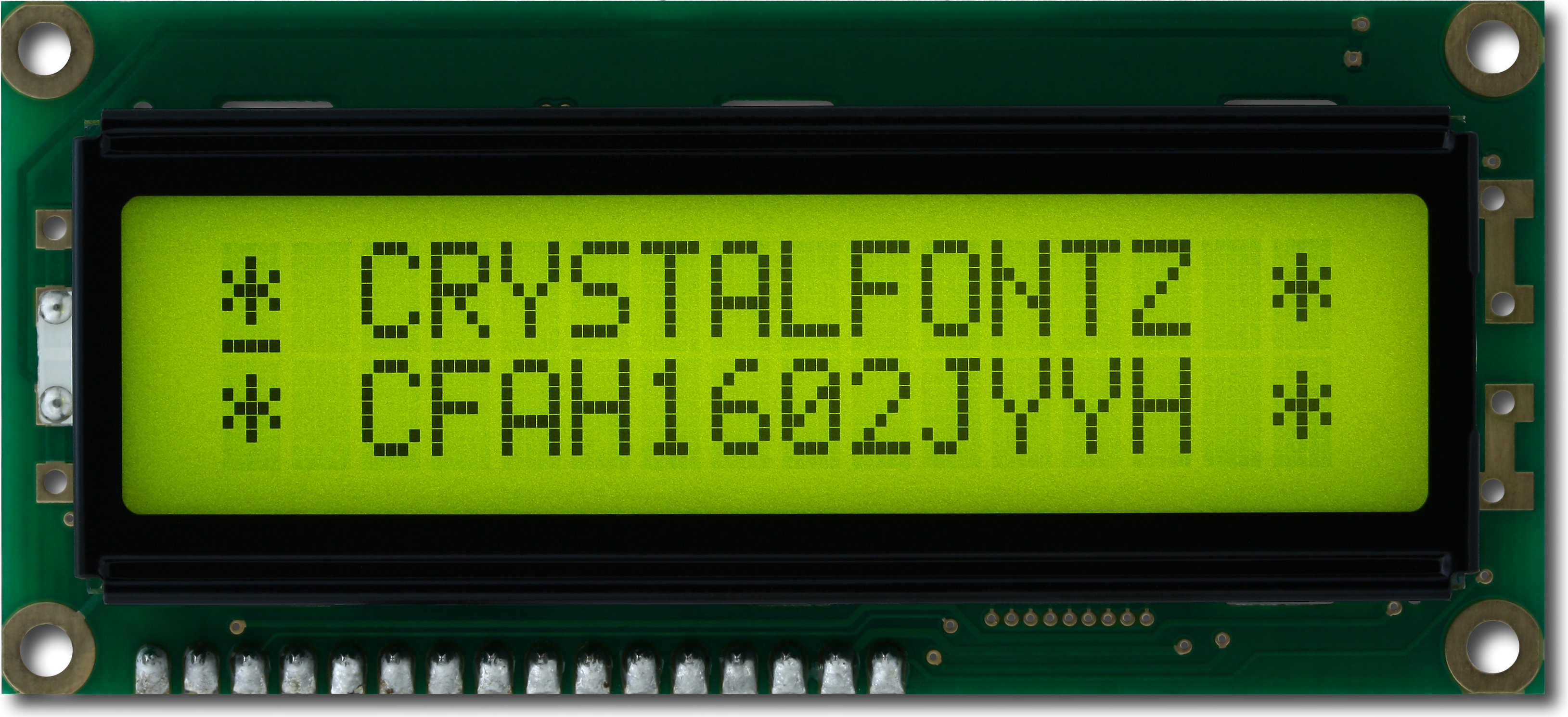

Yellow-Green LED BacklightDark on Yellow-Green

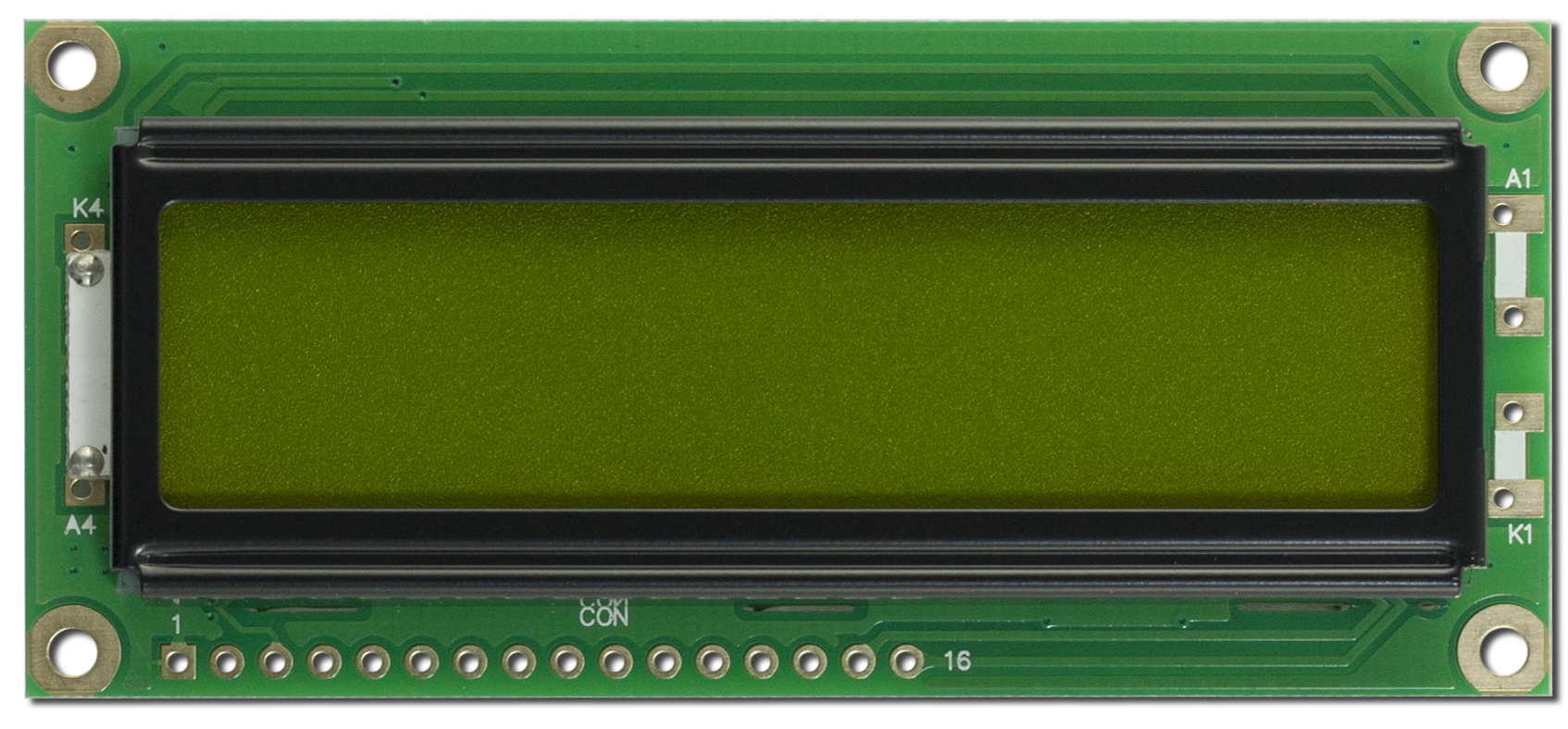

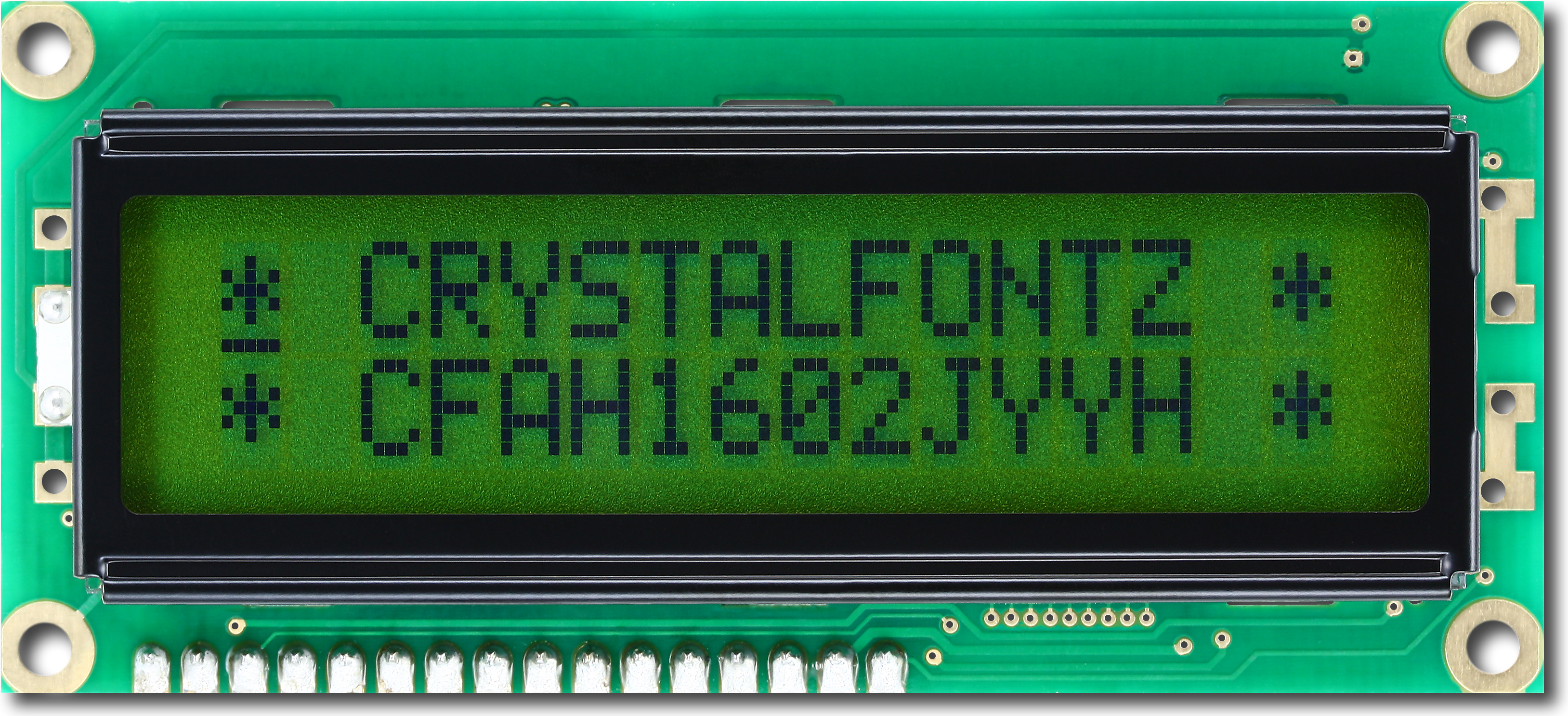

No Backlight

 square_foot Physical Characteristics
Physical Characteristics

        Characters x Lines
            16 x 2


    Module Overall        width
        height
        depth


        millimeters
        80
        36
        13.2


        inches
        3.15
        1.42
        0.52



    PCB Outline        width
        height
        depth


        millimeters
        80
        36
        13.2


        inches
        3.15
        1.42
        0.52



        Diagonal Dimension
            2.26"


    Viewing Area        Width
        Height


        millimeters
        66
        16


        inches
        2.60
        0.63



    Active Area        Width
        Height


        millimeters
        56.2
        11.5


        inches
        2.21
        0.45



    Character Size        Width
        Height


        millimeters
        2.95
        5.55


        inches
        0.116
        0.219



    Character Pitch        Width
        Height


        millimeters
        3.55
        5.95


        inches
        0.140
        0.234



    Dot Size        Width
        Height


        millimeters
        0.55
        0.65


        inches
        0.022
        0.026



    Dot Pitch        Width
        Height


        millimeters
        0.6
        0.7


        inches
        0.024
        0.028



        Weight
            33g
Pin Count
            16

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Yellow-Green
Polarizer
            Transflective
View Direction
            6 o'clock
Sunlight Readable
            Yes


        Backlight Color
            Yellow-Green
Backlight Type
            LED
Mode
            Positive
Foreground Color
            Dark
Background Color
            Yellow-Green

 electric_bolt Electrical Specification
Electrical Specifications

        Module Connector Pitch
            0.1mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -20°
        70°


        Fahrenheit
        -4°
        158°



    Storage Temperatures        min
        max


        Celsius
        -30°
        80°


        Fahrenheit
        -22°
        176°



    Humidity        min
        max


        Non-condensing
        0%
        90%


 cable Electronics
Electronics

        Controller Documents
            Sitronix ST7066U
Dot Matrix LCD Controller/Driver
Interface
            4-bit Parallel, 8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAH1602JYYHJT Datasheet

 download Files and Downloads
folder_zip CAD Export - CFAH1602J 2D CAD
picture_as_pdf 1 to 1 Template - CFAH1602J 1 TO 1.PDF
link Demo Code Repository on Github
 assured_workload Compliance Documents
 picture_as_pdf Declaration of Conformity RoHS2
 picture_as_pdf Declaration of Conformity REACH

















Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
 Quantity:


Price:



            Quantity
            Unit Price


            1
            $9.96

            5
            $9.18

            10
            $8.10

            20
            $7.82

            50
            $7.54

            100
            $7.44

            200
            $7.38

            300 *
            $7.00

            500 *
            $6.95

            1000 *
            $6.58

201 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.



Colors	Dark on Yellow-Green Yellow-Green LED Backlight Dark on Yellow-Green No Backlight

Module Overall	width	height	depth
millimeters	80	36	13.2
inches	3.15	1.42	0.52

PCB Outline	width	height	depth
millimeters	80	36	13.2
inches	3.15	1.42	0.52

Viewing Area	Width	Height
millimeters	66	16
inches	2.60	0.63

Active Area	Width	Height
millimeters	56.2	11.5
inches	2.21	0.45

Character Size	Width	Height
millimeters	2.95	5.55
inches	0.116	0.219

Character Pitch	Width	Height
millimeters	3.55	5.95
inches	0.140	0.234

Dot Size	Width	Height
millimeters	0.55	0.65
inches	0.022	0.026

Dot Pitch	Width	Height
millimeters	0.6	0.7
inches	0.024	0.028

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Quantity	Unit Price
1	$9.96
5	$9.18
10	$8.10
20	$7.82
50	$7.54
100	$7.44
200	$7.38
300 *	$7.00
500 *	$6.95
1000 *	$6.58

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #11022: Part Change Notification

Products Affected:	CFAH1602J-NYG-JT, CFAH1602J-YYH-JT
Date Issued:	November 1, 2018
Summary:	Part Change Notification

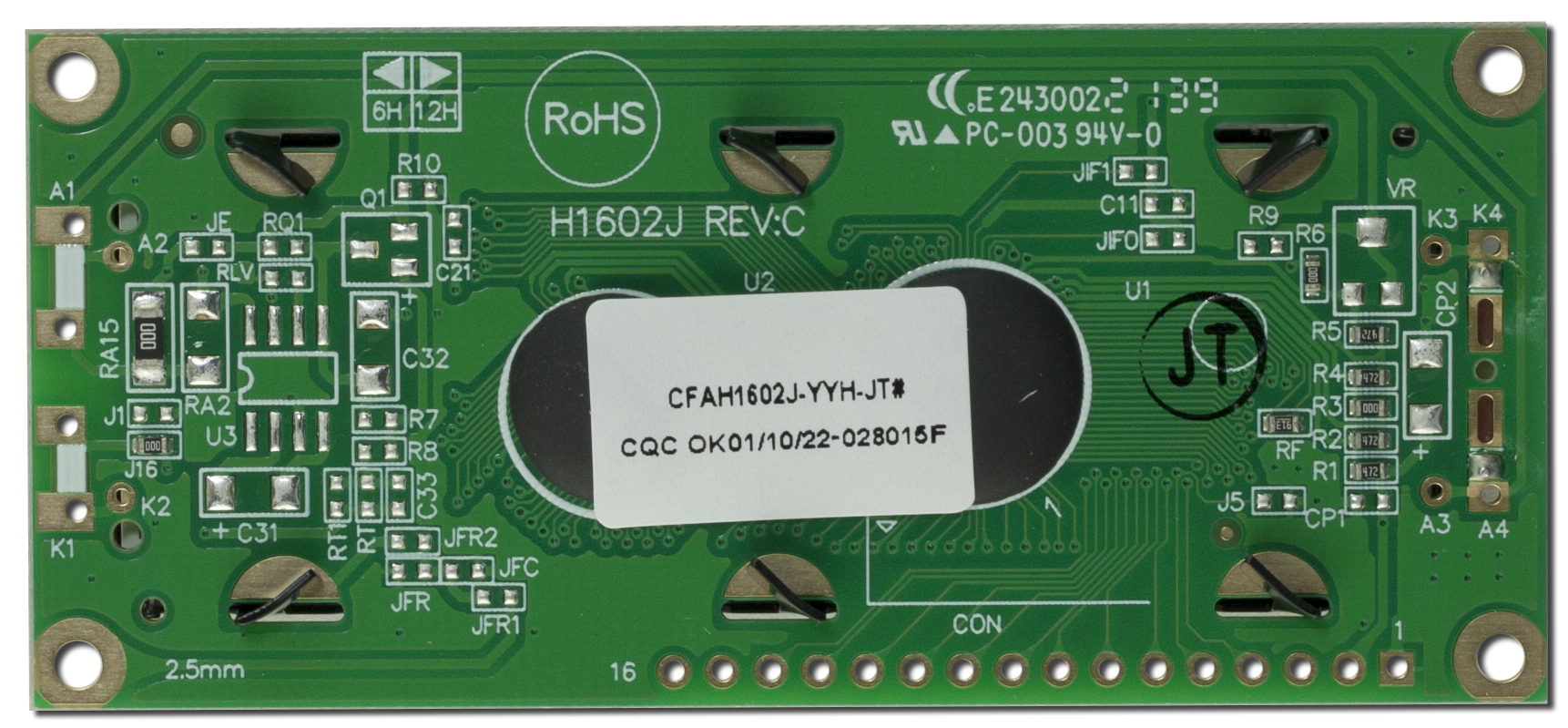

Description:	The Printed Circuit Board used for these modules is being revised. The new board Rev will be REV C.
Reason:	This will improve the function of the module, especially temperature compensation.
Impact:	The form fit and function of the modules will not change.
Recommendation:	Customers concerned about compatibility should contact Sales for a sample.
Availability:	Modules with the revised circuit boards will be available when current stock is depleted.
