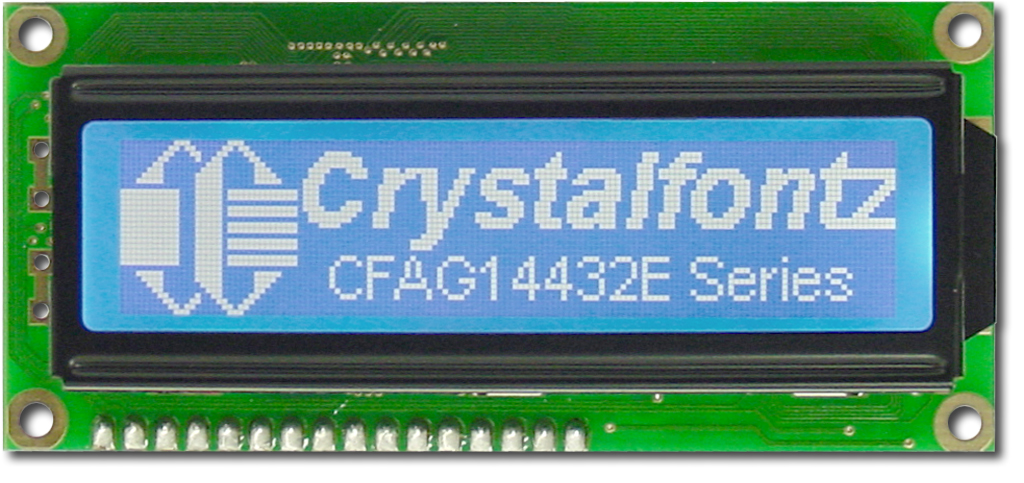

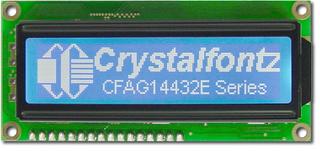

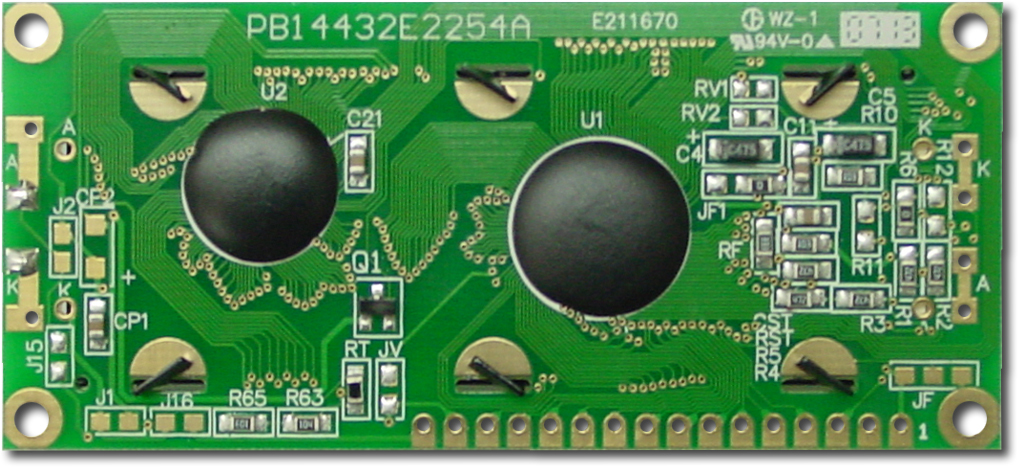

White on blue 144x32 Graphic LCD

Part Number: CFAG14432E-TMI-TT

White on blue 144x32 graphic LCD with temperature compensation and negative voltage generator

• Resolution: 144x32 pixels
• Optics: 6:00 viewing direction
• Backlight: White Edge LED
• Glass: STN Negative, Transmissive
• Controller: Sitronix ST7920 (Hitachi HD44780 Compatible)
• Character Generator: Chinese and English
• Operating Temp: -20°C to +70°C
• Compliance: REACH & RoHS Compliant

Product Variants

DetailsGray Sunlight Readable 144x32 Graphic LCD
4-bit Parallel,8-bit Parallel, Dark on White

DetailsWhite on Black 144x32 Parallel Graphic LCD
4-bit Parallel,8-bit Parallel, White on Dark

DetailsYellow-Green Transflective 144x32 Graphic LCD
4-bit Parallel,8-bit Parallel, Dark on Yellow-Green

• square_foot Physical Characteristics

  Physical Characteristics

  Column Dots x Row Dots

  144 x 32

  Module Overall	width	height	depth
  millimeters	80	36	13.2
  inches	3.15	1.42	0.52

  PCB Outline	width	height	depth
  millimeters	80	36	13.2
  inches	3.15	1.42	0.52

  Diagonal Dimension

  2.44"

  Viewing Area	Width	Height
  millimeters	66	16
  inches	2.60	0.63

  Active Area	Width	Height
  millimeters	60.44	13.4
  inches	2.38	0.53

  Dot Size	Width	Height
  millimeters	0.38	0.38
  inches	0.015	0.015

  Dot Pitch	Width	Height
  millimeters	0.42	0.42
  inches	0.017	0.017

  Weight

  33g

• visibility Optical Characteristics

  Optical Characteristics

  Glass Type/Glass Color	STN/Blue
  Polarizer	Transmissive
  View Direction	6 o'clock

  Backlight Color	White
  Backlight Type	LED
  Mode	Negative
  Foreground Color	White
  Background Color	Blue

• electric_bolt Electrical Specification

  Electrical Specifications

  Module Connector Pitch

  0.1mm

• nature Enviromental

  Environmental

  Operating Temperatures	min	max
  Celsius	-20°	70°
  Fahrenheit	-4°	158°

  Storage Temperatures	min	max
  Celsius	-30°	80°
  Fahrenheit	-22°	176°

  Humidity	min	max
  Non-condensing	0%	90%

• cable Electronics

  Electronics

  Controller Documents	Sitronix ST7920 ST7920 Chinese Fonts built in LCD controller/driver
  Interface	4-bit Parallel, 8-bit Parallel

• picture_as_pdf Datasheets
  picture_as_pdf

  CFAG14432ETMITT Datasheet


• download Files and Downloads
  folder_zip Software Source - ATMEGA2561 w/ SPI interface


  picture_as_pdf 1 to 1 Template - CFAG14432E-TFH-TMI-TTI 1 TO 1.PDF


  picture_as_pdf Other Document - UniCode to ST7920-0C CGROM Mapping

• assured_workload Compliance Documents
  picture_as_pdf Declaration of Conformity RoHS2

  picture_as_pdf Declaration of Conformity REACH
