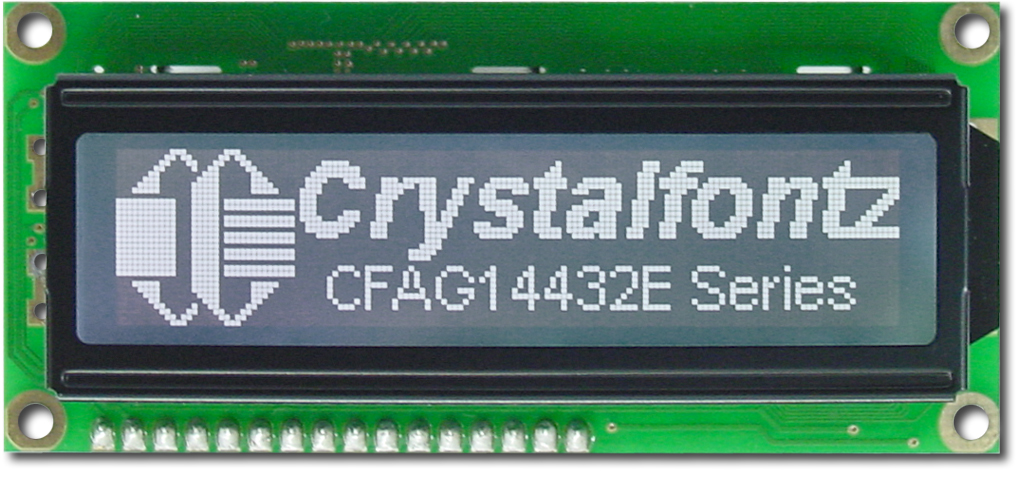

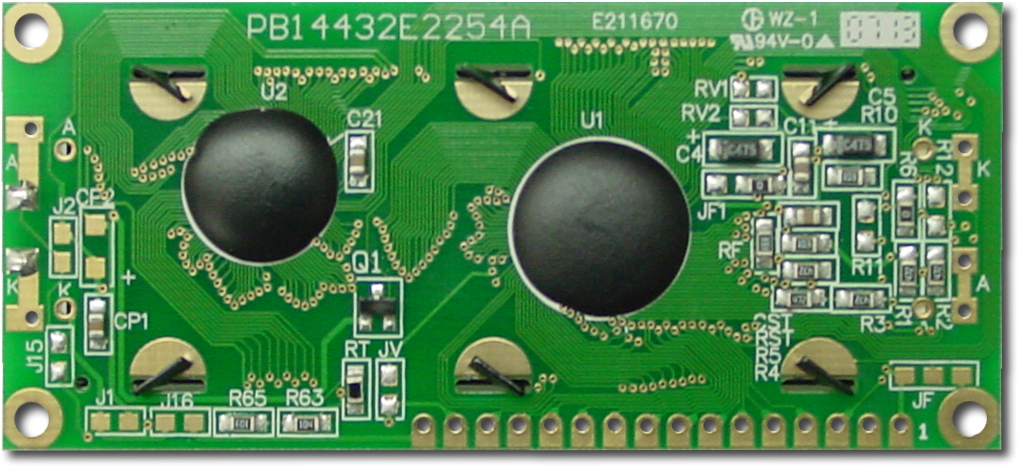

White on Black 144x32 Parallel Graphic LCDPart Number: CFAG14432E-TTI-TTBlack and white 144x32 graphic LCD with temperature compensation and negative voltage generator
Resolution: 144x32 pixels
Optics: 6:00 viewing direction
Backlight: White Edge LED
Glass: STN Negative, Transmissive
Controller: Sitronix ST7920 (Hitachi HD44780 Compatible)
Character Generator: Chinese and English
Operating Temp:  -20°C to +70°C
Compliance: REACH & RoHS Compliant
Product VariationsColorsDark on Yellow-Green
Yellow-Green LED backlightWhite on Dark
White LED backlightWhite on Blue
White LED backlightDark on White
White LED backlight

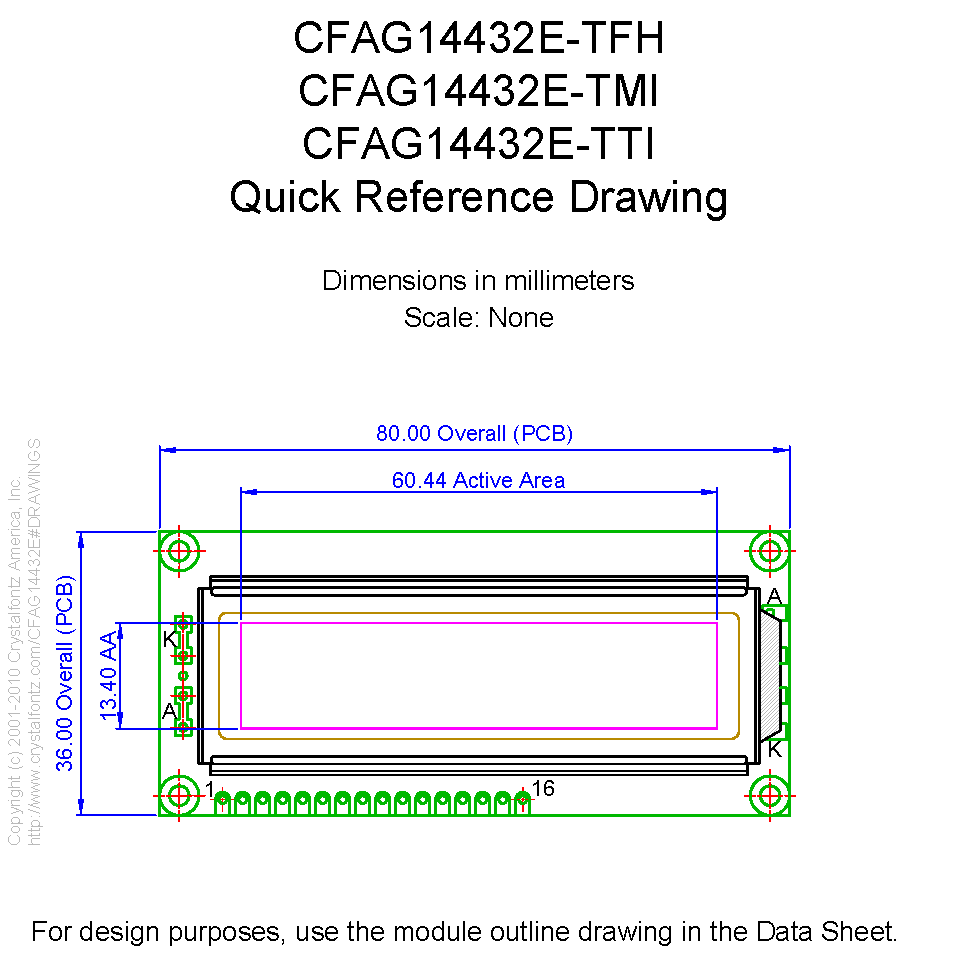

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            144 x 32


    Module Overall        width
        height
        depth


        millimeters
        80
        36
        13.5


        inches
        3.15
        1.42
        0.53



    PCB Outline        width
        height
        depth


        millimeters
        80
        36
        13.5


        inches
        3.15
        1.42
        0.53



        Diagonal Dimension
            2.44"


    Viewing Area        Width
        Height


        millimeters
        66
        16


        inches
        2.60
        0.63



    Active Area        Width
        Height


        millimeters
        60.44
        13.4


        inches
        2.38
        0.53



    Dot Size        Width
        Height


        millimeters
        0.38
        0.38


        inches
        0.015
        0.015



    Dot Pitch        Width
        Height


        millimeters
        0.42
        0.42


        inches
        0.017
        0.017



        Weight
            33g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            FSTN/Black
Polarizer
            Transmissive
View Direction
            6 o'clock


        Backlight Color
            White
Backlight Type
            LED
Mode
            Negative
Foreground Color
            White
Background Color
            Dark

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            4.5V
Supply Voltage for Logic Maximum
            5.5V
Supply Voltage for Logic Typical
            5V


        Supply Current Maximum
            3mA
Supply Current Typical
            1.5mA
Module Connector Pitch
            0.1mm

 electric_bolt Backlight Specification
Backlight Electrical Specifications

        Forward Voltage Minimum
            3.4V
Forward Voltage Maximum
            3.6V
Forward Voltage Typical
            3.5V


        Forward Current Minimum
            10mA
Forward Current Maximum
            40mA
Forward Current Typical
            32mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -20°
        70°


        Fahrenheit
        -4°
        158°



    Storage Temperatures        min
        max


        Celsius
        -30°
        80°


        Fahrenheit
        -22°
        176°



    Humidity        min
        max


        Non-condensing
        0%
        90%


 cable Electronics
Electronics

        Controller Documents
            Sitronix ST7920
ST7920

Chinese Fonts built in LCD controller/driver
Interface
            4-bit Parallel, 8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAG14432ETTITT Datasheet

 download Files and Downloads
folder_zip Software Source - ATMEGA2561 w/ SPI interface
picture_as_pdf 1 to 1 Template - CFAG14432E-TFH-TMI-TTI 1 TO 1.PDF
 assured_workload Compliance Documents
 picture_as_pdf Declaration of Conformity RoHS2
 picture_as_pdf Declaration of Conformity REACH













Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
 Quantity:


Price:



            Quantity
            Unit Price


            1
            $17.57

            10
            $14.46

            20 *
            $14.25

            50 *
            $14.02

            100 *
            $13.71

            200 *
            $13.50

            500 *
            $12.02

            1000 *
            $11.04

15 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
