Home » Products » Sunlight Readable Displays » Graphic

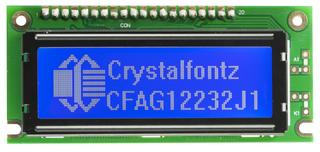

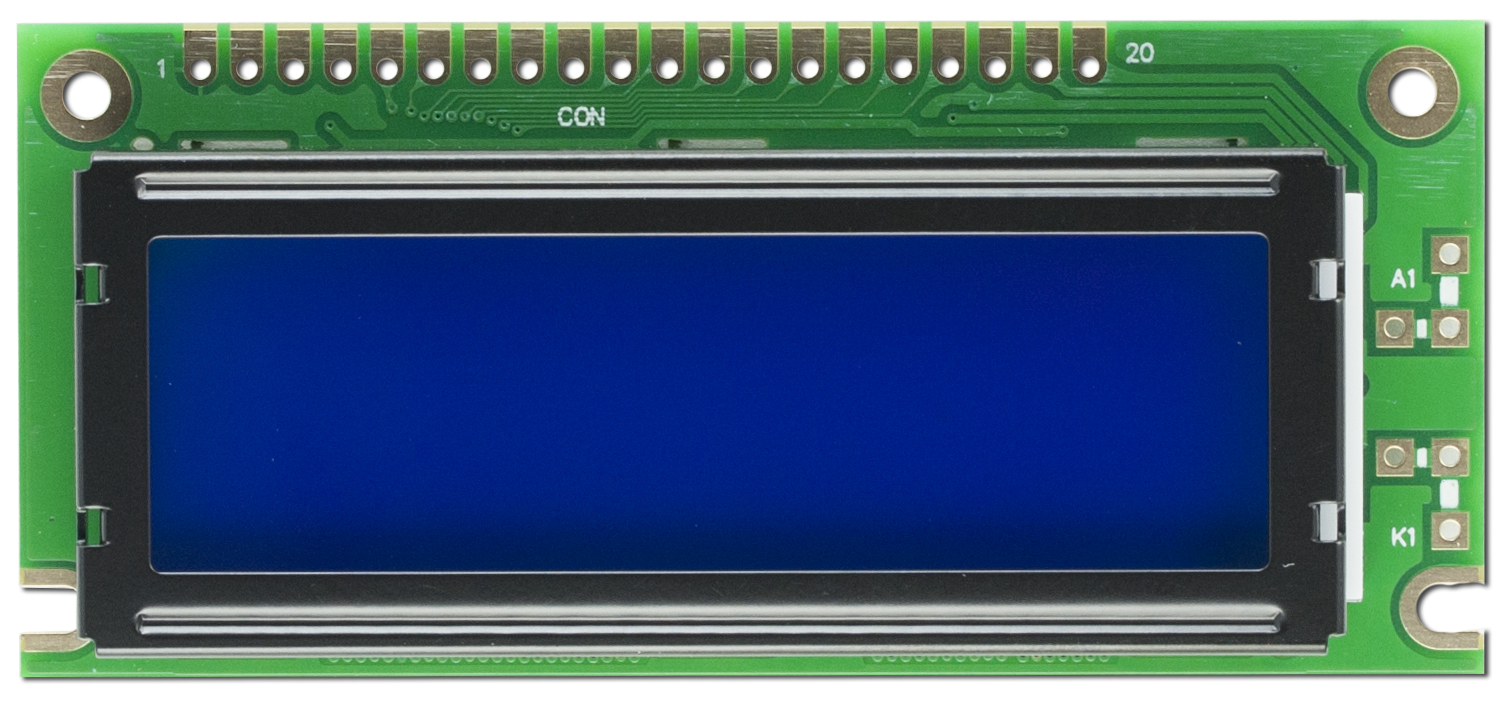

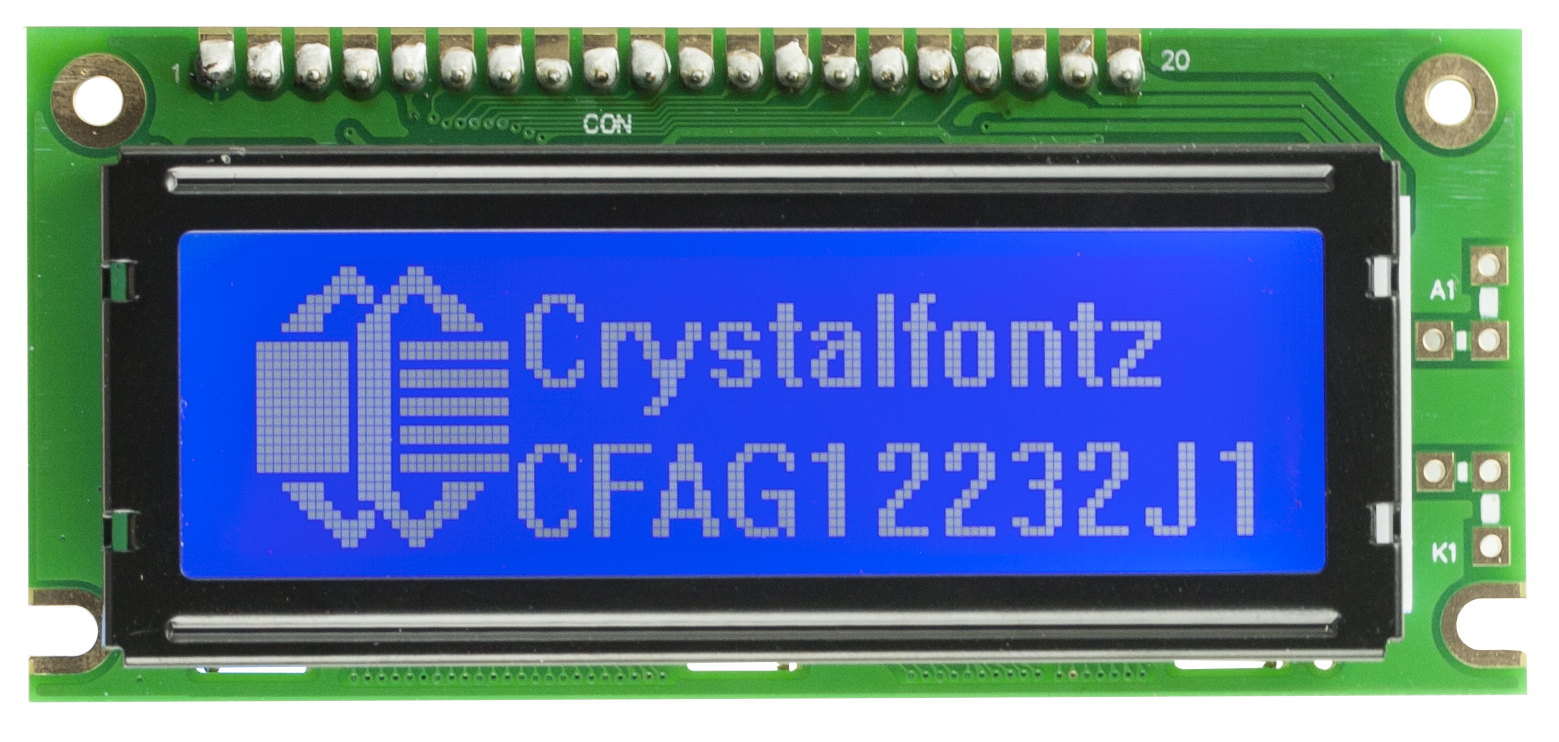

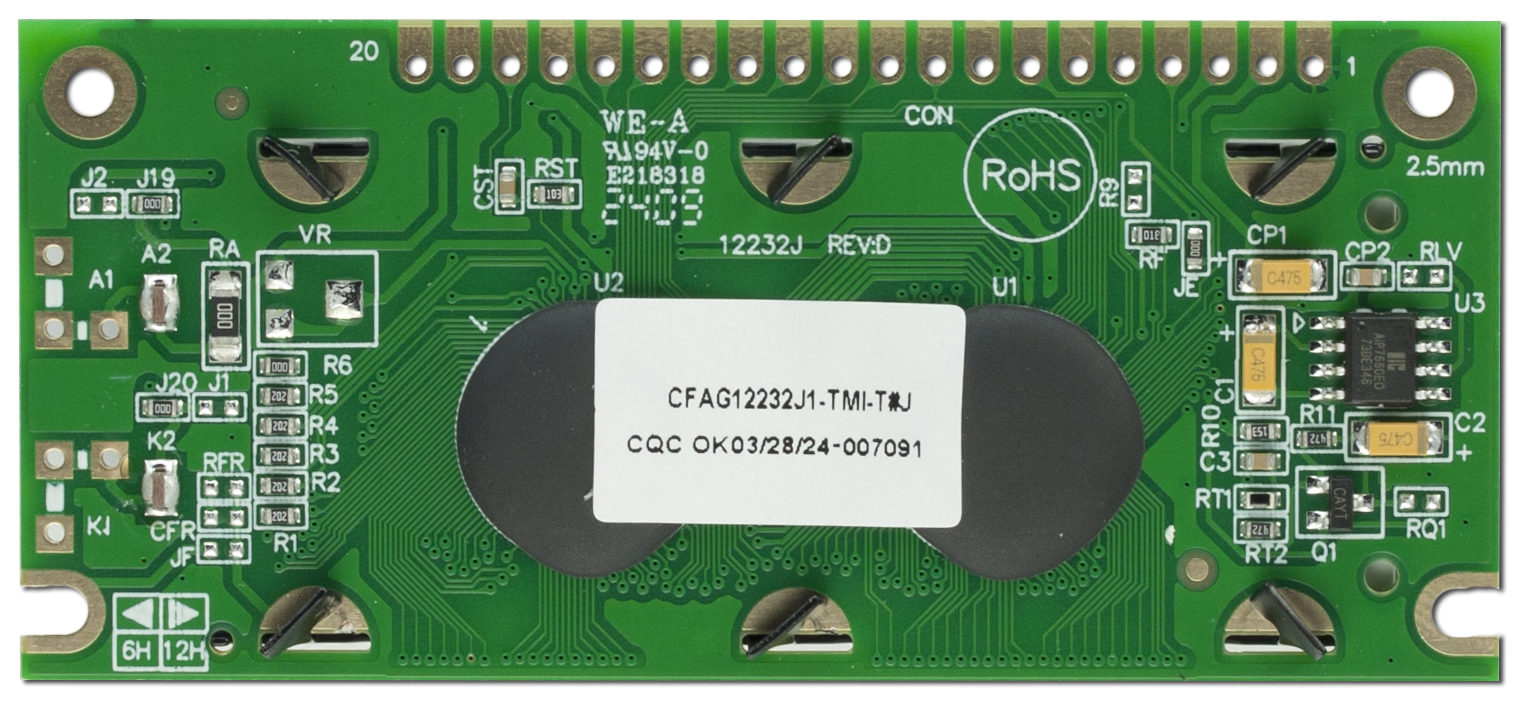

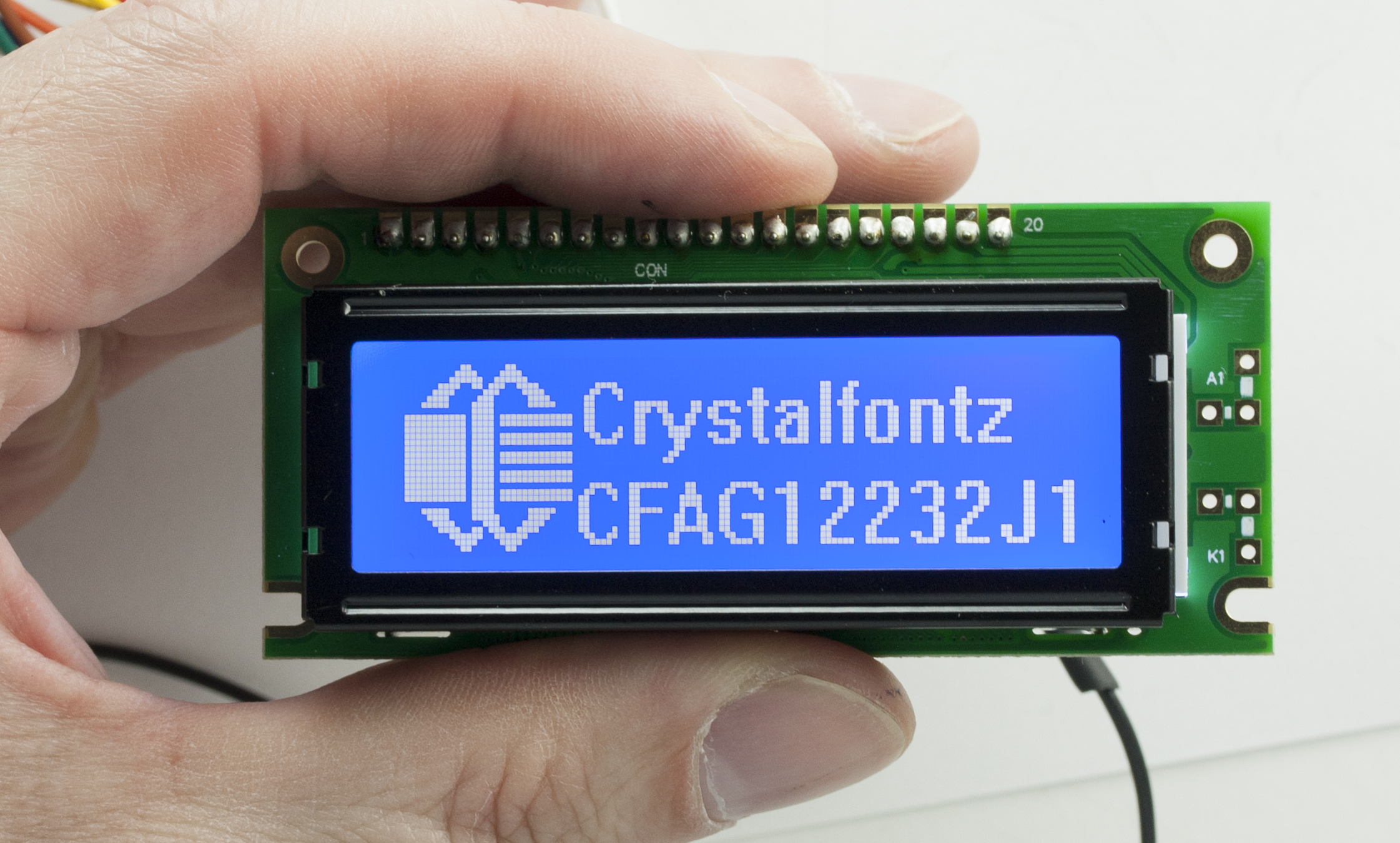

122x32 Graphic LCD DisplayPart Number: CFAG12232J1-TMI-TJ
         This 122x32 Graphic LCD, is a great choice to add information to your product. This display has white pixels on a dark blue background. This display has 0.1" holes for easily adding a header.
122x32 graphic LCD module
White Edge LED Backlight, Blue foreground
-20°C to +70°C
Available in several variations of backlight and polarizer (minimum order may be required)
Built-in I-CORE AiP31520 or compatible controller.
8-bit parallel interface
Part Number:
CFA - Crystalfontz America
G - Graphic LCD
12232 - 122x32
J1 - Family and revision (replaces the CFAG12232J-TMI-TA)
T - White LED backlight
M - STN Negative
I - Transmissive, 6:00 viewing angle
T - Built-in negative voltage and temperature compensation
J - I-CORE AiP31520 or compatible controller


* The displays in this family have different operating voltages.Product VariationsColorsWhite on Blue
White LED BacklightDark on Yellow-Green
Yellow-Green LED BacklightDark-gray on Light-gray
White LED Backlight

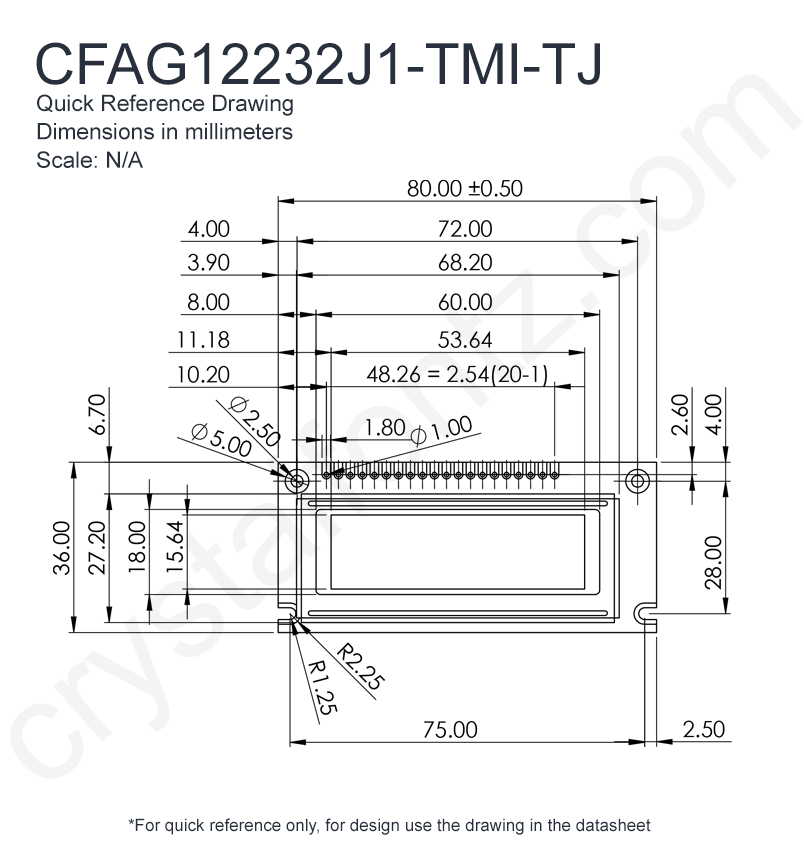

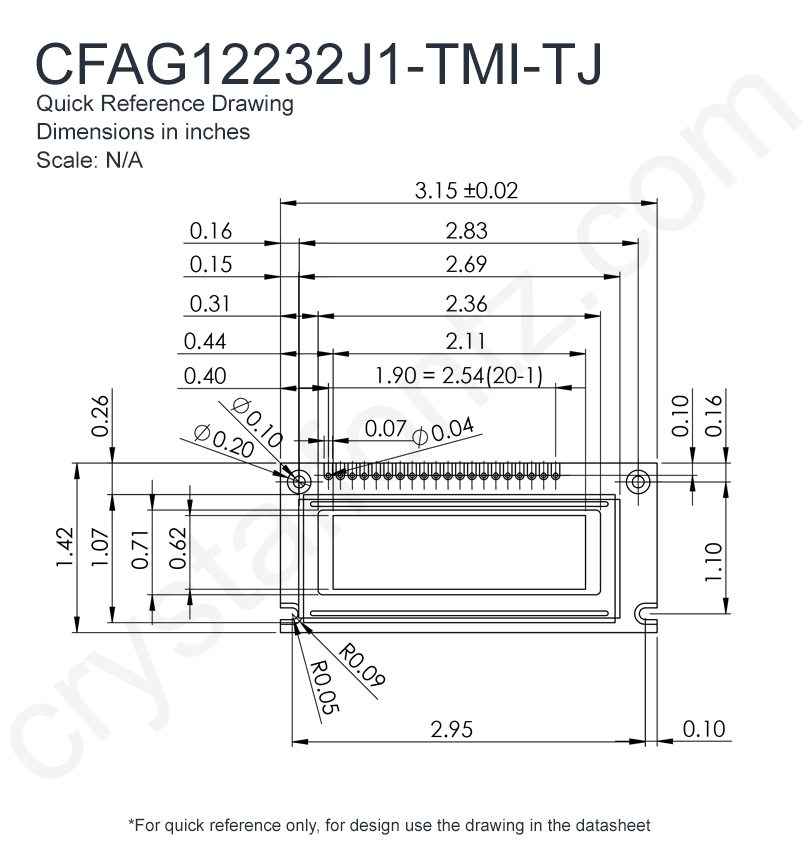

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            122 x 32


    Module Overall        width
        height
        depth


        millimeters
        80
        36
        13.7


        inches
        3.15
        1.42
        0.54



    Viewing Area        Width
        Height


        millimeters
        60
        18


        inches
        2.36
        0.71



    Active Area        Width
        Height


        millimeters
        53.64
        15.64


        inches
        2.11
        0.62



    Dot Size        Width
        Height


        millimeters
        0.4
        0.45


        inches
        0.016
        0.018



    Dot Pitch        Width
        Height


        millimeters
        0.44
        0.49


        inches
        0.017
        0.019



        Weight
            36g
Pin Count
            20

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Blue
Polarizer
            Transmissive
View Direction
            6 o'clock
View Angle
            40°


        Backlight Color
            White
Backlight Type
            LED
Mode
            Negative
Foreground Color
            White
Background Color
            Blue

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            4.5V
Supply Voltage for Logic Maximum
            5.5V
Supply Voltage for Logic Typical
            5V
Supply Voltage for Driving Panel Typical
            4.35V


        Supply Current Minimum
            1.2mA
Supply Current Maximum
            1.8mA
Supply Current Typical
            1.5mA

 electric_bolt Backlight Specification
Backlight Electrical Specifications

        Forward Voltage Minimum
            3.4V
Forward Voltage Maximum
            3.6V
Forward Voltage Typical
            3.5V


        Forward Current Minimum
            24mA
Forward Current Maximum
            40mA
Forward Current Typical
            32mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -20°
        70°


        Fahrenheit
        -4°
        158°



    Storage Temperatures        min
        max


        Celsius
        -30°
        80°


        Fahrenheit
        -22°
        176°


 cable Electronics
Electronics

        Controller Documents
            Wuxi AiP31520
61 SEG / 16 COM Driver for Dot Matrix LCD
Interface
            8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAG12232J1-TMI-TJ Datasheet

 download Files and Downloads
folder_zip Hardware Design - 3D Model
link Demo Code Repository on Github
 assured_workload Compliance Documents
 picture_as_pdf Declaration of Conformity RoHS2
 picture_as_pdf Declaration of Conformity REACH

















Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
 Quantity:


Price:



            Quantity
            Unit Price


            1
            $18.16

            5
            $16.74

            10
            $14.76

            20
            $14.26

            50
            $13.77

            100 *
            $13.57

            200 *
            $13.47

            300 *
            $12.78

            500 *
            $12.69

            1000 *
            $12.02

66 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
Other components worth considering


						LCD Starter Kit with Potentiometer
Get running faster with a DevKit. $12.59 ea.






						6-inch Female to Female Jumper Wires
Add Jumper Wires? $3.38 ea.






						8x2 Pin Dual Row Header
Add header pins? $0.28 ea.





Colors	White on Blue White LED Backlight Dark on Yellow-Green Yellow-Green LED Backlight Dark-gray on Light-gray White LED Backlight

Module Overall	width	height	depth
millimeters	80	36	13.7
inches	3.15	1.42	0.54

Viewing Area	Width	Height
millimeters	60	18
inches	2.36	0.71

Active Area	Width	Height
millimeters	53.64	15.64
inches	2.11	0.62

Dot Size	Width	Height
millimeters	0.4	0.45
inches	0.016	0.018

Dot Pitch	Width	Height
millimeters	0.44	0.49
inches	0.017	0.019

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Quantity	Unit Price
1	$18.16
5	$16.74
10	$14.76
20	$14.26
50	$13.77
100 *	$13.57
200 *	$13.47
300 *	$12.78
500 *	$12.69
1000 *	$12.02

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #11285: 122x32 Graphic LCD Display is now available

New Product:	CFAG12232J1-TMI-TJ
Date Issued:	August 28, 2024
Summary:	122x32 Graphic LCD Display is now available
Description:	CFAG12232J1-TMI-TJ has been released on our website (https://www.crystalfontz.com/product/cfag12232j1tmitj-122x32-graphic-lcd-with-icore-aip31520) and is now available for sale. Orders can be placed directly from our website or by submitting a purchase order to sales@crystalfontz.com. Contact support@crystalfontz.com for any technical questions.
