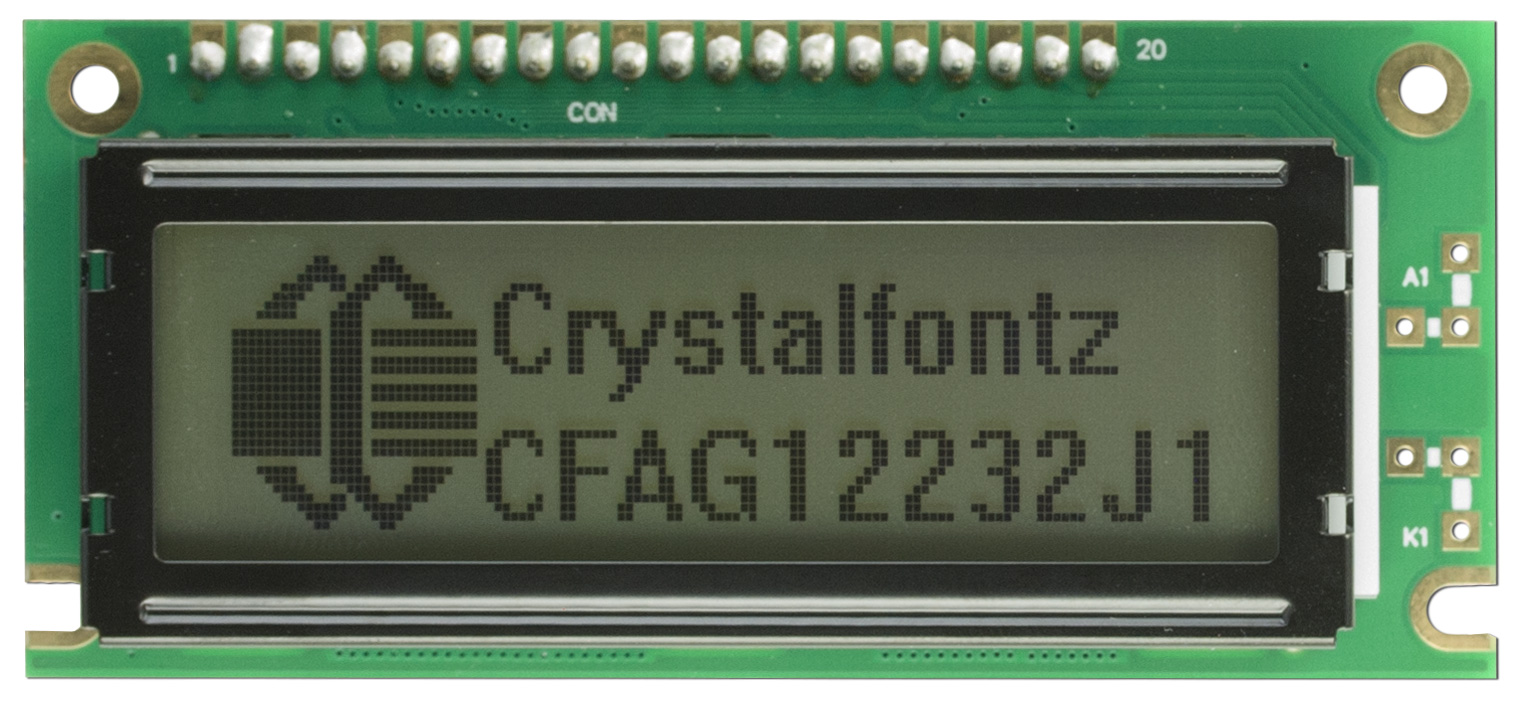

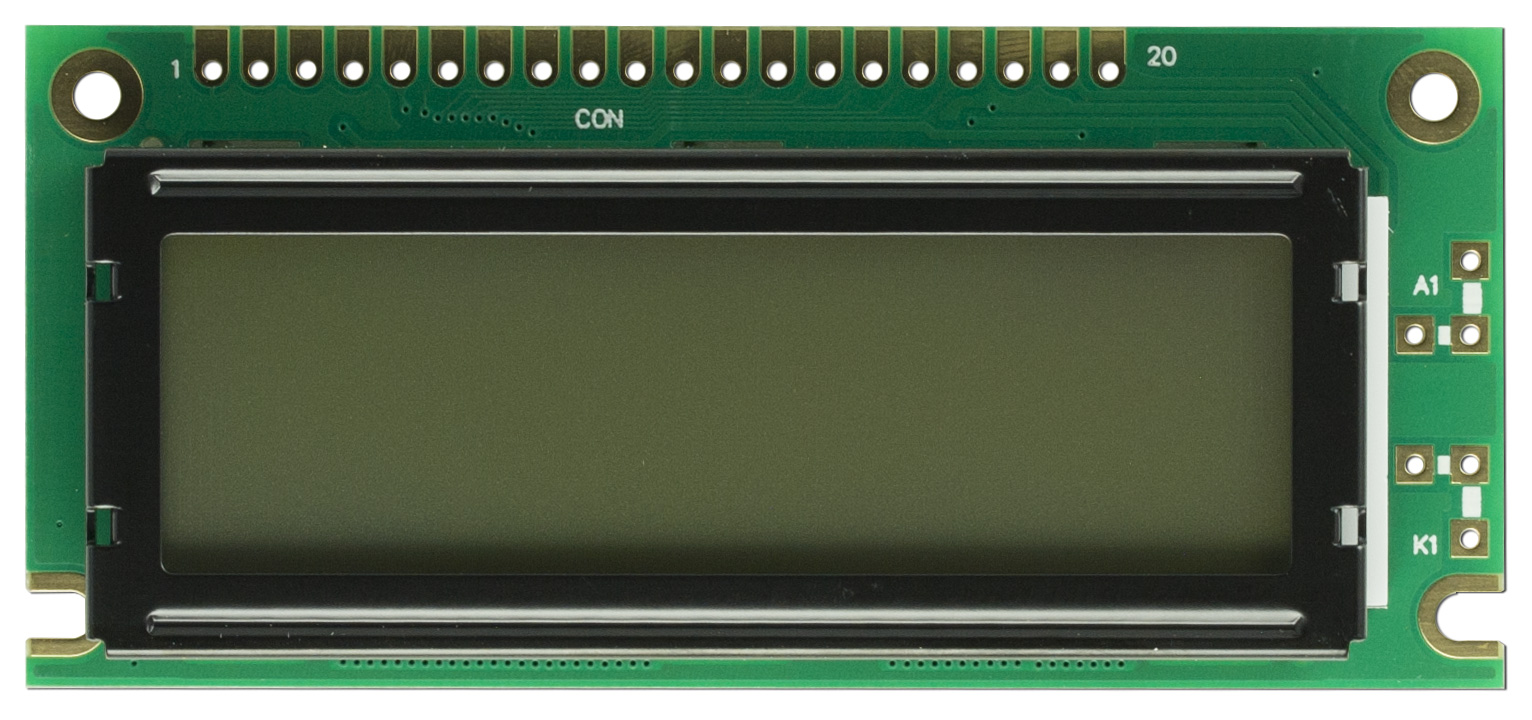

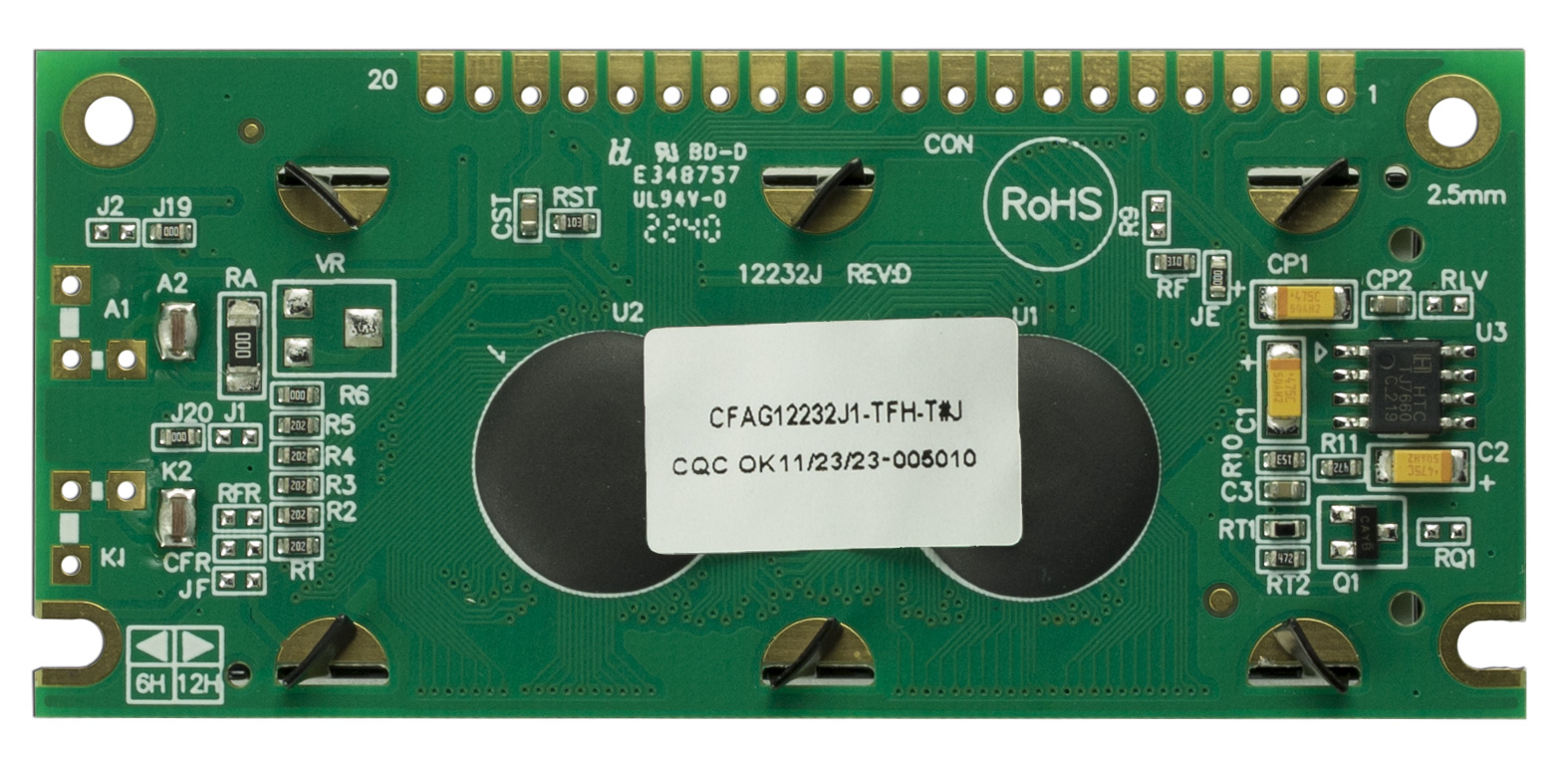

Black on Gray 122x32 Graphic LCD Display

Part Number: CFAG12232J1-TFH-TJ

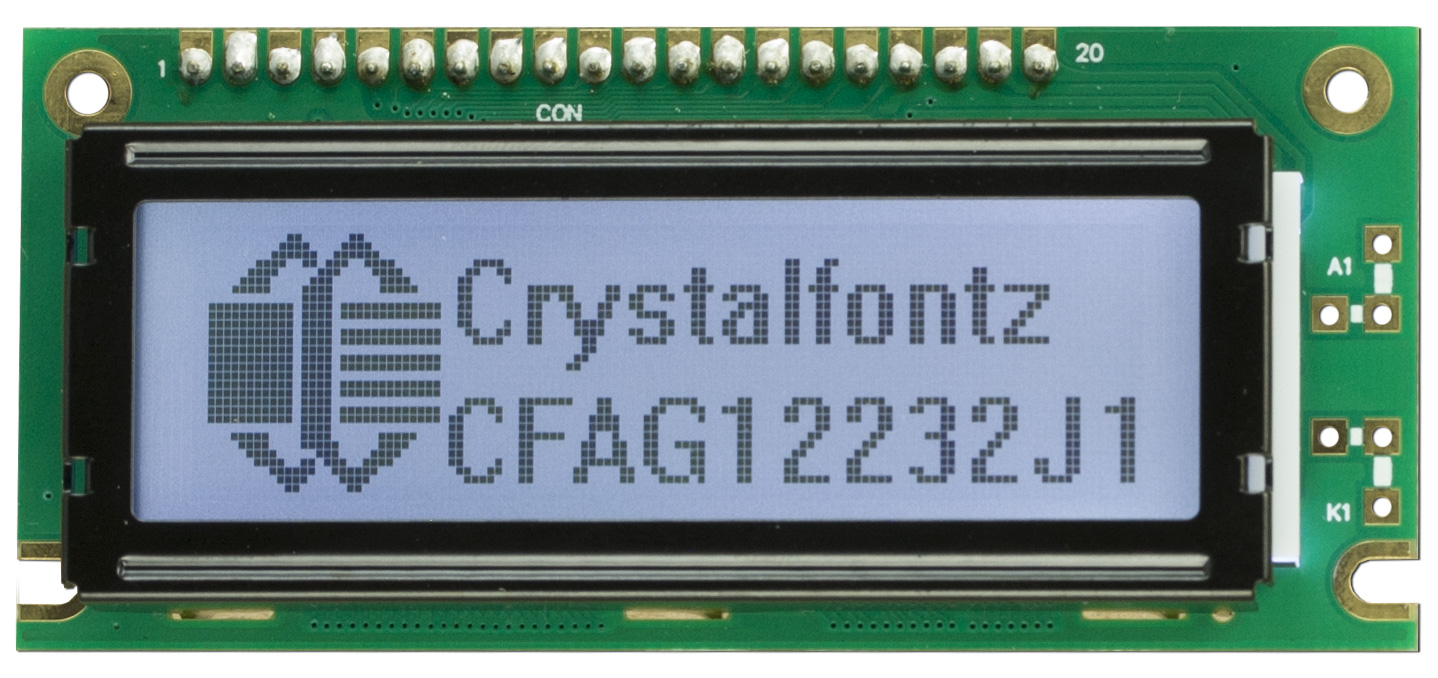

A 122x32 graphic LCD with a white edge LED backlight. This display uses a tenth-inch header for connections making it simple to wire.

• 122x32 graphic LCD module
• Available in several variations of backlight and polarizer (minimum order may be required)
• Built-in I-CORE AiP31520 or compatible controller (Avant SBN1661G and SED1520 compatible)
• 8-bit parallel interface
• -20°C to +70°C operating temperature

Part Number:
CFA - Crystalfontz America
G - Graphic LCD
12232 - 122x32
J1 - Family and revision (replaces the CFAG12232J-TFH-TA)
T - White LED backlight
F - FSTN Positive
H - Transflective, 6:00 viewing angle
T - Built-in negative voltage and temperature compensation
J - I-CORE AiP31520 or compatible controller


* The displays in this family have different operating voltages.

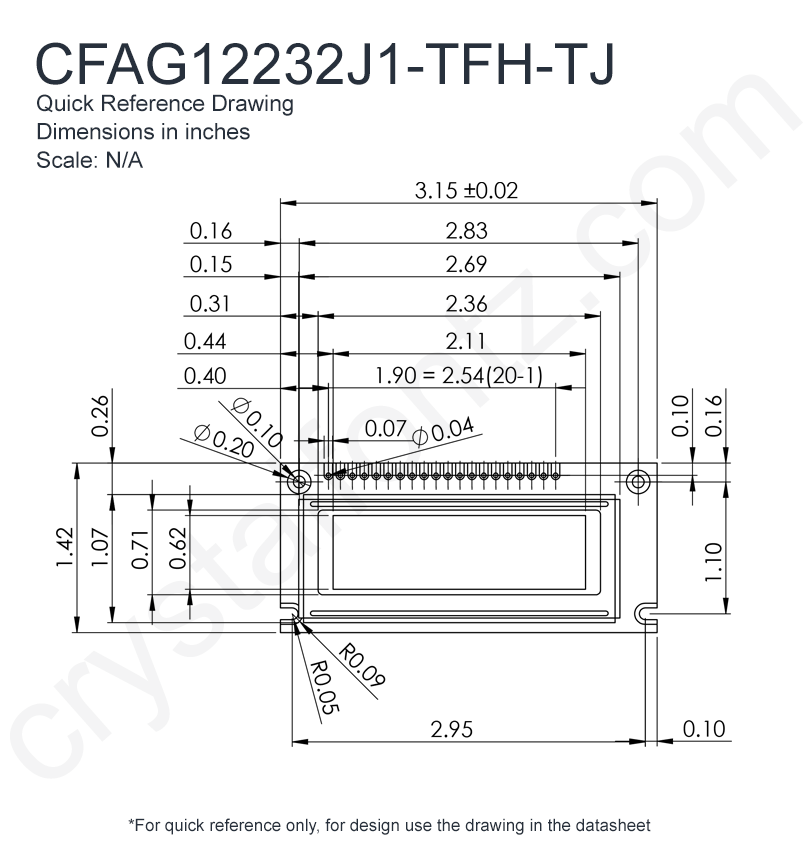

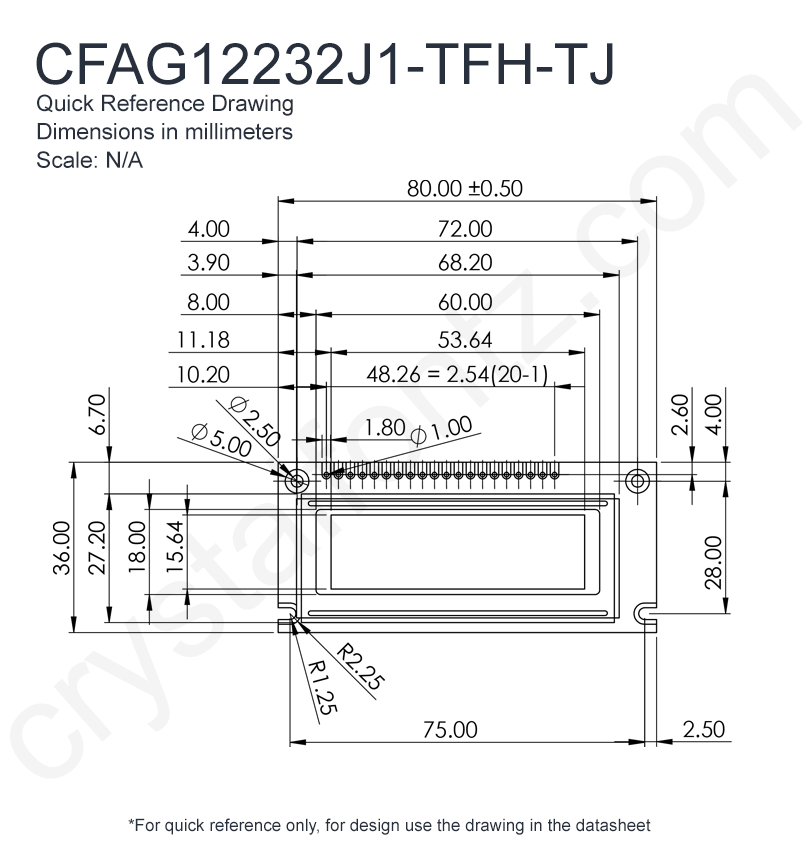

• square_foot Physical Characteristics

  Physical Characteristics

  Column Dots x Row Dots

  122 x 32

  Module Overall	width	height	depth
  millimeters	80	36	13.7
  inches	3.15	1.42	0.54

  Viewing Area	Width	Height
  millimeters	60	18
  inches	2.36	0.71

  Active Area	Width	Height
  millimeters	53.64	15.64
  inches	2.11	0.62

  Dot Size	Width	Height
  millimeters	0.4	0.45
  inches	0.016	0.018

  Dot Pitch	Width	Height
  millimeters	0.44	0.49
  inches	0.017	0.019

  Weight	35g
  Pin Count	20

• visibility Optical Characteristics

  Optical Characteristics

  Glass Type/Glass Color	FSTN/Light-Gray
  Polarizer	Transflective
  View Direction	6 o'clock
  Sunlight Readable	Yes

  Backlight Color	White
  Backlight Type	LED
  Mode	Positive
  Foreground Color	Dark-gray
  Background Color	Light-gray

• electric_bolt Electrical Specification

  Electrical Specifications

  Supply Voltage for Logic Minimum	2.7V
  Supply Voltage for Logic Maximum	3.6V
  Supply Voltage for Logic Typical	3.3V
  Supply Voltage for Driving Panel Typical	4.35V

  Supply Current Minimum	0.9mA
  Supply Current Maximum	3.6mA
  Supply Current Typical	1.8mA

• electric_bolt Backlight Specification

  Backlight Electrical Specifications

  Forward Voltage Minimum	3.4V
  Forward Voltage Maximum	3.6V
  Forward Voltage Typical	3.5V

  Forward Current Minimum	24mA
  Forward Current Maximum	40mA
  Forward Current Typical	32mA

• nature Environmental

  Environmental

  Operating Temperatures	min	max
  Celsius	-20°	70°
  Fahrenheit	-4°	158°

  Storage Temperatures	min	max
  Celsius	-30°	80°
  Fahrenheit	-22°	176°

• cable Electronics

  Electronics

  Controller Documents	Wuxi AiP31520 61 SEG / 16 COM Driver for Dot Matrix LCD
  Interface	8-bit Parallel
