                In order to keep this display in production over the long term, we have revised it to the CFAG12232J1TMITJ. Please contact support with any questions.

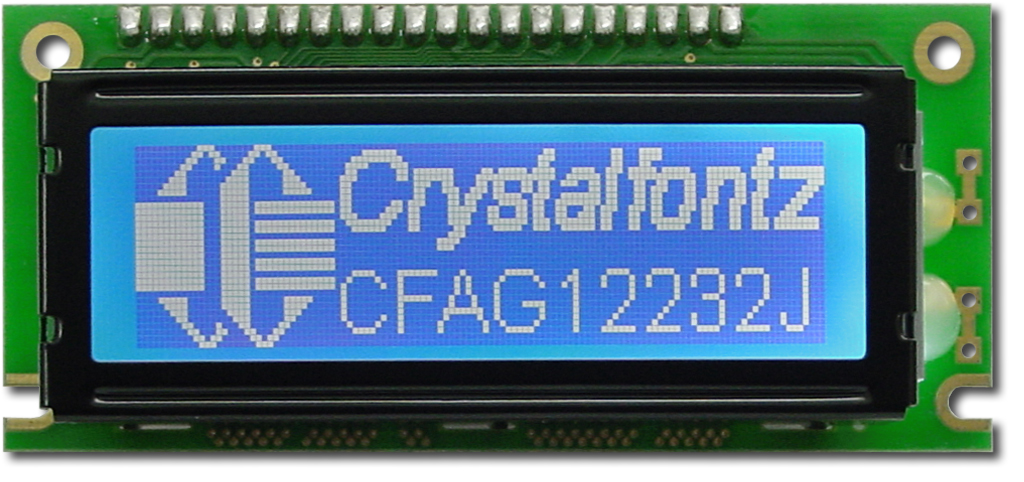

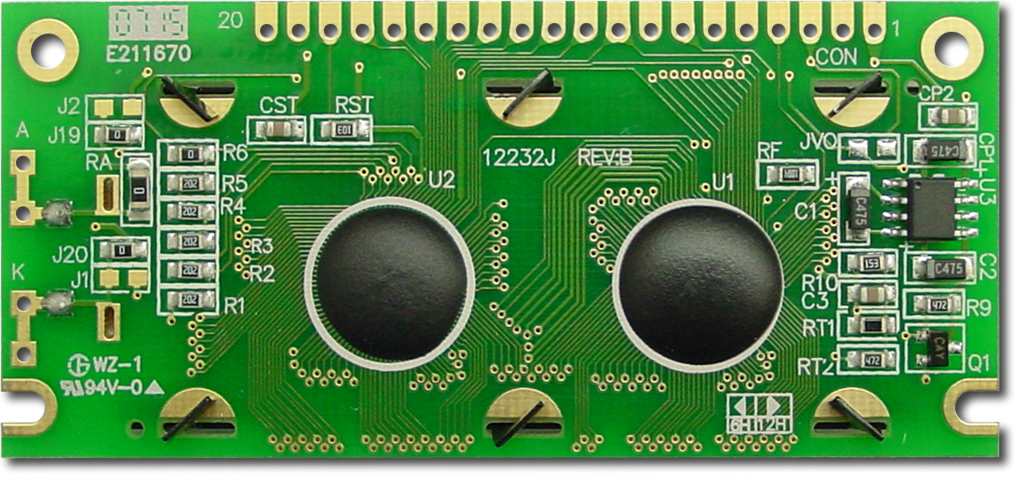

White on Blue 122x32 Graphic LCDPart Number: CFAG12232J-TMI-TA122x32 Graphic LCD, RoHS Compliant, White Edge LED Backlight, STN Negative, Blue, Transmissive -20°C to +70°C 6:00
122x32 graphic LCD module
Available in several variations of backlight and polarizer  (minimum order may be required)
Built-in Avant SBN1661G or compatible controller.
8-bit parallel interface
Product Variations

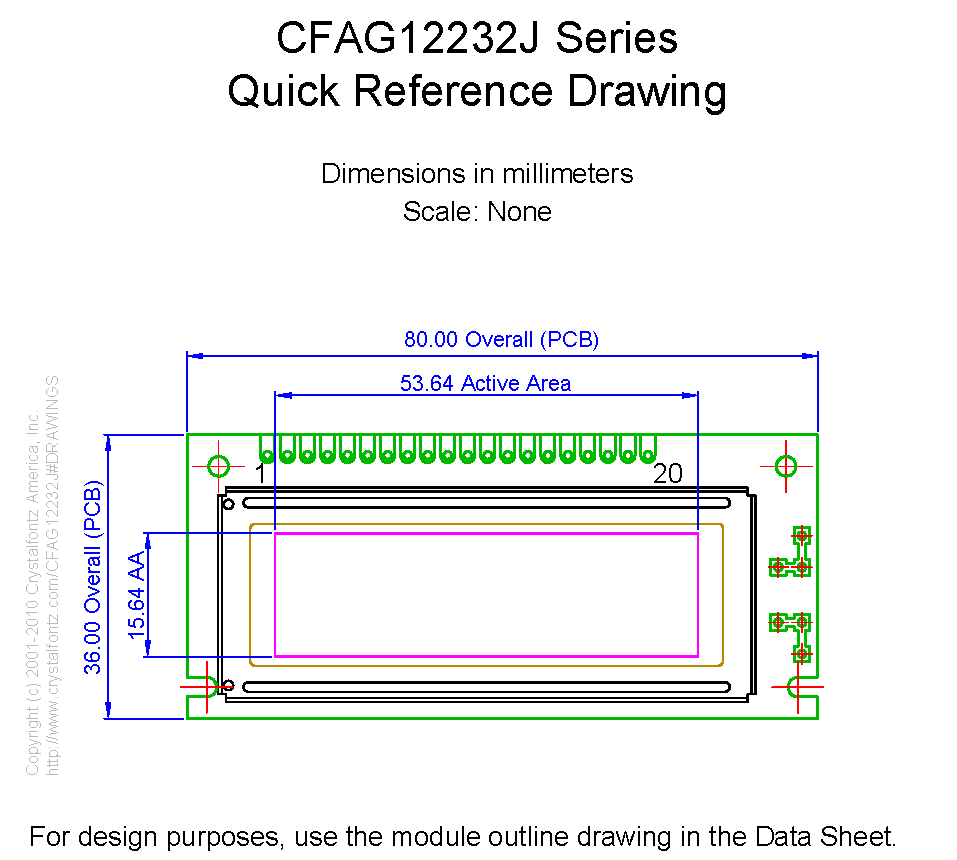

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            122 x 32

    Module Overall        width
        height
        depth

        millimeters
        80
        36
        13.7

        inches
        3.15
        1.42
        0.54

    PCB Outline        width
        height
        depth

        millimeters
        80
        36
        13.7

        inches
        3.15
        1.42
        0.54

        Diagonal Dimension
            2.2"

    Viewing Area        Width
        Height

        millimeters
        60
        18

        inches
        2.36
        0.71

    Active Area        Width
        Height

        millimeters
        53.64
        15.64

        inches
        2.11
        0.62

    Dot Size        Width
        Height

        millimeters
        0.4
        0.45

        inches
        0.016
        0.018

    Dot Pitch        Width
        Height

        millimeters
        0.44
        0.49

        inches
        0.017
        0.019

        Weight
            36g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Blue
Polarizer
            Transmissive
View Direction
            6 o'clock

        Backlight Color
            White
Backlight Type
            LED
Mode
            Negative
Foreground Color
            White
Background Color
            Blue

 electric_bolt Electrical Specification
Electrical Specifications

        Module Connector Pitch
            0.1mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Controller Documents
            Avant SBN1661G
SBN1661G_M18,

SBN1661G_M02,

SBN0080G_S18,

SBN0080G_S02

Dot-matrix STN LCD Driver

with 32-row x 80-column

Display Data Memory
Interface
            8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAG12232JTMITA Datasheet

 download Files and Downloads
folder_zip CAD Export - CFAG12232J 2D CAD
picture_as_pdf 1 to 1 Template - CFAG12232J 1 TO 1.PDF

Module Overall	width	height	depth
millimeters	80	36	13.7
inches	3.15	1.42	0.54

PCB Outline	width	height	depth
millimeters	80	36	13.7
inches	3.15	1.42	0.54

Viewing Area	Width	Height
millimeters	60	18
inches	2.36	0.71

Active Area	Width	Height
millimeters	53.64	15.64
inches	2.11	0.62

Dot Size	Width	Height
millimeters	0.4	0.45
inches	0.016	0.018

Dot Pitch	Width	Height
millimeters	0.44	0.49
inches	0.017	0.019

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

End-Of-Life #11157: Avant SBN1661G End-Of-Life Notification

Products Affected:	CFAG12232J-TFH-TA, CFAG12232J-TMI-TA, CFAG12232J-YYH-TA, CFAG12232K-YYH-TA, CFAG12232A-YYH-TA, CFAG12232A-TMI-TA, CFAG12232D-NYG-VA, CFAG12232D-YYH-VA
Date Issued:	November 7, 2022
Summary:	Avant SBN1661G End-Of-Life Notification
Description:	The Avant SBN1661G (https://www.crystalfontz.com/controllers/Avant/SBN1661G) controller is no longer available. We will be providing replacement options that use the I-CORE AiP31520 controller. For more information on the replacement parts, contact support@crystalfontz.com.
Reason:	The Avant SBN1661G controller is no longer available.
Availability:	Contact Crystalfontz Support for up-to-date information by emailing support@crystalfontz.com.
