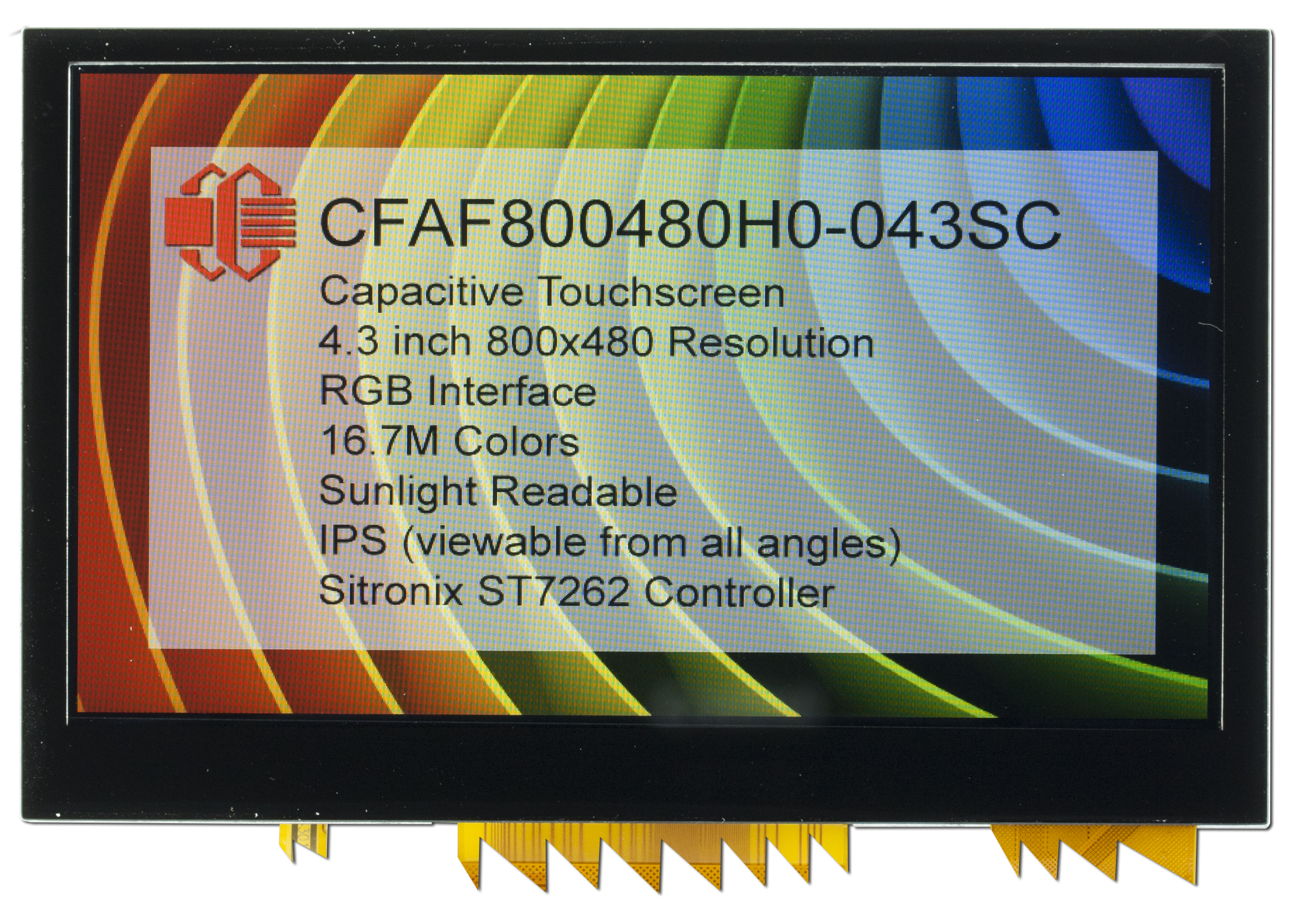

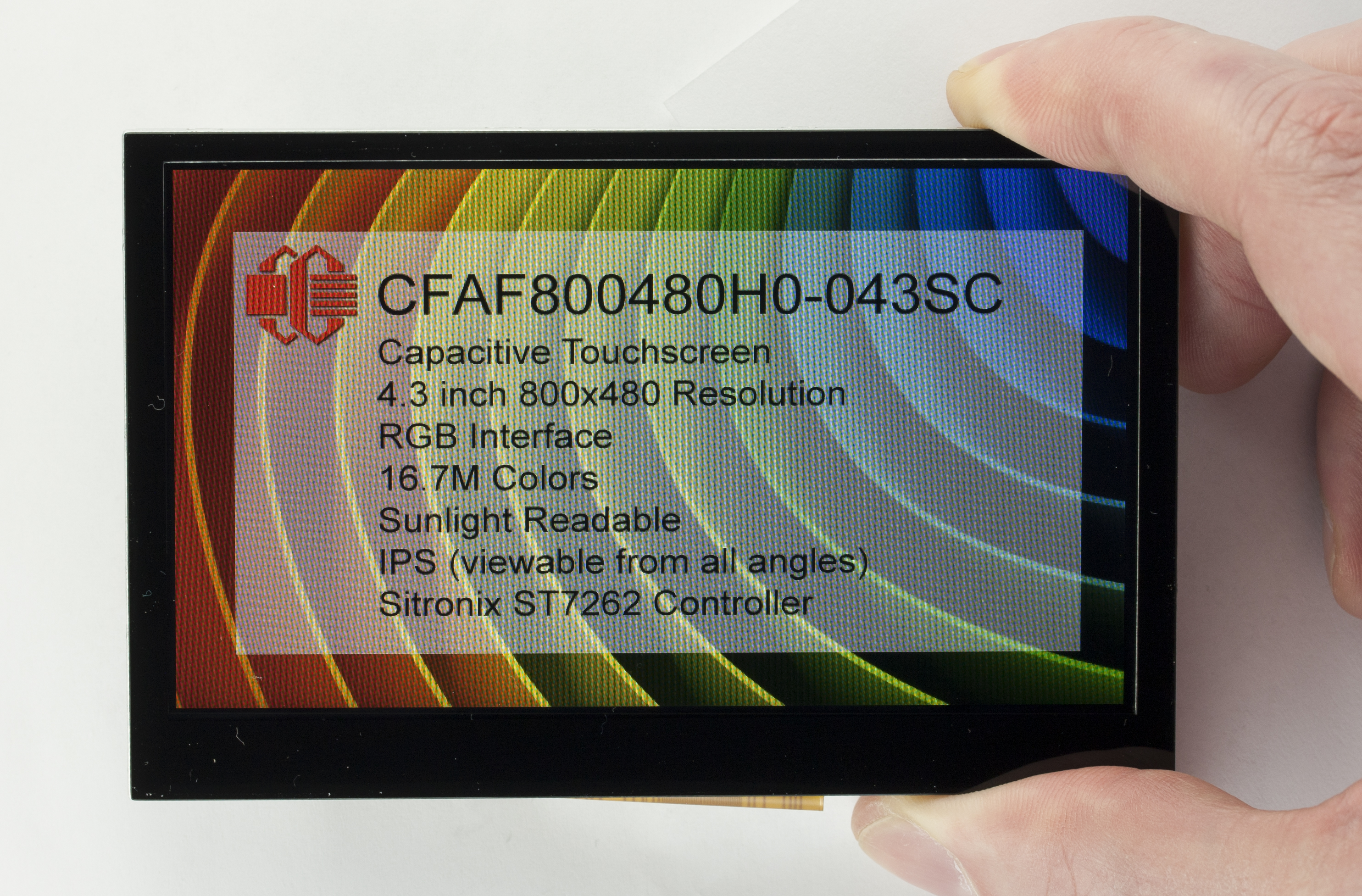

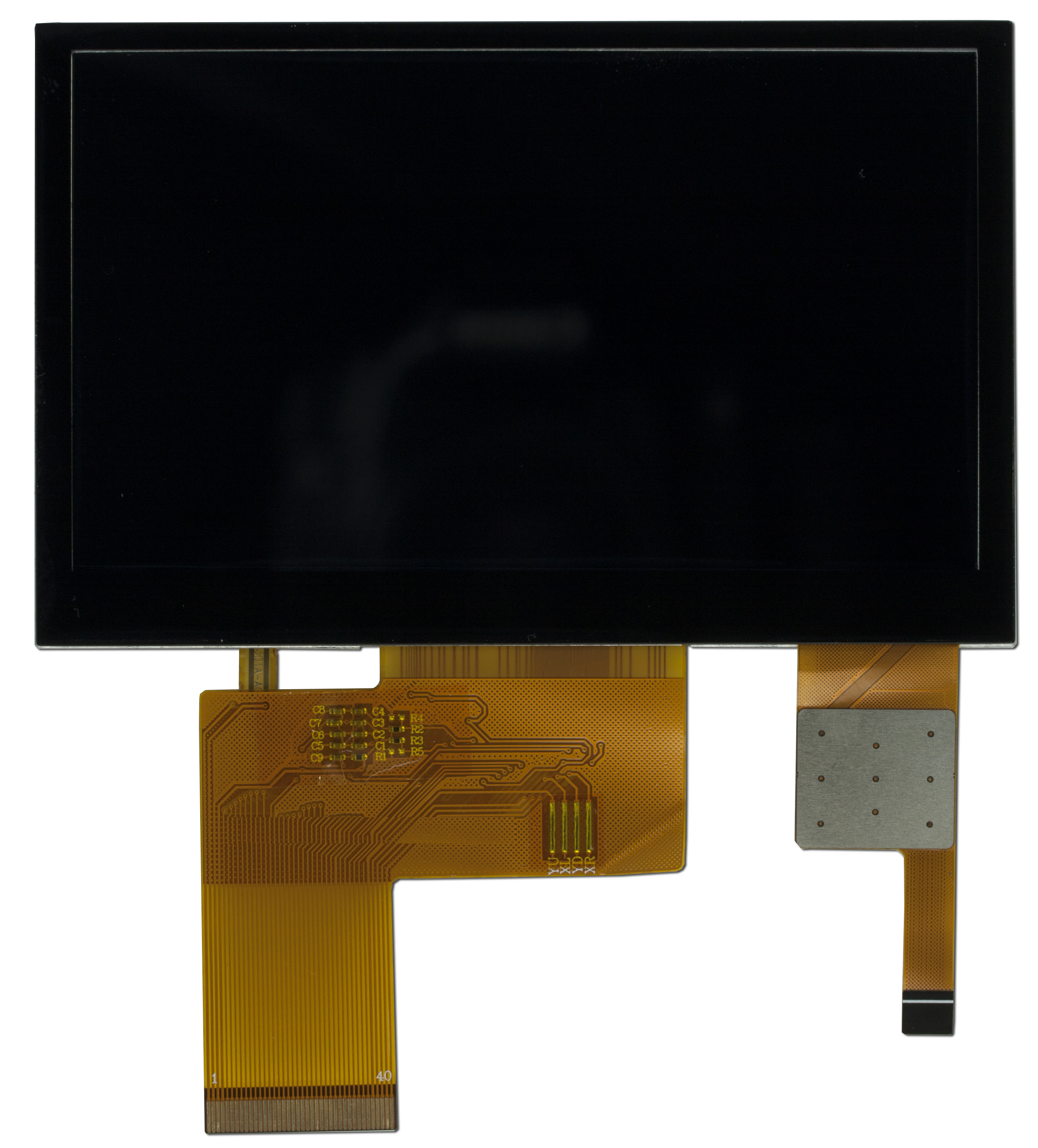

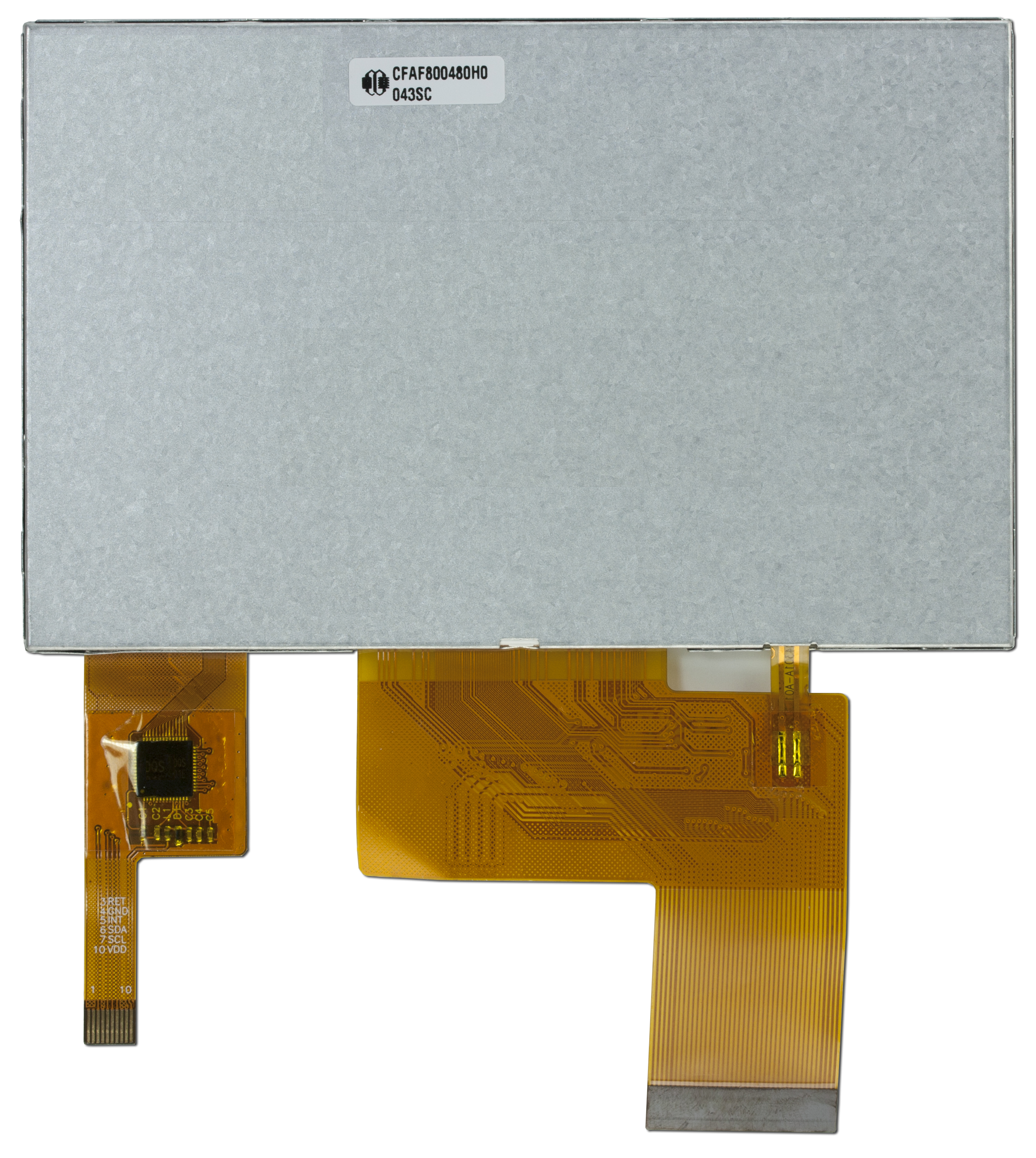

800x480 4.3" Capacitive Touchscreen TFT Display

Part Number: CFAF800480H0-043SC

This 4.3" TFT display with a capacitive touchscreen offers a great interface for a product. It has a very bright backlight (850 nits), full color display, and a capacitive touchscreen. Choose this display for a human-machine interface with modern feeling inputs - capacitive touchscreens support gestures like swipes, as well as multiple simultaneous touches.

This family of displays also includes a non-touch screen and a resistive touchscreen version. Want help deciding between resistive and capacitive touch? Read about resistive vs capacitive touch on our blog.

Part Number:
CFA - Crystalfontz America
F - TFT
800480 - 800x480 pixel resolution
H0 - Family and revision
043 - 4.3" diagonal dimension
S - Sunlight readable
C - Capacitive touchscreen

Product Variants

• square_foot Physical Characteristics

  Physical Characteristics

  Column Dots x Row Dots

  800 x 480

  Module Overall	width	height	depth

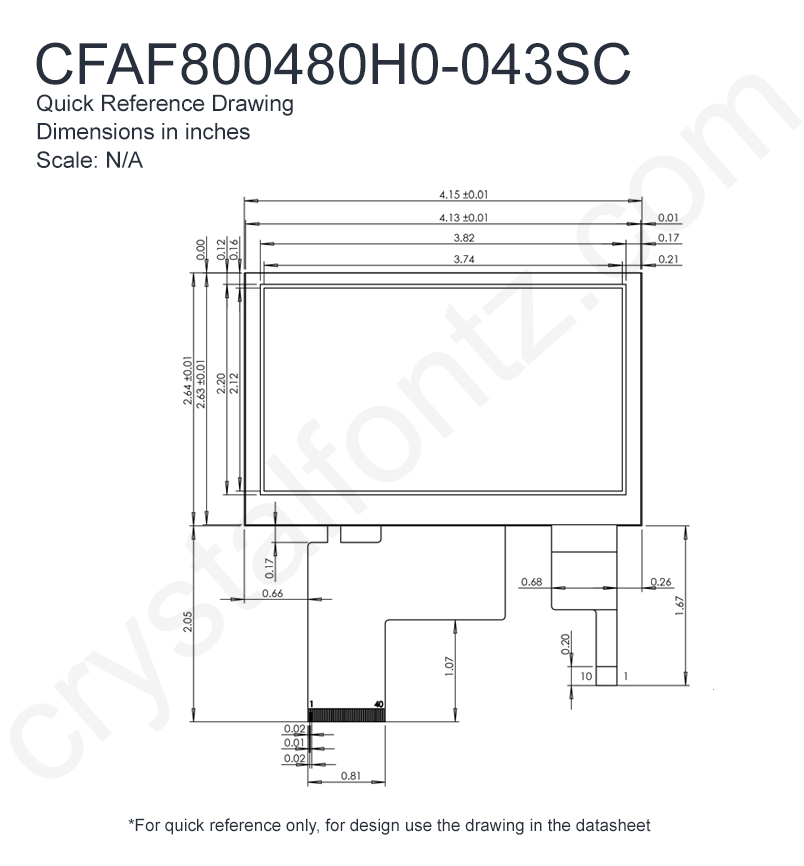

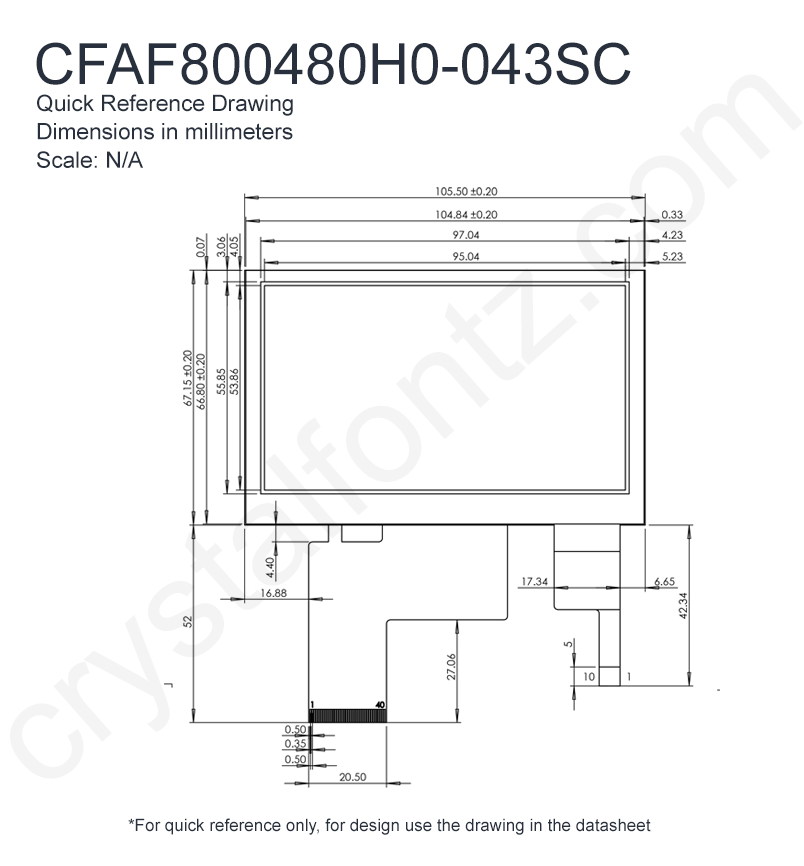

  millimeters	105.5	67.15	4.6
  inches	4.154	2.644	0.181

  Diagonal Dimension

  4.3"

  Active Area	Width	Height
  millimeters	95.04	53.86
  inches	3.742	2.120

  Weight	62.1g
  Pin Count	40

• visibility Optical Characteristics

  Optical Characteristics

  Glass Type	TFT
  Polarizer	IPS
  View Angle	160°
  Sunlight Readable	Yes

  Backlight Color	White
  Backlight Type	LED
  Foreground Color	RGB
  Background Color	Dark

• electric_bolt Electrical Specification

  Electrical Specifications

  Supply Voltage for Logic Minimum	3.3V
  Supply Voltage for Logic Maximum	3.6V
  Supply Voltage for Logic Typical	3.3V
  Supply Voltage for Driving Panel Typical	3.3V

  Supply Current Minimum	3.3mA
  Supply Current Maximum	3.6mA
  Supply Current Typical	40mA

• electric_bolt Backlight Specification

  Backlight Electrical Specifications

  Forward Voltage Minimum	16.2V
  Forward Voltage Maximum	19.2V

  Forward Current Typical

  40mA

• nature Enviromental

  Environmental

  Operating Temperatures	min	max
  Celsius	-20°	70°
  Fahrenheit	-4°	158°

  Storage Temperatures	min	max
  Celsius	-30°	80°
  Fahrenheit	-22°	176°

• cable Electronics

  Electronics

  Controller Documents	Sitronix ST7262 1200CH System-On-Chip Driver for 800RGBx480 TFT
  Interface	DOT-CLK interface / Generic RGB

• picture_as_pdf Datasheets
  picture_as_pdf

  CFAF800480H0-043Sx Datasheet


• download Files and Downloads
  folder_zip Hardware Design - 3D Model


  link Demo Code Repository on Github

• assured_workload Compliance Documents
  picture_as_pdf Declaration of Conformity RoHS2

  picture_as_pdf Declaration of Conformity REACH
