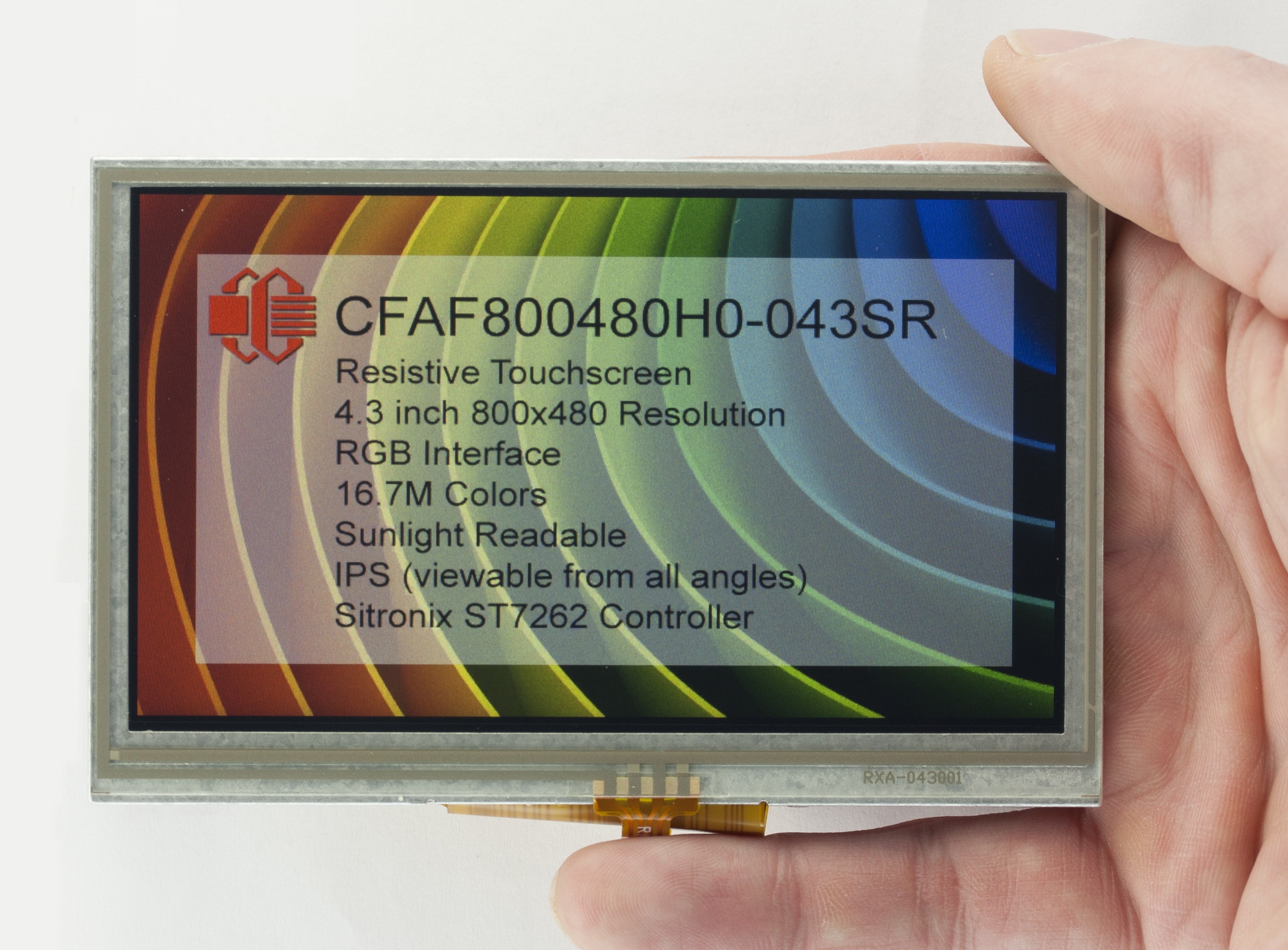

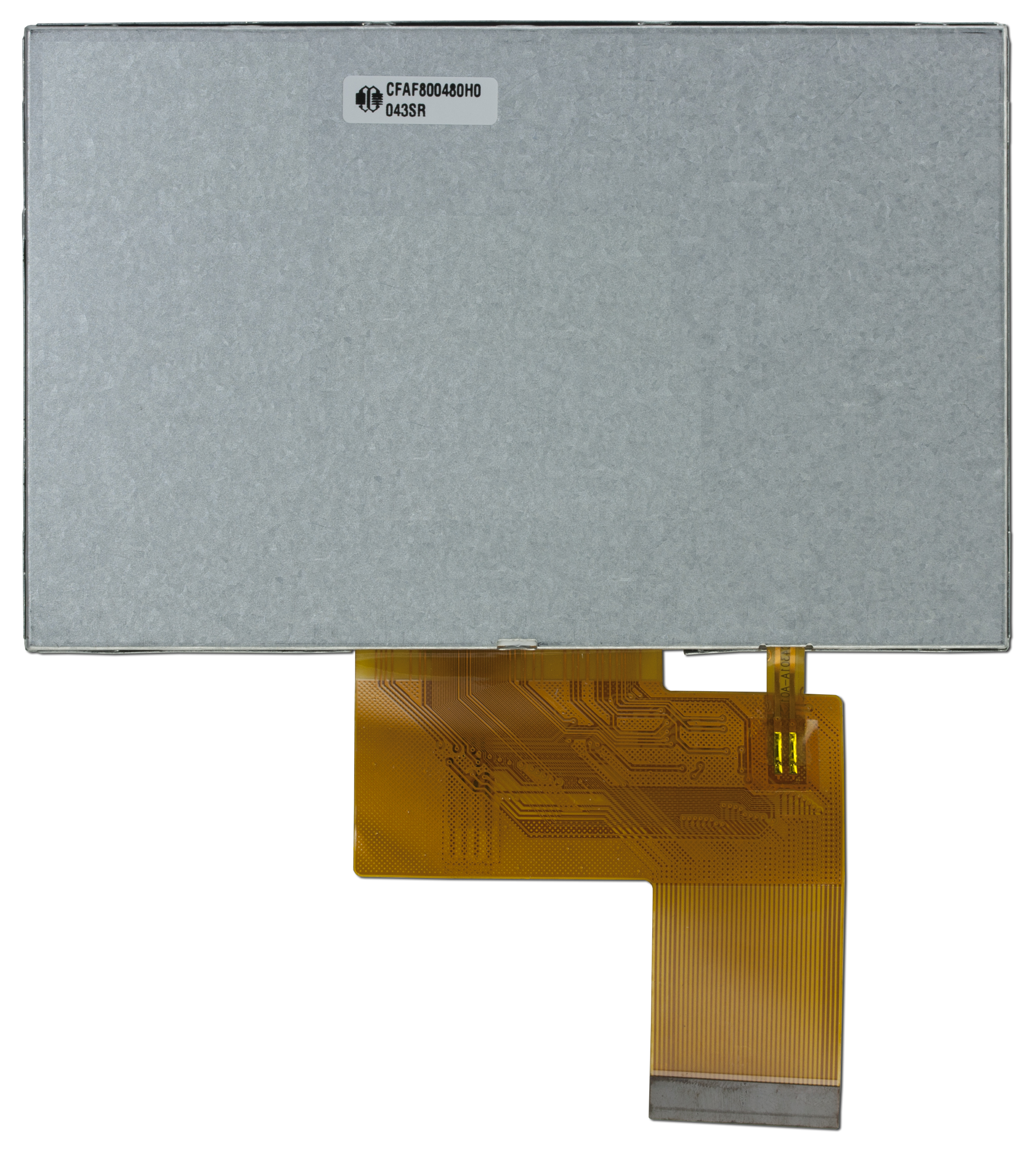

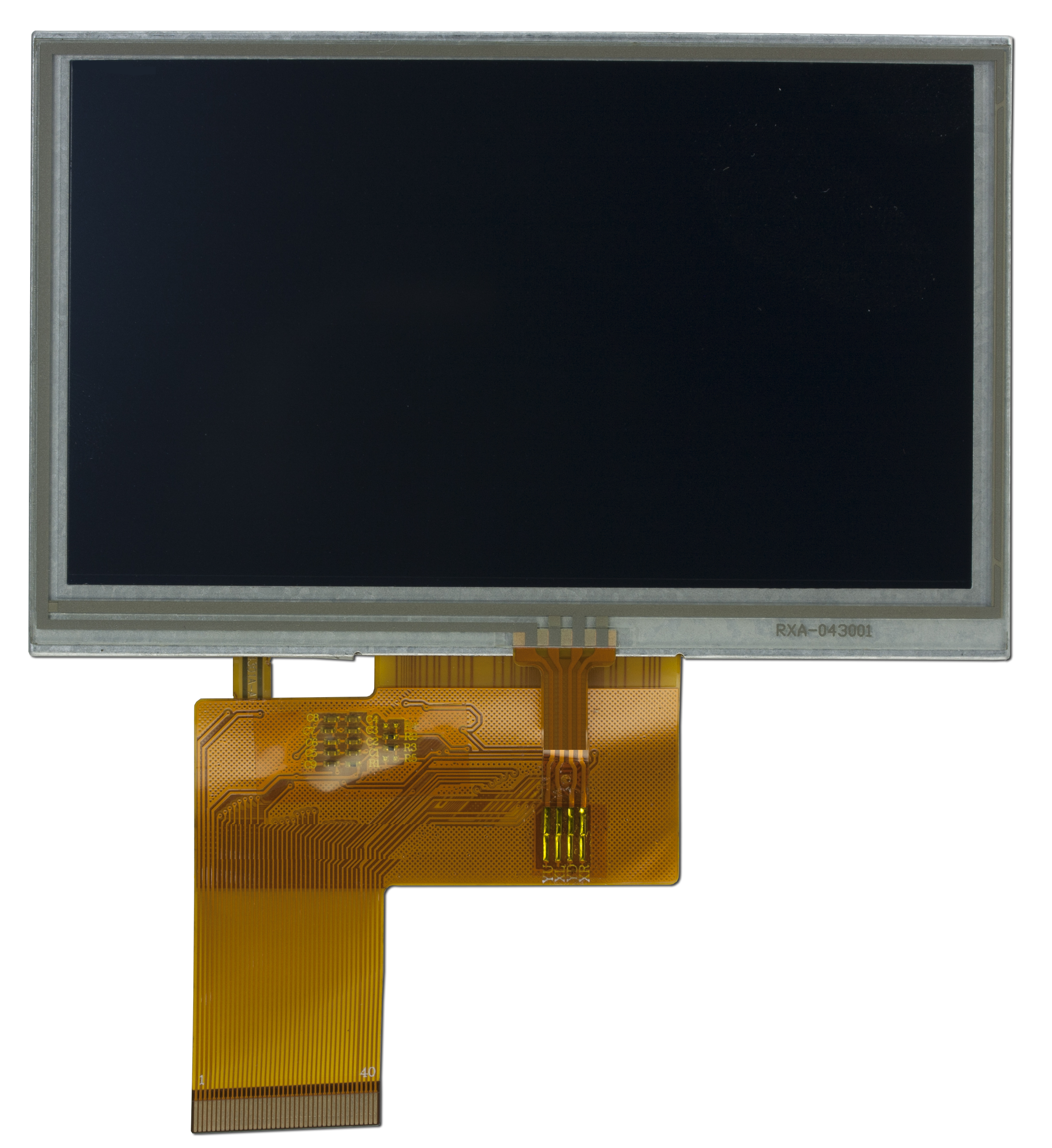

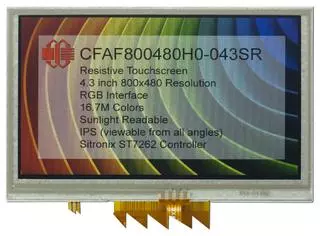

800x480 4.3" Resistive Touchscreen TFT DisplayPart Number: CFAF800480H0-043SR
         This 4.3" TFT display with a resistive touchscreen is sunlight readable (740 nits) and has a wide viewing range. With the resistive touchscreen, this display is a great choice when the display screen may get droplets on it or if the users are wearing gloves. This display can be used inside or outside.

This display family further includes a non-touch and a capacitive touch display. Choosing which type of touch? Read about resistive vs capacitive touch on our blog.

Part Number:

CFA - Crystalfontz America

F - TFT

800480 - 800x480 pixel resolution

H0 - Family and revision

043 - 4.3" diagonal dimension

S - Sunlight readable

R - Resistive touchscreen

Product VariationsTouchscreenResistiveCapacitiveNone

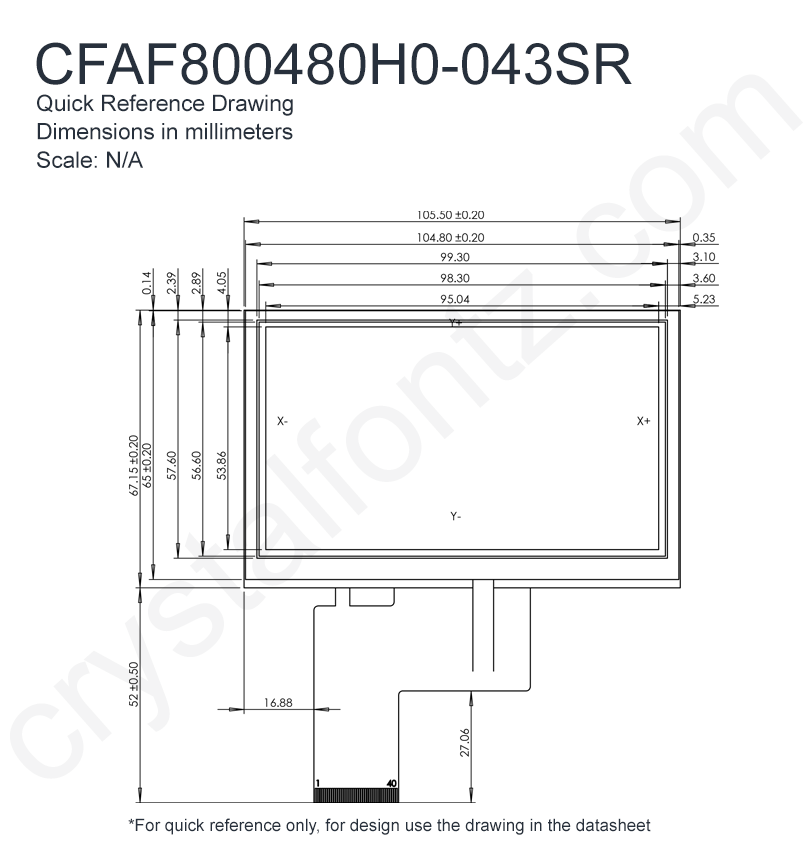

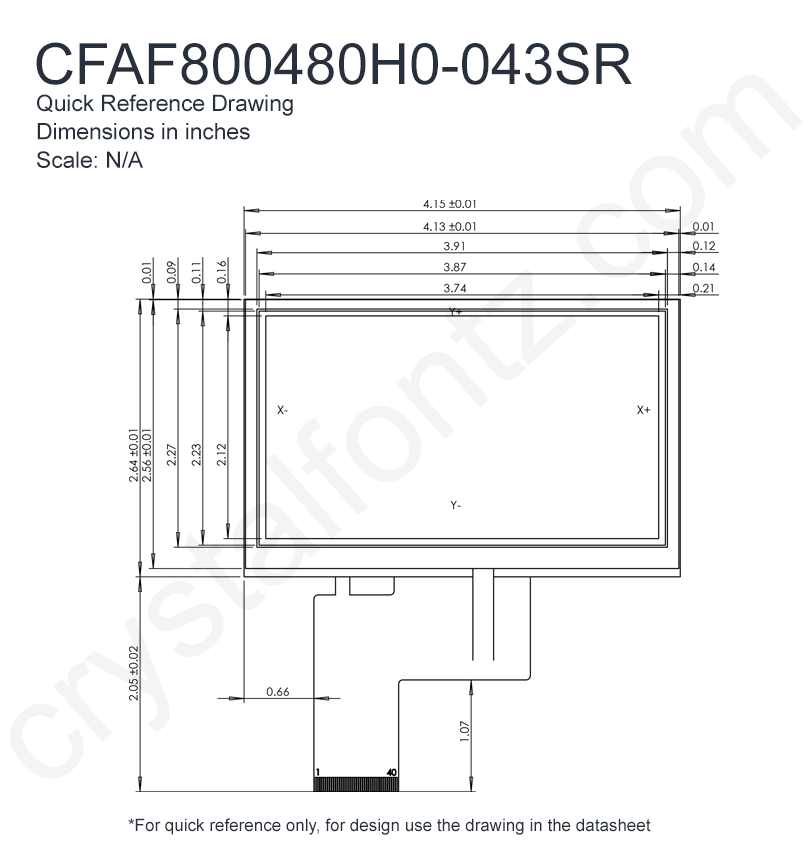

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            800 x 480

    Module Overall        width
        height
        depth

        millimeters
        105.5
        67.15
        4

        inches
        4.15
        2.64
        0.16

        Diagonal Dimension
            4.3"

    Active Area        Width
        Height

        millimeters
        95.04
        53.86

        inches
        3.74
        2.12

        Weight
            52.6g
Pin Count
            40

 visibility Optical Characteristics
Optical Characteristics

        Glass Type
            TFT
Polarizer
            IPS
View Angle
            160°
Sunlight Readable
            Yes

        Backlight Color
            White
Backlight Type
            LED
Foreground Color
            RGB
Background Color
            Dark

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            3.3V
Supply Voltage for Logic Maximum
            3.6V
Supply Voltage for Logic Typical
            3.3V
Supply Voltage for Driving Panel Typical
            3.3V

        Supply Current Minimum
            3.3mA
Supply Current Maximum
            3.6mA
Supply Current Typical
            40mA

 electric_bolt Backlight Specification
Backlight Electrical Specifications

        Forward Voltage Minimum
            16.2V
Forward Voltage Maximum
            19.2V

        Forward Current Typical
            40mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

 cable Electronics
Electronics

        Controller Documents
            Sitronix ST7262
1200CH System-On-Chip Driver for 800RGBx480 TFT
Interface
            DOT-CLK interface / Generic RGB

 picture_as_pdf Datasheets
picture_as_pdfCFAF800480H0-043Sx Datasheet

 download Files and Downloads
folder_zip Hardware Design - 3D Model
link Demo Code Repository on Github
 assured_workload Compliance Documents
 picture_as_pdf Declaration of Conformity RoHS2
 picture_as_pdf Declaration of Conformity REACH

Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
 Quantity:

Price:

            Quantity
            Unit Price

            1
            $34.95

            5
            $29.19

            10
            $28.42

            20
            $27.45

            50
            $26.50

            100
            $26.12

            200
            $25.92

            300
            $25.73

            500 *
            $25.53

            1000 *
            $25.35

498 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
Other components worth considering

						40 Position, 0.50mm Pitch, Gold, FCC FPC ZIF connector
Add 5 ZIF Connectors $1.45 ea.

						40-Position ZIF Breakout Board
Add a 40-pin ZIF Breakout Board? $6.43 ea.

Module Overall	width	height	depth
millimeters	105.5	67.15	4
inches	4.15	2.64	0.16

Active Area	Width	Height
millimeters	95.04	53.86
inches	3.74	2.12

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Quantity	Unit Price
1	$34.95
5	$29.19
10	$28.42
20	$27.45
50	$26.50
100	$26.12
200	$25.92
300	$25.73
500 *	$25.53
1000 *	$25.35

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #11184: 800x480 4.3" Resistive Touchscreen TFT Display is now available

New Product:	CFAF800480H0-043SR
Date Issued:	March 9, 2023
Summary:	800x480 4.3" Resistive Touchscreen TFT Display is now available
Description:	CFAF800480H0-043SR has been released on our website https://www.crystalfontz.com/product/cfaf800480h0043sr-800x480-4-point-3-inch-resistive-touch-tft-display) and is now available for sale. Orders can be placed directly from our website or by submitting a purchase order to sales@crystalfontz.com. Contact support@crystalfontz.com for any technical questions.

Part Change Notices

Subscribe to Part Change Notices by
email or RSS for CFAF800480H0-043SR

800x480 4.3" Resistive Touchscreen TFT Display

Part Number: CFAF800480H0-043SR

Product Variations

Touchscreen

Physical Characteristics

Optical Characteristics

Electrical Specifications

Backlight Electrical Specifications

Environmental

Electronics

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #11184: 800x480 4.3" Resistive Touchscreen TFT Display is now available

Part Change Notices

LCD Software

User Forum

Tech Support

Glass Type	TFT
Polarizer	IPS
View Angle	160°
Sunlight Readable	Yes

Backlight Color	White
Backlight Type	LED
Foreground Color	RGB
Background Color	Dark

Supply Voltage for Logic Minimum	3.3V
Supply Voltage for Logic Maximum	3.6V
Supply Voltage for Logic Typical	3.3V
Supply Voltage for Driving Panel Typical	3.3V

Supply Current Minimum	3.3mA
Supply Current Maximum	3.6mA
Supply Current Typical	40mA

Forward Voltage Minimum	16.2V
Forward Voltage Maximum	19.2V

Controller Documents	Sitronix ST7262 1200CH System-On-Chip Driver for 800RGBx480 TFT
Interface	DOT-CLK interface / Generic RGB

Weight	52.6g
Pin Count	40
