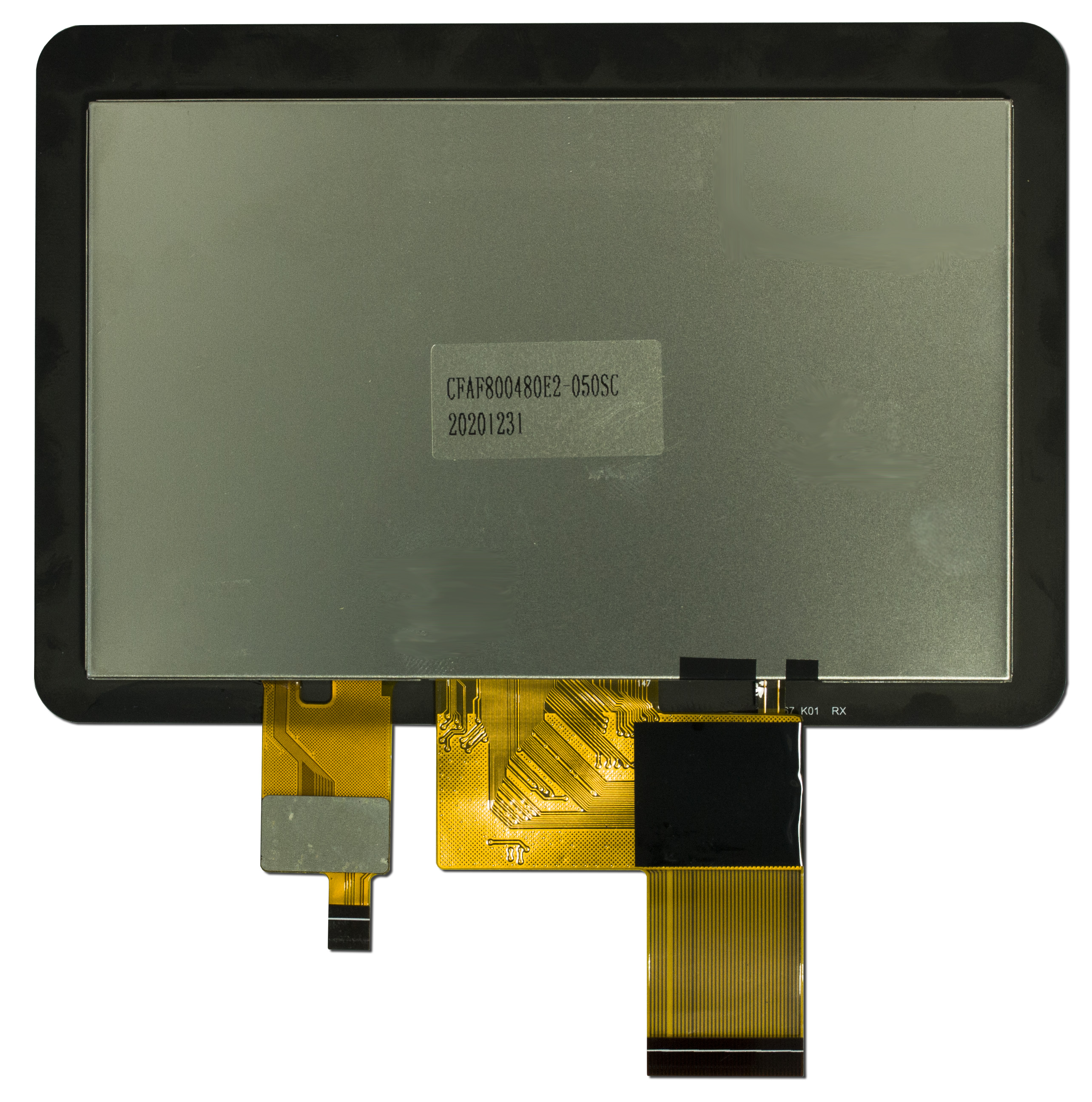

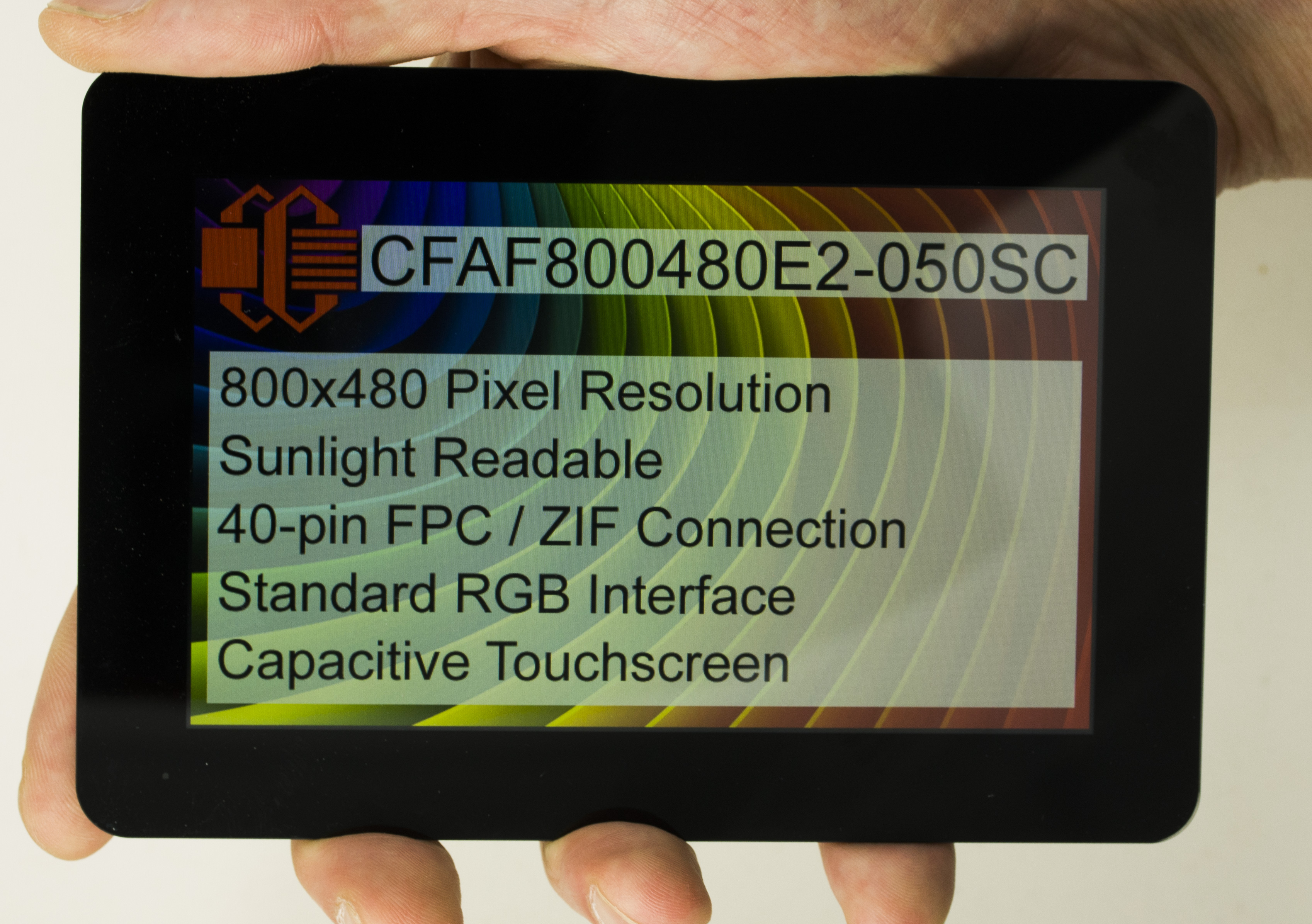

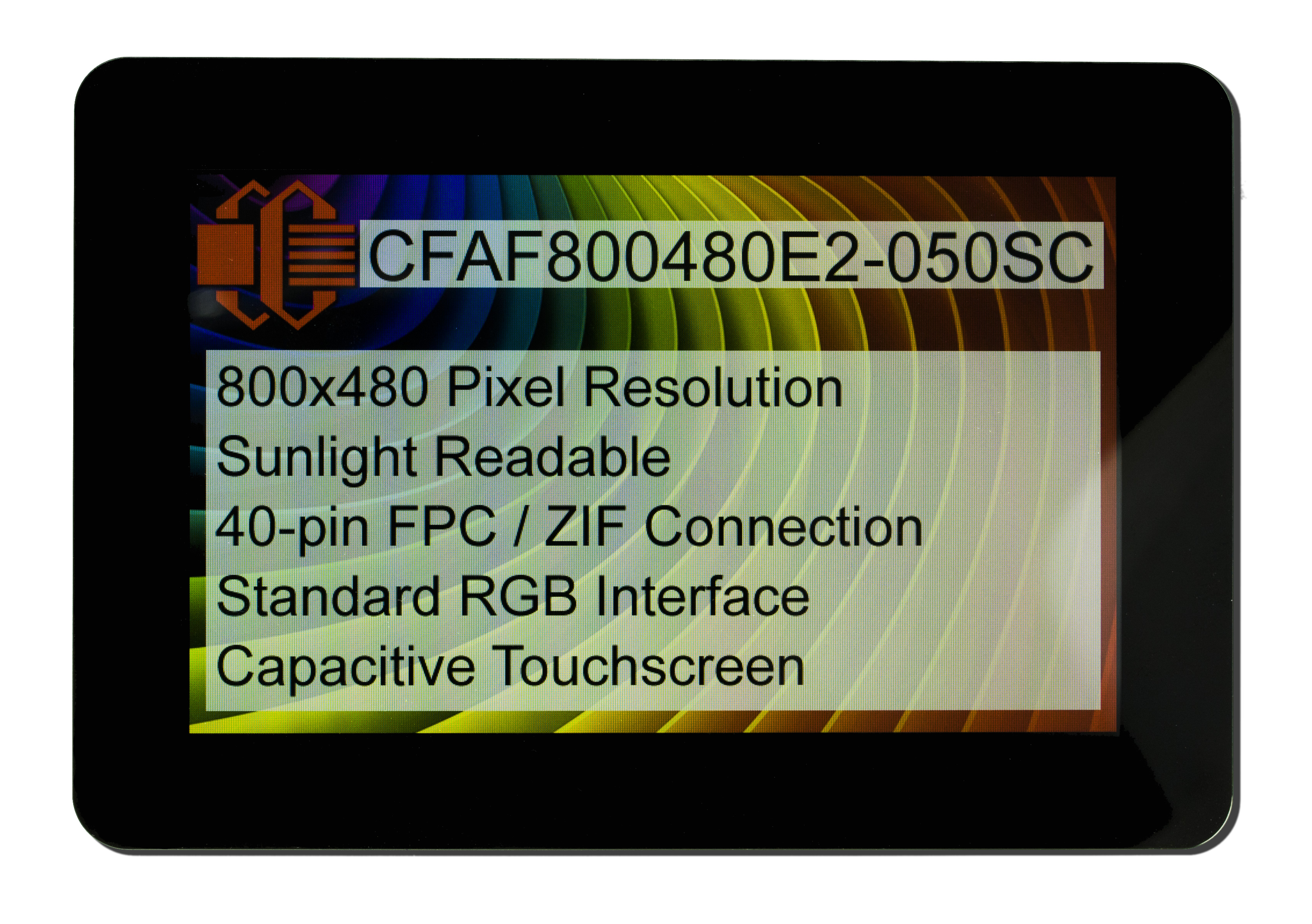

800x480 5" IPS TFT DisplayPart Number: CFAF800480E2-050SC
         This 5" capacitive touch display is identical to our other 5" capacitive touch display but with a wider glass for a different mounting technique. The overhanging glass enables gorgeous seamless mounting. The glass frame is designed to center the active area in the glass.

Like the original display, this module boasts a high brightness backlight for a sunlight readable screen. Plus, with IPS technology and 16M colors, your users will love the vibrant and visible GUI - even in sunlight or at wide angles.

Product VariationsTouchscreenCapacitive Extended GlassResistiveNoneCapacitive Multi-touch

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            800 x 480

    Module Overall        width
        height
        depth

        millimeters
        135
        91.8
        4.92

        inches
        5.32
        3.61
        0.19

        Diagonal Dimension
            4.96"

    Viewing Area        Width
        Height

        millimeters
        109
        65.8

        inches
        4.29
        2.59

    Active Area        Width
        Height

        millimeters
        108
        64.8

        inches
        4.25
        2.55

    Dot Pitch        Width
        Height

        millimeters
        0.135
        0.135

        inches
        0.0053
        0.0053

        Weight
            100g
Pin Count
            40

 visibility Optical Characteristics
Optical Characteristics

        Glass Type
            TFT
Polarizer
            Transmissive
View Direction
            ~ o'clock
View Angle
            160°
Sunlight Readable
            Yes

        Backlight Color
            White
Backlight Type
            LED
Foreground Color
            RGB
Background Color
            Dark

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            3.3V
Supply Voltage for Logic Maximum
            3.6V

        Supply Voltage for Logic Typical
            3.3V
Supply Voltage for Driving Panel Typical
            3.3V

 electric_bolt Backlight Specification
Backlight Electrical Specifications

        Forward Voltage Minimum
            10.8V
Forward Voltage Maximum
            13.2V

        Forward Voltage Typical
            12:00V
Forward Current Typical
            140mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        -80°

        Fahrenheit
        -22°
        -112°

 cable Electronics
Electronics

        Controller Documents
            Sitronix ST7262
1200CH System-On-Chip Driver for 800RGBx480 TFT
Interface
            DOT-CLK interface / Generic RGB

 picture_as_pdf Datasheets
picture_as_pdfCFAF800480E2-050SC Datasheet

 download Files and Downloads
folder_zip Hardware Design - 3D Model

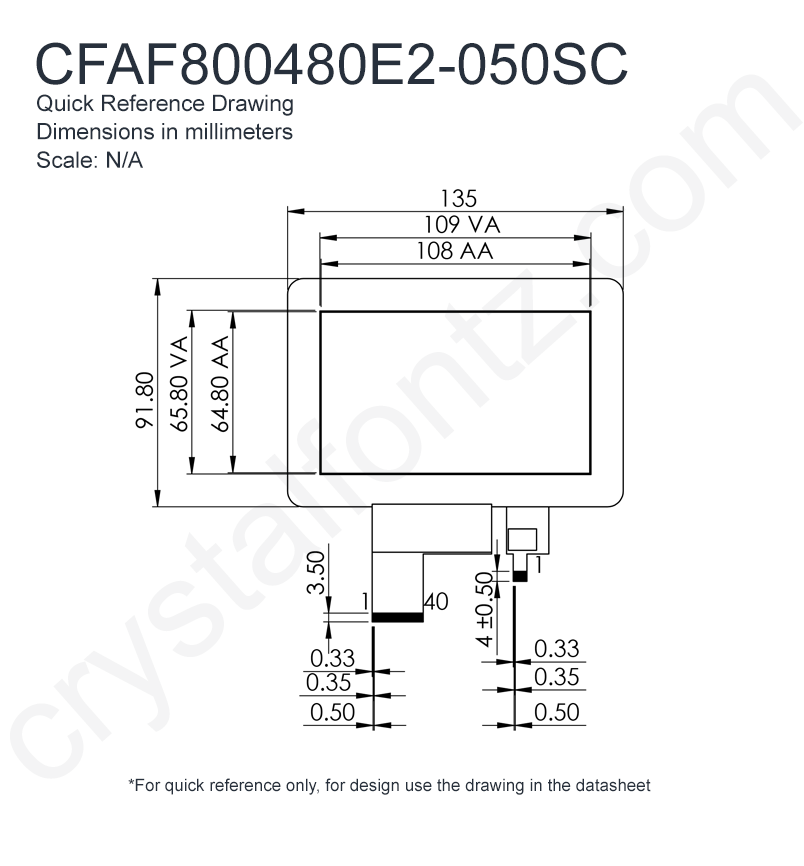

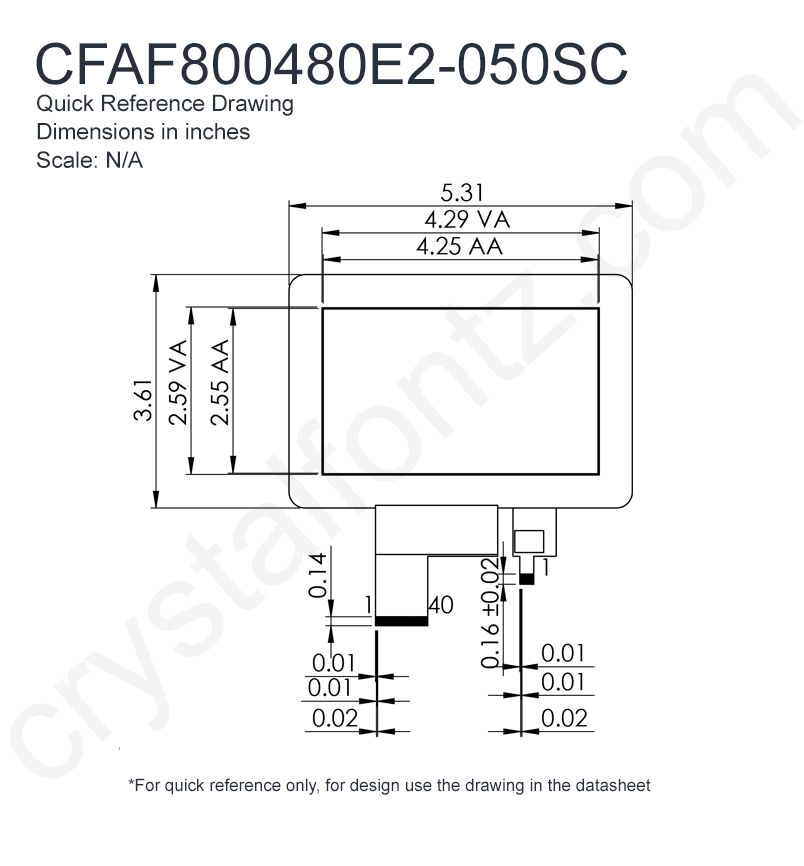

Module Overall	width	height	depth
millimeters	135	91.8	4.92
inches	5.32	3.61	0.19

Viewing Area	Width	Height
millimeters	109	65.8
inches	4.29	2.59

Active Area	Width	Height
millimeters	108	64.8
inches	4.25	2.55

Dot Pitch	Width	Height
millimeters	0.135	0.135
inches	0.0053	0.0053

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	-80°
Fahrenheit	-22°	-112°

Additional Options

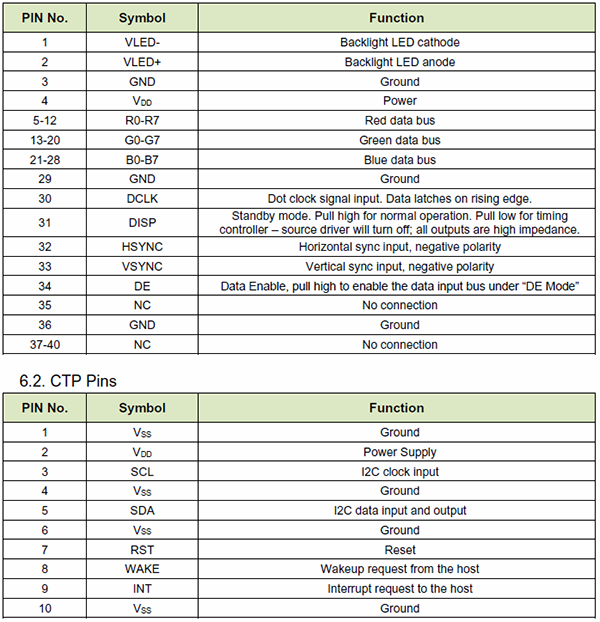

Pin Table
Notices

Additional Options

Purchase this display with an EVE-powered PCB to quickly get up and running.

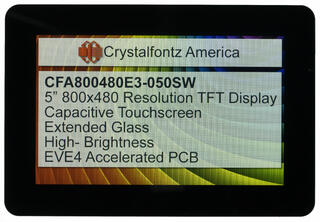

800x480 5 Inch EVE Touchscreen TFT Display
Part Number: CFA800480E3-050SW

Details

Quantity	1	5	10	20	50	100	200	300	500	1000 *
Unit Price	$105.92	$88.23	$85.71	$83.18	$80.16	$79.15	$78.65	$77.64	$77.13	$76.63

Quantity:

5" Touchscreen EVE Development Kit
Part Number: CFA800480E3-050SW-KIT

Details

Quantity	1
Unit Price	$131.43

Quantity:

Part Change Notices

Subscribe to Part Change Notices by email or RSS

End-Of-Life #11272: End-Of-Life With Replacement

Products Affected:	CFAF800480E1-050SN, CFAF800480E2-050SC
Date Issued:	June 6, 2024
Summary:	End-Of-Life With Replacement
Description:	The manufacturing location is changing for the displays. The new materials used cause the metal bezel to appear slightly different and the TFT color tones to appear warmer.
Reason:	The manufacturing location is changing for the displays.
Impact:	Warmer tones when displaying images. Metal Bezel is slightly darker.
Recommendation:	Replacement: CFAF800480E1-050SN -> CFAF800480E3-050SN drop in CFAF800480E2-050SC -> CFAF800480E3-050SW drop in
Availability:	Contact Crystalfontz Support for up-to-date information by emailing support@crystalfontz.com.
