800x480 5 Inch Full-Color TFT from Crystalfontz

Product

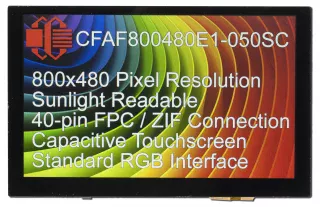

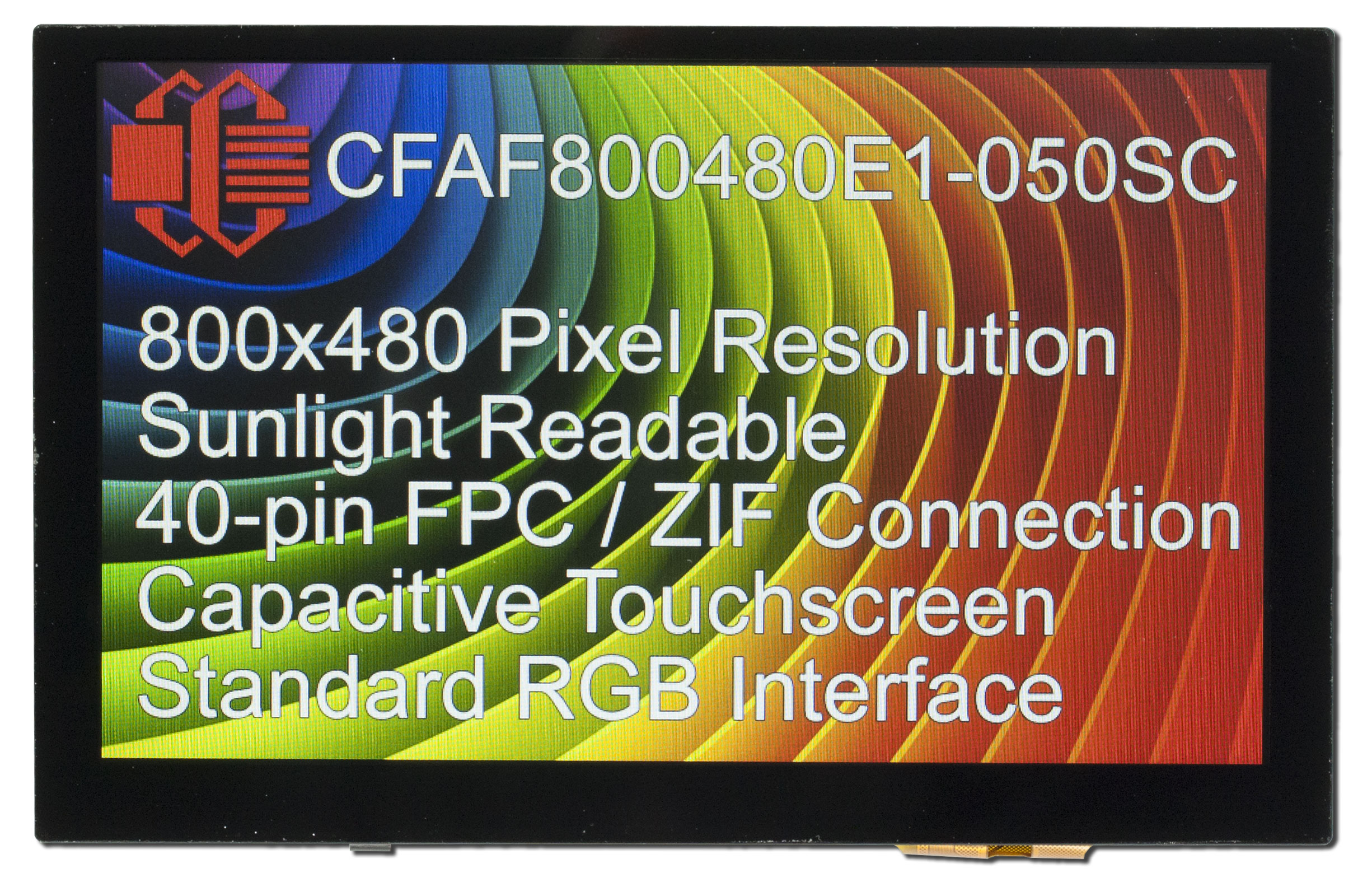

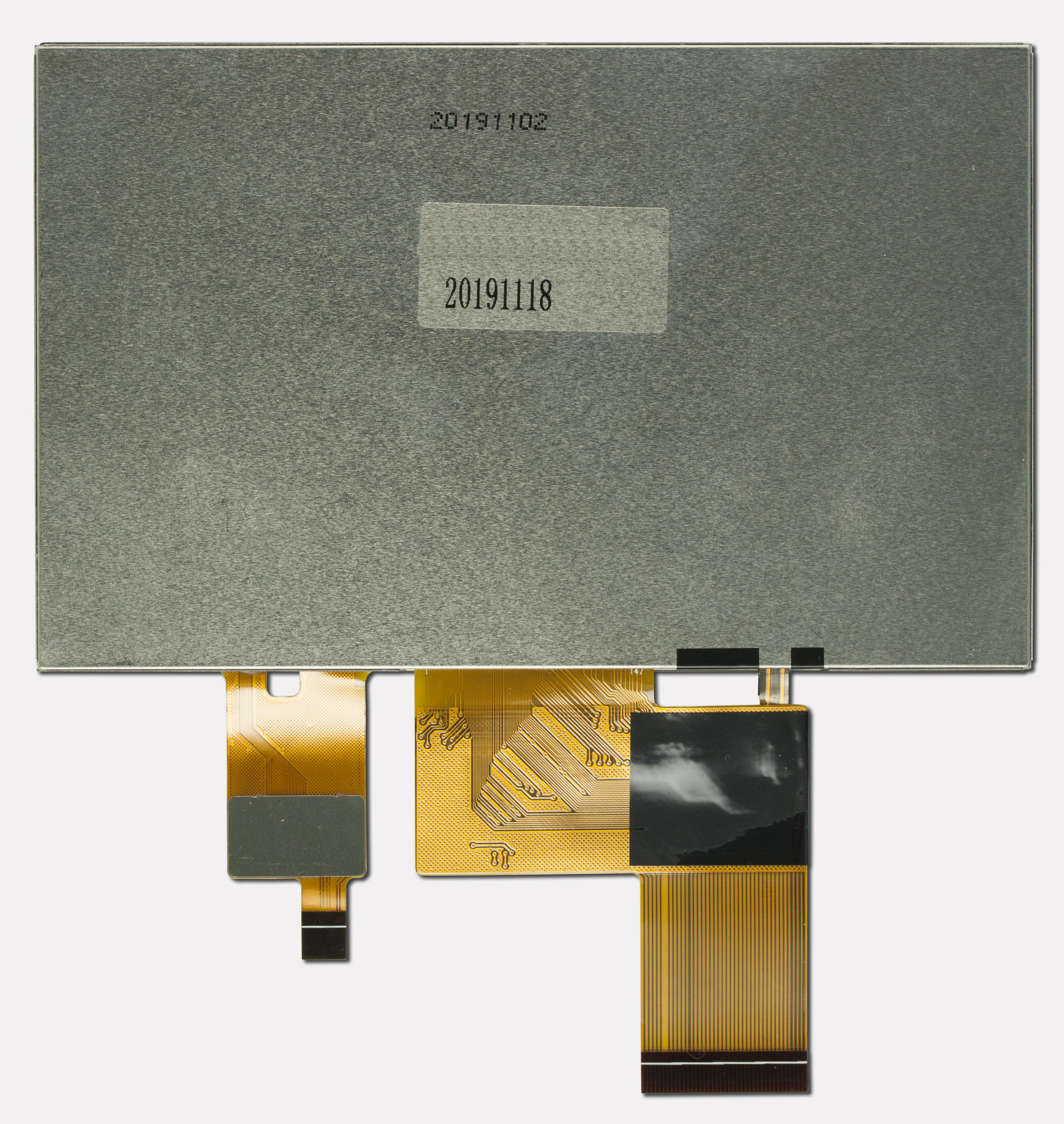

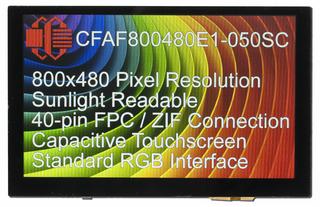

800x480 5 Inch Full-Color TFTPart Number: CFAF800480E1-050SC

                        This is a truly premium 5" IPSTFT. The vibrant color on this display paired with its high brightness will blow you away. It's sunlight-readable at 800 nits. With 16M color, the control over the colors is as precisely as you want. And, as an IPS display, it looks great from any angle. Plus, it supports five capacitive touches.

Drop this display into any 5" 40-pin application for an instant upgrade.

This display has a Sitronix ST7262 or equivalent microcontroller.Product VariationsTouchscreenCapacitive Extended GlassNoneResistiveCapacitive Multi-touch

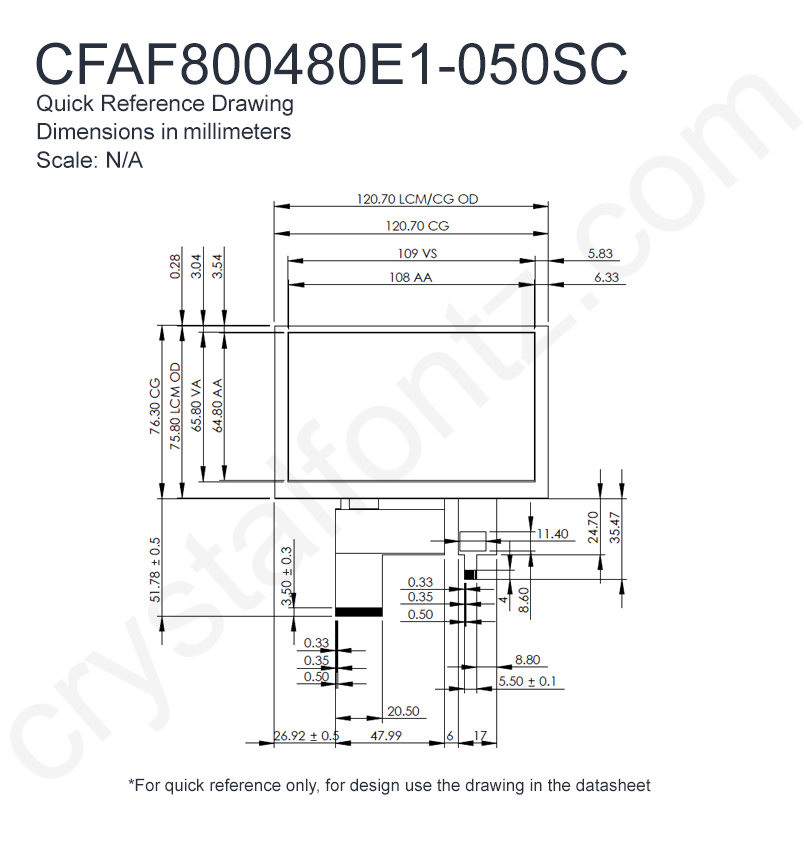

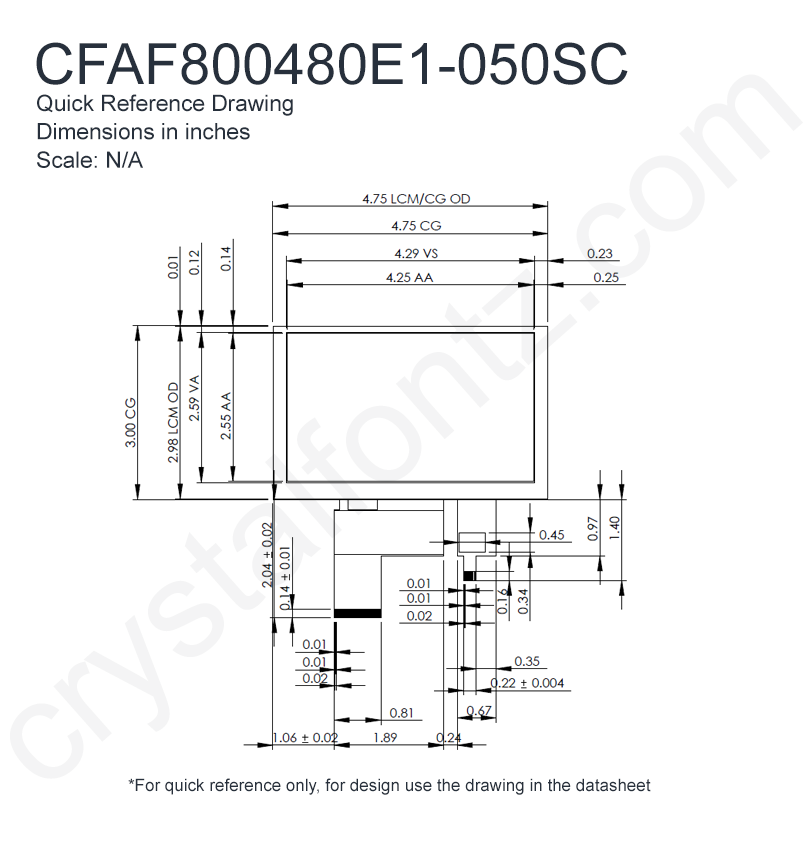

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            800 x 480

    Module Overall        width
        height
        depth

        millimeters
        120.7
        76.3
        4.92

        inches
        4.75
        3.00
        0.19

*width / height does not include Foldable Tab

        Diagonal Dimension
            4.96"

    Viewing Area        Width
        Height

        millimeters
        109
        65.8

        inches
        4.29
        2.59

    Active Area        Width
        Height

        millimeters
        108
        64.8

        inches
        4.25
        2.55

    Dot Pitch        Width
        Height

        millimeters
        0.135
        0.135

        inches
        0.0053
        0.0053

    Flexible Cable (FFC/FPC)        length

        millimeters
        51.78

        inches
        2.039

        Weight
            88.9g
Pin Count
            40

 visibility Optical Characteristics
Optical Characteristics

        View Direction
            All o'clock
View Angle
            >160°
Sunlight Readable
            Yes

        Backlight Color
            White
Backlight Type
            LED
Foreground Color
            RGB
Background Color
            Black

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            3.3V
Supply Voltage for Logic Maximum
            3.6V
Supply Voltage for Logic Typical
            3.3V

        Supply Voltage for Driving Panel Typical
            3.3V
Supply Current Typical
            140mA

 electric_bolt Backlight Specification
Backlight Electrical Specifications

        Forward Voltage Minimum
            10.8V
Forward Voltage Maximum
            13.2V

        Forward Voltage Typical
            12:00V
Forward Current Maximum
            140mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

 cable Electronics
Electronics

        Controller Documents
            Sitronix ST7262
1200CH System-On-Chip Driver for 800RGBx480 TFT
Interface
            DOT-CLK interface / Generic RGB

picture_as_pdf Datasheets
picture_as_pdfCFAF800480E1-050SC Datasheet

download Files and Downloads
folder_zip Hardware Design - CFAF800480E1-050SC 3D Model
assured_workload Compliance Documents

picture_as_pdf Declaration
                                    of Conformity RoHS2
picture_as_pdf Declaration
                                    of Conformity REACH

Need a written quote? Add to cart, then enter
                            your email address in the "request a quote" box.
Quantity:

Price:

            Quantity
            Unit Price

            1
            $40.69

            10
            $39.53

            20
            $38.36

            50
            $36.97

            100
            $36.50

            200
            $36.27

            300
            $35.81

            500
            $35.57

            1000 *
            $35.34

652 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
Other components worth
                    considering

						10-Position ZIF Breakout Board
Add a 10-pin ZIF Breakout Board? $6.08 ea.

						40-Position ZIF Breakout Board
Add a 40-pin ZIF Breakout Board? $6.43 ea.

Module Overall	width	height	depth
millimeters	120.7	76.3	4.92
inches	4.75	3.00	0.19
*width / height does not include Foldable Tab

Viewing Area	Width	Height
millimeters	109	65.8
inches	4.29	2.59

Active Area	Width	Height
millimeters	108	64.8
inches	4.25	2.55

Dot Pitch	Width	Height
millimeters	0.135	0.135
inches	0.0053	0.0053

Flexible Cable (FFC/FPC)	length
millimeters	51.78
inches	2.039

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Quantity	Unit Price
1	$40.69
10	$39.53
20	$38.36
50	$36.97
100	$36.50
200	$36.27
300	$35.81
500	$35.57
1000 *	$35.34

Additional Options
Pin Table
Notices

Additional Options

800x480 TFT Development bundle with FTDI EVE Graphic Accelerator

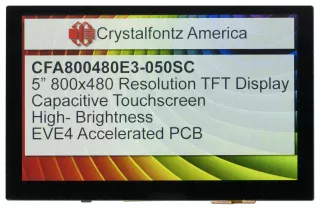

800x480 5-Inch EVE Capacitive Touchscreen TFT Display
Part Number: CFA800480E3-050SC

Details

Quantity	1 *	10 *	20 *	50 *	100 *	200 *	300 *	500 *	1000 *
Unit Price	$89.59	$87.03	$84.47	$81.40	$80.38	$79.86	$78.84	$78.33	$77.82

Quantity:

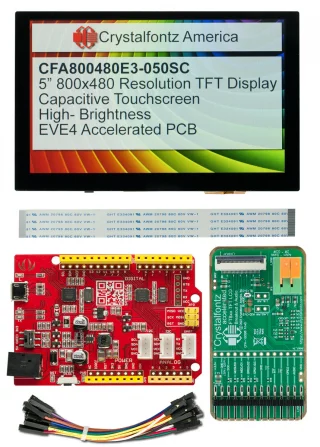

5" Capacitive Touchscreen EVE Development Kit
Part Number: CFA800480E3-050SC-KIT

Details

Quantity	1 *
Unit Price	$132.75

Quantity:

Part Change Notices

Subscribe to Part Change Notices by email or RSS

End-Of-Life #11318: EOL with Replacement

Product Affected:	CFAF800480E1-050SC
Date Issued:	January 27, 2025
Summary:	EOL with Replacement
Description:	The manufacturing location is changing for the displays. The new materials used cause the metal bezel to appear slightly different and the TFT color tones to appear warmer.
Reason:	The manufacturing location is changing for the displays.
Impact:	Warmer tones when displaying images Metal Bezel is slightly darker
Recommendation:	CFAF800480E1-050SC -> CFAF800480E3-050SC drop in
Availability:	Contact Crystalfontz Support for up-to-date information by emailing support@crystalfontz.com.

Part Change Notices

Subscribe to Part Change Notices by
email or RSS for CFAF800480E1-050SC
