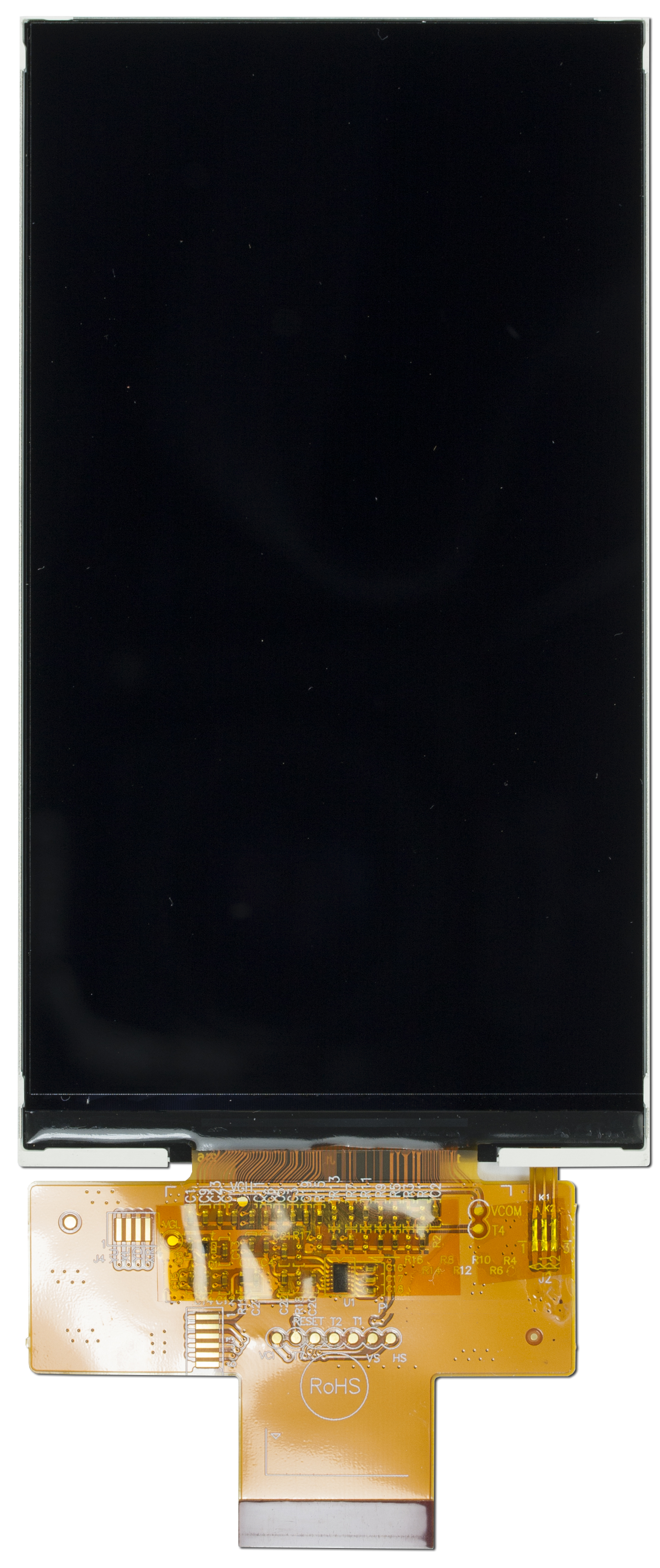

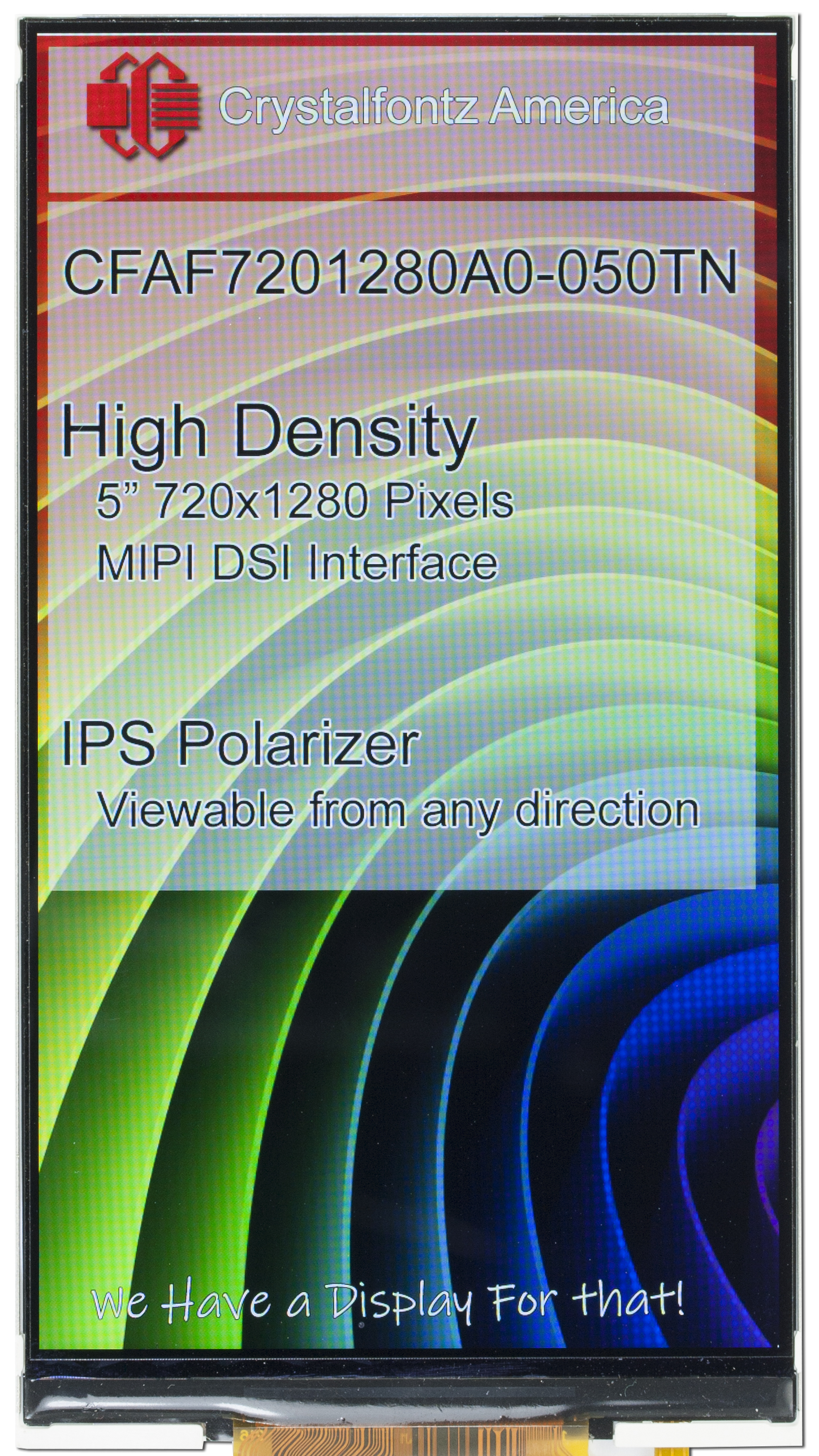

5" 720x1280 MIPI DSI TFT Display

Part Number: CFAF7201280A0-050TN

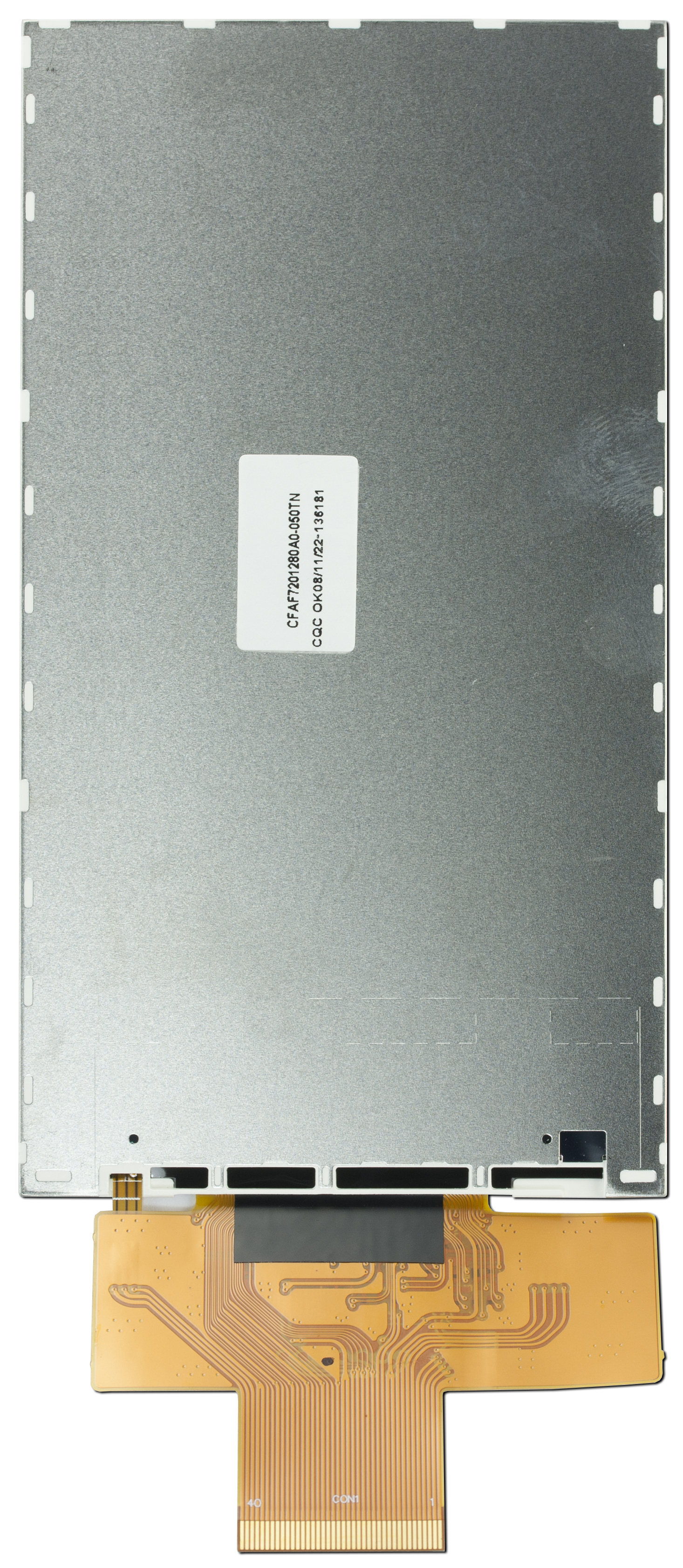

This high pixel density 5" TFT display uses 4-lane MIPI DSI to reduce the number of controlled lines required to display images. Plus, all the required passive components come pre-loaded on the 40-pin ZIF FPC, making the display ready to plug in and interface with your MIPI-capable hardware.

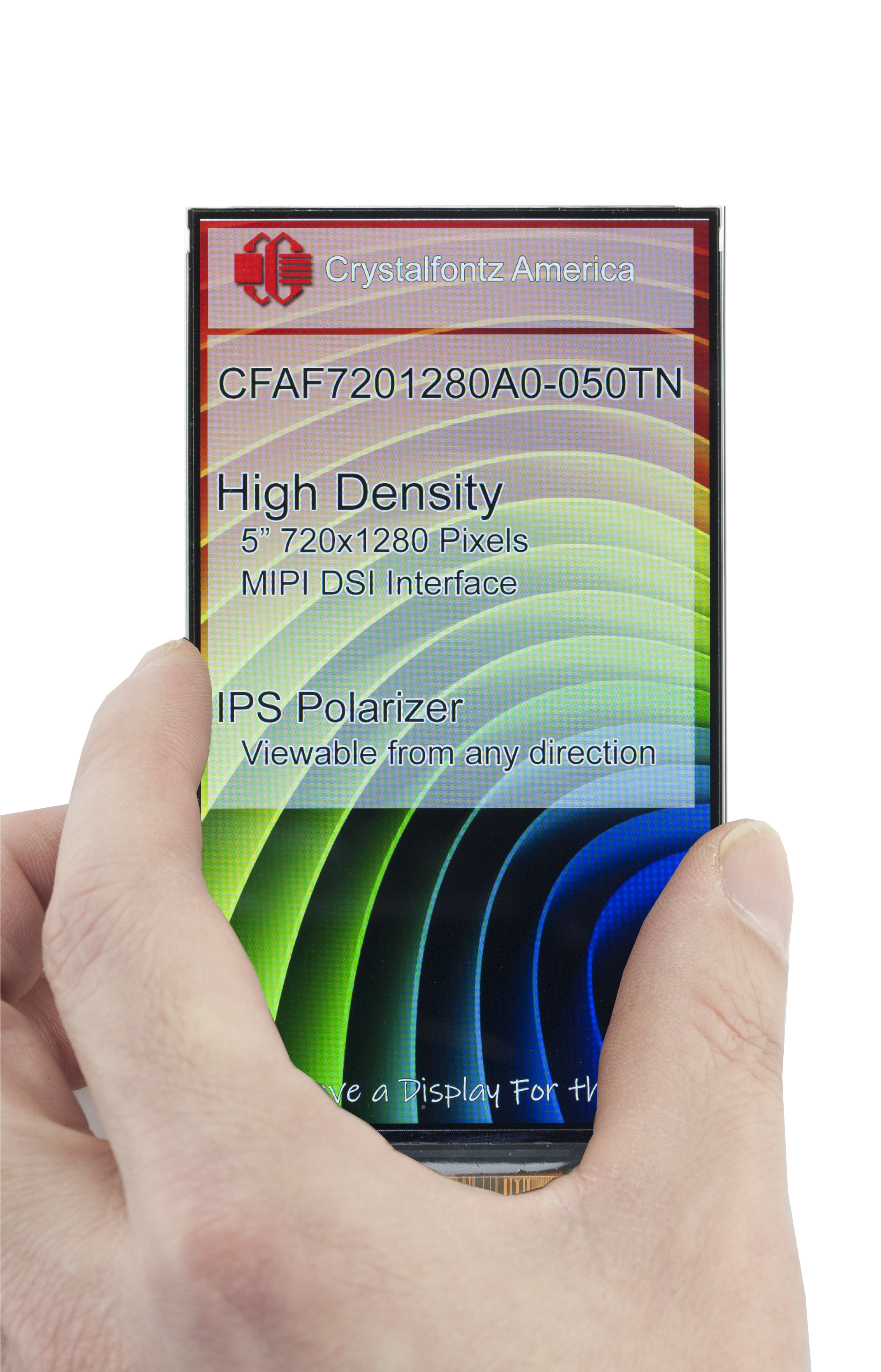

Don't worry about the viewing direction of this display! The IPS technology enables this display to be clearly visible up to an 80° viewing angle. This TFT LCD is also incredibly thin (only 1.85mm) and lightweight (only 33 grams). Between the crisp display, flexible mounting, high pixel density, and ease of control, this sleek display is an excellent choice for most products.

Purchase one today and take your hardware design to the next level.

Part Number:
CFA- Crystalfontz America
F- TFT
7201280- 720x1280 pixel resolution
A0- Family and revision
050- 5" diagonal
T- Standard brightness
N- No touch screen

Product Variations

Touchscreen
CapacitiveNone

  • square_foot Physical Characteristics

    Physical Characteristics

    Column Dots x Row Dots 720 x 1280

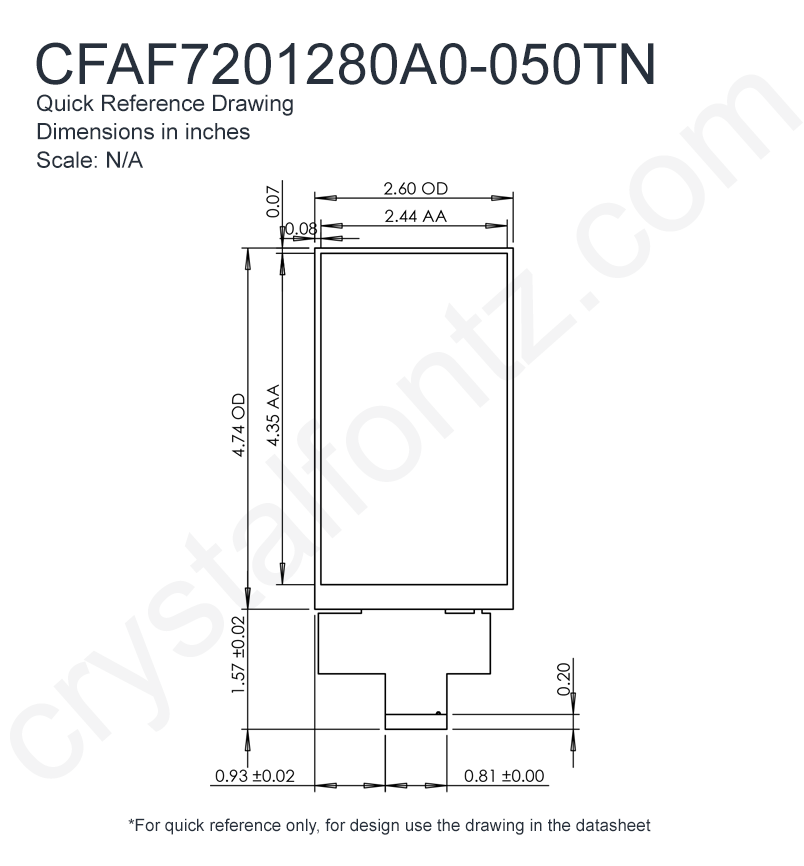

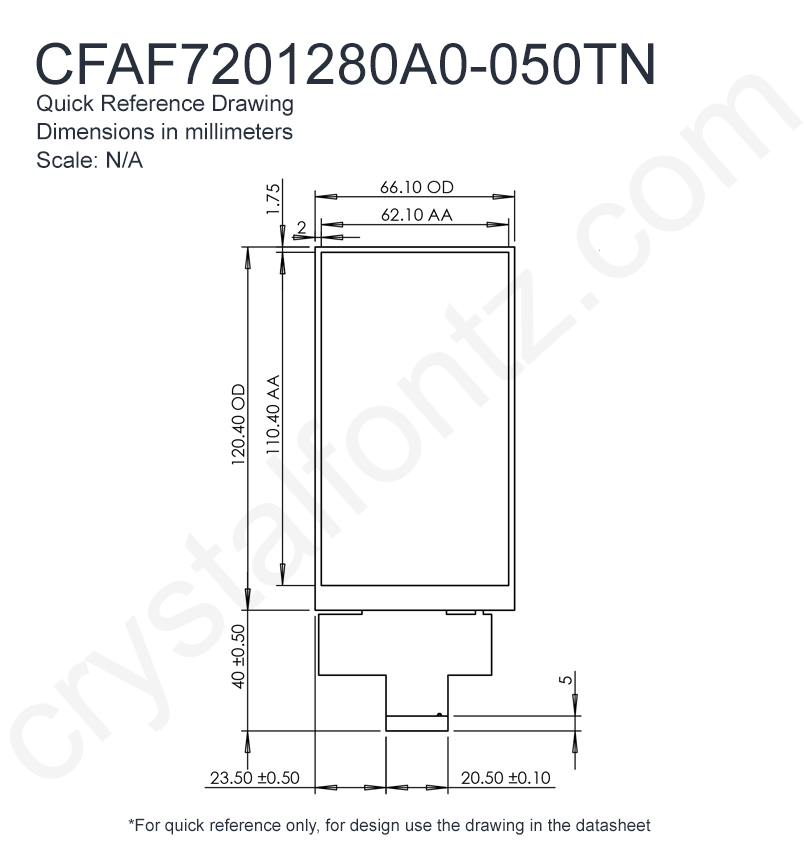

    Module Overall width height depth
    millimeters 66.1 120.4 1.85
    inches 2.60 4.74 0.07
    Diagonal Dimension 5"
    Active Area Width Height
    millimeters 62.1 110.4
    inches 2.45 4.35
    Dot Pitch Width Height
    millimeters 0.08625 0.08625
    inches 0.0034 0.0034
    Weight 33g
    Pin Count 40
  • visibility Optical Characteristics

    Optical Characteristics

    Glass Type TFT
    Polarizer IPS
    View Angle 80°
    Backlight Color White
    Backlight Type LED
    Foreground Color RGB
    Background Color Black
  • electric_bolt Electrical Specification

    Electrical Specifications

    Supply Voltage for Logic Minimum 1.65V
    Supply Voltage for Logic Maximum 3.6V
    Supply Voltage for Logic Typical 1.8V
    Supply Voltage for Driving Panel Typical 3.3V
    Supply Current Typical 44mA
  • electric_bolt Backlight Specification

    Backlight Electrical Specifications

    Forward Voltage Minimum 19.6V
    Forward Voltage Maximum 23.8V
    Forward Current Typical 40mA
  • nature Environmental

    Environmental

    Operating Temperatures min max
    Celsius -20° 70°
    Fahrenheit -4° 158°
    Storage Temperatures min max
    Celsius -30° 80°
    Fahrenheit -22° 176°
  • cable Electronics

    Electronics

    Controller Documents Ilitek ILI9881C
    Amorphous TFT LCD Single-Chip Driver
    800(RGB) x 1280 Resolution, 16.7M-color
    Without Internal GRAM
    Interface MIPI DSI
  • picture_as_pdf Datasheets
  • download Files and Downloads
  • assured_workload Compliance Documents


Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
Quantity:
Price:
Quantity Unit Price
1 $50.80
5 $49.84
10 $41.30
20 $39.92
50 * $38.53
100 * $37.97
200 * $37.70
300 * $36.05
500 * $35.79
1000 * $32.81
44 Units In-Stock & Ready To Ship
Pricing is subject to change.
* Contact us about potential lead times.
Other components worth considering
4637 40 Position, 0.50mm Pitch, Gold, FCC FPC ZIF connector
Need a 40-pin ZIF? $1.45 ea.
4832 40-Position ZIF Breakout Board
Add a 40-pin ZIF Breakout Board? $6.43 ea.

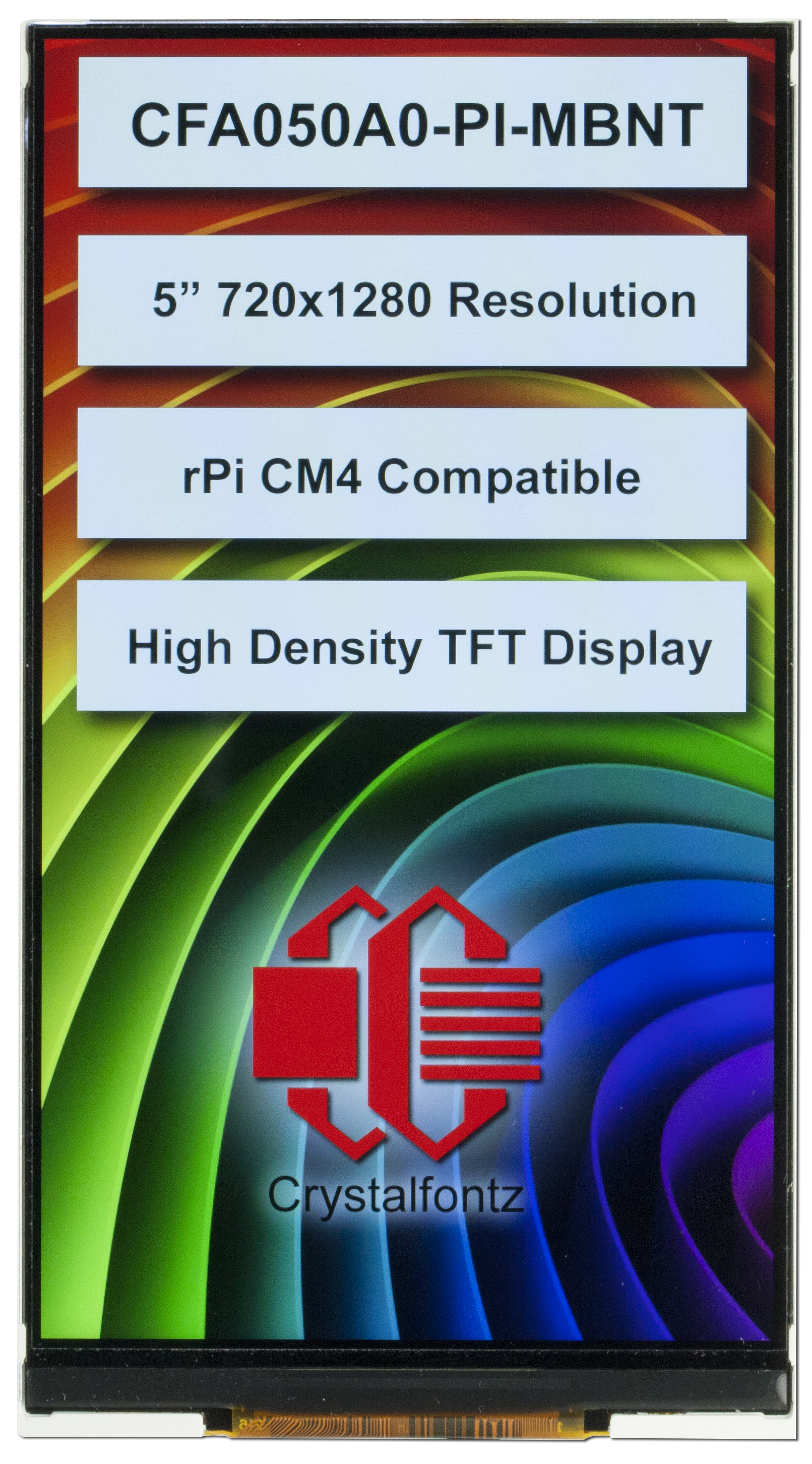

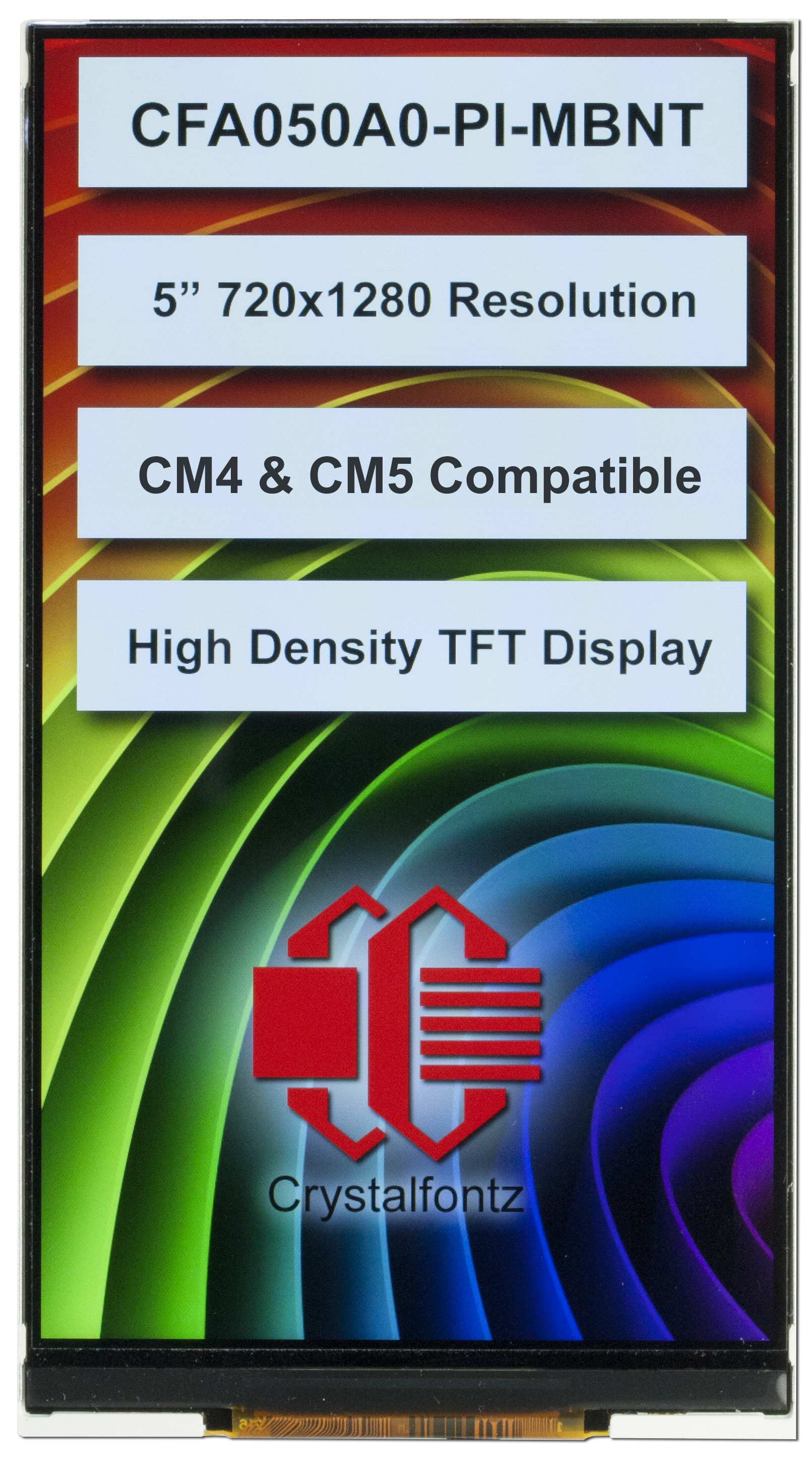

4840 5-inch 720x1280 Compute Module TFT
Buy with Compute Module Board? $103.25 ea.
