480x272 Resistive Touchscreen TFT Display from Crystalfontz

Product

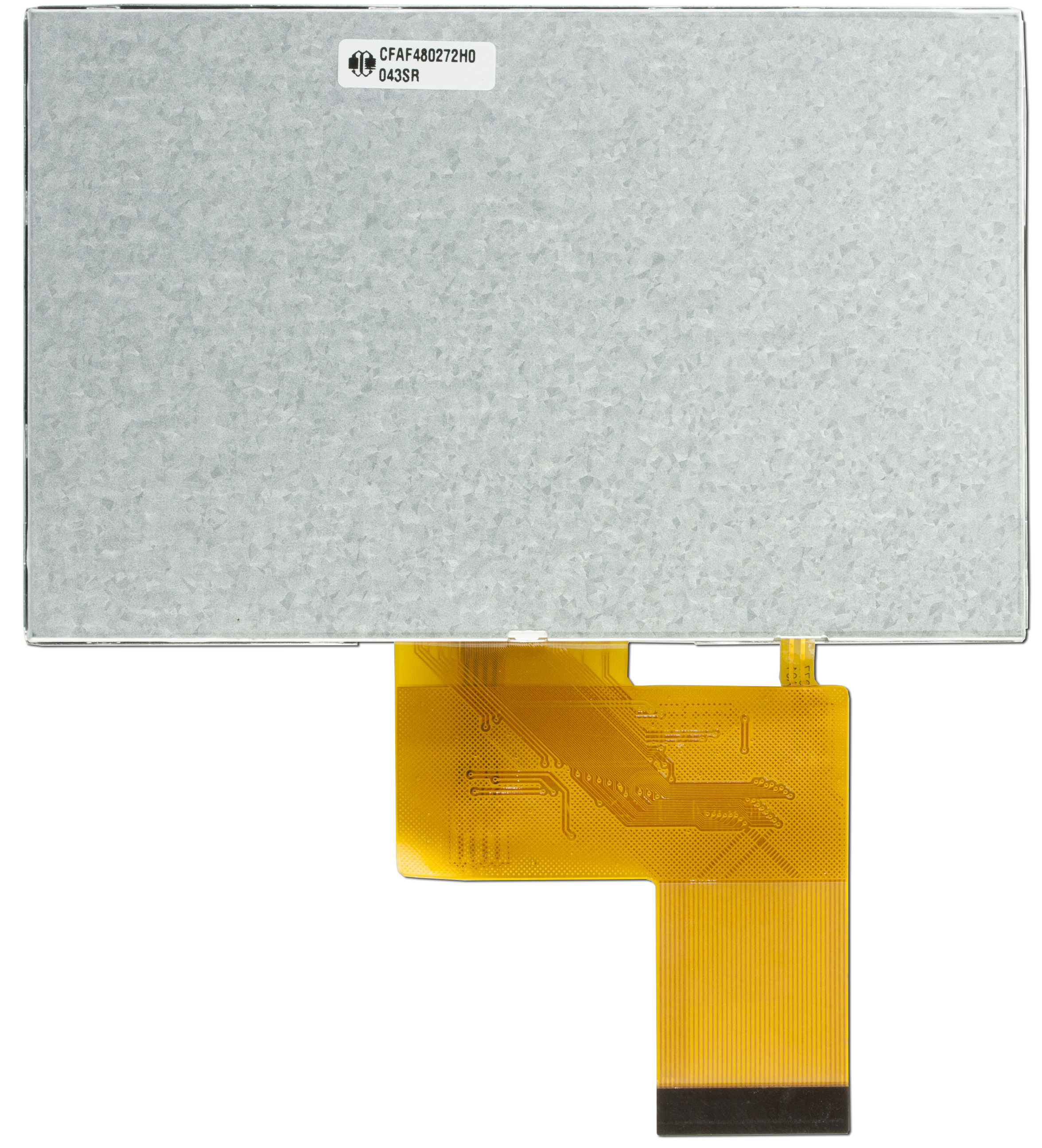

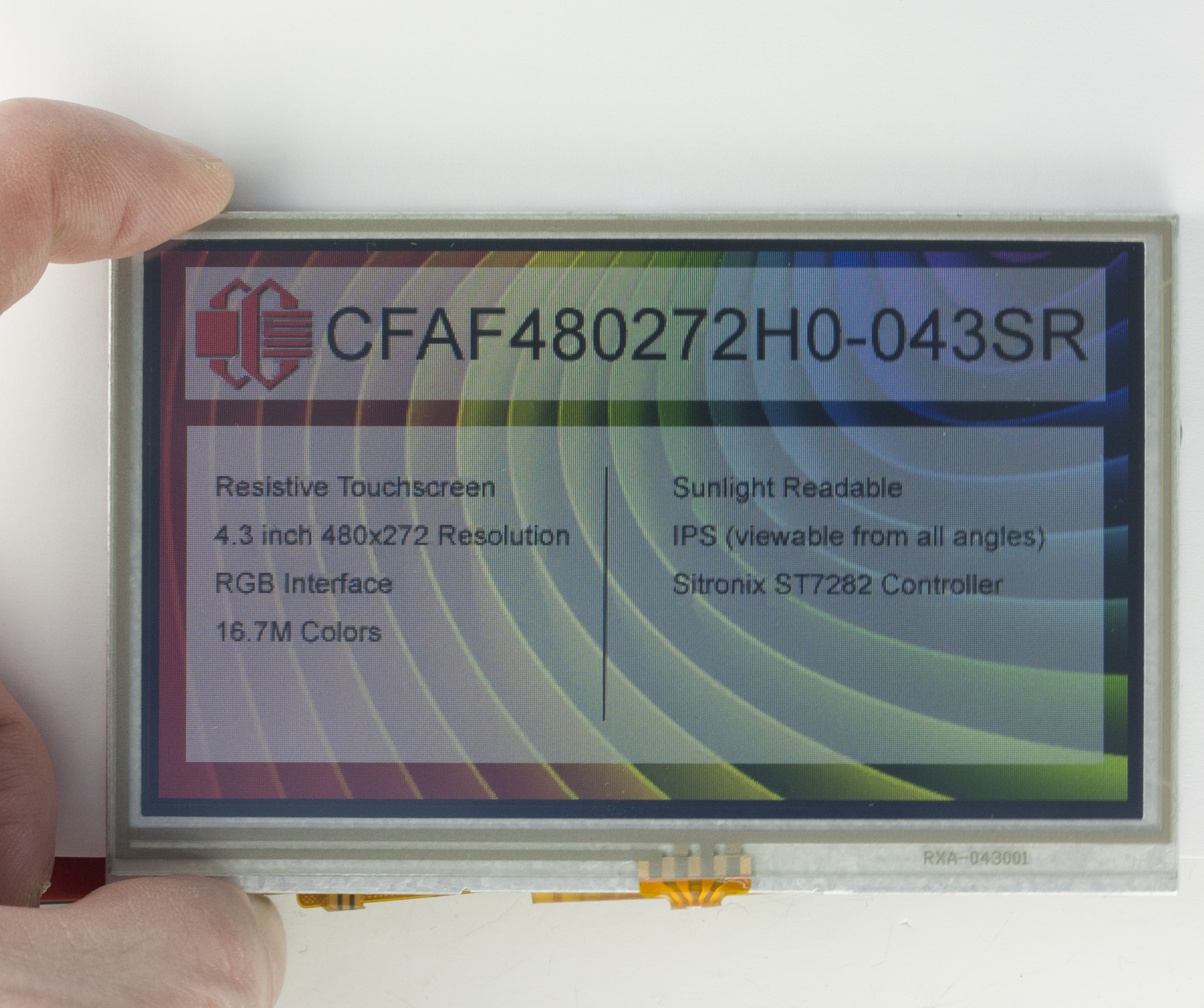

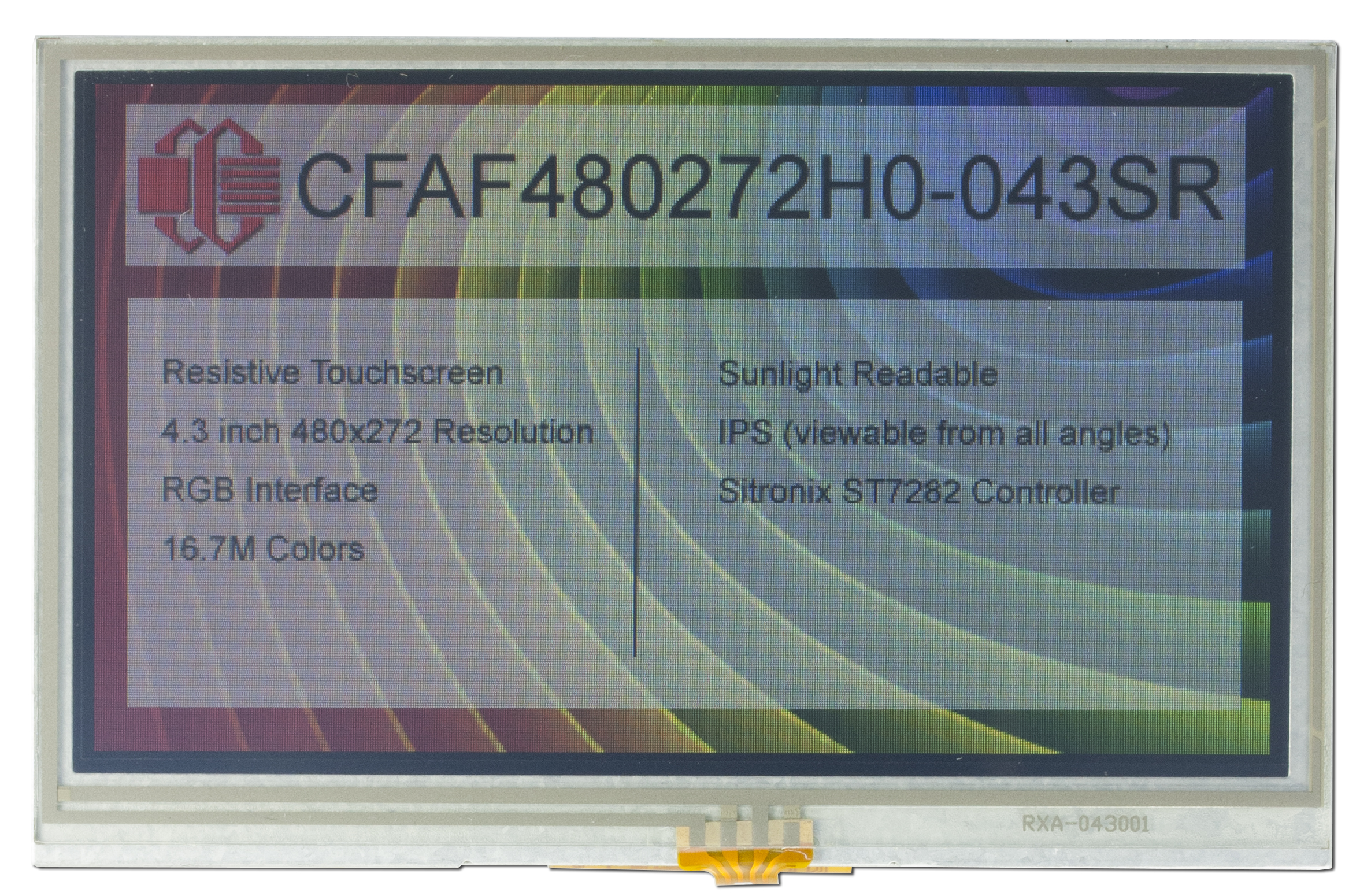

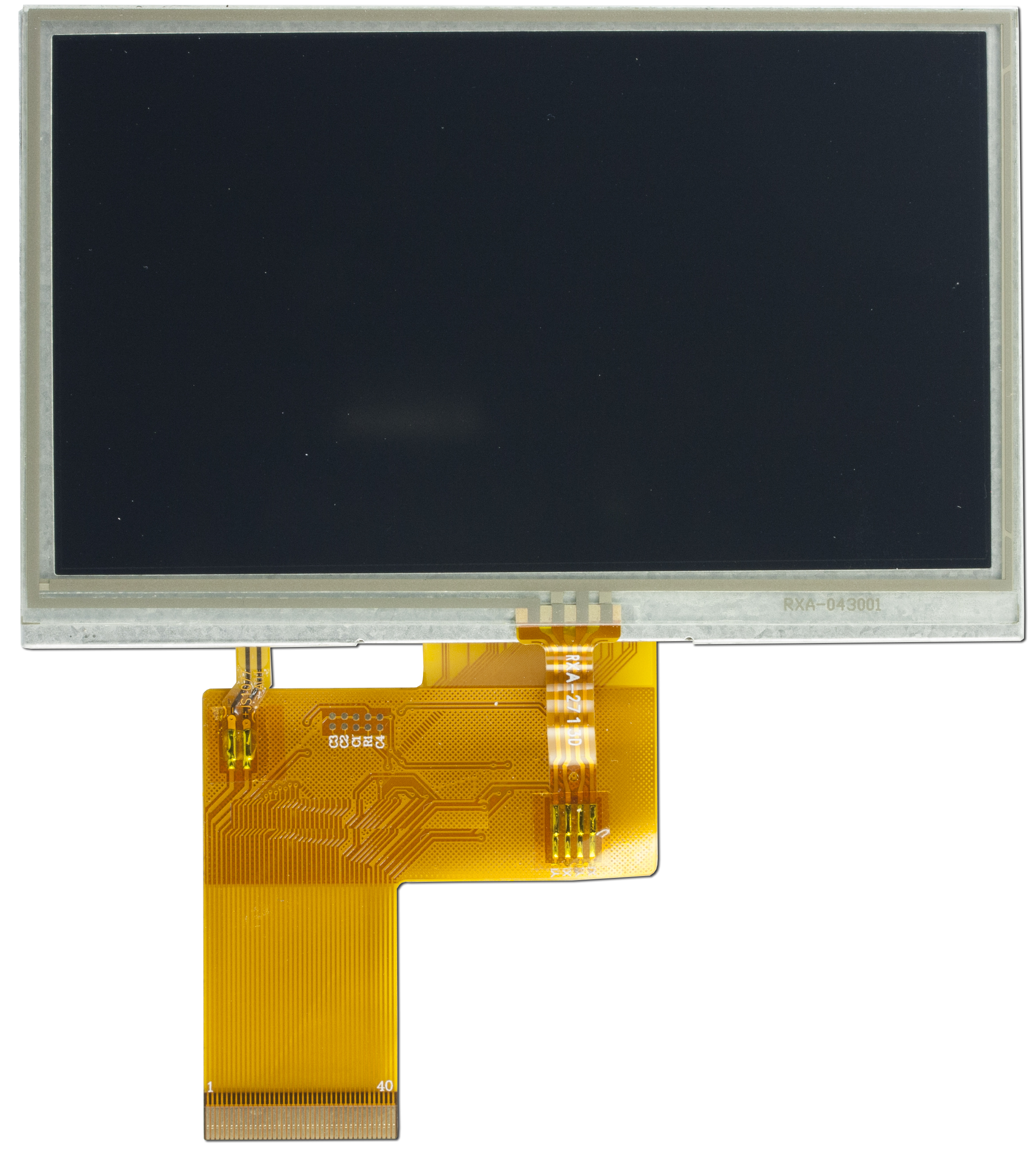

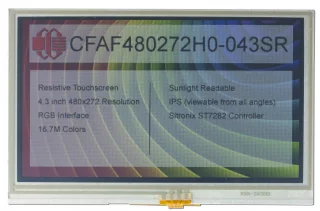

480x272 Resistive Touchscreen TFT DisplayPart Number: CFAF480272H0-043SR
         This 4.3" TFT display with a resistive touchscreen is sunlight readable (740 nits) and has a wide viewing range. With the resistive touchscreen, this display is a great choice when the display screen may get droplets on it or if the users are wearing gloves. This display can be used inside or outside.


This display family further includes a non-touchscreen and a capacitive touchscreen display. Need help choosing which type of touchscreen? Read about resistive vs capacitive touch on our blog.


Part Number:
CFA - Crystalfontz America
F - TFT
480272 - 480x272 pixel resolution
H0 - Family and revision
043 - 4.3" diagonal dimension
S - Sunlight readable
R - Resistive touchscreen
Product VariationsTouchscreenResistiveNoneCapacitive

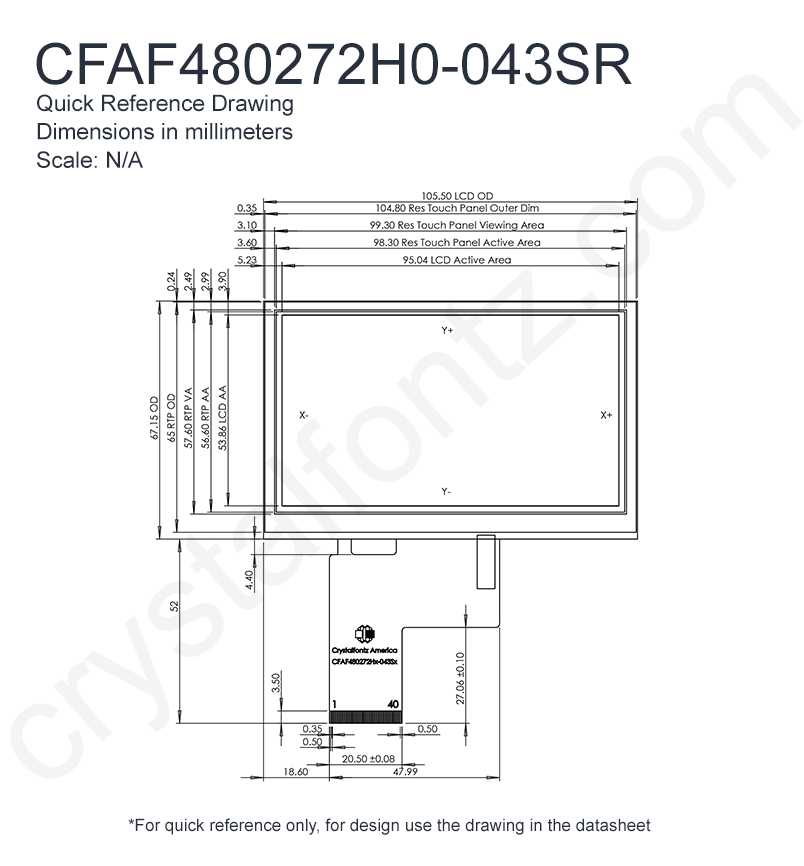

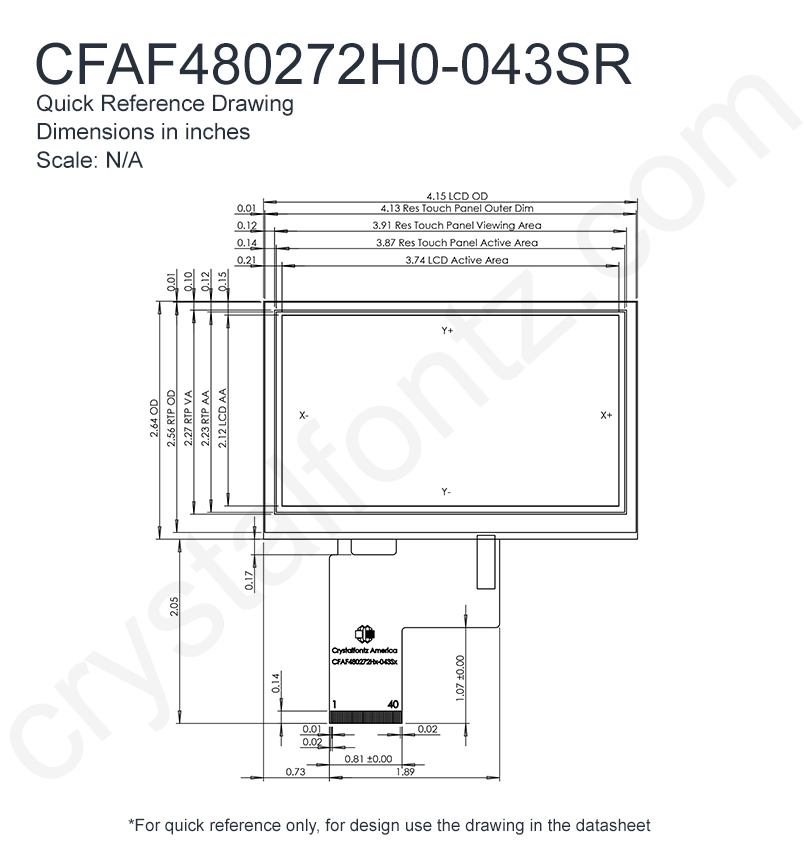

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            480 x 272


    Module Overall        width
        height
        depth


        millimeters
        105.5
        67.15
        4.05


        inches
        4.15
        2.64
        0.16



        Diagonal Dimension
            4.3"


    Active Area        Width
        Height


        millimeters
        95.04
        53.86


        inches
        3.74
        2.12



        Weight
            54.9g
Pin Count
            40

 visibility Optical Characteristics
Optical Characteristics

        Glass Type
            TFT - IPS
Polarizer
            Transmissive
View Direction
            6 o'clock
View Angle
            160°
Sunlight Readable
            Yes


        Backlight Color
            White
Backlight Type
            LED
Foreground Color
            RGB
Background Color
            Black

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            3V
Supply Voltage for Logic Maximum
            3.6V


        Supply Voltage for Logic Typical
            3.3V

 electric_bolt Backlight Specification
Backlight Electrical Specifications

        Forward Voltage Minimum
            16.2V
Forward Voltage Maximum
            21V


        Forward Current Typical
            40mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -20°
        70°


        Fahrenheit
        -4°
        158°



    Storage Temperatures        min
        max


        Celsius
        -30°
        80°


        Fahrenheit
        -22°
        176°


 cable Electronics
Electronics

        Controller Documents
            Sitronix ST7282
720x544 System-On-Chip Driver

for 480RGBx272 TFT LCD
Interface
            DOT-CLK interface / Generic RGB

 picture_as_pdf Datasheets
picture_as_pdfCFAF480272H0-043S Series Datasheet

 download Files and Downloads
folder_zip Hardware Design - 3D Model
link Demo Code Repository on Github
 assured_workload Compliance Documents
 picture_as_pdf Declaration of Conformity RoHS2
 picture_as_pdf Declaration of Conformity REACH














Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
 Quantity:


Price:



            Quantity
            Unit Price


            1
            $27.46

            5
            $25.70

            10
            $24.96

            20
            $24.23

            50
            $23.35

            100
            $23.06

            200
            $22.91

            300
            $22.61

            500 *
            $22.47

            1000 *
            $22.32

498 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
Other components worth considering


						40 Position, 0.50mm Pitch, Gold, FCC FPC ZIF connector
Add 5 ZIF Connectors? $1.45 ea.






						40-Position ZIF Breakout Board
Add a 40-pin ZIF Breakout Board? $6.43 ea.





Module Overall	width	height	depth
millimeters	105.5	67.15	4.05
inches	4.15	2.64	0.16

Active Area	Width	Height
millimeters	95.04	53.86
inches	3.74	2.12

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Quantity	Unit Price
1	$27.46
5	$25.70
10	$24.96
20	$24.23
50	$23.35
100	$23.06
200	$22.91
300	$22.61
500 *	$22.47
1000 *	$22.32

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #11179: 480x272 Resistive Touchscreen TFT Display is now available.

New Product:	CFAF480272H0-043SR
Date Issued:	March 9, 2023
Summary:	480x272 Resistive Touchscreen TFT Display is now available.
Description:	CFAF480272H0-043SR has been released on our website (https://www.crystalfontz.com/product/cfaf480272h0043sr-480x272-resistive-touchscreen-tft-display-module) and is now available for sale. Orders can be placed directly from our website or by submitting a purchase order to sales@crystalfontz.com. Contact support@crystalfontz.com with any technical questions.
