480x272 4.3" Touch Screen Color TFT from Crystalfontz

Product

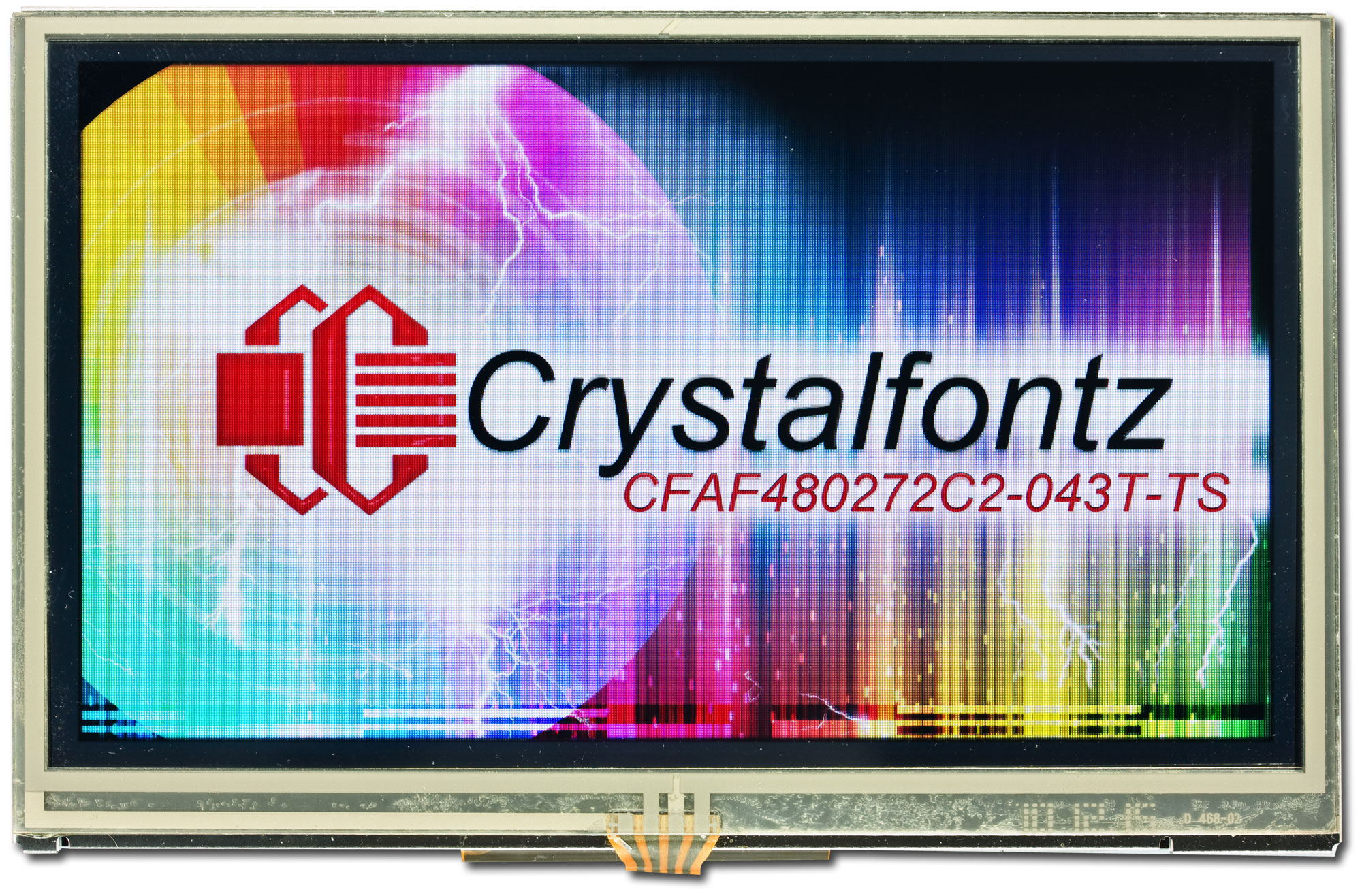

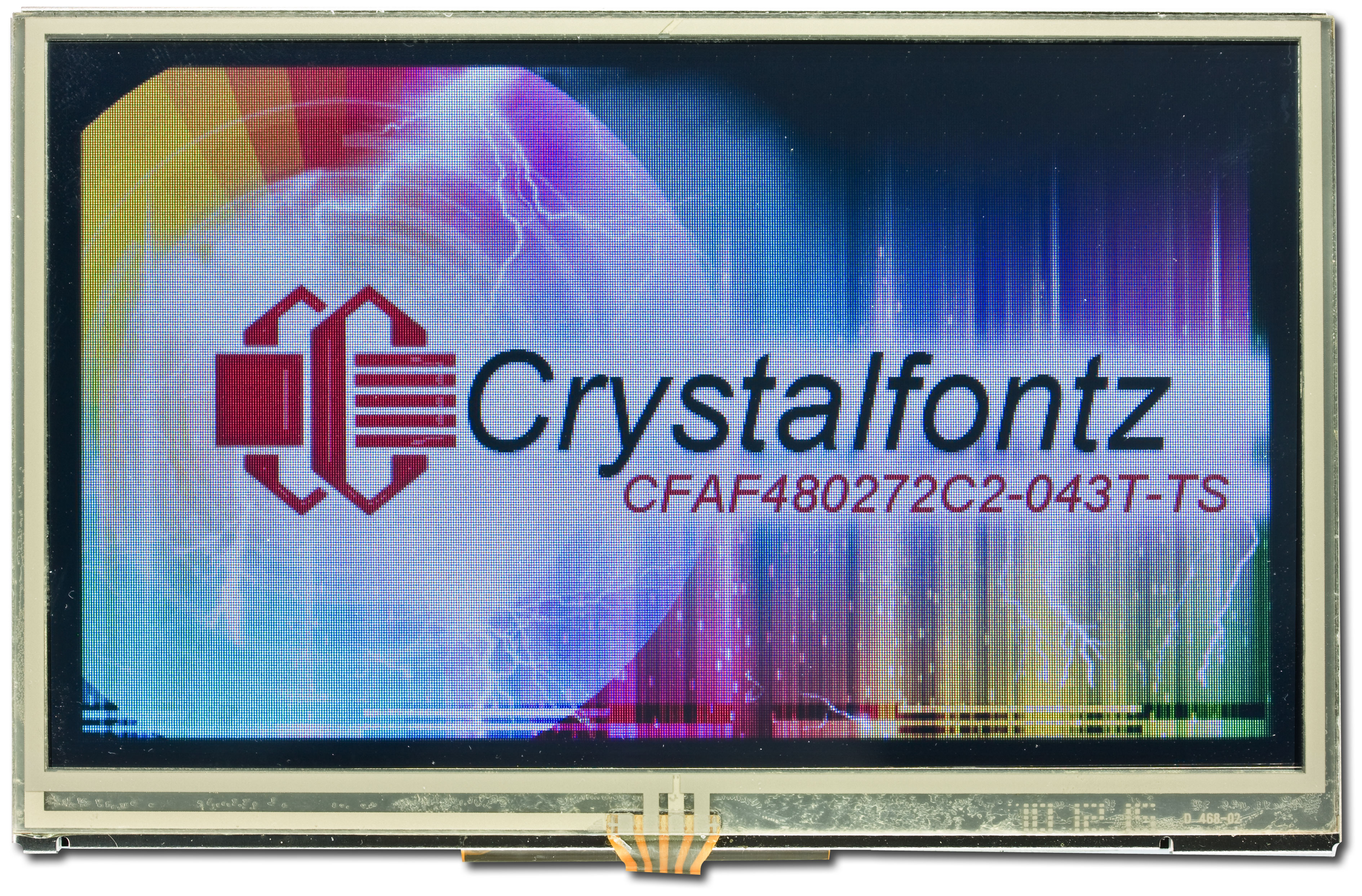

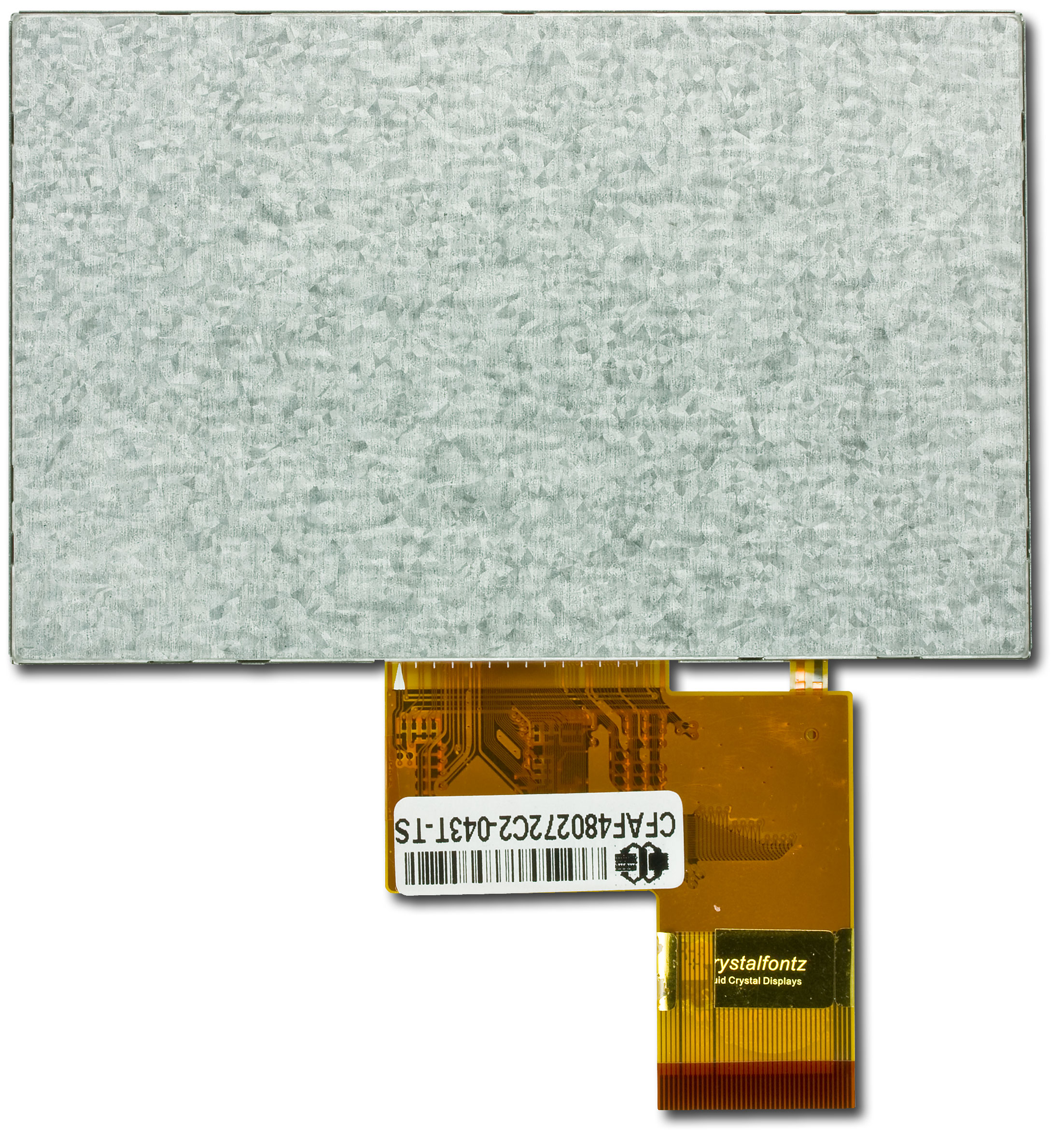

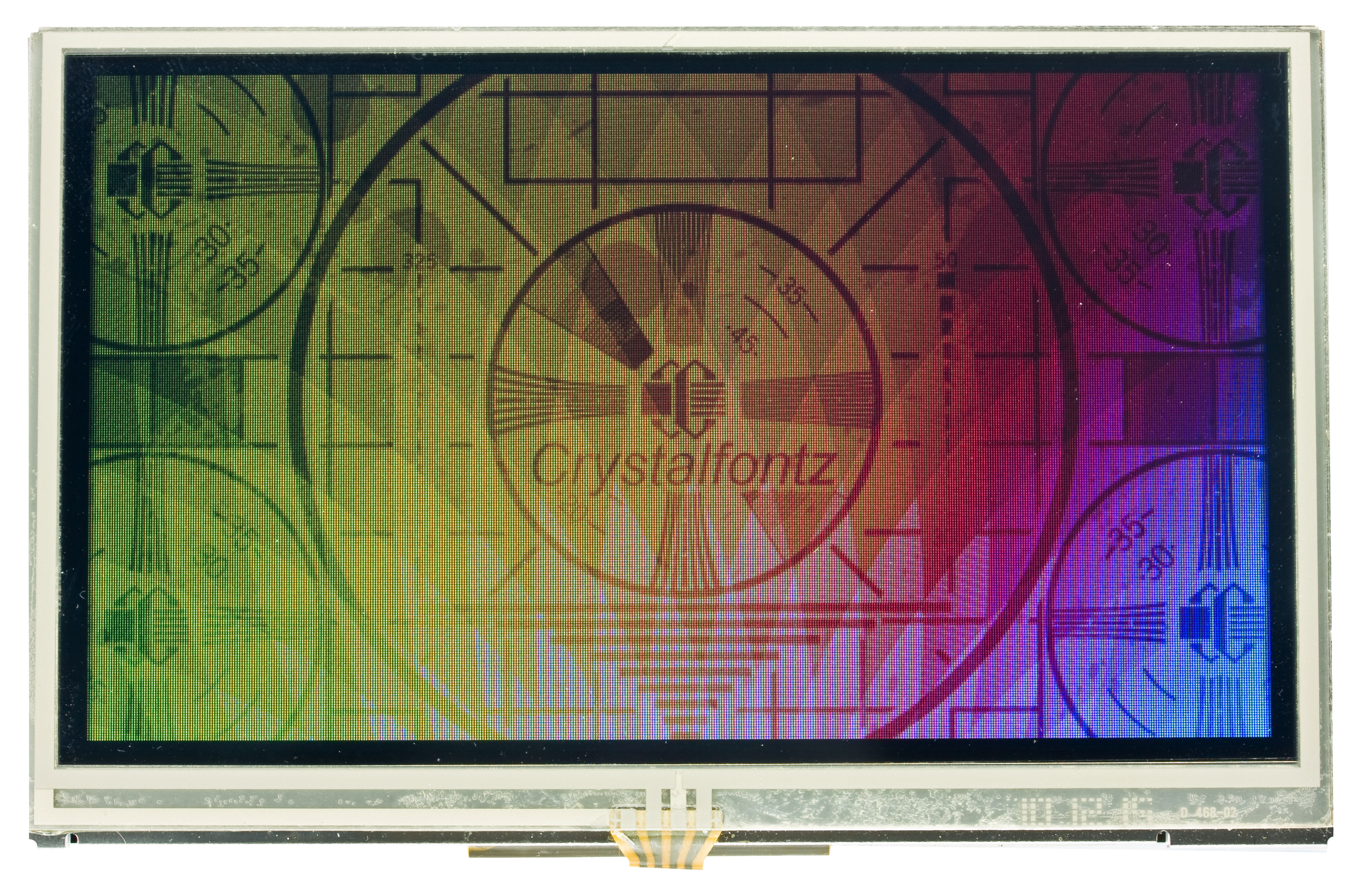

480x272 4.3" Touch Screen Color TFTPart Number: CFAF480272C2-043T-TSThis 4.3" diagonal 480x272 TFT, 262K color display with a white LED backlight and a resistive touch screen mounted on the panel.
DOT-CLK interface / Generic RGB.
Popular 6:00 o'clock viewing direction
Operating temperature range is -20°C to +70°C.
Product VariationsTouchscreenResistiveNone

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            480 x 272

    Module Overall        width
        height
        depth

        millimeters
        105.4
        67.15
        4

        inches
        4.15
        2.64
        0.16

*width / height does not include Foldable Tab

        Diagonal Dimension
            4.3"

    Viewing Area        Width
        Height

        millimeters
        97.04
        56.86

        inches
        3.82
        2.24

    Active Area        Width
        Height

        millimeters
        95.04
        53.85

        inches
        3.74
        2.12

    Dot Size        Width
        Height

        millimeters
        0.2
        0.2

        inches
        0.008
        0.008

    Dot Pitch        Width
        Height

        millimeters
        0.066
        0.198

        inches
        0.0026
        0.0078

        Optional Connectors
            CS050Z40GB0

        Weight
            63g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type
            TFT/Black
Polarizer
            Transmissive
View Direction
            0.5 o'clock

        Backlight Color
            White
Backlight Type
            LED
Mode
            Negative
Foreground Color
            RGB
Background Color
            Dark

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            3V
Supply Voltage for Logic Maximum
            4.2V
Supply Voltage for Logic Typical
            3.3V

        Supply Current Typical
            25mA
Module Connector Pitch
            0.35mm

 electric_bolt Backlight Specification
Backlight Electrical Specifications

        Forward Voltage Typical
            12.8V

        Forward Current Typical
            40mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Interface
            DOT-CLK interface / Generic RGB

picture_as_pdf Datasheets
picture_as_pdfCFAF480272C2043TTS Datasheet

Previous Versions of Datasheetspicture_as_pdfCFAF480272C2-043T-TS Datasheet Release 2016-09-13.pdf

picture_as_pdfCFAF480272C2-043T-TS Data Sheet 2012-05-03.pdf

download Files and Downloads
folder_zip Software Source - Sample C++ Code
folder_zip CAD Export - CFAF480272C2-043TTS 3D Model
assured_workload Compliance Documents

picture_as_pdf Declaration
                                    of Conformity RoHS2
picture_as_pdf Declaration
                                    of Conformity REACH

Need a written quote? Add to cart, then enter
                            your email address in the "request a quote" box.
Quantity:

Price:

            Quantity
            Unit Price

            1
            $31.97

439 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
Other components worth
                    considering

						40 Position, 0.50mm Pitch, Gold, FCC FPC ZIF connector
Add 5 ZIF Connectors $0.45 ea.

						40-Position ZIF Breakout Board
Add a 40-pin ZIF Breakout Board? $6.43 ea.

Module Overall	width	height	depth
millimeters	105.4	67.15	4
inches	4.15	2.64	0.16
*width / height does not include Foldable Tab

Viewing Area	Width	Height
millimeters	97.04	56.86
inches	3.82	2.24

Active Area	Width	Height
millimeters	95.04	53.85
inches	3.74	2.12

Dot Size	Width	Height
millimeters	0.2	0.2
inches	0.008	0.008

Dot Pitch	Width	Height
millimeters	0.066	0.198
inches	0.0026	0.0078

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Quantity	Unit Price
1	$31.97

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

End-Of-Life #11294: End-Of-Life Notification

Products Affected:	CFAF480272C2-043T, CFAF480272C2-043T-TS
Date Issued:	September 26, 2024
Summary:	End-Of-Life Notification
Description:	This product is no longer available.
Reason:	This product is no longer available and is being replaced with an updated 4.3" TFT display.
Impact:	Timing characteristics change Dimensions change Optical characteristics improvements Electrical characteristics change
Recommendation:	Non-touch - CFAF480272H0-043SN Res touch - CFAF480272H0-043SR
Availability:	Contact Crystalfontz Support for up-to-date information by emailing support@crystalfontz.com.

Product Update #10417: (New Product) CFAF480272C2-043T-TS

New Product:	CFAF480272C2-043T-TS
Date Issued:	May 11, 2012
Summary:	(New Product) CFAF480272C2-043T-TS
Description:	Under TFT LCD Modules: 480x272 graphic TFT display module.

Part Change Notices

Subscribe to Part Change Notices by
email or RSS for CFAF480272C2-043T-TS
