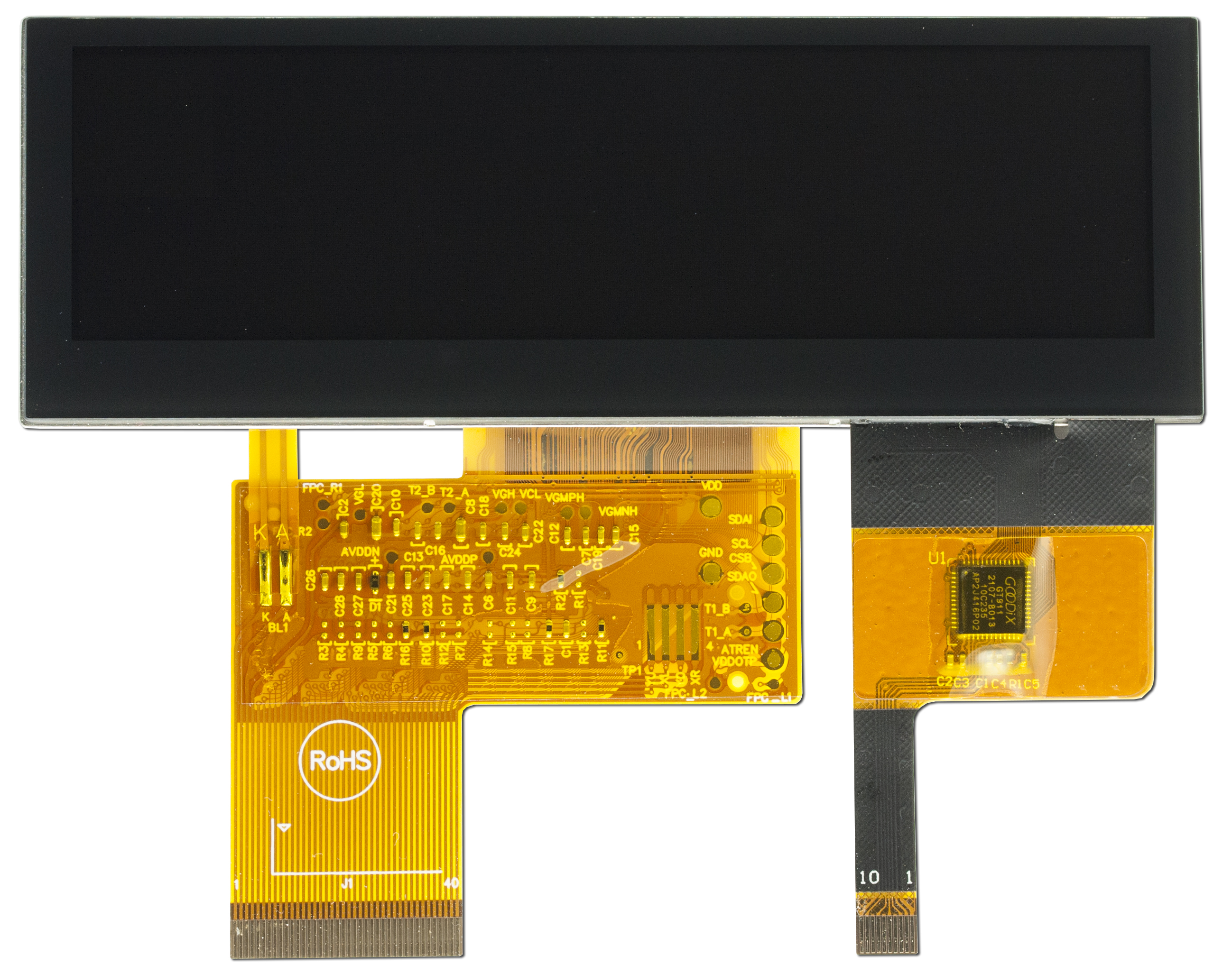

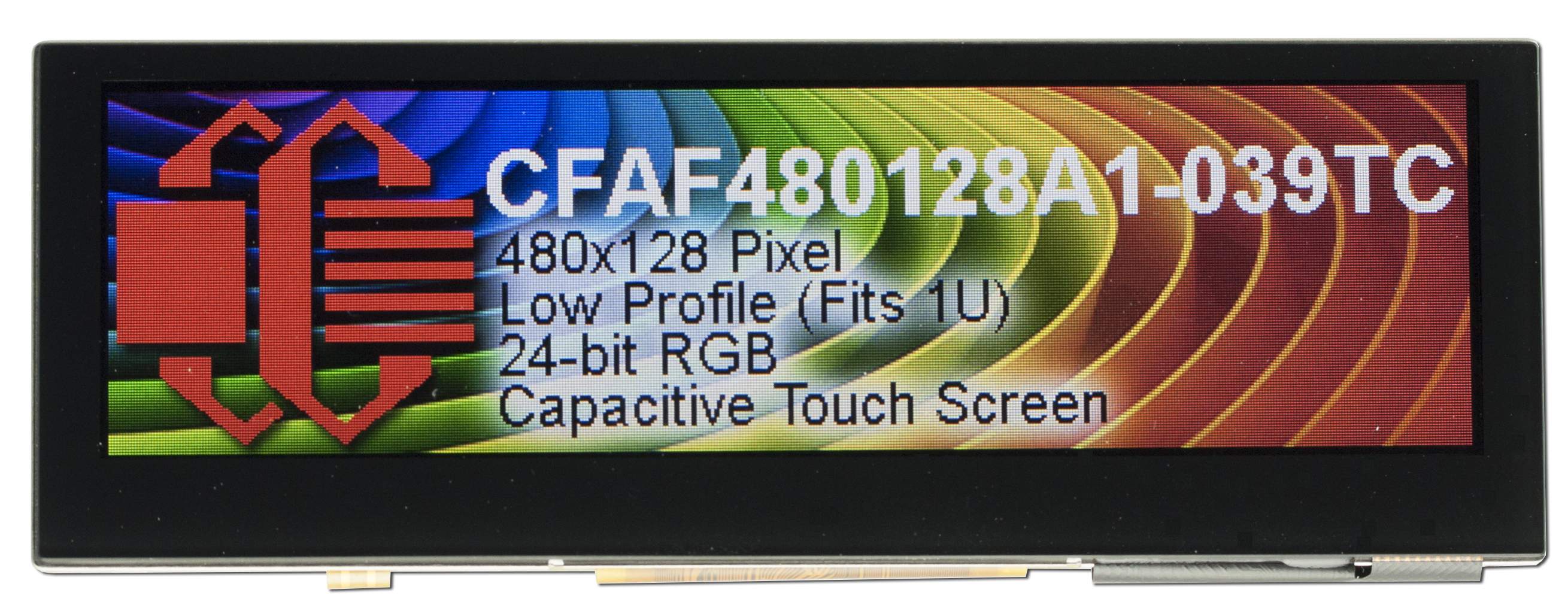

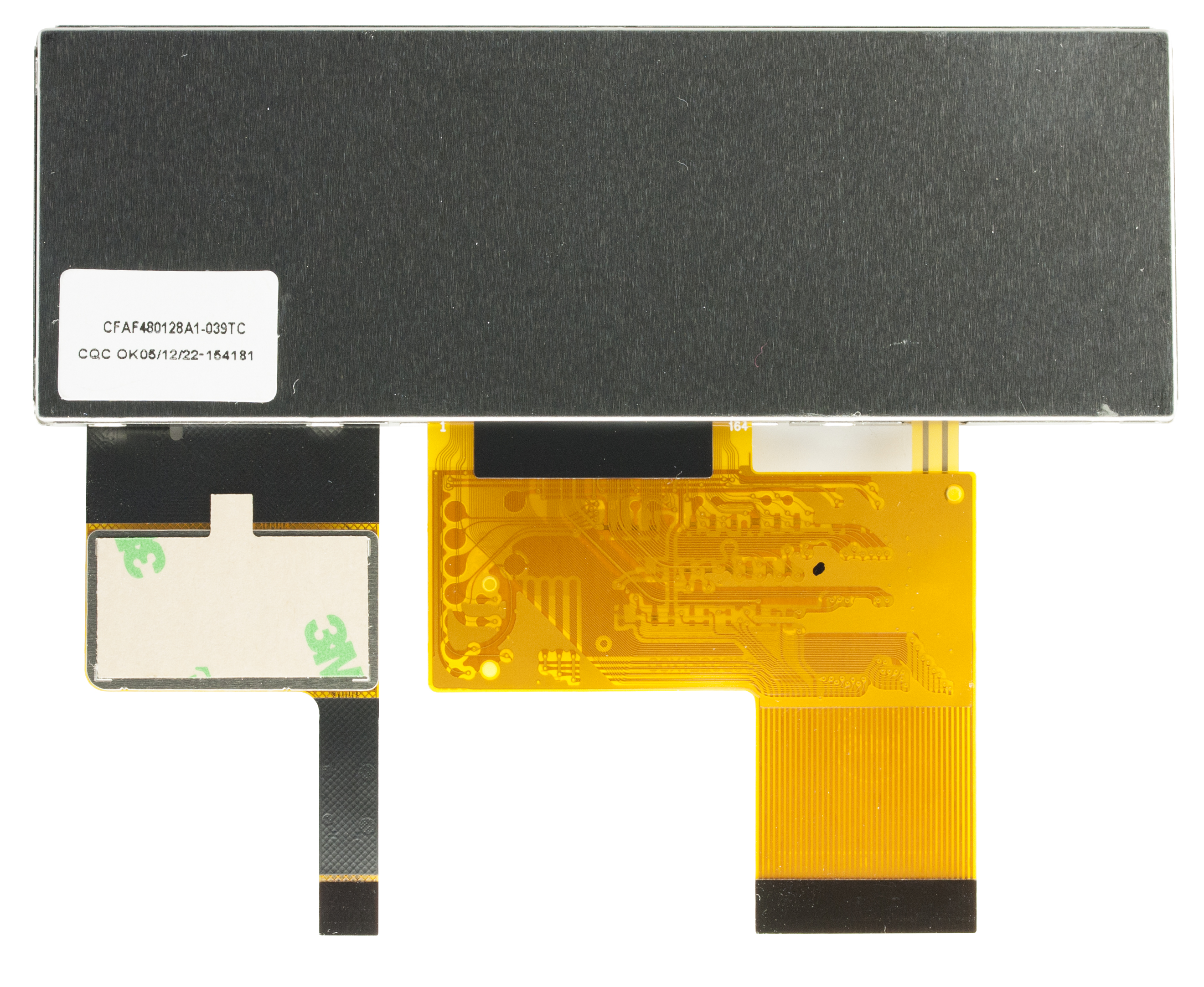

480x128 Wide-Format Capacitive TFT DisplayPart Number: CFAF480128A1-039TC
         This bar-type TFT is perfect for applications including servers, audio equipment, and other wide-format applications. This display will fit in a 1U case making it a great choice for appliances.

With 24-bit RGB color and 480x128 pixels, your graphics will look incredible on this display. Plus, the capacitive touch screen lets this display act as your device's user interface.

Want an EVE powered module?
 A capacitive touch bar type EVE module that uses this display is also available.

Part Number:
CFA - Crystalfontz
F - TFT
480128 - Pixel Resolution
A1 - Family and revision
039 - 3.9 inches diagonal
T - Standard brightness (400 nits)
C - Capacitive touch

This display replaces the previous version (A0). The difference between the two displays is the touch controller.

Product VariationsTouchscreenCapacitiveResistiveNone

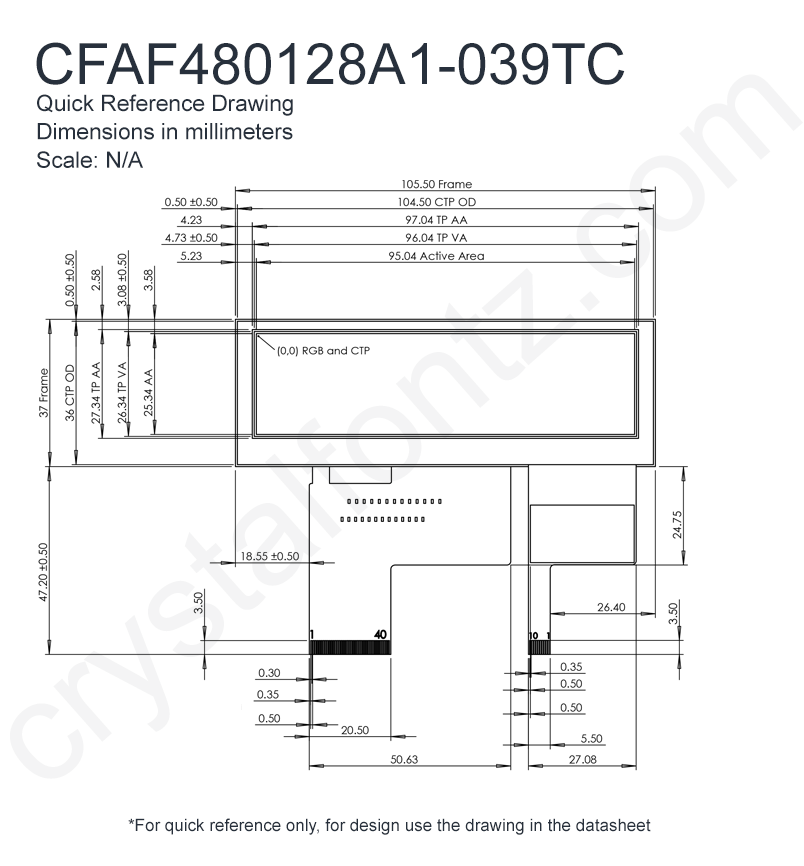

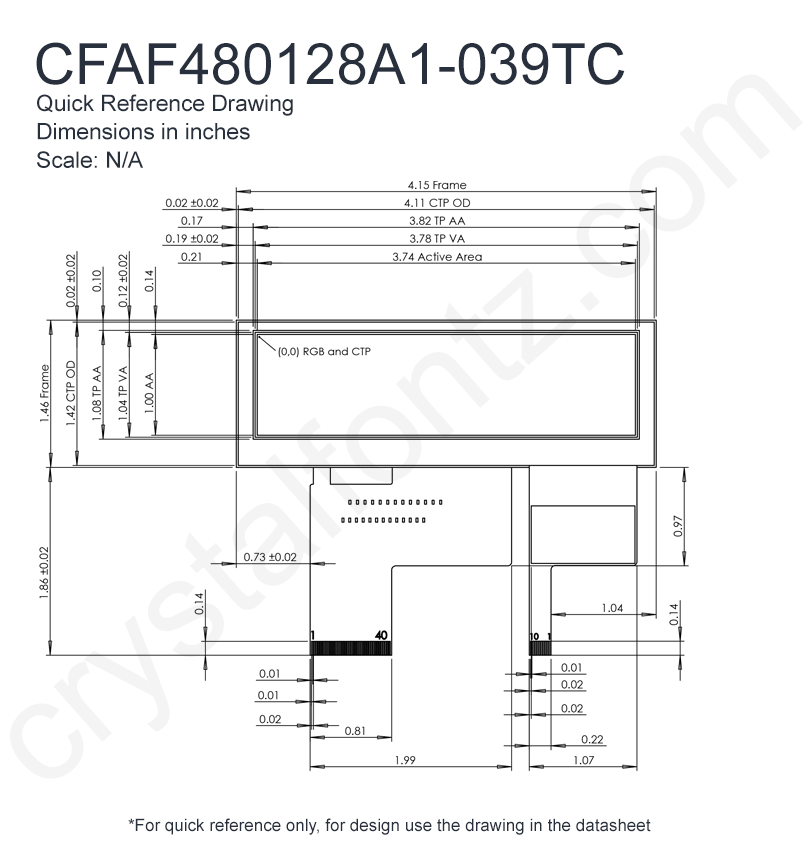

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            480 x 128

    Module Overall        width
        height
        depth

        millimeters
        105.5
        37
        5.13

        inches
        4.15
        1.46
        0.20

        Diagonal Dimension
            3.9"

    Viewing Area        Width
        Height

        millimeters
        97.04
        27.34

        inches
        3.82
        1.08

    Active Area        Width
        Height

        millimeters
        95.04
        25.34

        inches
        3.74
        1.00

    Dot Pitch        Width
        Height

        millimeters
        0.66
        0.198

        inches
        0.026
        0.0078

        Weight
            43g
Pin Count
            40

 visibility Optical Characteristics
Optical Characteristics

        Glass Color
            Dark
Polarizer
            Transmissive
View Direction
            6 o'clock

        Backlight Color
            White
Backlight Type
            LED
Foreground Color
            RGB
Background Color
            Black

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            3V
Supply Voltage for Logic Maximum
            3.6V
Supply Voltage for Logic Typical
            3.3V

        Supply Current Maximum
            25mA
Supply Current Typical
            15mA

 electric_bolt Backlight Specification
Backlight Electrical Specifications

        Forward Voltage Minimum
            14V
Forward Voltage Maximum
            17V

        Forward Voltage Typical
            15V
Forward Current Typical
            40mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

 cable Electronics
Electronics

        Controller Documents
            Himax HX8278-A-LT
TFT LCD Single Chip Digital Driver Preliminary version 00 March, 2017
Interface
            DOT-CLK interface / Generic RGB

 picture_as_pdf Datasheets
picture_as_pdfCFAF480128A1-039TC Datasheet

 download Files and Downloads
folder_zip Hardware Design - 3D Model

Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
 Quantity:

Price:

            Quantity
            Unit Price

            1
            $74.14

            10
            $60.27

            20
            $58.24

            50
            $56.20

            100
            $55.38

            200
            $54.98

            300
            $50.95

            500
            $50.57

            1000 *
            $46.77

501 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
Other components worth considering

						40 Position, 0.50mm Pitch, Gold, FCC FPC ZIF connector
Need ZIF Connectors? $1.45 ea.

						EVE Wide-Format TFT Display
Integrate with an EVE? $107.89 ea.

						10-Position ZIF Breakout Board
Add a 10-pin ZIF Breakout Board? $6.08 ea.

						40-Position ZIF Breakout Board
Add a 40-pin ZIF Breakout Board? $6.43 ea.

Module Overall	width	height	depth
millimeters	105.5	37	5.13
inches	4.15	1.46	0.20

Viewing Area	Width	Height
millimeters	97.04	27.34
inches	3.82	1.08

Active Area	Width	Height
millimeters	95.04	25.34
inches	3.74	1.00

Dot Pitch	Width	Height
millimeters	0.66	0.198
inches	0.026	0.0078

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Quantity	Unit Price
1	$74.14
10	$60.27
20	$58.24
50	$56.20
100	$55.38
200	$54.98
300	$50.95
500	$50.57
1000 *	$46.77

Additional Options
Notices

Additional Options

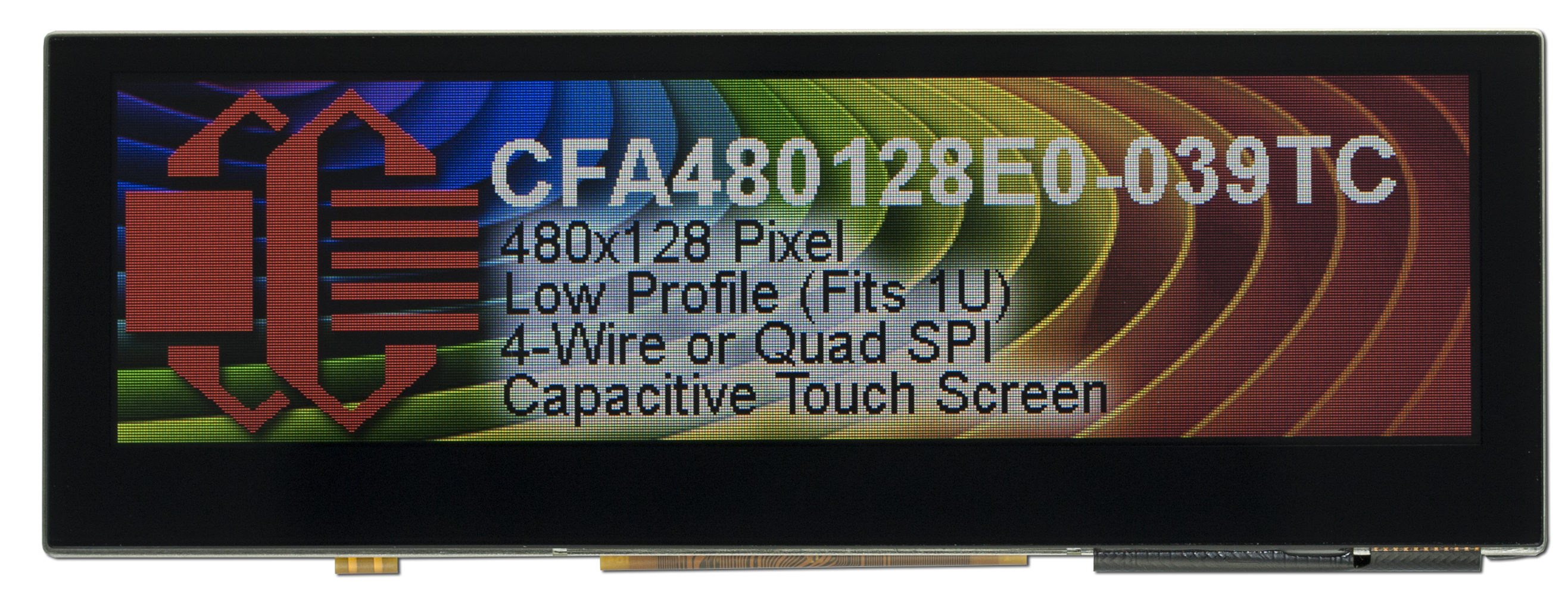

Buy this display integrated with an EVE processor or a complete EVE development kit.
