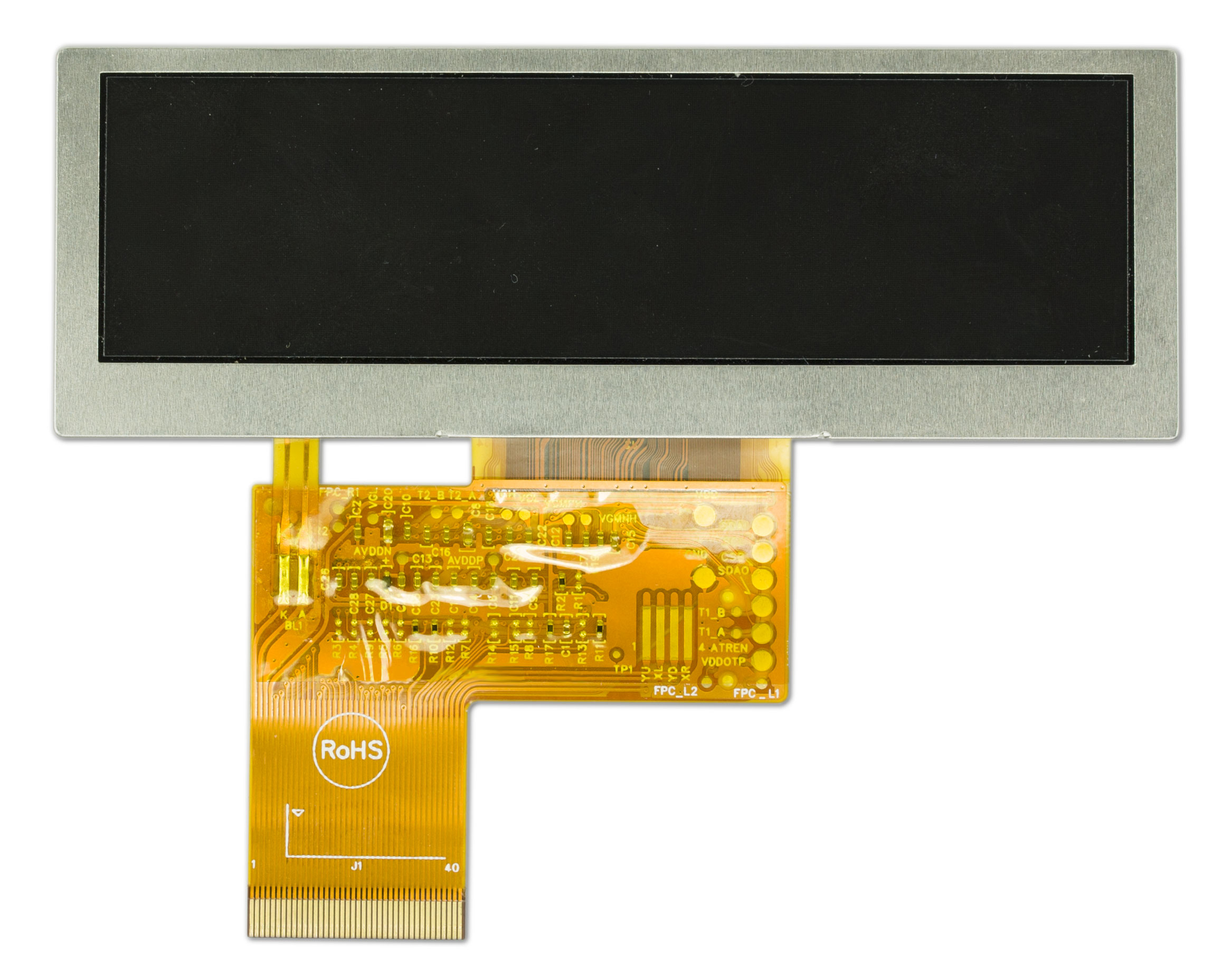

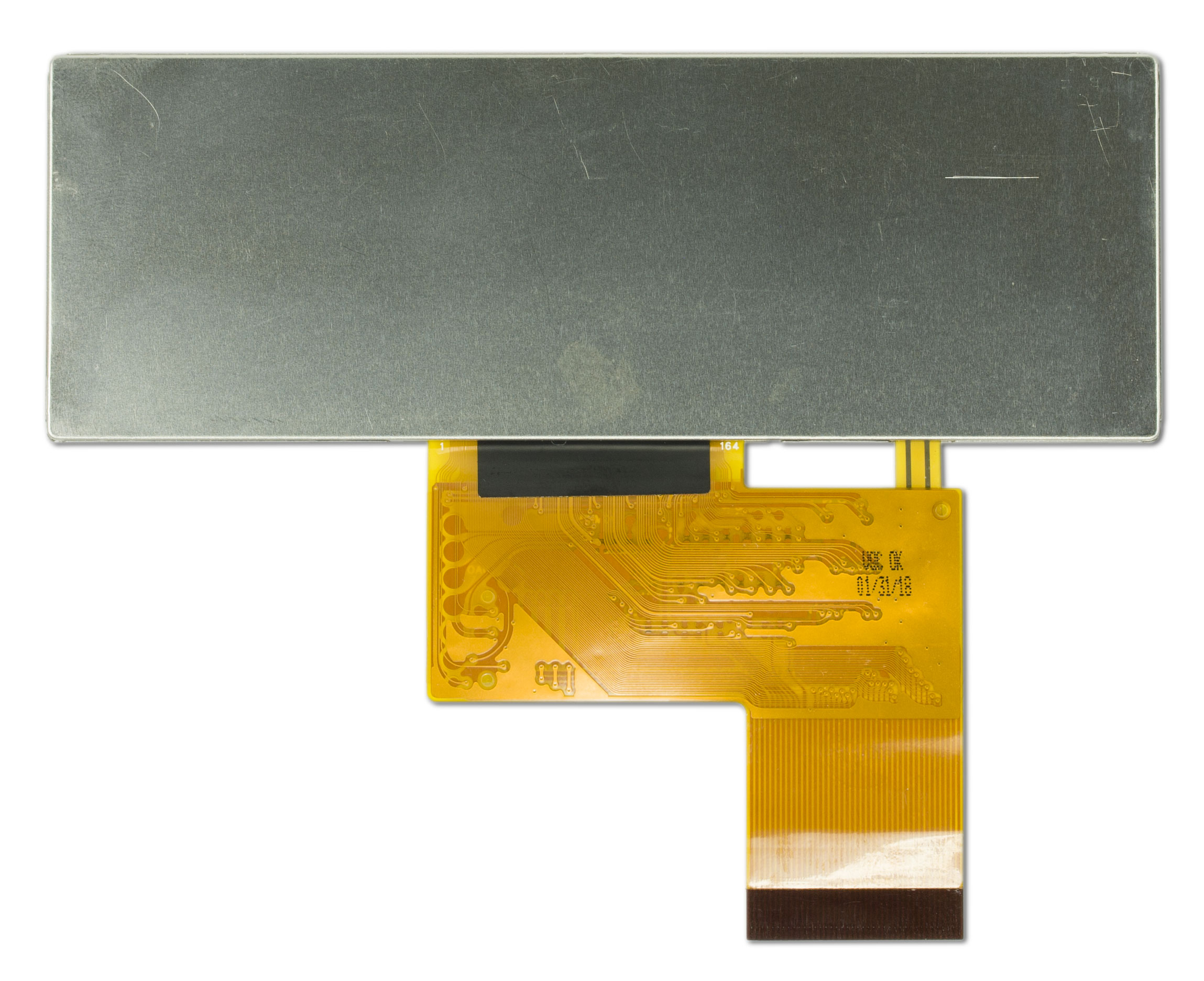

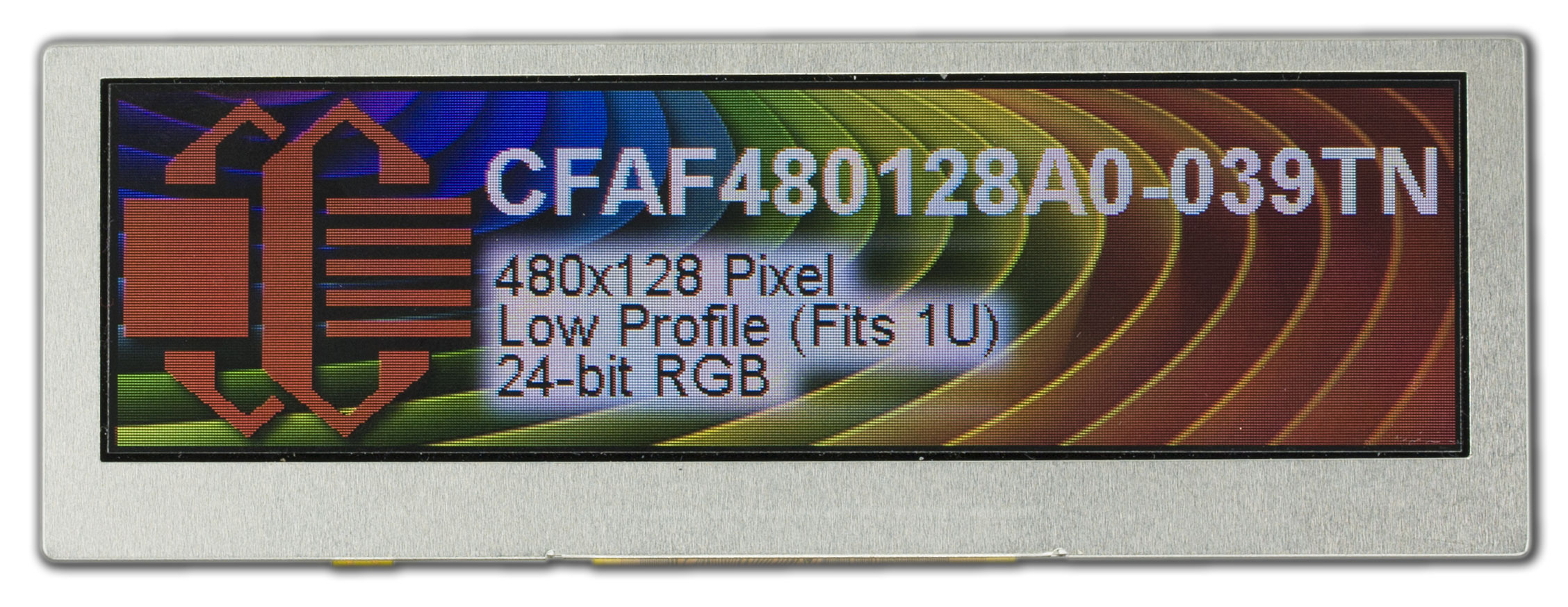

480x128 Bar-Type TFT DisplayPart Number: CFAF480128A0-039TN
         3.9" 480x128 pixel resolution, bar-type, TFTLCD. 40-pin RGB interface with a ZIF connection. 6:00 viewing direction for optimal viewing and standard storage and operating temperatures. This TFT is Perfect for 1U server appliances, musical equipment or any applications or products requiring a wide-screen and or a super wide aspect ratio of 3.75 to 1, which is about 16 to 4.

Product VariationsTouchscreenCapacitiveResistiveNone

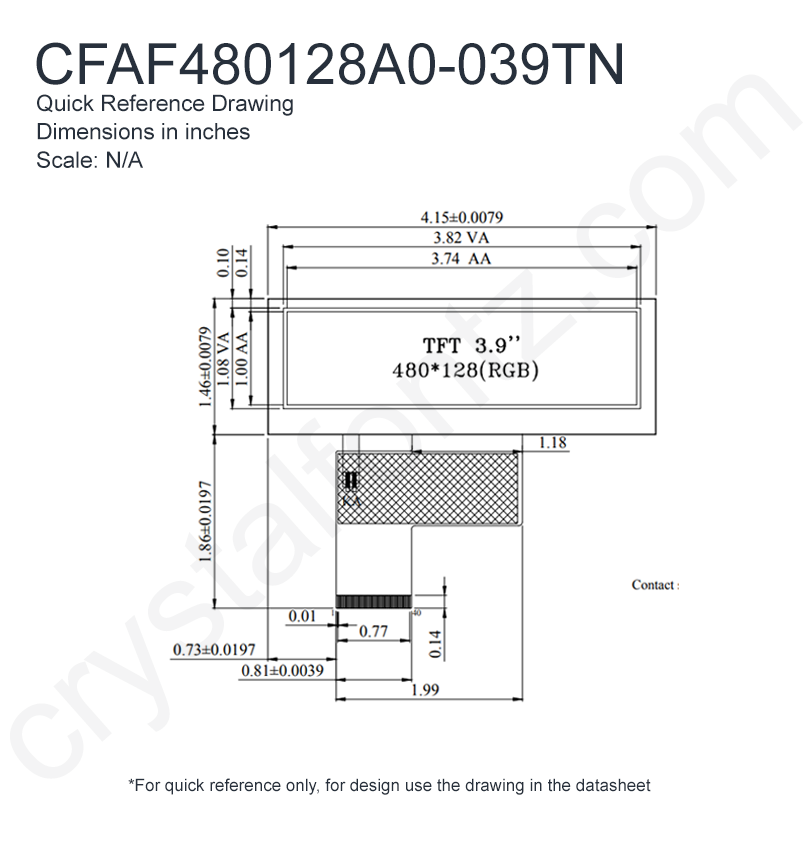

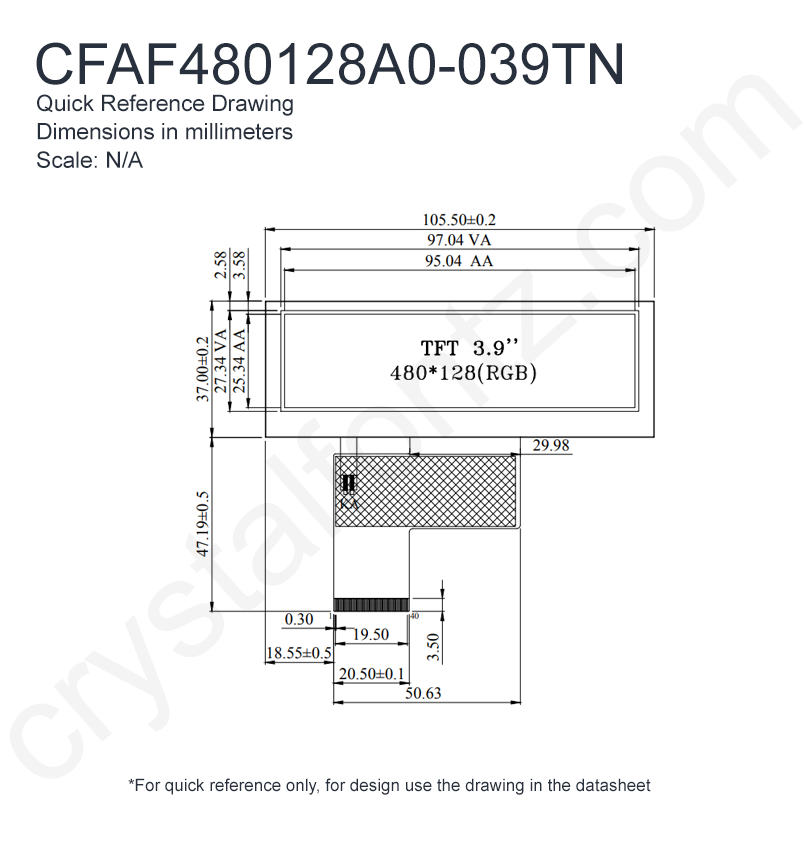

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            480 x 128

    Module Overall        width
        height
        depth

        millimeters
        105.5
        37
        3.05

        inches
        4.15
        1.46
        0.12

*width / height does not include Foldable Tab

        Diagonal Dimension
            3.87"

    Viewing Area        Width
        Height

        millimeters
        97.04
        27.34

        inches
        3.82
        1.08

    Active Area        Width
        Height

        millimeters
        95.04
        25.34

        inches
        3.74
        1.00

    Dot Pitch        Width
        Height

        millimeters
        0.066
        0.198

        inches
        0.0026
        0.0078

        Optional Connectors
            CS050Z40GB0

    Flexible Cable (FFC/FPC)        length

        millimeters
        47.19

        inches
        1.858

        Weight
            24g
Pin Count
            40

 visibility Optical Characteristics
Optical Characteristics

        Glass Type
            TFT
Polarizer
            Transmissive
View Direction
            0.25 o'clock

        Backlight Color
            White
Backlight Type
            LED
Foreground Color
            RGB
Background Color
            Black

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            3V
Supply Voltage for Logic Maximum
            3.6V
Supply Voltage for Logic Typical
            3.3V

        Supply Current Maximum
            25mA
Supply Current Typical
            15mA

 electric_bolt Backlight Specification
Backlight Electrical Specifications

        Forward Voltage Minimum
            14V
Forward Voltage Maximum
            17V

        Forward Voltage Typical
            15V
Forward Current Typical
            40mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

 cable Electronics
Electronics

        Controller Documents
            Himax HX8278-A-LT
TFT LCD Single Chip Digital Driver Preliminary version 00 March, 2017
Interface
            DOT-CLK interface / Generic RGB

 picture_as_pdf Datasheets
picture_as_pdfCFAF480128A0-039TN Datasheet

 download Files and Downloads
folder_zip Hardware Design - 3D Model
 assured_workload Compliance Documents
 picture_as_pdf Declaration of Conformity RoHS2
 picture_as_pdf Declaration of Conformity REACH

Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
 Quantity:

Price:

            Quantity
            Unit Price

            1
            $48.27

            5
            $46.47

            10
            $39.24

            20
            $38.09

            50 *
            $36.71

            100 *
            $36.24

            200 *
            $36.01

            300 *
            $33.01

            500 *
            $32.80

            1000 *
            $28.82

21 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
Other components worth considering

						40 Position, 0.50mm Pitch, Gold, FCC FPC ZIF connector
Add 5 ZIF Connectors $1.45 ea.

						40-Position ZIF Breakout Board
Add a 40-pin ZIF Breakout Board? $6.43 ea.

Additional Options
Pin Table

Additional Options

Speed up your development time with an EVE FTDI Display or development kit.

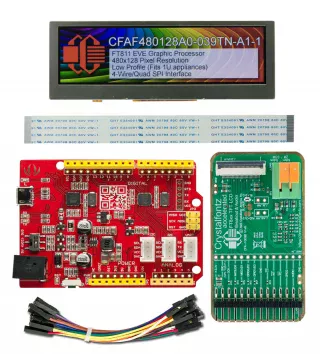

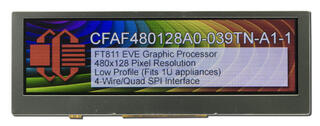

480x128 3.9" Bar-Type EVE Dev Kit
Part Number: CFAF480128A0-039TN-A1-2

Details

Quantity	1
Unit Price	$98.79

Quantity:

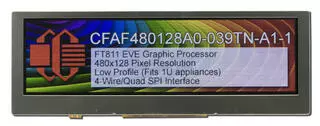

480x128 3.9" Bar-Type EVE Display
