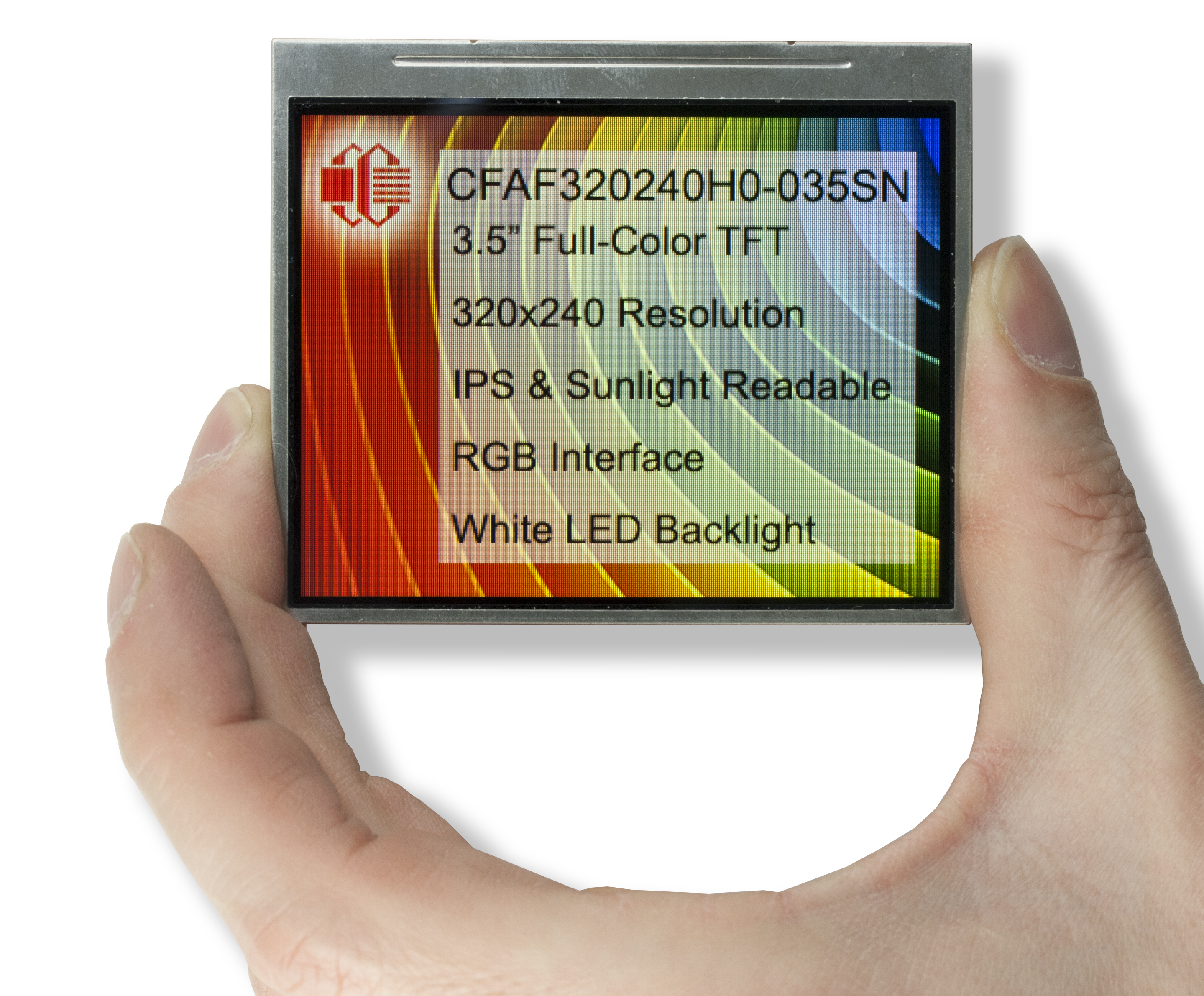

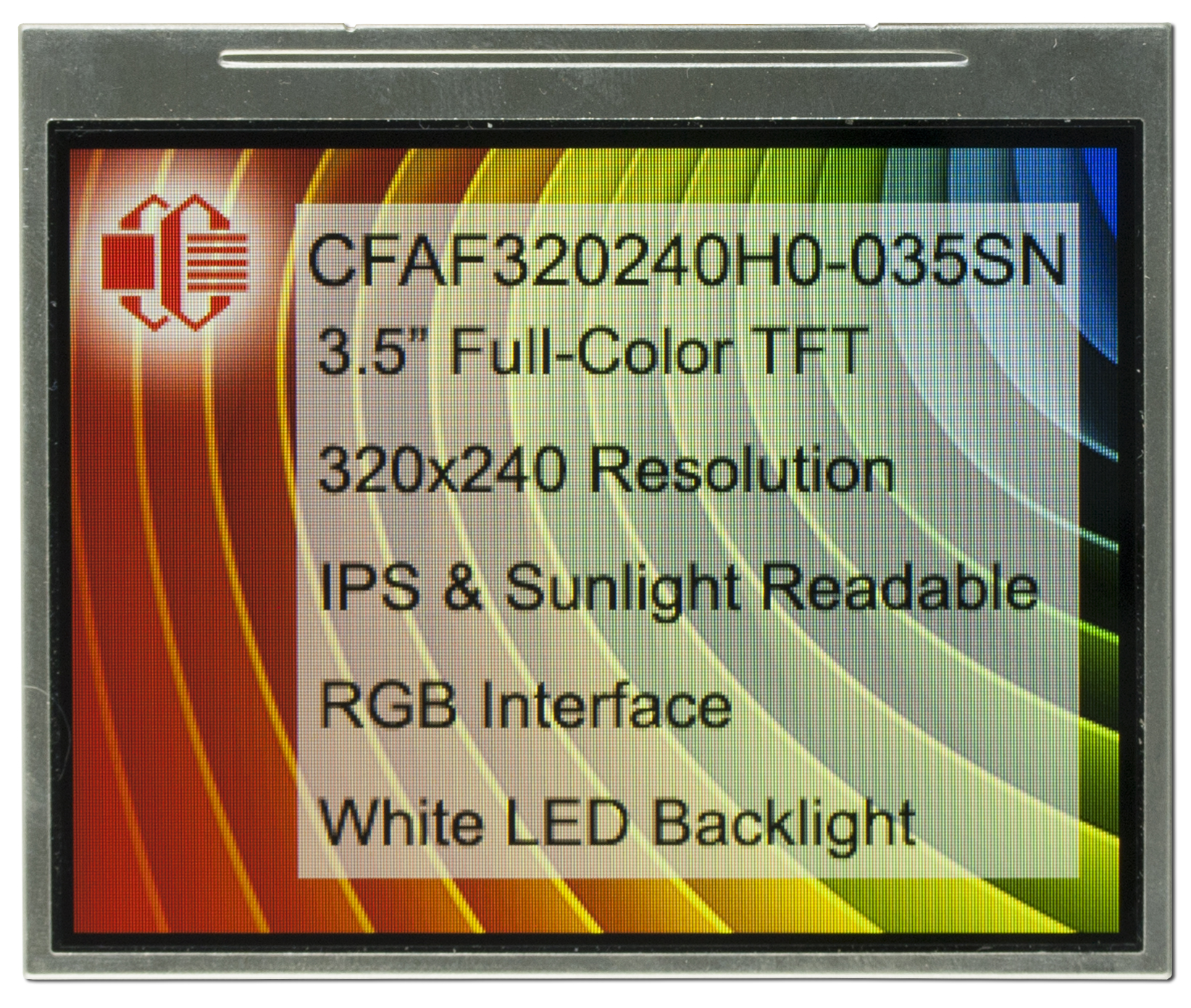

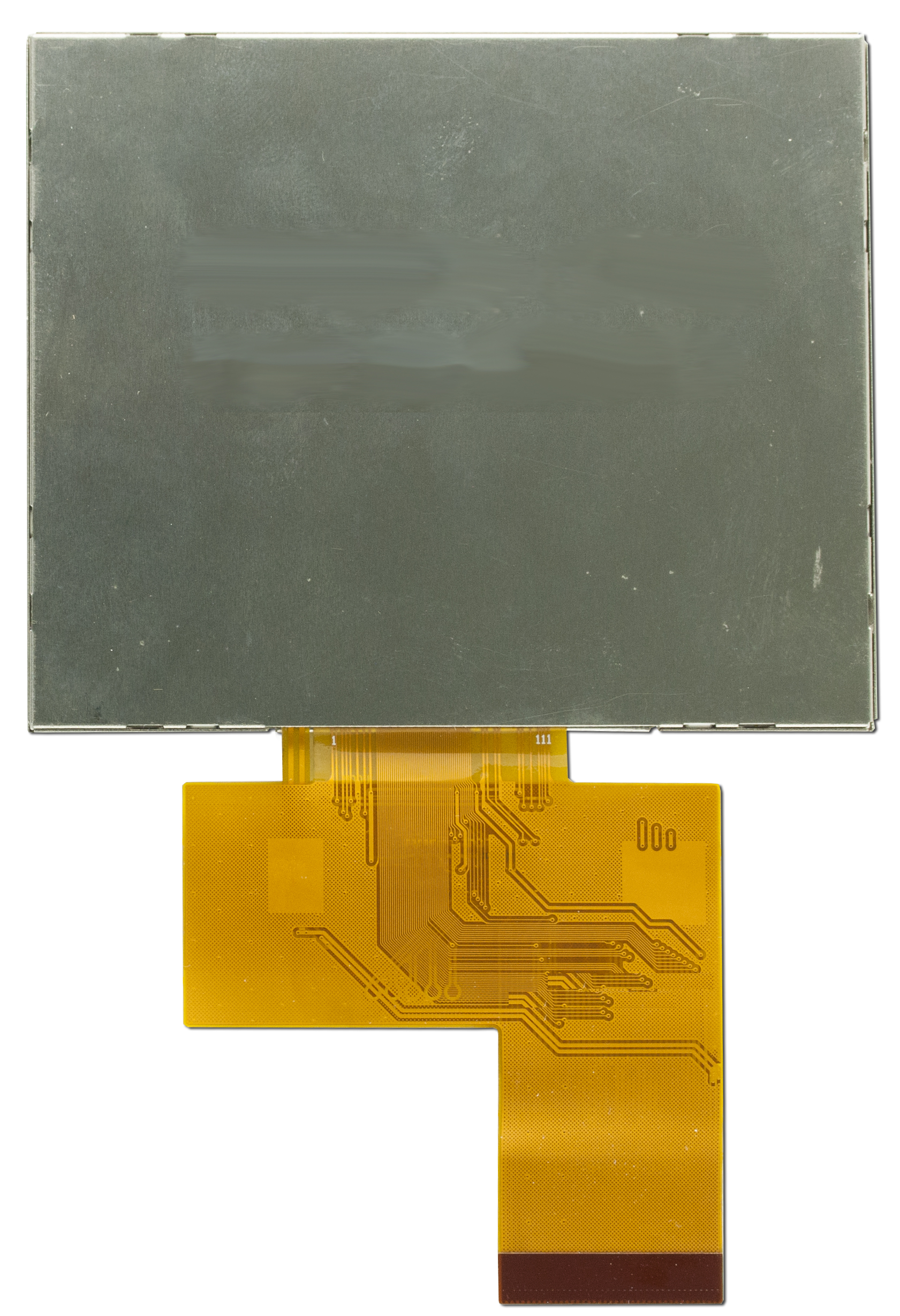

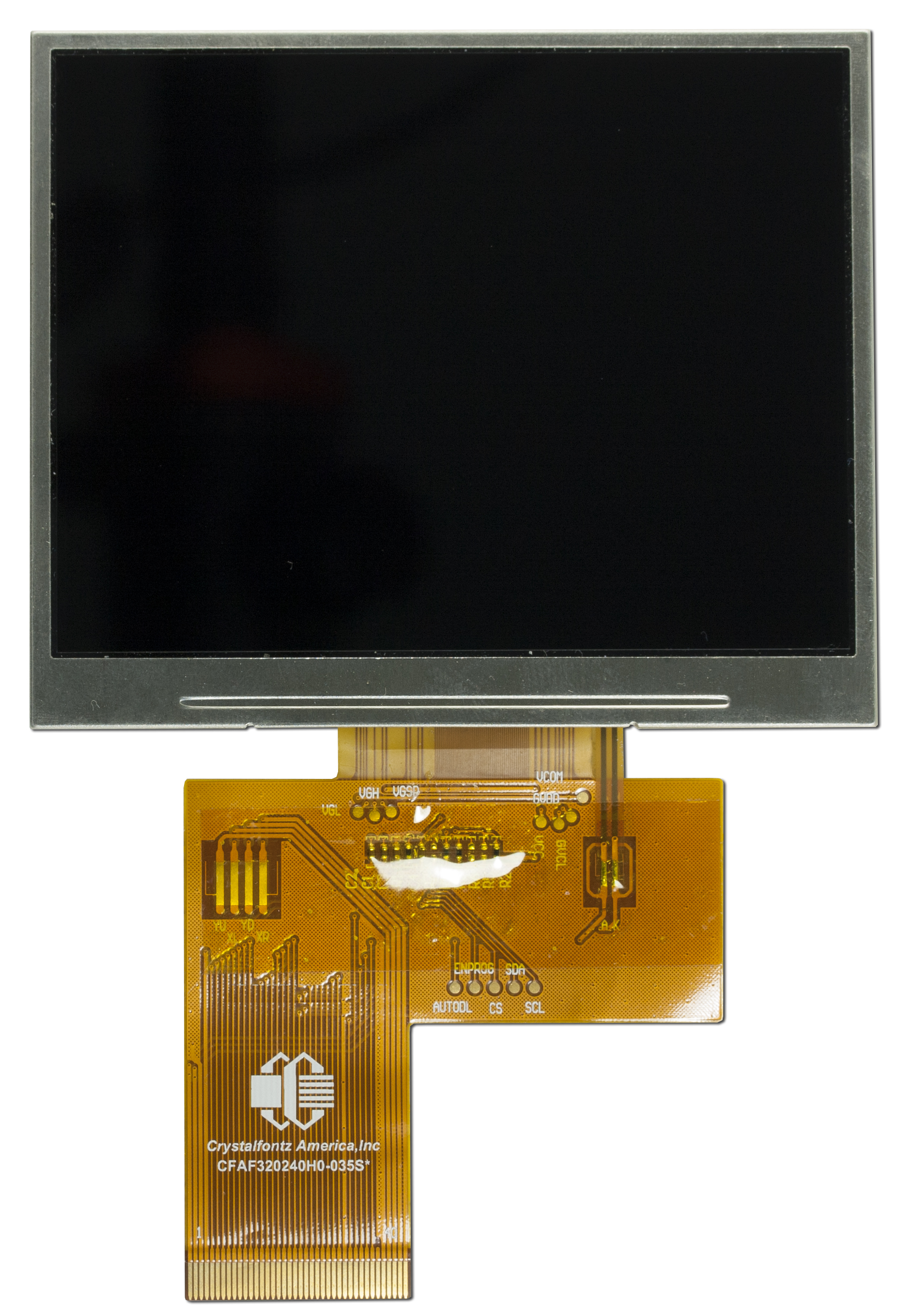

3.5" 320x240 IPS Sunlight Readable TFT Display

Part Number: CFAF320240H0-035SN

At 3.5", this display is a great choice for any product. Compact enough to fit in a handheld or desktop device, but big enough to display plenty of information. The bright backlight makes this display a candidate for indoor and outdoor applications.

With 16.7 million displayable colors, images will look incredible. Plus, the quickness of the RGB interface makes this display a great choice for video.

Need a display with a touchscreen? Check out the other displays in this family!

Product Features:

• 320(RGB) x 240 pixels
• 3.5" diagonal
• RGB interface (24-bit, 16.7M colors)
• Sitronix ST7272A Controller
• Free Viewing Angle
• 40-pin ZIF connector
• Sunlight Readable (1,000 nit backlight)
• 3.3v logic, 19.2v backlight

Part Number:
CFA - Crystalfontz America
F - TFT
320240 - Pixel resolution
H0 - Family
035 - 3.5" diagonal
S - Sunlight readable
N - No touch

• square_foot Physical Characteristics

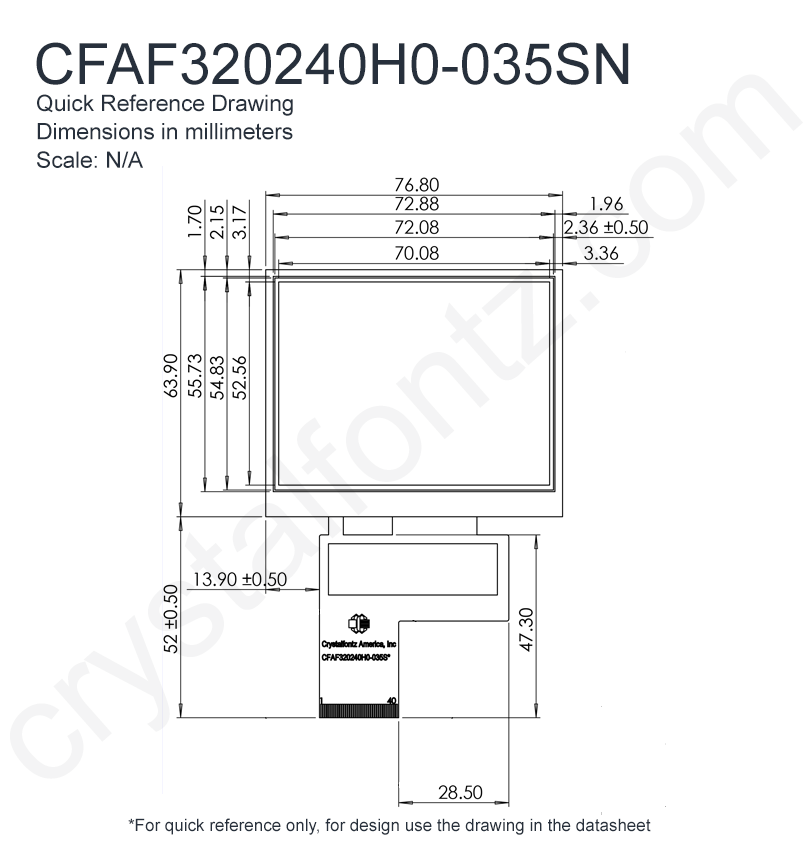

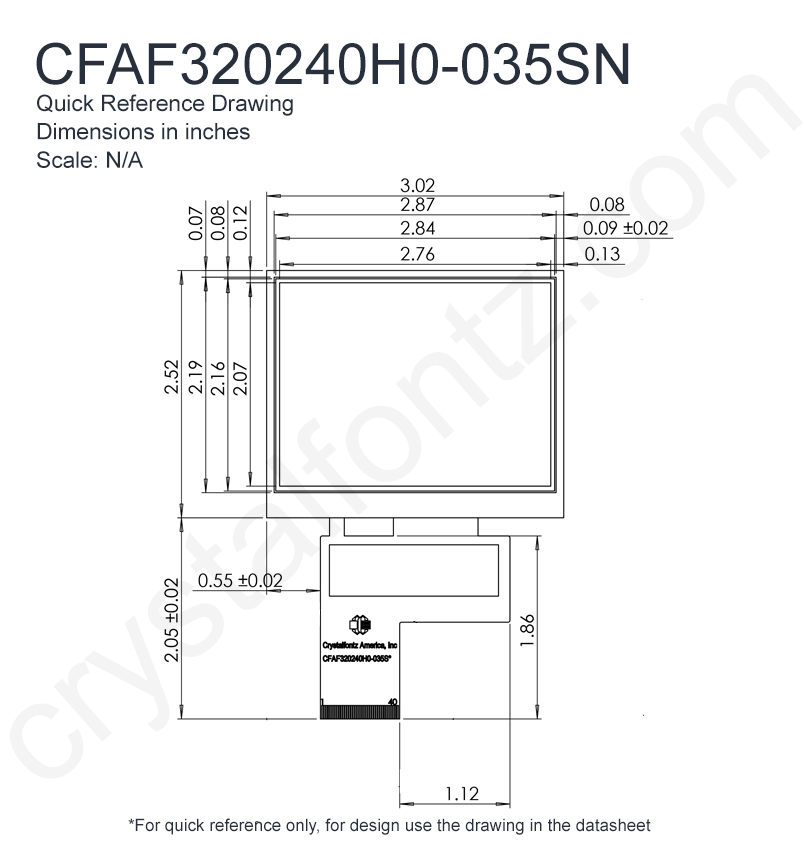

  Physical Characteristics

  Column Dots x Row Dots

  320 x 240

  Module Overall	width	height	depth
  millimeters	76.8	63.9	3.15
  inches	3.02	2.52	0.12

  Diagonal Dimension

  3.5"

  Active Area	Width	Height
  millimeters	70.08	52.56
  inches	2.76	2.07

  Dot Pitch	Width	Height
  millimeters	0.219	0.219
  inches	0.0086	0.0086

  Weight	27g
  Pin Count	40

• visibility Optical Characteristics

  Optical Characteristics

  Glass Type	TFT
  Polarizer	Transmissive
  View Angle	160°
  Sunlight Readable	Yes

  Backlight Color	White
  Backlight Type	LED
  Foreground Color	RGB
  Background Color	Dark

• electric_bolt Electrical Specification

  Electrical Specifications

  Supply Voltage for Logic Minimum	3V
  Supply Voltage for Logic Maximum	3.6V

  Supply Voltage for Logic Typical	3.3V
  Supply Current Typical	23.4mA

• electric_bolt Backlight Specification

  Backlight Electrical Specifications

  Forward Voltage Minimum	18V
  Forward Voltage Maximum	20.4V

  Forward Voltage Typical	19.2V
  Forward Current Typical	40mA

• nature Environmental

  Environmental

  Operating Temperatures	min	max
  Celsius	-20°	70°
  Fahrenheit	-4°	158°

  Storage Temperatures	min	max
  Celsius	-30°	80°
  Fahrenheit	-22°	176°

• cable Electronics

  Electronics

  Controller Documents	Sitronix ST7272A 480x480 System-On-Chip Driver for 320RGBx240 Dual Gate TFT LCD
  Interface	DOT-CLK interface / Generic RGB

• picture_as_pdf Datasheets
  picture_as_pdf

  CFAF320240H0-035SN Datasheet




• download Files and Downloads
  folder_zip Hardware Design - 3D Model

• assured_workload Compliance Documents
  picture_as_pdf Declaration of Conformity RoHS2

  picture_as_pdf Declaration of Conformity REACH
