This product is discontinued and has been replaced by CFAX12864U1-TFH

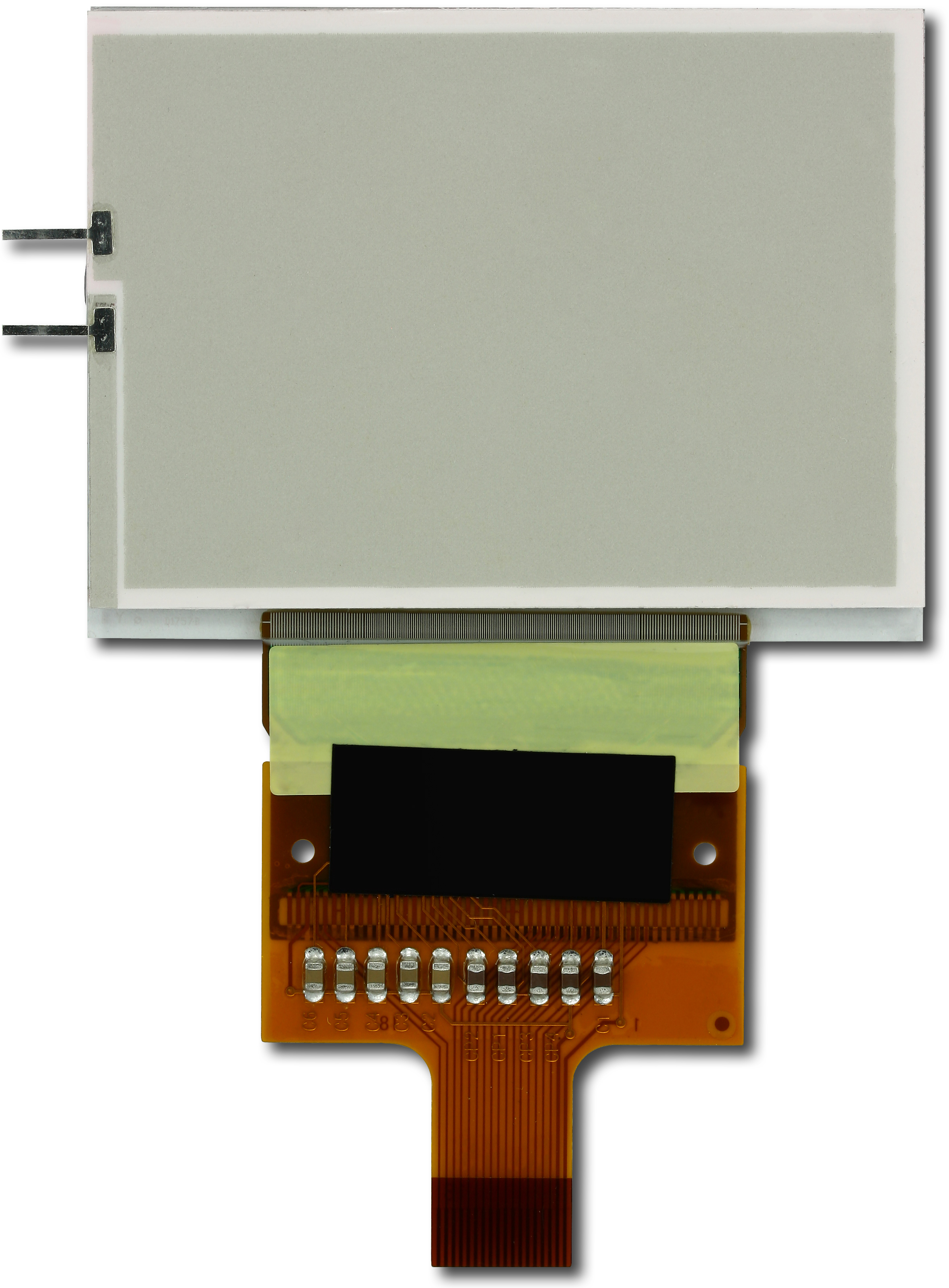

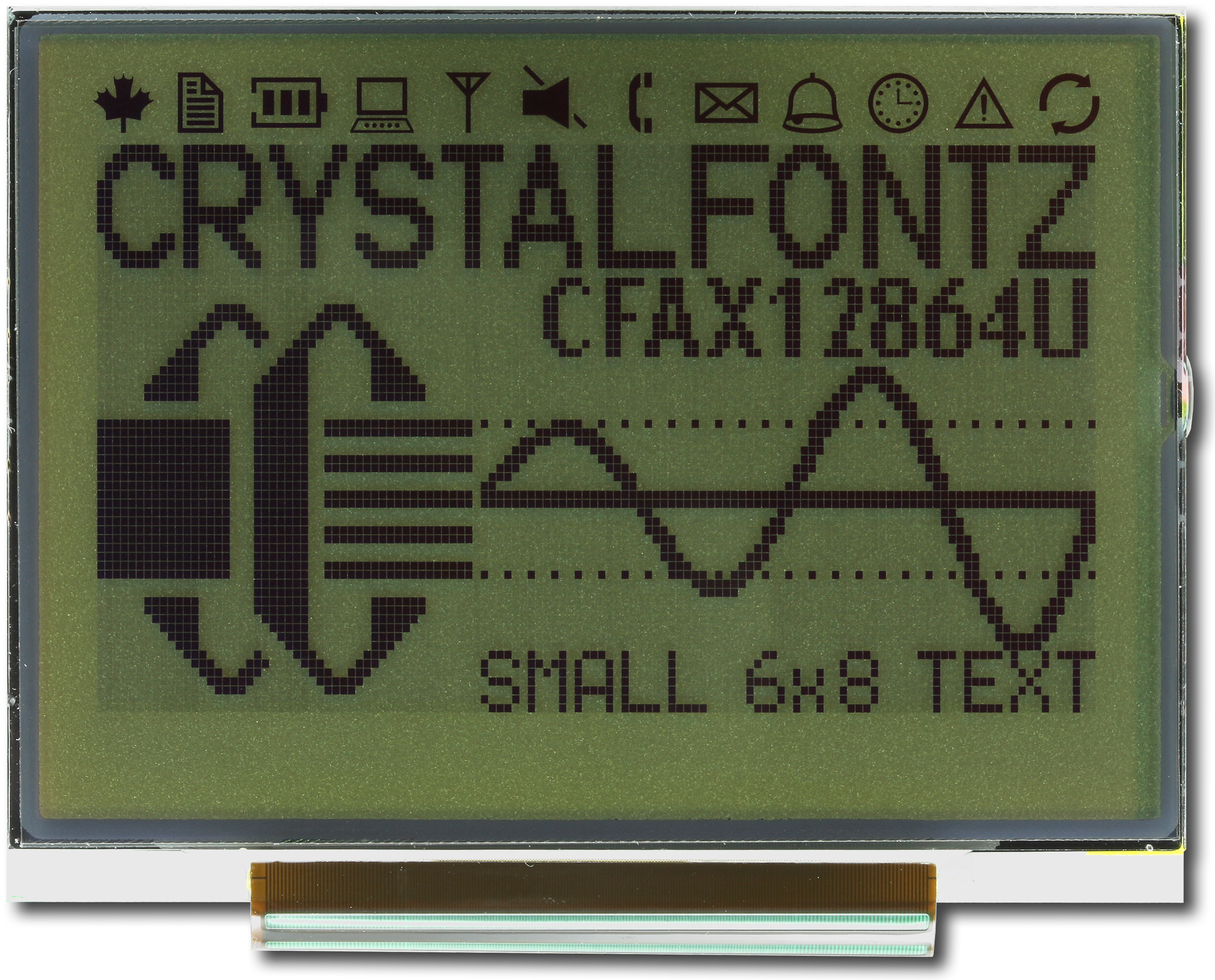

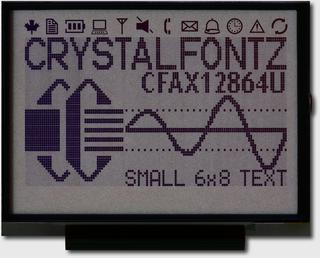

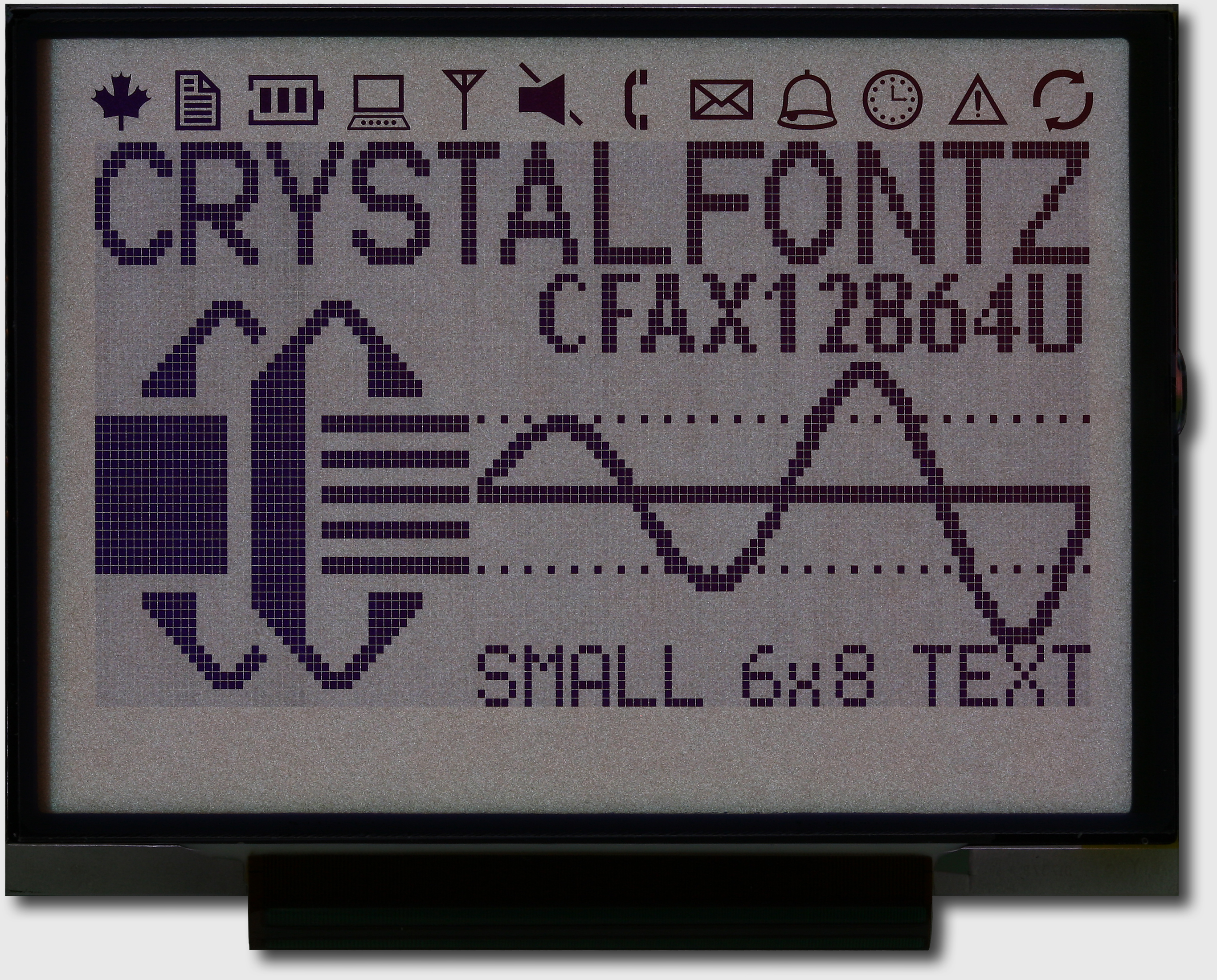

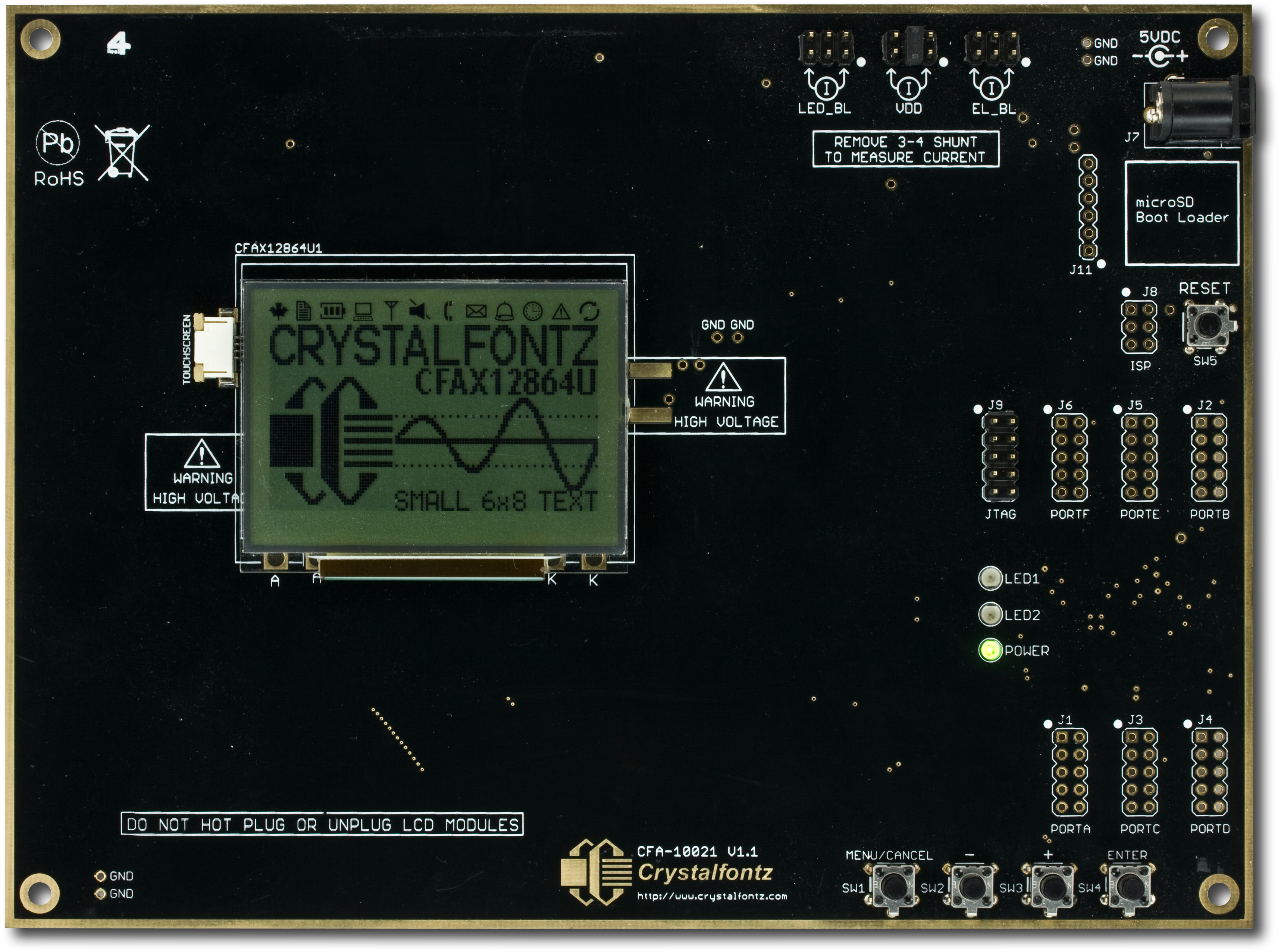

128x64 SPI Graphic LCD

Part Number: CFAX12864U1-WFH

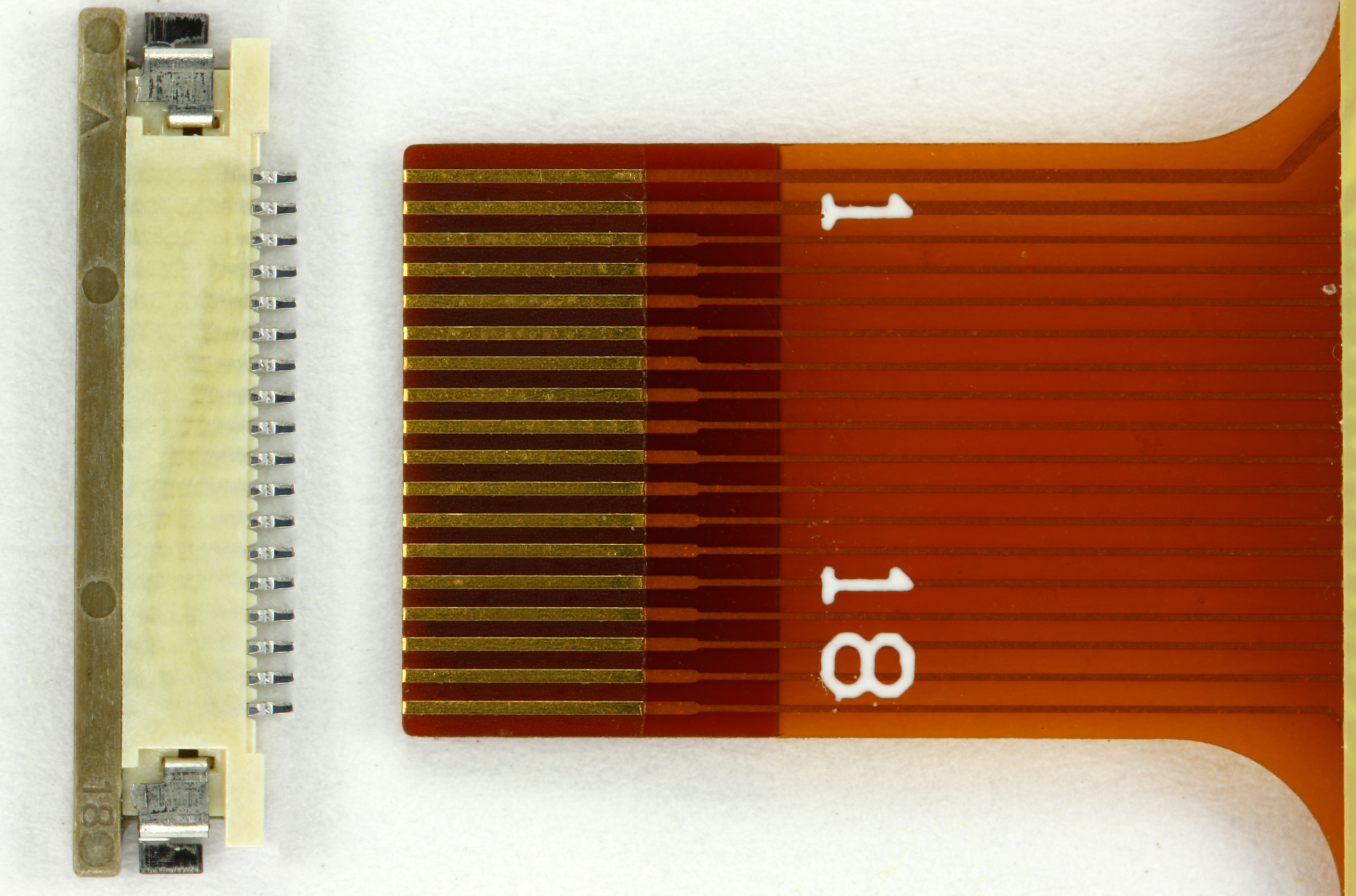

(EOL)This is a thin, extremely low-power 128x64 graphic LCD display module. An integrated white EL backlight easily illuminates the display in low-light conditions. This display is perfectly suited for hand-held or any application that requires low-power or a very thin display. A row of icons is automatically shown at the top of the display without having to be rendered. This display has an integrated controller and the tail is designed to mate with standard 18-conductor 0.5mm pitch ZIF connectors (typical would be Omron XF2L18351A/ DigiKey P/N OR754CT-ND).

  • Ultra thin and light TAB construction
  • Wide temperature range: -20°C to 70°C (-4°F to 158°F)
  • Built-in Novatek NT7534 controller
  • Great for handheld instruments, cell phones, PDAs, etc
  • Ultra low power consumption
  • RoHS Compliant
  • square_foot Physical Characteristics

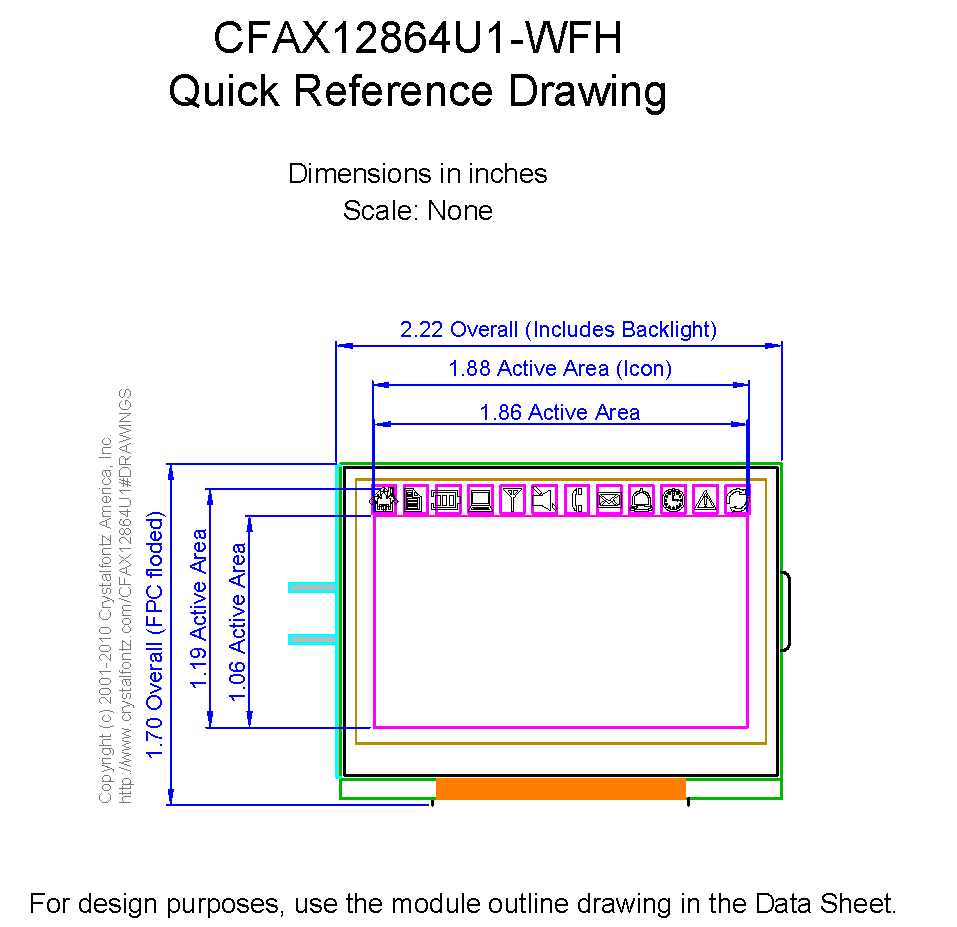

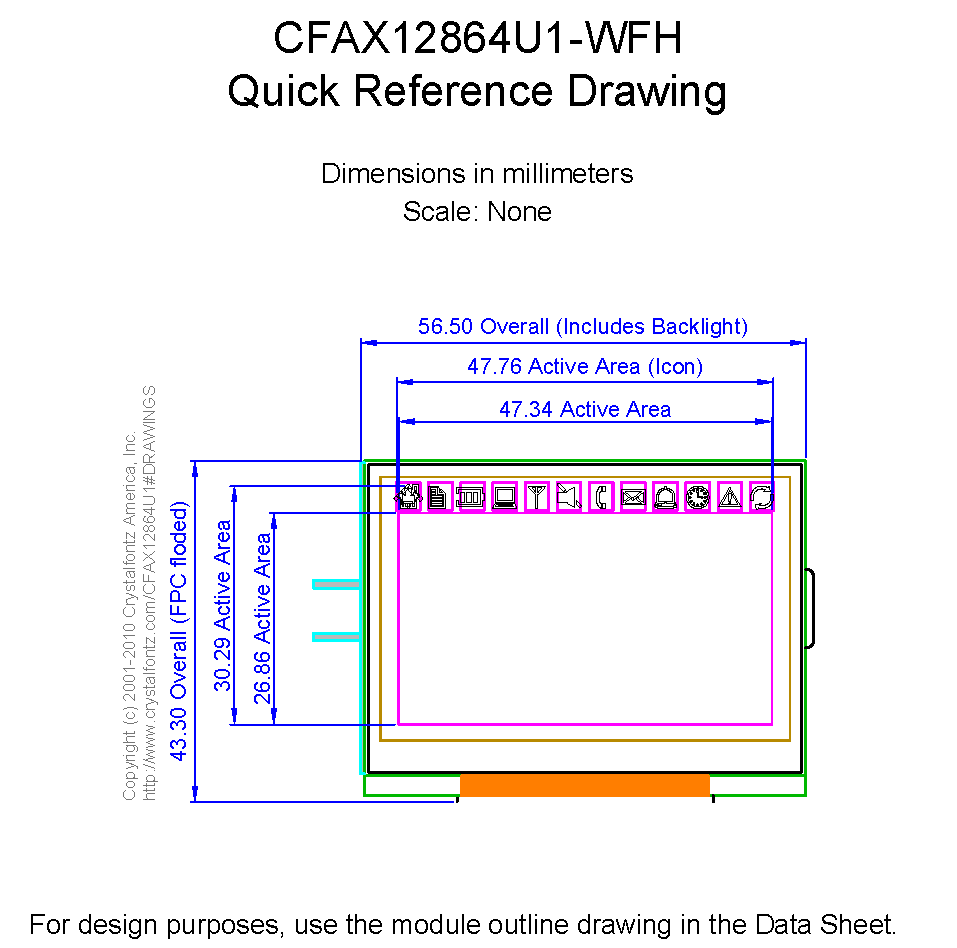

    Physical Characteristics

    Column Dots x Row Dots 128 x 64
    Module Overall width height depth
    millimeters 62.5 43.3 3.15
    inches 2.46 1.71 0.12
    *width / height does not include Foldable Tab
    Viewing Area Width Height
    millimeters 52 33.5
    inches 2.05 1.32
    Active Area Width Height
    millimeters 47.34 26.86
    inches 1.86 1.06
    Dot Size Width Height
    millimeters 0.35 0.4
    inches 0.014 0.016
    Dot Pitch Width Height
    millimeters 0.37 0.42
    inches 0.015 0.017
    Weight 11g
  • visibility Optical Characteristics

    Optical Characteristics

    Glass Type/Glass Color FSTN/Light Gray
    Polarizer Transflective
    View Direction 6 o'clock
    Sunlight Readable Yes
    Backlight Color EL White
    Backlight Type EL
    Mode Positive
    Foreground Color Dark
    Background Color White
  • electric_bolt Electrical Specification

    Electrical Specifications

    Supply Current Minimum 0.18mA
    Supply Current Maximum 0.18mA
    Supply Current Typical 0.18mA
    Module Connector Pitch 0.5mm
  • nature Environmental

    Environmental

    Operating Temperatures min max
    Celsius -20° 70°
    Fahrenheit -4° 158°
    Storage Temperatures min max
    Celsius -30° 80°
    Fahrenheit -22° 176°
    Humidity min max
    Non-condensing 0% 90%
  • cable Electronics

    Electronics

    Controller Documents Novatek NT7534
    NT7534
    132 X 65 RAM-Map STN LCD
    Controller/Driver
    (This controller is a possible replacement for the EOL Samsung S6B1713)
    Interface 8-bit Parallel, SPI
  • picture_as_pdf Datasheets
  • download Files and Downloads

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFAX12864U1-WFH or RSS RSS feed for changes to CFAX12864U1-WFH
  • text_snippet
    Product Update #10592: EL and CCFL backlight display modules End of Life
    Products Affected: CFAG12864B-WGH-N, CFAG12864B-WGH-V, CFAG320240CX-FMI-T, CFAG24064A-FMI-TZ, CFAG24064A-FTI-TZ, CFAX12864U1-WFH, CFAX12864T1-WFH, CFAX12864T-WFH, CFAX12864U-WFH
    Date Issued: June 13, 2014
    Summary: EL and CCFL backlight display modules End of Life
    Last revision: Varies
    Description: EL and CCFL backlight display module are going End Of Life 2014-06-31.
    Reason: Market trends and new product development have reduced demand for EL and CCFL backlights with a move to longer life and less expensive LED backlights. Backlight inverters that support EL and CCFL backlights are also EOL:
    https://www.crystalfontz.com/news/pcn.php?id=10591
    Impact: EL and CCFL backlight display modules will no longer be available.
    Recommendation: It is recommended that customers currently using EL or CCFL based modules to transition to an LED based counterpart. This will re
    Availability: Last orders must be received no later than 2014-06-31.
    Last shipments will be late September of 2014.
    Current inventory at Crystalfontz America will not be replenished and sold until exhausted.
    Price Change: No price change.
