(EOL)128x64 Graphic LCD Demo Board

Part Number: CFAXZIF-DEMO

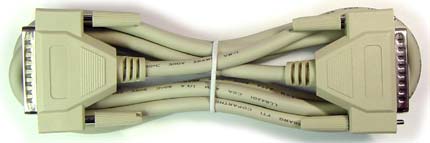

Graphic LCD Demonstration Board compatible with CFAX12864T1 and CFAX12864U1 only. Includes power and parallel cable

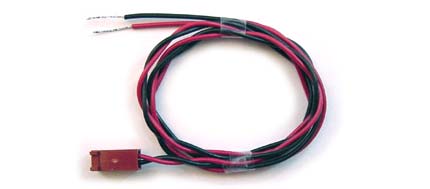

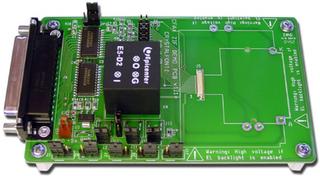

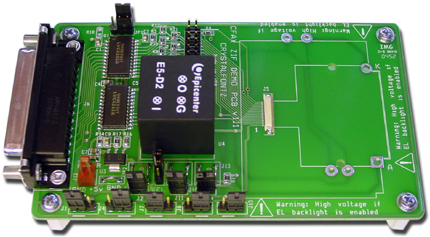

The CFAX Demo PCB allows you to easily evaluate our CFAX12864CP1 displays. The CFAX Demo PCB connects to the parallel port of a standard PC, and requires +5v DC power. A "pigtail" cable is included for easy connection to a bench supply.

• PCB includes an EL inverter
• PCB includes jumpers to aid in measuring actual current consumption of the CFAX12864CP1 displays
• There is a 0.1" header to aid in connecting the display to an MCU evaluation board
• Demo board is compatible with CFAX12864CP and CFAX12864AP series modules only

• square_foot Physical Characteristics

  Physical Characteristics

  Column Dots x Row Dots

  128 x 64

• visibility Optical Characteristics

  Optical Characteristics

  Backlight Color

  Green

• picture_as_pdf Datasheets
  Previous Versions of Datasheet

  picture_as_pdf

  CFAX ZIF DEMO Schematic v1 1.pdf


  (Datasheet V 1.0)

• download Files and Downloads
  folder_zip Software Source - CFAX WinTest for U1 / T1 series


  folder_zip Software Source - Zipped VC++ 6.0 Source


  settings_application Software Binary - port95nt


  picture_as_pdf Other Document - CFAX ZIF Demo Schematic

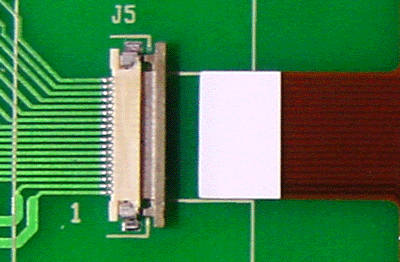

  picture_as_pdf Other Document - Animation showing ZIF connector operation


  picture_as_pdf Other Document - Schematic of the ZIF connector
