This product has reached end of life and has been replaced by CFAG12864U3-TFH

(EOL) 128x64 SPI Graphical LCD

Part Number: CFAX12864U1-TFH

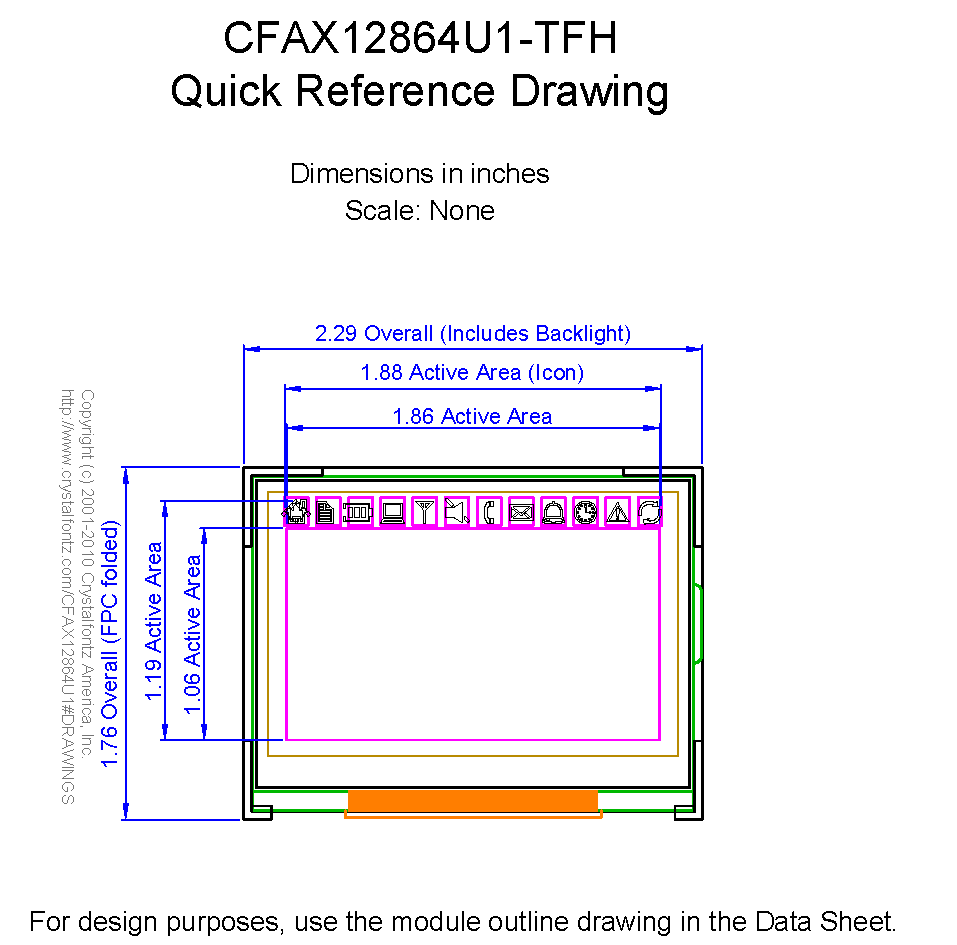

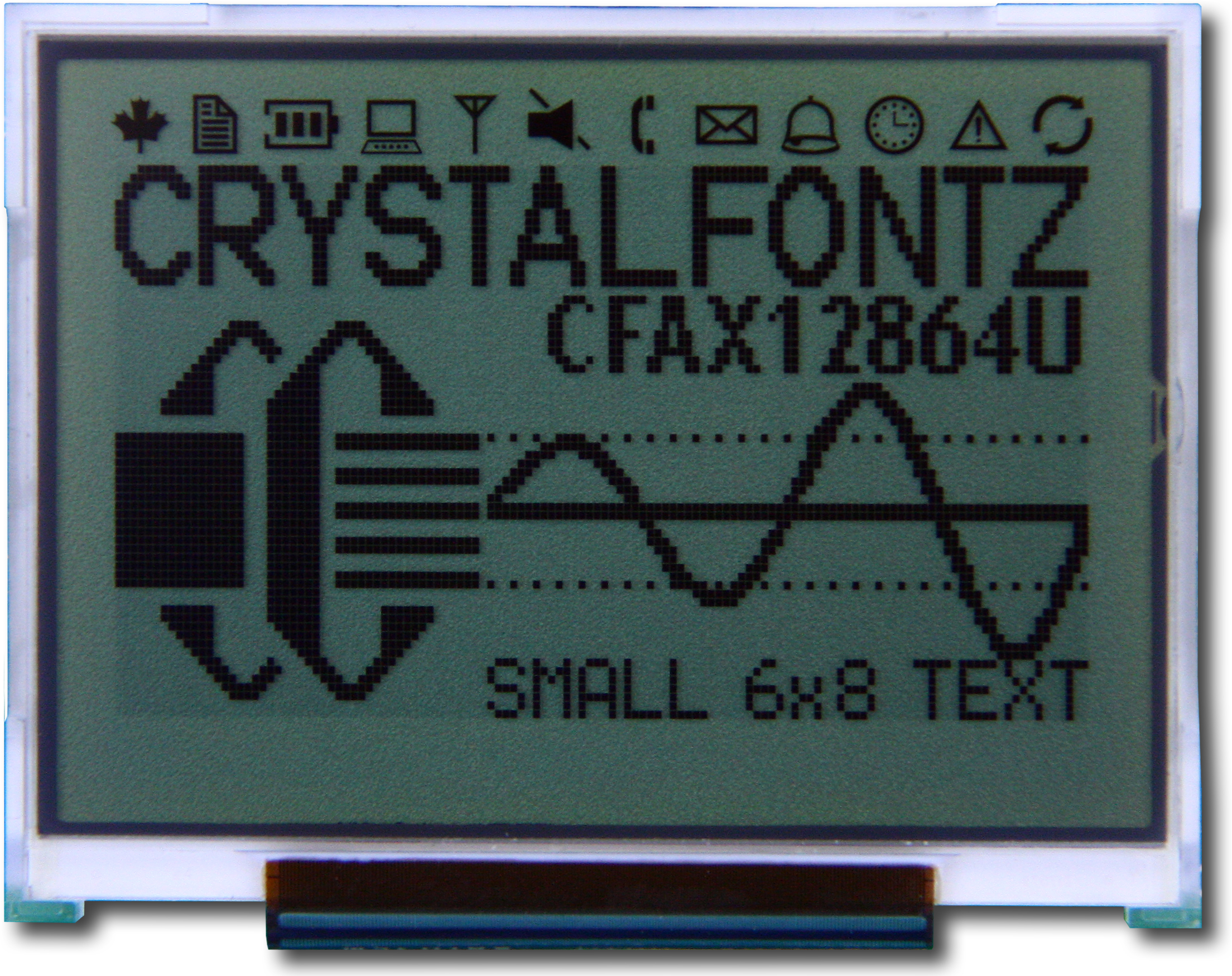

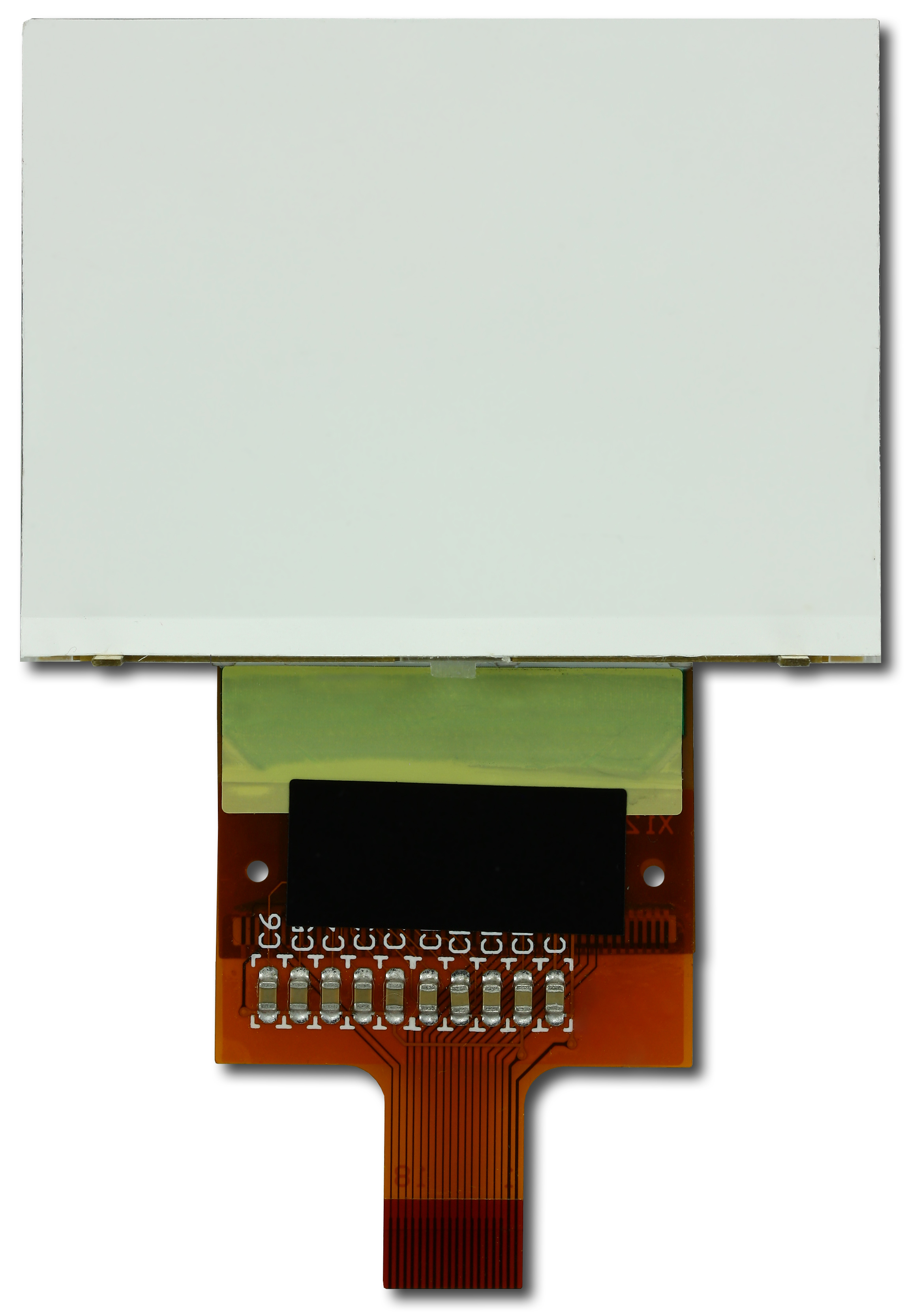

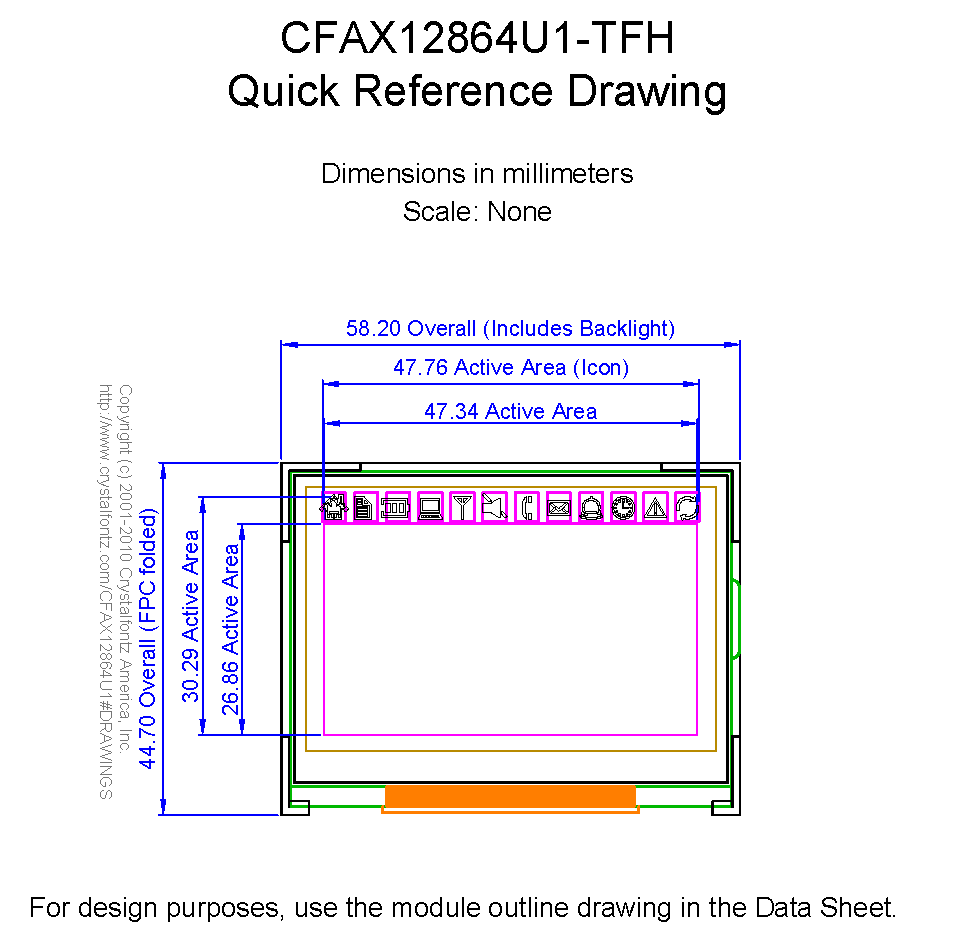

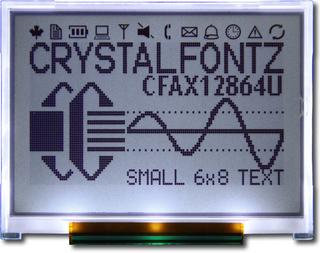

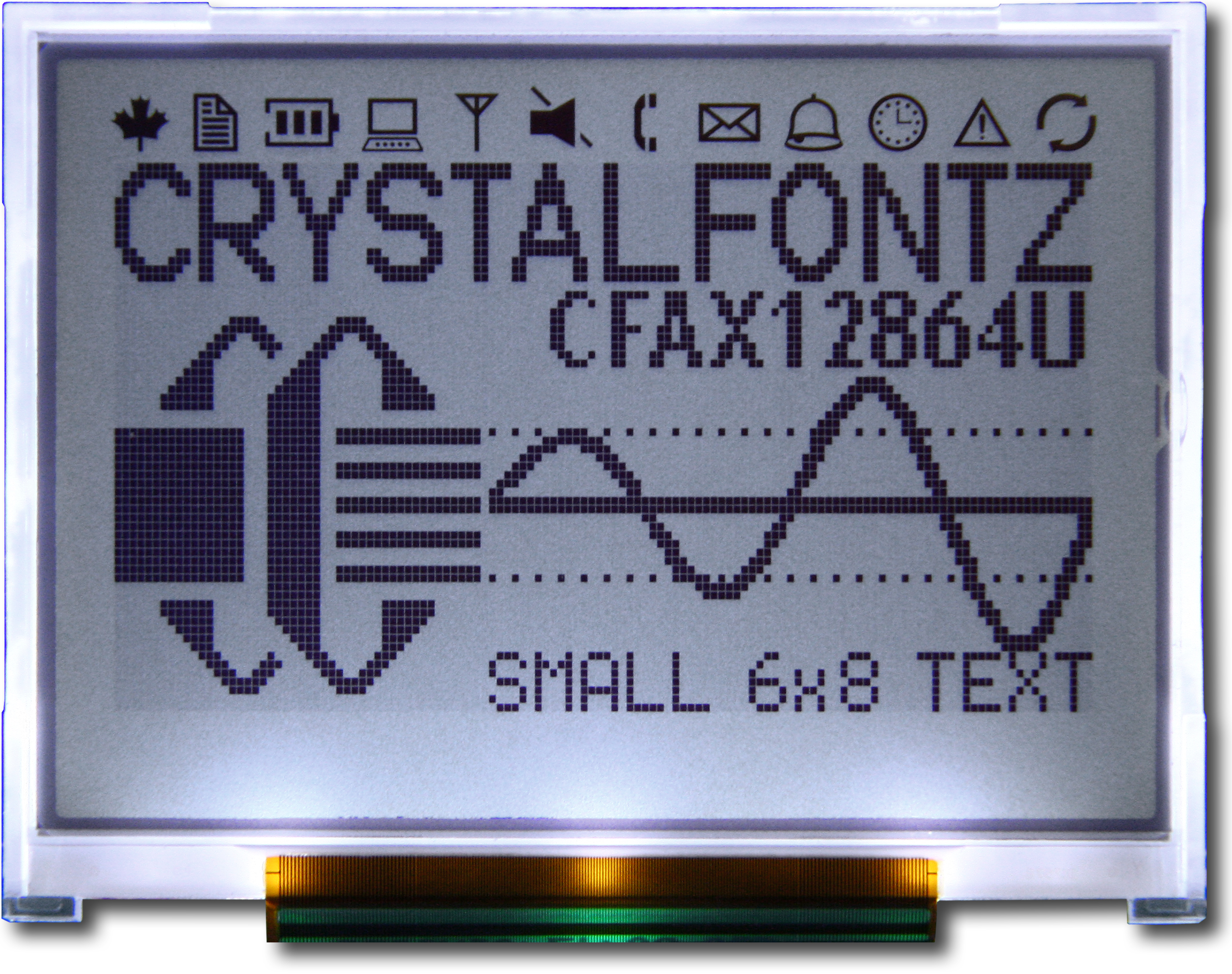

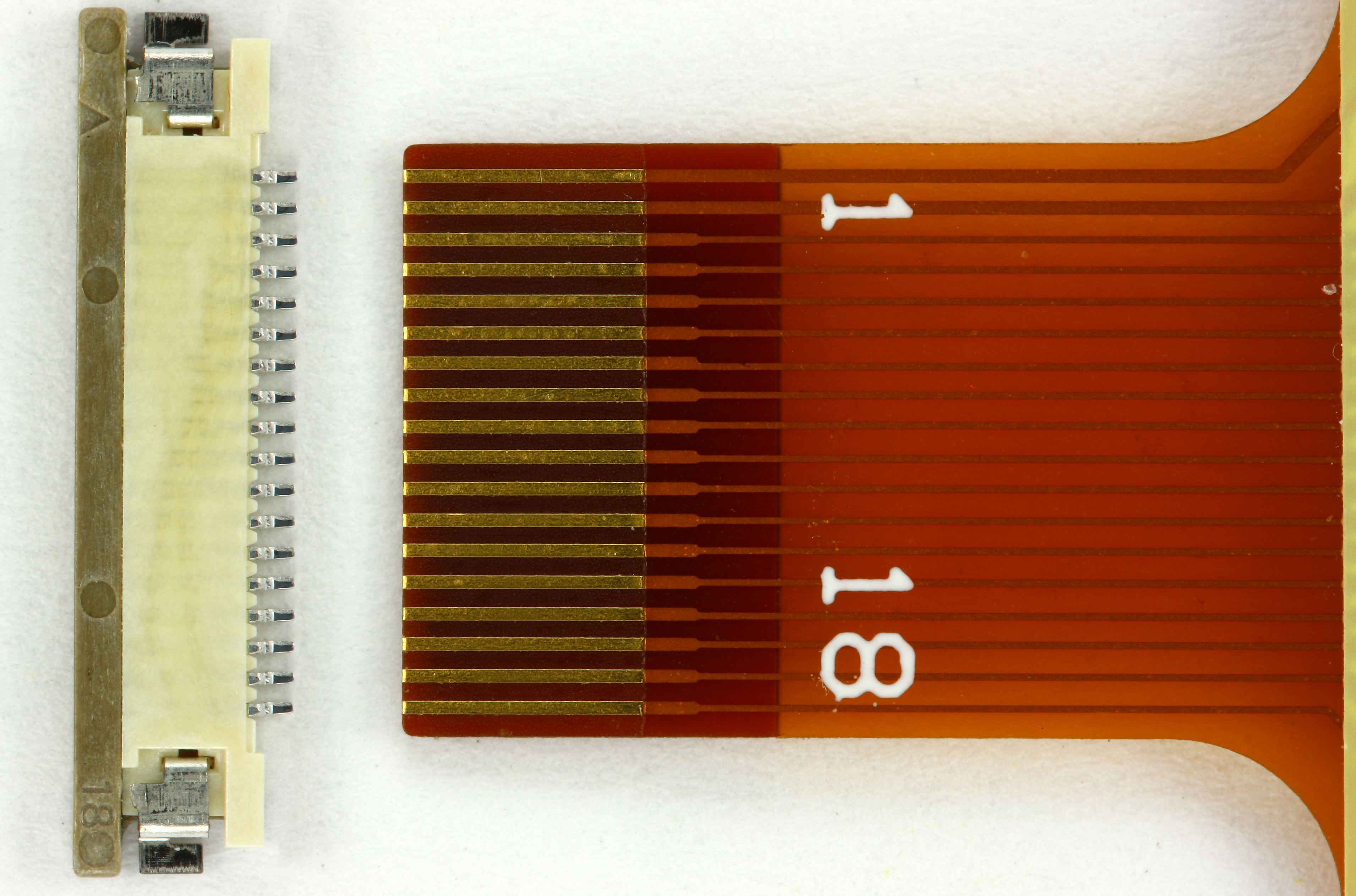

This is an extremely low-power 128x64 graphic LCD display module. With its integrated white LED backlight, illuminating the display is no problem in low-light conditions. This display is perfectly suited for hand-held, or any application requiring low power consumption or a very thin display. The top of the display automatically shows a row of icons without your having to render them. This module has an integrated controller and its tail is designed to mate with standard 18-conductor 0.5mm pitch ZIF connectors (typical would be Omron XF2L18351A/ DigiKey P/N OR754CT-ND).

  • Ultra thin and light TAB construction
  • Form, and Function compatible with CFAX12864CP1 series of LCD modules
  • Wide temperature range: -20°C to 70°C (-4°F to 158°F)
  • Built-in Novatek NT7534 controller
  • Great for handheld instruments, cell phones, PDAs, etc
  • Ultra low power consumption
  • Demonstration board available here: DMOX12864U1TFH
  • RoHS Compliant

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFAX12864U1-TFH or RSS RSS feed for changes to CFAX12864U1-TFH
  • text_snippet
    Product Update #10882: Replacement Part Available
    Product Affected: CFAX12864U1-TFH
    Date Issued: October 13, 2017
    Summary: Replacement Part Available
    Description: The CFAG12864U2-TFH is now available as a replacement for the end-of-life part CFAX12864U1-TFH.

    You can find the new part available for order here:
    https://www.crystalfontz.com/product/cfag12864u2tfh-128x64-graphical-lcd
  • text_snippet
    Product Update #10867: Extended Last Time Buys until Oct 31, 2017
    Products Affected: CFAX12864U1-TFH, CFAX12864U1-NFH, CFAX12864T1-TFH, CFAX12864T1-NFH
    Date Issued: July 25, 2017
    Summary: Extended Last Time Buys until Oct 31, 2017
    Description: The products listed have been assigned to End of Life Status and will be replaced by a new series of displays
    Reason: The controller chip used in these parts will not be available after Oct 31, 2017. Due to long manufacturing lead times, all orders for last time buys must be received by Oct 31, 2017.
    Impact: These parts will not be available after the last time buy date.
    Recommendation: The CFAX12864U1 and CFAX12864T1 series will be replaced by the CFAG12864U2 and CFAG12864T2 series. The new series is designed to be a "drop-in" replacement
    Availability: The new series will be available for order after Oct 31, 2017
    Price Change: Prices for the replacement modules have not been set yet. Prices will be set by Oct 31, 2017.
    Response: We're extending our last time buys until Oct 31, 2017, and developing a drop-in replacement. We'll send out a new product notification when the replacement part is ready.
  • text_snippet
    Product Update #10863: End of Life Announcement with Last Time Buys
    Products Affected: CFAX12864U1-TFH, CFAX12864U1-NFH, CFAX12864T1-TFH, CFAX12864T1-NFH
    Date Issued: June 26, 2017
    Summary: End of Life Announcement with Last Time Buys
    Description: The products listed have been assigned to End of Life Status and will be replaced by a new series of displays.
    Reason: The controller chip used in these parts will not be available after August 2017. Due to long manufacturing lead times, all orders for last time buys must be received by July 28, 2017.
    Impact: These parts will not be available after the last time buy date.
    Recommendation: The CFAX12864U1 and CFAX12864T1 series will be replaced by the CFAG12864U2 and CFAG12864T2 series. The new series is designed to be a "drop-in" replacement.
    Availability: The new series will be available for order after July 28, 2017
    Price Change: Prices for the replacement modules have not been set yet. Prices will be set by July 28, 2017.
    Response: We're offering last time buys until July 28, 2017, and developing a drop-in replacement.
  • text_snippet
    Product Update #10728: CFAX12864U and CFAX12864U1 series backlight improvements.
    Products Affected: CFAX12864U1-TFH, CFAX12864U-TFH
    Date Issued: July 27, 2016
    Summary: CFAX12864U and CFAX12864U1 series backlight improvements.
    Description: The white LED backlight of the Crystalfontz CFAX12864U and CFAX12864U1 series of compact graphic display modules is changing as a result of manufacturing improvements of white LEDs and backlight assembly. The changes are as follows:

    Forward voltage: Old value 3.5v -> new value 3.5v – NO CHANGE
    Supply current (typical): Old value 48mA -> new value 40mA – 17% decrease
    Luminosity (typical): Old value 150 cd/M^2 -> new value 570 cd/M^2 – 280% increase
    Uniformity (typical): Old value 80% -> New value 90% - 12.5% increase

    Note: With 16mA of supply current, luminosity is rated at 250 cd/M^2. This is a 66% decrease in current with a 66% increase in luminosity.
    Display modules with a date code of 08/01/16 (August 01, 2016) will have the new backlight. Date code prior to 08/01/16 will have current backlight.

    To determine the date code, please see the attached document
    How to read CFAX12864U and CFAX12864U1 Date Codes.PDF
    Reason: As part of our continuous improvement, design changes have been made to the white LED backlight of the CFAX12864U and CFAX12864U1 for improved luminosity, and reduced current profile.
    Impact: Reduced current requirements values will effect current driving circuitry.

    Increased luminosity values will effect visual appearance.

    Recommendation: Test engineering samples when available to evaluate backlight circuitry changes and settings for visual consistency.
    Availability: CFAX12864U and CFAX12864U1 display modules with new backlight should begin shipping at the end of Q3 2016.
    Engineering samples for testing / validation will be available during this same time frame.
    Price Change: No price change is currently scheduled.
    Attachment: HowtoreadCFAX12864UandCFAX12864U1DateCodes.pdf (165KB)
