                The display in this kit has gone end-of-life. We'll be replacing this kit with the CFAP104212D1-E2.
Flexible eInk with AdapterPart Number: CFAP104212D0-E2-1

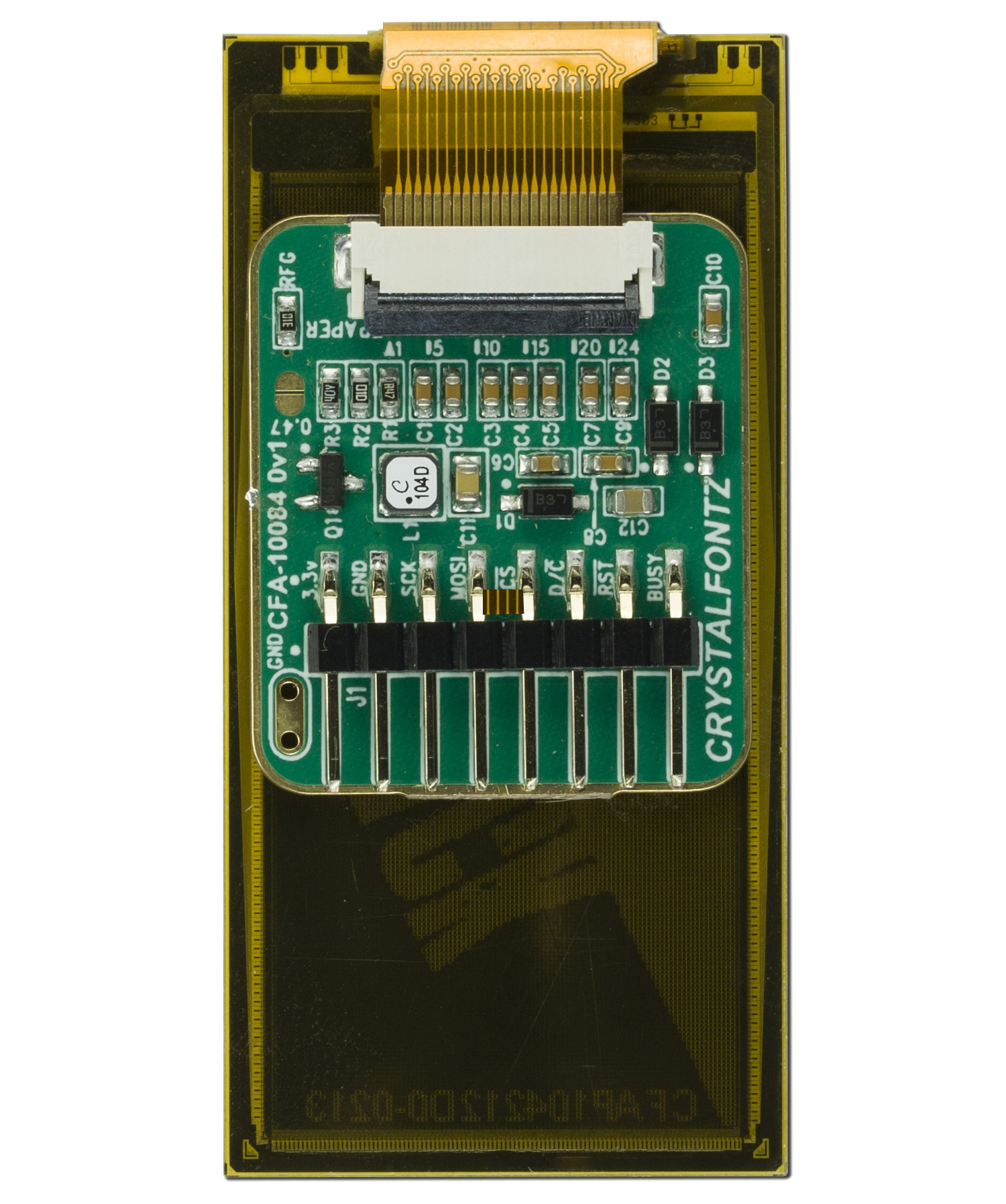

    This 2.13" Flexible eInk/ePaper display kit comes attached to our ePaper adapter board for quick prototyping with any Arduino based controller.

ePaper is perfect for low-energy devices such as shelf labels or name tags; that require few updates and a slow refresh rate. ePaper displays can be disconnected completely from any power source and their screen will maintain it's picture indefinitely. square_foot Physical Characteristics
Physical Characteristics

        Diagonal Dimension
            2.13"

        Weight
            3.2g

 electric_bolt Electrical Specification
Electrical Specifications

        Module Connector Pitch
            2.54mm

 download Files and Downloads
picture_as_pdf Hardware Design - CFA10084 Schematic

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

End-Of-Life #11185: End-Of-Life Notification

Products Affected:	CFAP104212D0-E2-2, CFAP104212D0-E2-1
Date Issued:	March 14, 2023
Summary:	End-Of-Life Notification
Description:	This display is going End-Of-Life and is being replaced with the CFAP104212D0-0213. There are some changes to the initialization sequence that will be required.
Reason:	The controller for the display sometimes exhibits errors if it is not reset using the new sequence as shown in the demonstration code.
Availability:	Contact Crystalfontz Support for up-to-date information by emailing support@crystalfontz.com.
