2.13" Flexible ePaper Display from Crystalfontz

Product

                This epaper display module has been revised to the CFAP104212D1-0213.

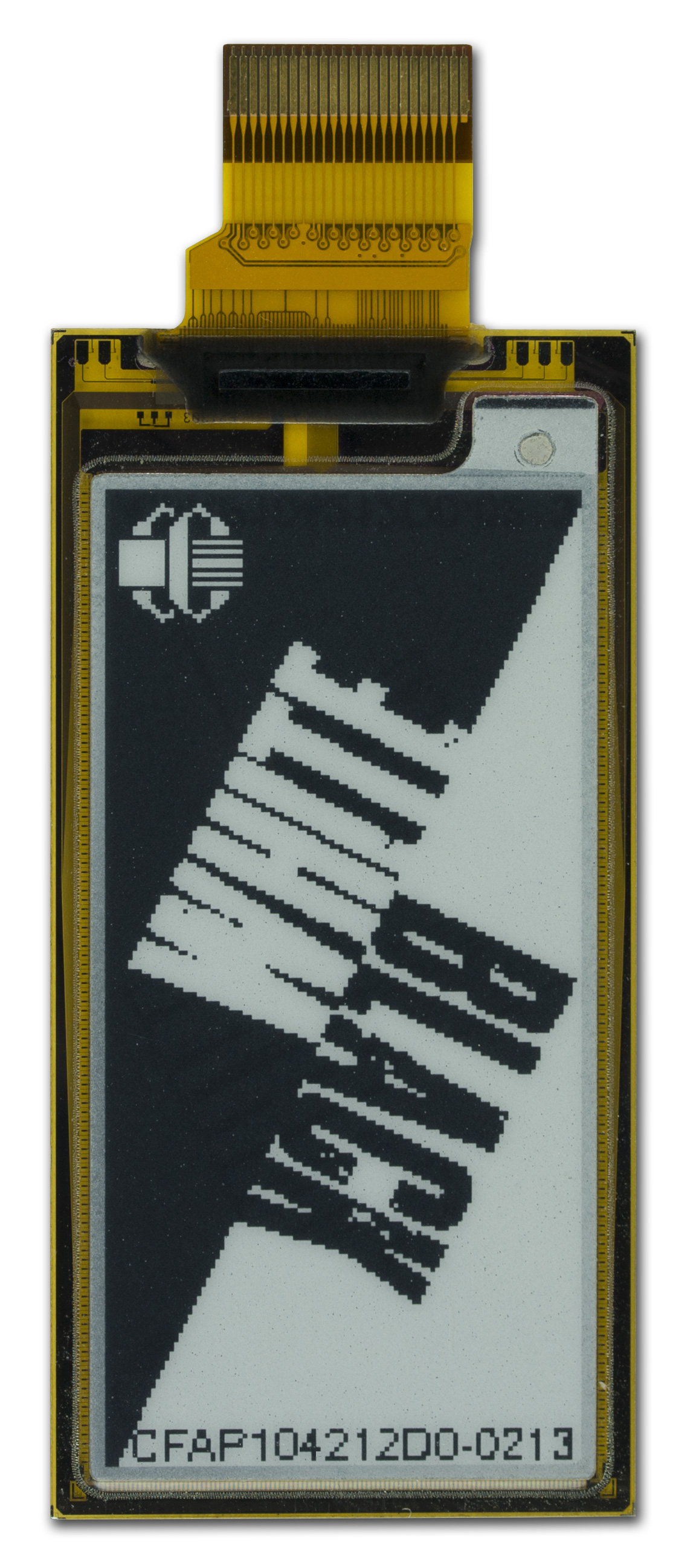

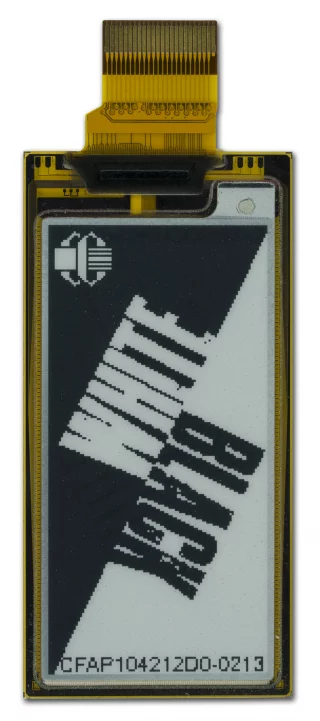

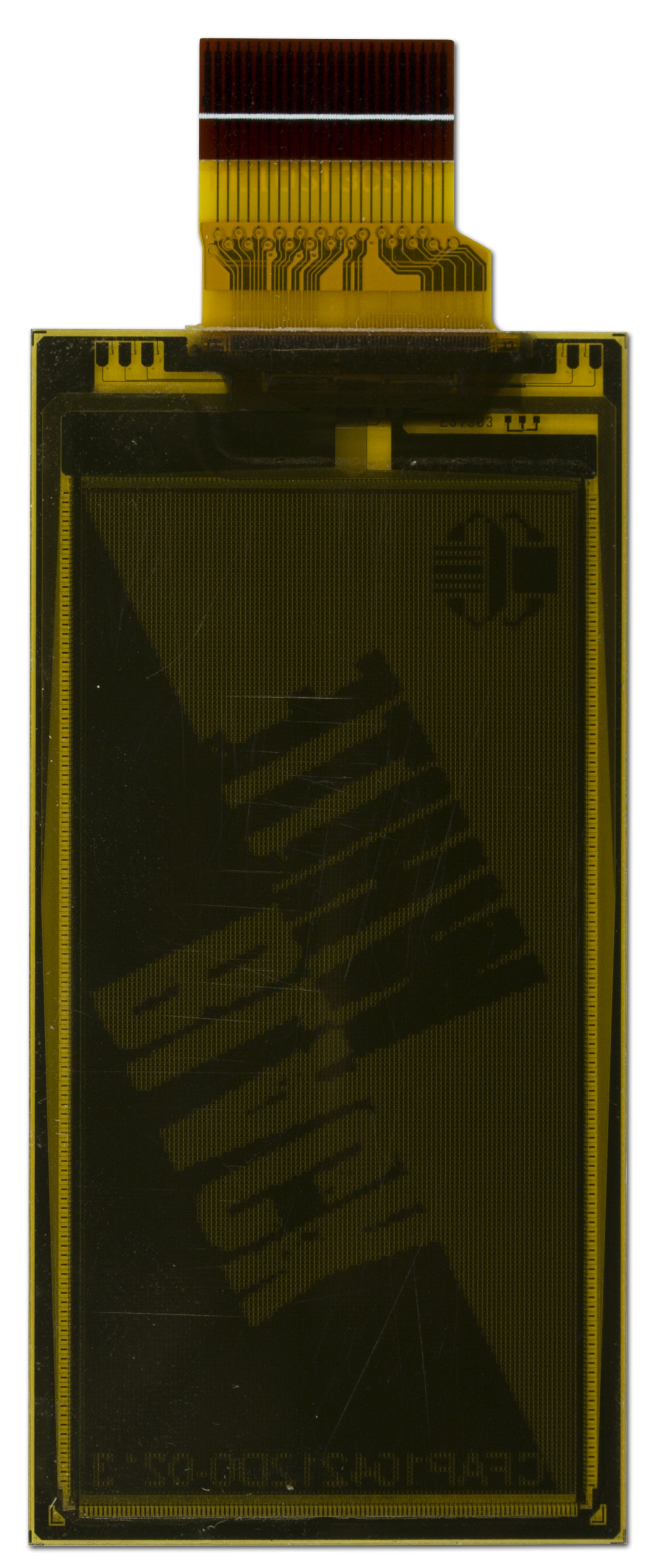

2.13" Flexible ePaper DisplayPart Number: CFAP104212D0-0213

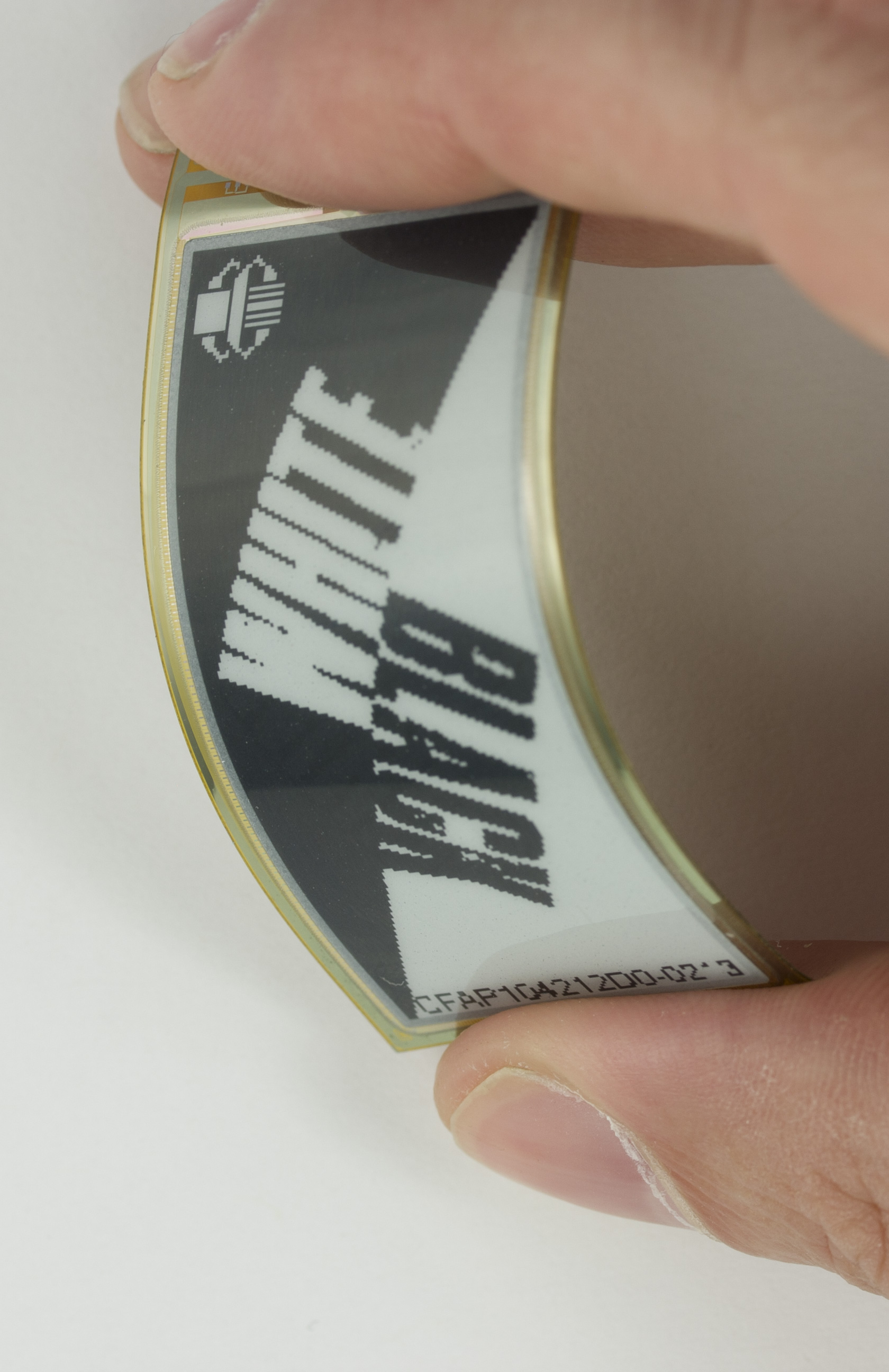

         Cutting-edge, flexible ePaper display. This ePaper display couples the super low-power functionality of standard ePaper and flexibility! Literally, flexible... bendable! These displays are perfect for product labeling, shelf labels, or anything else that requires very little power and some flexibility.

This ePaper display module supports partial updates, see the datasheet for details.

Adapter / Breakout Board

Want to get this display up and running quickly with an Arduino or Seeeduino? We have this ePaper Adapter Board that makes connecting our ePaper simple and fast.

Use our free ePaper software to prepare your bitmap image for this display.

 square_foot Physical Characteristics

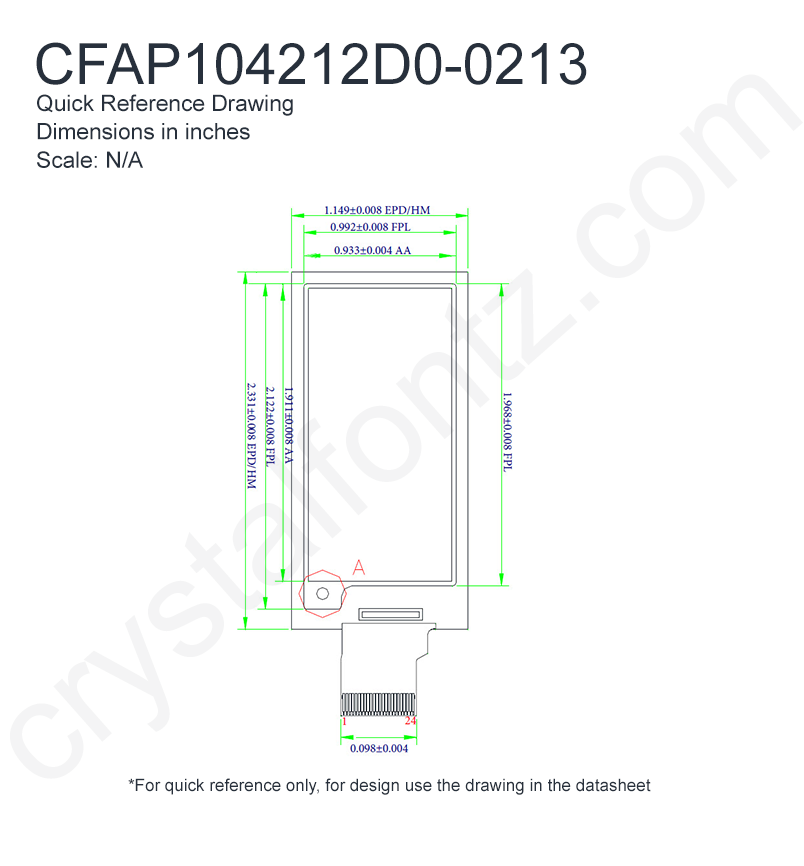

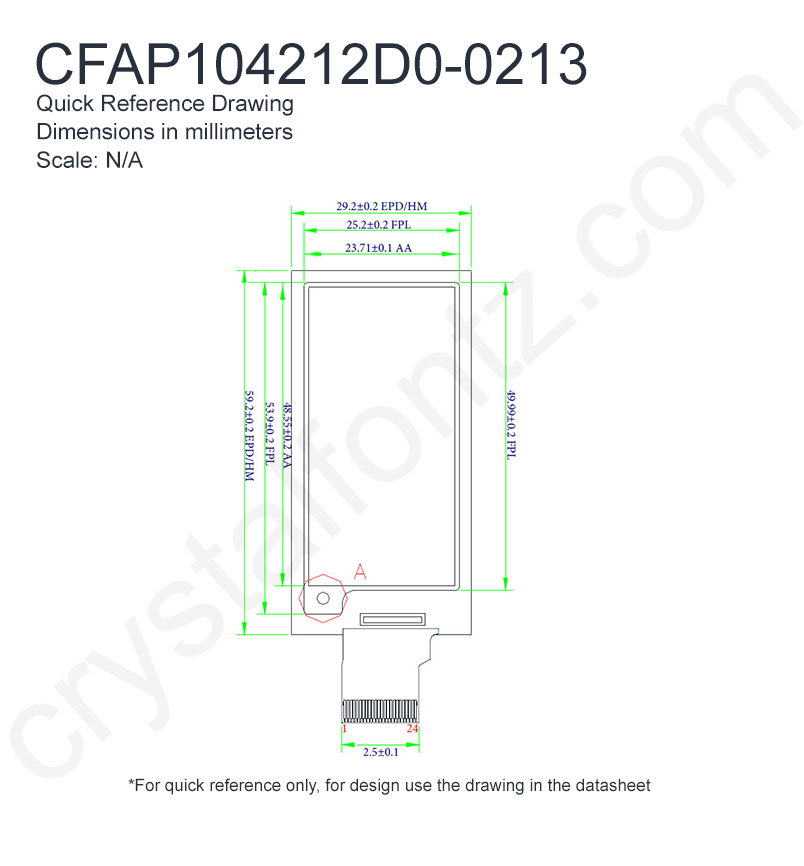

Physical Characteristics

        Column Dots x Row Dots
            104 x 212

    Module Overall        width
        height
        depth

        millimeters
        29.2
        59.2
        0.3

        inches
        1.15
        2.33
        0.01

*width / height does not include Foldable Tab

        Diagonal Dimension
            2.13"

    Active Area        Width
        Height

        millimeters
        23.71
        48.55

        inches
        0.93
        1.91

    Dot Pitch        Width
        Height

        millimeters
        0.228
        0.229

        inches
        0.0090
        0.0090

    Flexible Cable (FFC/FPC)        length

        millimeters
        14.3

        inches
        0.563

        Weight
            0.8g
Pin Count
            24

 visibility Optical Characteristics
Optical Characteristics

        Glass Type
            ePaper
View Angle
            Ultra-Wide°

        Foreground Color
            Black
Background Color
            White

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            2.3V
Supply Voltage for Logic Maximum
            3.6V

        Supply Voltage for Logic Typical
            3.3V
Module Connector Pitch
            0.5mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        0°
        50°

        Fahrenheit
        32°
        122°

    Storage Temperatures        min
        max

        Celsius
        -25°
        70°

        Fahrenheit
        -13°
        158°

    Humidity        min
        max

        Non-condensing
        40%
        70%

 cable Electronics
Electronics

        Interface
            SPI

 picture_as_pdf Datasheets
picture_as_pdfCFAP104212D0-0213 Datasheet

 download Files and Downloads
folder_zip Software Source - Arduino / Seeeduino Demonstration Sketch
picture_as_pdf Hardware Design - CFA10084 Schematic
link Fork this on Github

Module Overall	width	height	depth
millimeters	29.2	59.2	0.3
inches	1.15	2.33	0.01
*width / height does not include Foldable Tab

Active Area	Width	Height
millimeters	23.71	48.55
inches	0.93	1.91

Dot Pitch	Width	Height
millimeters	0.228	0.229
inches	0.0090	0.0090

Flexible Cable (FFC/FPC)	length
millimeters	14.3
inches	0.563

Operating Temperatures	min	max
Celsius	0°	50°
Fahrenheit	32°	122°

Storage Temperatures	min	max
Celsius	-25°	70°
Fahrenheit	-13°	158°

Humidity	min	max
Non-condensing	40%	70%

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

End-Of-Life #11176: End-Of-Life Notification

Products Affected:	CFAP104212D0-0213, CFAP200200A3-E2-1, CFAP200200A3-E2-2
Date Issued:	February 27, 2023
Summary:	End-Of-Life Notification
Description:	This product is going EOL and being replaced with the CFAP104212D00213. There are some changes to the initialization sequence that will be required.
Reason:	The controller for the display sometimes exhibits errors if it is not reset using the new sequence as shown in the demonstration code.
Availability:	Contact Crystalfontz Support for up-to-date information by emailing support@crystalfontz.com.
