20x4 Yellow-Green Character Module from Crystalfontz

Product

Home » Products » Sunlight Readable Displays » Character

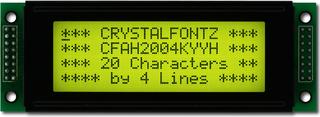

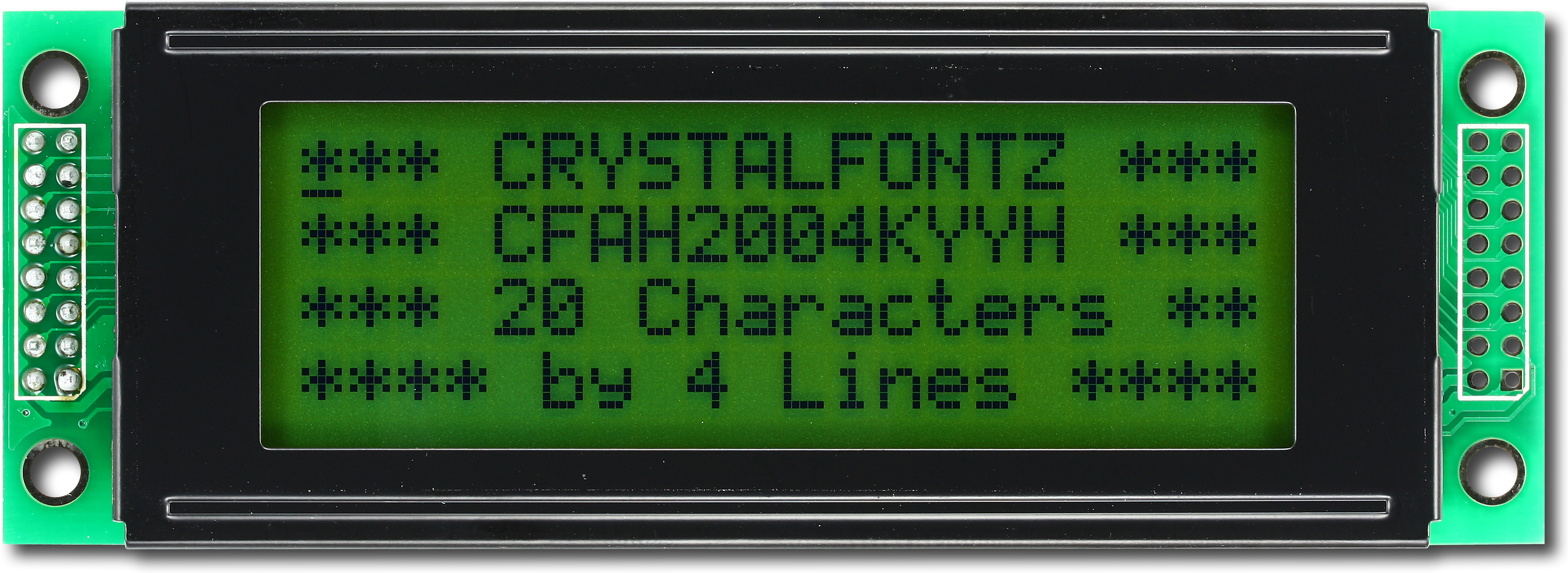

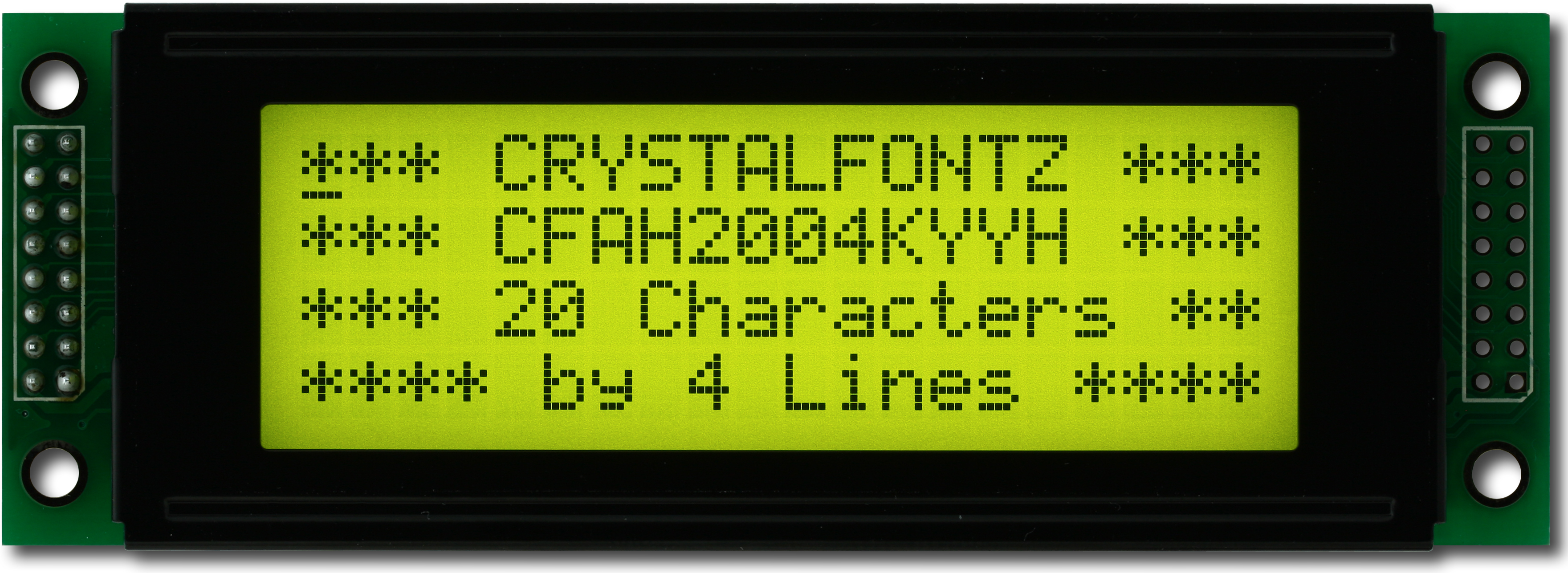

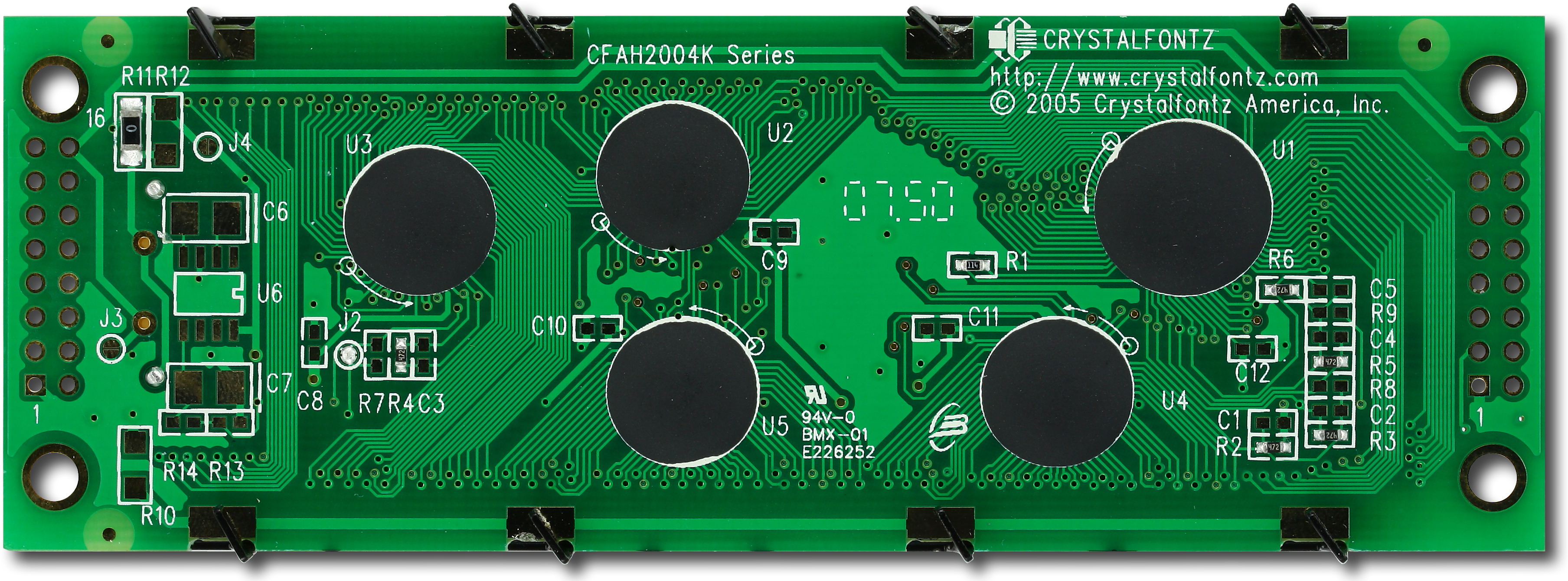

20x4 Yellow-Green Character ModulePart Number: CFAH2004K-YYH-JPParallel Character LCD 20x4, RoHS Compliant, Yellow/Green LED Backlight, STN Positive, Yellow/Green, Transflective -20°C to +70°C 6:00
8-bit or 4-bit parallel interface
Industry-standard HD44780 compatible controller
Product VariationsColorsDark on Yellow-Green
Yellow-Green LED BacklightWhite on Blue
White LED Backlight

 square_foot Physical Characteristics
Physical Characteristics

        Characters x Lines
            20 x 4


    Module Overall        width
        height
        depth


        millimeters
        116
        40
        15


        inches
        4.57
        1.58
        0.59



    PCB Outline        width
        height
        depth


        millimeters
        116
        40
        15


        inches
        4.57
        1.58
        0.59



        Diagonal Dimension
            2.89"


    Viewing Area        Width
        Height


        millimeters
        76
        25.2


        inches
        2.99
        0.99



    Active Area        Width
        Height


        millimeters
        70.4
        20.8


        inches
        2.77
        0.82



    Character Size        Width
        Height


        millimeters
        2.95
        4.75


        inches
        0.116
        0.187



    Character Pitch        Width
        Height


        millimeters
        3.55
        5.35


        inches
        0.140
        0.211



    Dot Size        Width
        Height


        millimeters
        0.55
        0.55


        inches
        0.022
        0.022



    Dot Pitch        Width
        Height


        millimeters
        0.6
        0.6


        inches
        0.024
        0.024



        Weight
            68g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Yellow-Green
Polarizer
            Transflective
View Direction
            6 o'clock
Sunlight Readable
            Yes


        Backlight Color
            Yellow-Green
Backlight Type
            LED
Mode
            Positive
Foreground Color
            Dark
Background Color
            Yellow-Green

 electric_bolt Electrical Specification
Electrical Specifications

        Module Connector Pitch
            0.1mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -20°
        70°


        Fahrenheit
        -4°
        158°



    Storage Temperatures        min
        max


        Celsius
        -30°
        80°


        Fahrenheit
        -22°
        176°



    Humidity        min
        max


        Non-condensing
        0%
        90%


 cable Electronics
Electronics

        Controller Documents
            Wuxi AiP31066L
40 SEG / 16 COM Driver and Controller for Dot Matrix LCD
Interface
            4-bit Parallel, 8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAH2004KYYHJP Datasheet

Previous Versions of Datasheetspicture_as_pdfCFAH2004K-YYH-JP Data Sheet v1.0.pdf
(Datasheet V 1.0, Hardware 0.0)
picture_as_pdfCFAH2004K-YYH Data Sheet v0.0a.pdf
(Datasheet V 0.0a, Hardware 0.0, Firmware 1.0)
picture_as_pdfCFAH2004K-YYH Data Sheet v0.0.pdf

 download Files and Downloads
folder_zip Software Source - Arduino 6800 Demonstration Code
folder_zip CAD Export - CFAH2004K 2D CAD
picture_as_pdf 1 to 1 Template - CFAH2004K 1 TO 1.PDF
