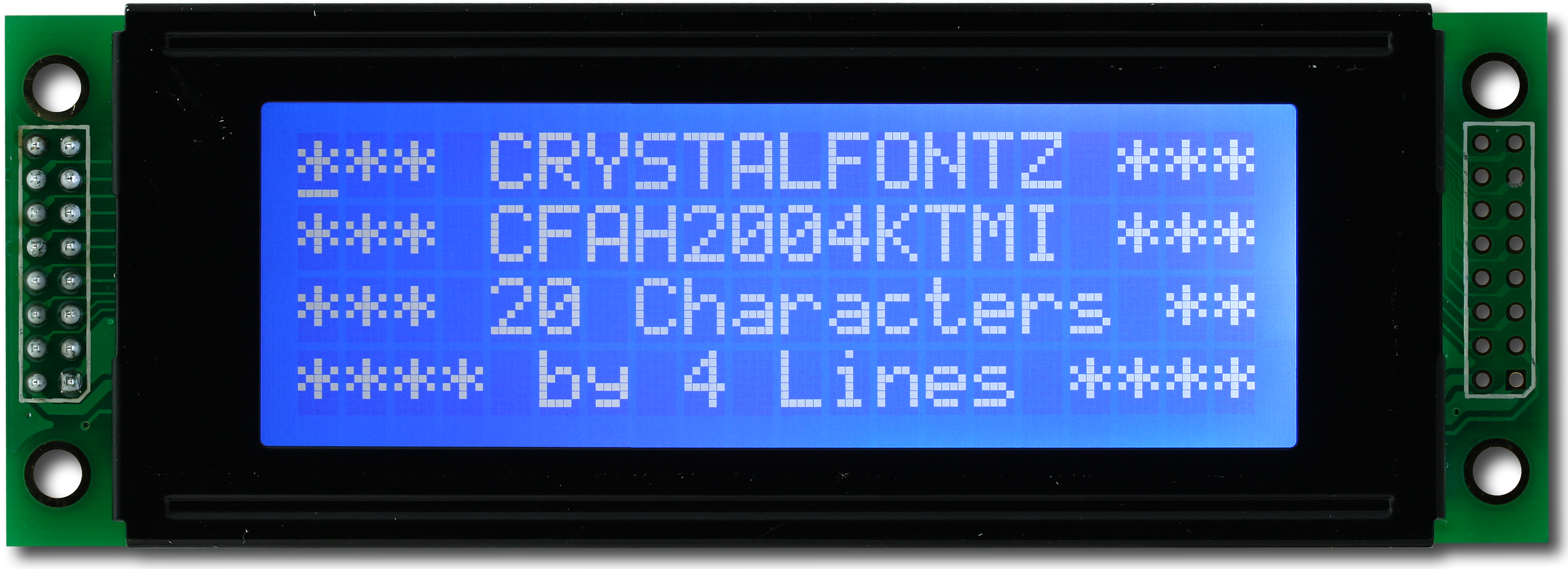

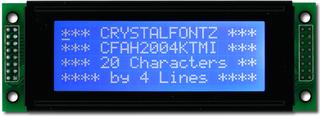

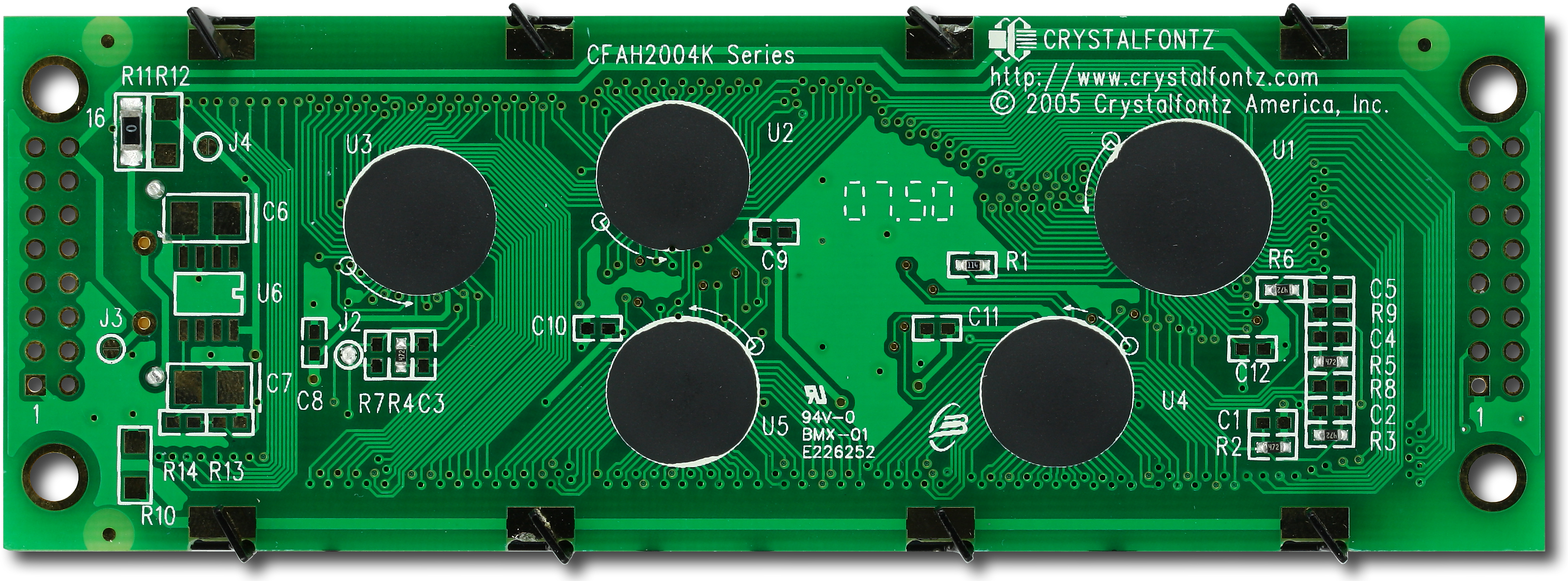

White on Blue 20x4 Character DisplayPart Number: CFAH2004K-TMI-JPParallel Character LCD 20x4, RoHS Compliant, White Edge LED Backlight, STN Negative, Blue, Transmissive -20°C to +70°C 6:00
8-bit or 4-bit parallel interface
Industry-standard HD44780 compatible controller
Product VariationsColorsDark on Yellow-Green
Yellow-Green LED BacklightWhite on Blue
White LED Backlight

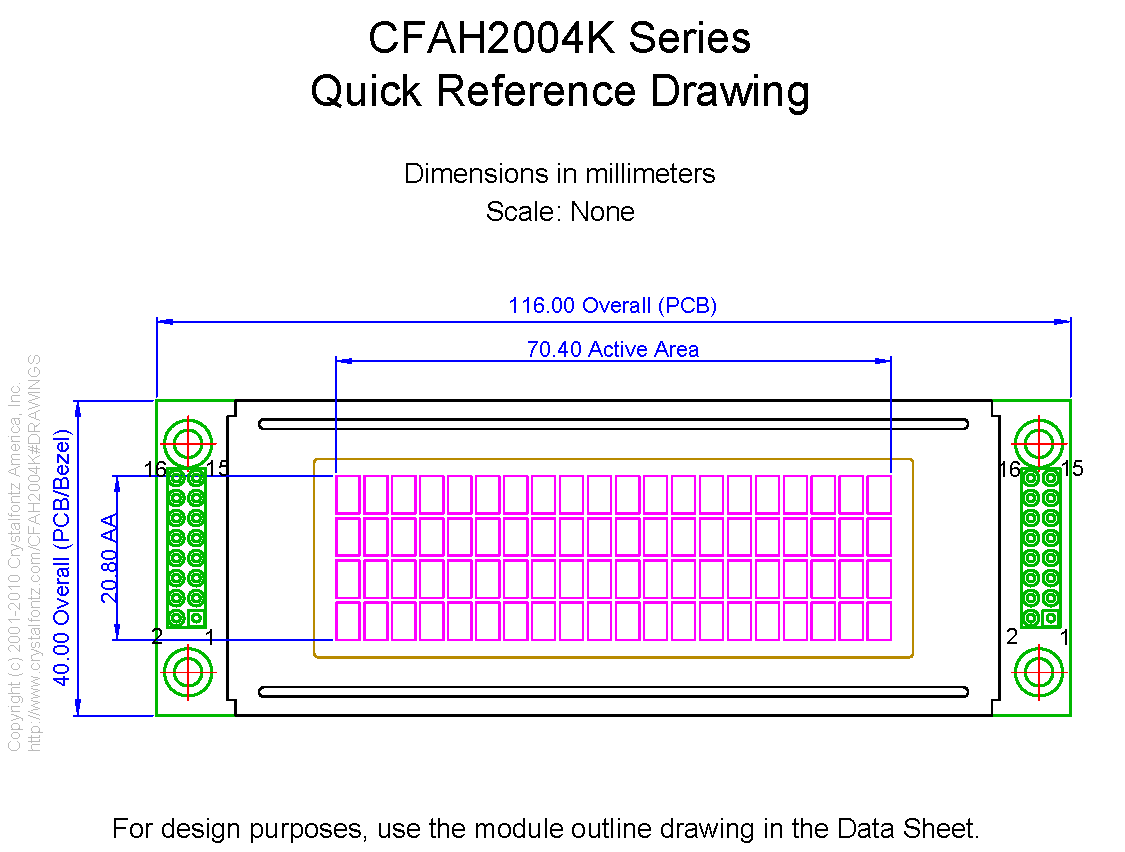

 square_foot Physical Characteristics
Physical Characteristics

        Characters x Lines
            20 x 4


    Module Overall        width
        height
        depth


        millimeters
        116
        40
        15


        inches
        4.57
        1.58
        0.59



    PCB Outline        width
        height
        depth


        millimeters
        116
        40
        15


        inches
        4.57
        1.58
        0.59



        Diagonal Dimension
            2.89"


    Viewing Area        Width
        Height


        millimeters
        76
        25.2


        inches
        2.99
        0.99



    Active Area        Width
        Height


        millimeters
        70.4
        20.8


        inches
        2.77
        0.82



    Character Size        Width
        Height


        millimeters
        2.95
        4.75


        inches
        0.116
        0.187



    Character Pitch        Width
        Height


        millimeters
        3.55
        5.35


        inches
        0.140
        0.211



    Dot Size        Width
        Height


        millimeters
        0.55
        0.55


        inches
        0.022
        0.022



    Dot Pitch        Width
        Height


        millimeters
        0.6
        0.6


        inches
        0.024
        0.024



        Weight
            68g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Blue
Polarizer
            Transmissive
View Direction
            6 o'clock


        Backlight Color
            White
Backlight Type
            LED
Mode
            Negative
Foreground Color
            White
Background Color
            Blue

 electric_bolt Electrical Specification
Electrical Specifications

        Module Connector Pitch
            0.1mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -20°
        70°


        Fahrenheit
        -4°
        158°



    Storage Temperatures        min
        max


        Celsius
        -30°
        80°


        Fahrenheit
        -22°
        176°



    Humidity        min
        max


        Non-condensing
        0%
        90%


 cable Electronics
Electronics

        Controller Documents
            Wuxi AiP31066L
40 SEG / 16 COM Driver and Controller for Dot Matrix LCD
Interface
            4-bit Parallel, 8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAH2004KTMIJP Datasheet

Previous Versions of Datasheetspicture_as_pdfCFAH2004K-TMI-JP Data Sheet v1.0.pdf
(Datasheet V 1.0, Hardware 0.0)
picture_as_pdfCFAH2004K-TMI Data Sheet v0.0a.pdf
(Datasheet V 0.0a, Hardware 0.0, Firmware 1.0)
picture_as_pdfCFAH2004K-TMI Data Sheet v0.0.pdf
(Datasheet V 0.0)
 download Files and Downloads
folder_zip Software Source - Arduino 6800 Demonstration Code
folder_zip CAD Export - CFAH2004K 2D CAD
picture_as_pdf 1 to 1 Template - CFAH2004K 1 TO 1.PDF
link Fork this on Github
 assured_workload Compliance Documents
 picture_as_pdf Declaration of Conformity RoHS2
 picture_as_pdf Declaration of Conformity REACH











Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
 Quantity:


Price:



            Quantity
            Unit Price


            1
            $21.92

            10
            $19.07

            20
            $18.38

            50
            $17.70

            100
            $17.42

            200
            $17.15

            500
            $16.88

            1000
            $16.34

1622 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.



Colors	Dark on Yellow-Green Yellow-Green LED Backlight White on Blue White LED Backlight

Module Overall	width	height	depth
millimeters	116	40	15
inches	4.57	1.58	0.59

PCB Outline	width	height	depth
millimeters	116	40	15
inches	4.57	1.58	0.59

Viewing Area	Width	Height
millimeters	76	25.2
inches	2.99	0.99

Active Area	Width	Height
millimeters	70.4	20.8
inches	2.77	0.82

Character Size	Width	Height
millimeters	2.95	4.75
inches	0.116	0.187

Character Pitch	Width	Height
millimeters	3.55	5.35
inches	0.140	0.211

Dot Size	Width	Height
millimeters	0.55	0.55
inches	0.022	0.022

Dot Pitch	Width	Height
millimeters	0.6	0.6
inches	0.024	0.024

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Quantity	Unit Price
1	$21.92
10	$19.07
20	$18.38
50	$17.70
100	$17.42
200	$17.15
500	$16.88
1000	$16.34

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #10877: SunPlus Controller Change

Products Affected:	CFAH2004K-TMI-JP, CFAH2004K-YYH-JP, CFAH2001Z-YYH-JP
Date Issued:	September 13, 2017
Summary:	SunPlus Controller Change
Description:	The parts listed currently use a SunPlus SPLC7800D Controller. This controller is being discontinued by the manufacturer. The part will be replaced by a Wuxi AIP31066L controller.
Reason:	The SunPlus SPLC7800 Controller is end-of-life.
Impact:	There should be no impact to users.
Recommendation:	It is highly recommended that users of the displays with the SunPlus controller verify that there are no operational differences in the systems where they are used.
Availability:	Last time buys of the current parts may be made until November 2017, depending on the availability of the SunPlus Controller.
Price Change:	To be determined when the parts with the Sitronix controller are available.
Response:	Last time buys are available until 11/17/2017.

Part Change Notice #10285: Datasheet changes for CFAH2004K series

Products Affected:	CFAH2004K-TMI-JP, CFAH2004K-YYH-JP
Date Issued:	August 23, 2010
Summary:	Datasheet changes for CFAH2004K series
Description:	Noted controller change from SPLC780C to SPLC780D1, corrected minor spelling errors, changed White LED backlight specifications to reflect typical backlight lifetime, made minor adjustment to yellow-green LED wavelength.

Part Change Notices

Subscribe to Part Change Notices by
email or RSS for CFAH2004K-TMI-JP

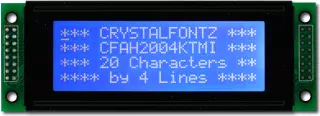

White on Blue 20x4 Character Display
