320x240 White on Black Parallel Graphic LCD from Crystalfontz

Product

Home » Products » Graphic LCD Displays » Interface » 8-bit Parallel

                This part has reached End-of-Life. We have no direct replacements available.

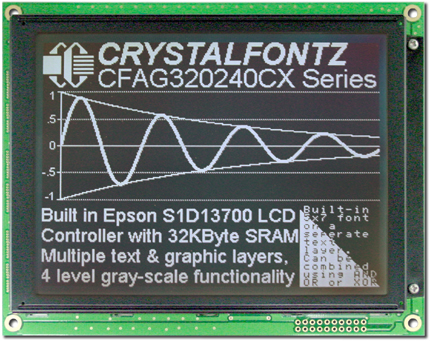

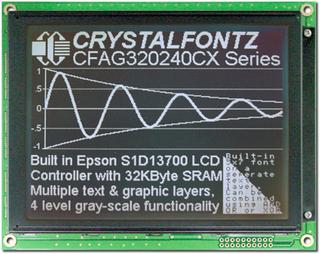

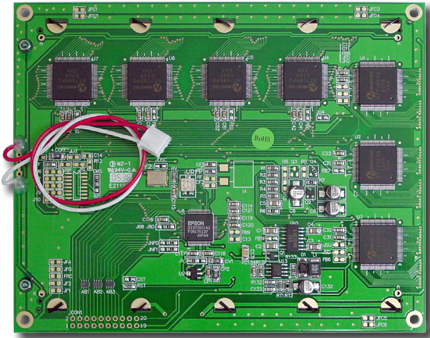

320x240 White on Black Parallel Graphic LCDPart Number: CFAG320240CX-TTI-TWhite on black 320x240 graphic LCD with negative voltage generator and temperature compensation.
Resolution: 320x240 pixels
Optics: 6:00 viewing direction
Backlight: White Edge LED
Glass: STN Negative, Transmissive
Controller: Epson S1D13700
Operating Temp: -20°C to +70°C
Compliance: REACH & RoHS Compliant
An Arduino library can be found here: CFAG320240CX Arduino Library.
Product VariationsColorsDark on Yellow-Green
Yellow-Green LED BacklightWhite on Blue
White LED BacklightDark on White
White LED Backlight

 square_foot Physical Characteristics

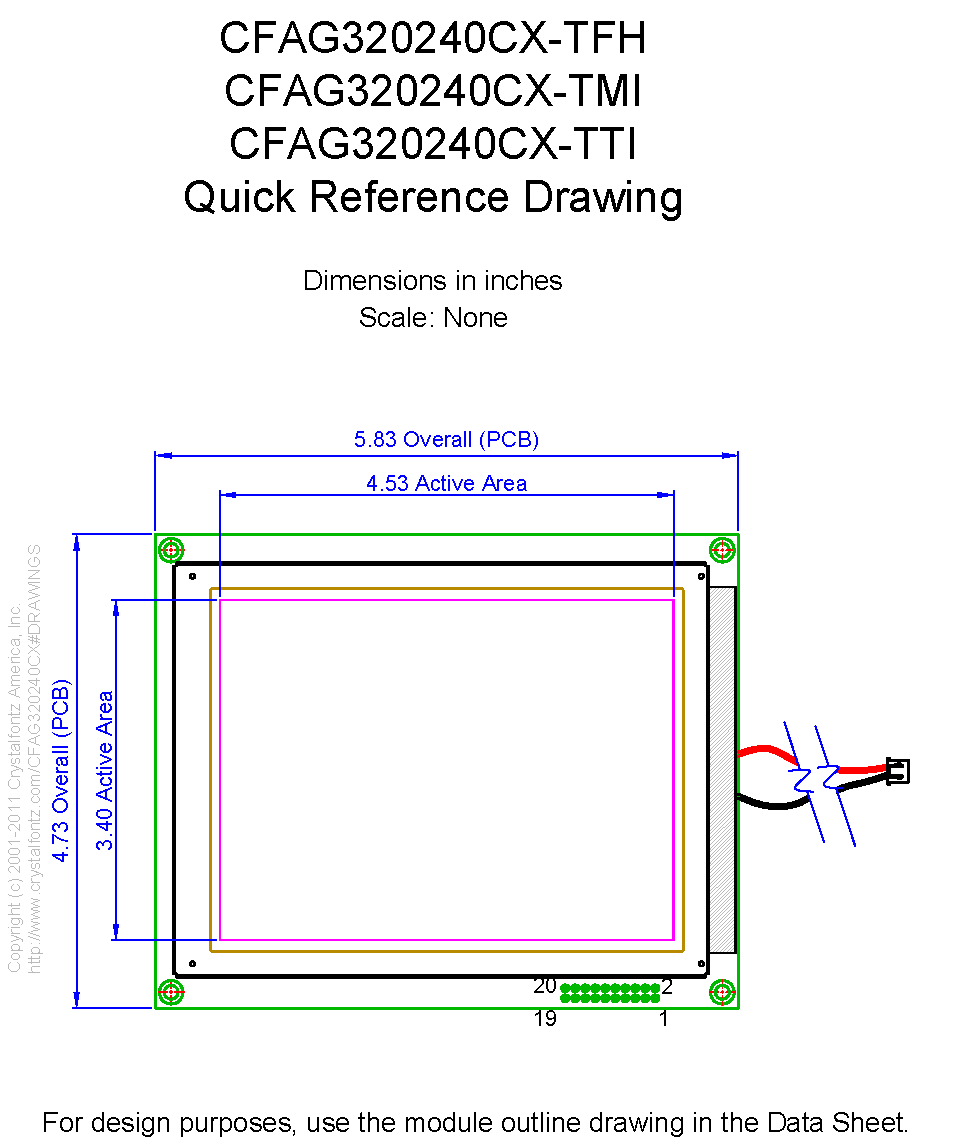

Physical Characteristics

        Column Dots x Row Dots
            320 x 240


    Module Overall        width
        height
        depth


        millimeters
        148.02
        120.24
        15.6


        inches
        5.83
        4.73
        0.61



    PCB Outline        width
        height
        depth


        millimeters
        148.02
        120.24
        15.6


        inches
        5.83
        4.73
        0.61



        Diagonal Dimension
            5.67"


    Viewing Area        Width
        Height


        millimeters
        120.14
        92.14


        inches
        4.73
        3.63



    Active Area        Width
        Height


        millimeters
        115.18
        86.38


        inches
        4.54
        3.40



    Dot Size        Width
        Height


        millimeters
        0.34
        0.34


        inches
        0.013
        0.013



    Dot Pitch        Width
        Height


        millimeters
        0.36
        0.36


        inches
        0.014
        0.014



        Weight
            229g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            FSTN/Black
Polarizer
            Transmissive
View Direction
            6 o'clock


        Backlight Color
            White
Backlight Type
            LED
Mode
            Negative
Foreground Color
            White
Background Color
            Dark

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            4.5V
Supply Voltage for Logic Maximum
            5.5V
Supply Voltage for Logic Typical
            5V
Supply Current Minimum
            65mA


        Supply Current Maximum
            85mA
Supply Current Typical
            75mA
Module Connector Pitch
            0.1mm

 electric_bolt Backlight Specification
Backlight Electrical Specifications

        Forward Voltage Minimum
            3.4V
Forward Voltage Maximum
            3.6V
Forward Voltage Typical
            3.5V


        Forward Current Minimum
            40mA
Forward Current Maximum
            160mA
Forward Current Typical
            128mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -20°
        70°


        Fahrenheit
        -4°
        158°



    Storage Temperatures        min
        max


        Celsius
        -30°
        80°


        Fahrenheit
        -22°
        176°



    Humidity        min
        max


        Non-condensing
        0%
        90%


 cable Electronics
Electronics

        Controller Documents
            Epson S1D13700
Hardware Functional Specification


Interface
            8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAG320240CXTTIT Datasheet

Previous Versions of Datasheetpicture_as_pdfCFAG320240CX-TTI-T v1.0.pdf

 download Files and Downloads
folder_zip Software Source - 6800 ATMega2561
Demo Code
folder_zip Software Source - Arduino Demo Code
folder_zip CAD Export - CFAG320240CX-TFH-TMI-TTI 2D CAD
picture_as_pdf 1 to 1 Template - CFAG320240CX-TFH-TMI-TTI 1 TO 1.PDF












Other components worth considering


						LCD Starter Kit with Potentiometer
Everything you need to connect $12.59 ea.






						72 Pin Header
Add (5) 72-pin headers?  $0.66 ea.





Colors	Dark on Yellow-Green Yellow-Green LED Backlight White on Blue White LED Backlight Dark on White White LED Backlight

Module Overall	width	height	depth
millimeters	148.02	120.24	15.6
inches	5.83	4.73	0.61

PCB Outline	width	height	depth
millimeters	148.02	120.24	15.6
inches	5.83	4.73	0.61

Viewing Area	Width	Height
millimeters	120.14	92.14
inches	4.73	3.63

Active Area	Width	Height
millimeters	115.18	86.38
inches	4.54	3.40

Dot Size	Width	Height
millimeters	0.34	0.34
inches	0.013	0.013

Dot Pitch	Width	Height
millimeters	0.36	0.36
inches	0.014	0.014

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

End-Of-Life #10896: End-Of-Life Notice

Products Affected:	CFAG320240CX-TFH-T-TS, CFAG320240CX-TTI-T
Date Issued:	November 14, 2017
Summary:	End-Of-Life Notice
Description:	These parts have reached End-of-Life. No replacements have been identified.
Reason:	The Sunplus controller used in the parts listed has been discontinued by the manufacturer.
Impact:	These parts will not be available once current stock has been depleted.
Recommendation:	This part is not recommended for new designs.
Availability:	Current stock only
Price Change:	None

320x240 White on Black Parallel Graphic LCD

Part Number: CFAG320240CX-TTI-T

Product Variations

Colors

Physical Characteristics

Optical Characteristics

Electrical Specifications

Backlight Electrical Specifications

Environmental

Electronics

Part Change Notices

Subscribe to Part Change Notices by email or RSS

End-Of-Life #10896: End-Of-Life Notice

LCD Software

User Forum

Tech Support

Glass Type/Glass Color	FSTN/Black
Polarizer	Transmissive
View Direction	6 o'clock

Backlight Color	White
Backlight Type	LED
Mode	Negative
Foreground Color	White
Background Color	Dark

Supply Voltage for Logic Minimum	4.5V
Supply Voltage for Logic Maximum	5.5V
Supply Voltage for Logic Typical	5V
Supply Current Minimum	65mA

Supply Current Maximum	85mA
Supply Current Typical	75mA
Module Connector Pitch	0.1mm

Forward Voltage Minimum	3.4V
Forward Voltage Maximum	3.6V
Forward Voltage Typical	3.5V

Forward Current Minimum	40mA
Forward Current Maximum	160mA
Forward Current Typical	128mA

Controller Documents	Epson S1D13700 Hardware Functional Specification
Interface	8-bit Parallel
