Sunlight Readable 320x240 Graphic LCD from Crystalfontz

Product

Home » Products » Sunlight Readable Displays » Graphic

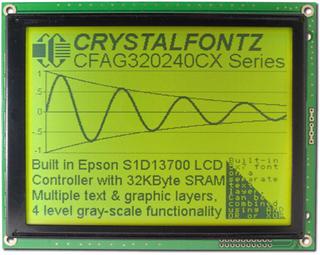

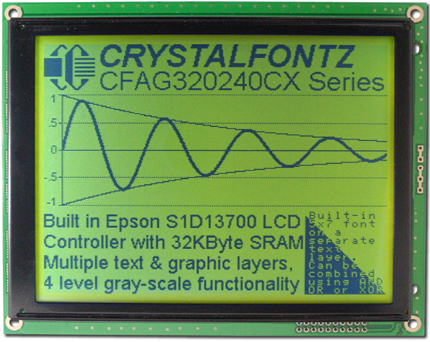

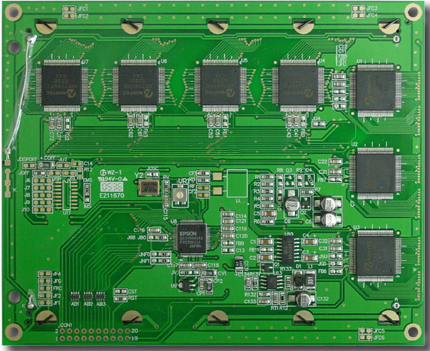

Sunlight Readable 320x240 Graphic LCDPart Number: CFAG320240CX-YYH-TSunlight readable yellow-green 320x240 graphic LCD with negative voltage generator and temperature compensation.
Resolution: 320x240 pixels
Optics: 6:00 viewing direction
Backlight: Yellow-green LED
Glass: STN Positive, Transflective
Controller: Epson S1D13700
Operating Temp: -20°C to +70°C
Compliance: REACH & RoHS Compliant
An Arduino library can be found here: CFAG320240CX Arduino Library.
Product VariationsColorsDark on Yellow-Green
Yellow-Green LED BacklightWhite on Blue
White LED BacklightDark on White
White LED Backlight

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            320 x 240


    Module Overall        width
        height
        depth


        millimeters
        148.02
        120.24
        15.6


        inches
        5.83
        4.73
        0.61



    PCB Outline        width
        height
        depth


        millimeters
        148.02
        120.24
        15.6


        inches
        5.83
        4.73
        0.61



        Diagonal Dimension
            5.67"

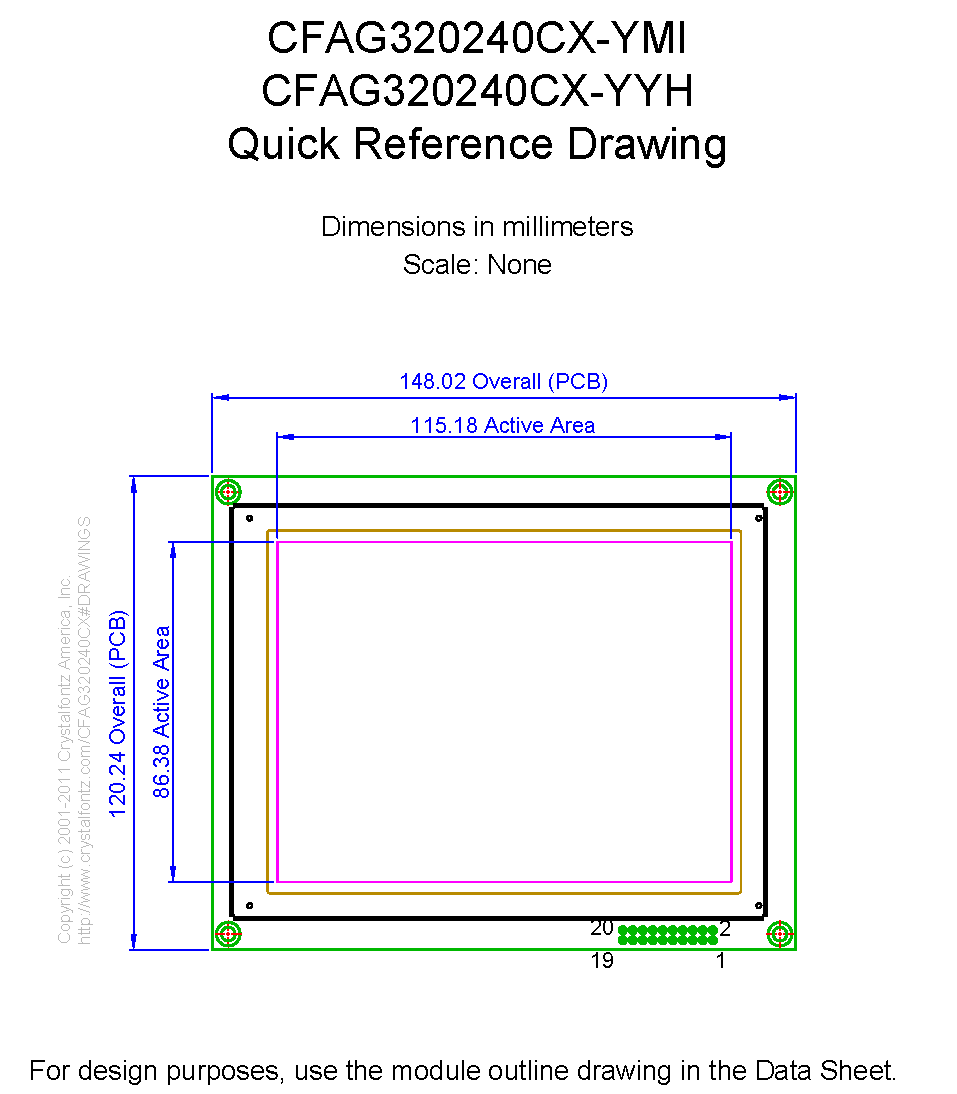

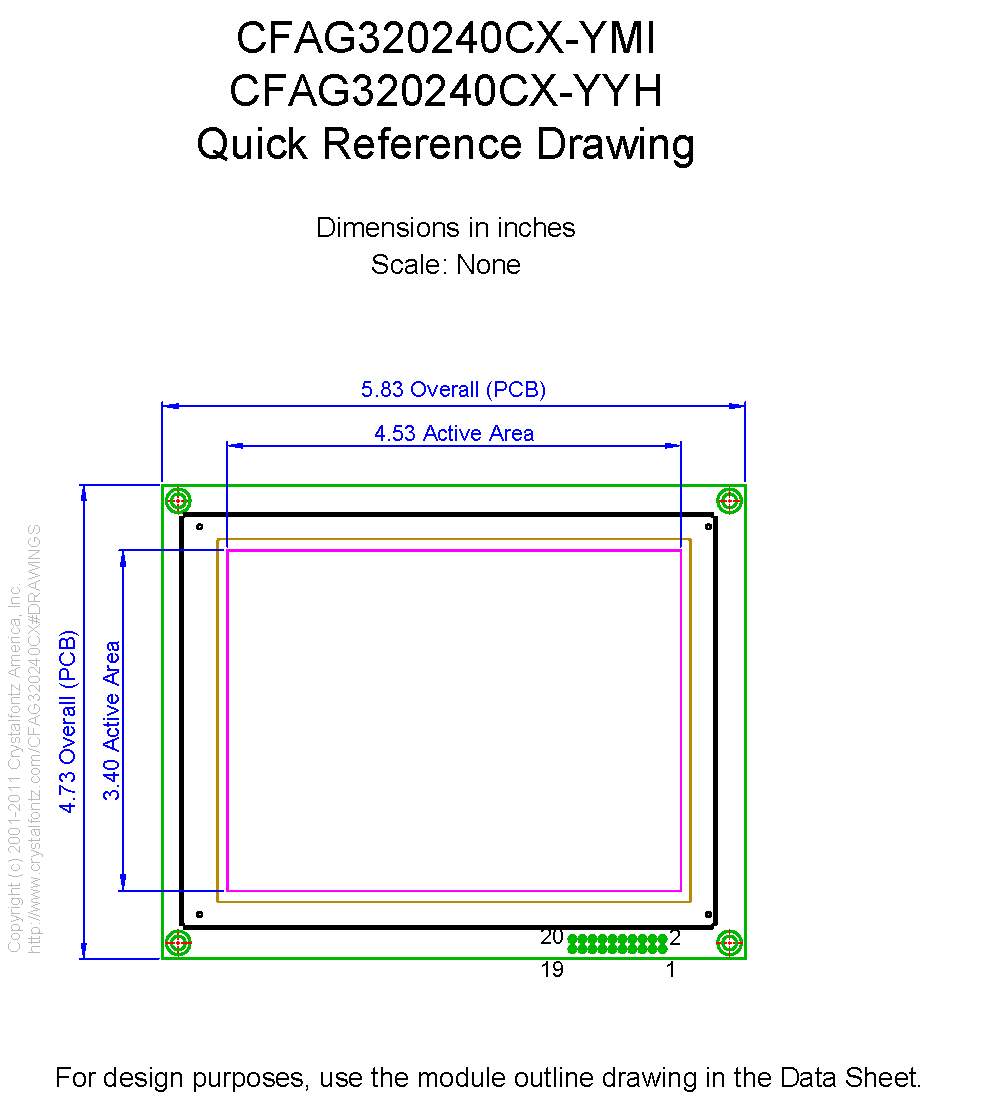

    Viewing Area        Width
        Height


        millimeters
        120.14
        92.14


        inches
        4.73
        3.63



    Active Area        Width
        Height


        millimeters
        115.18
        86.38


        inches
        4.54
        3.40



    Dot Size        Width
        Height


        millimeters
        0.34
        0.34


        inches
        0.013
        0.013



    Dot Pitch        Width
        Height


        millimeters
        0.36
        0.36


        inches
        0.014
        0.014



        Weight
            217g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Yellow-Green
Polarizer
            Transflective
View Direction
            6 o'clock
Sunlight Readable
            Yes


        Backlight Color
            Yellow-Green
Backlight Type
            LED
Mode
            Positive
Foreground Color
            Dark
Background Color
            Yellow-Green

 electric_bolt Electrical Specification
Electrical Specifications

        Module Connector Pitch
            0.1mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -20°
        70°


        Fahrenheit
        -4°
        158°



    Storage Temperatures        min
        max


        Celsius
        -30°
        80°


        Fahrenheit
        -22°
        176°



    Humidity        min
        max


        Non-condensing
        0%
        90%


 cable Electronics
Electronics

        Controller Documents
            Epson S1D13700
Hardware Functional Specification


Interface
            8-bit Parallel

picture_as_pdf Datasheets
picture_as_pdfCFAG320240CXYYHT Datasheet

Previous Versions of Datasheetspicture_as_pdfCFAG320240CX-YYH-T v1.0.pdf

picture_as_pdfCFAG320240CXYYHT.pdf

download Files and Downloads
folder_zip Software Source - 6800 ATMega2561
Demo Code
folder_zip Software Source - Arduino Demo Code
folder_zip Hardware Design - 3D Model
folder_zip CAD Export - CFAG320240CX-YMI-YYH 2D CAD
picture_as_pdf 1 to 1 Template - CFAG320240CX-YMI-YYH 1 TO 1.PDF
assured_workload Compliance Documents

picture_as_pdf Declaration
                                    of Conformity RoHS2
picture_as_pdf Declaration
                                    of Conformity REACH












Need a written quote? Add to cart, then enter
                            your email address in the "request a quote" box.
Quantity:


Price:



            Quantity
            Unit Price


            1
            $141.28

            10
            $124.72

            20 *
            $120.50

            50 *
            $116.29

            100 *
            $114.60

            200 *
            $113.76

            300 *
            $107.93

            500 *
            $107.12

            1000 *
            $98.96

10 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
Other components worth
                    considering


						LCD Starter Kit with Potentiometer
Everything you need to connect $11.06 ea.

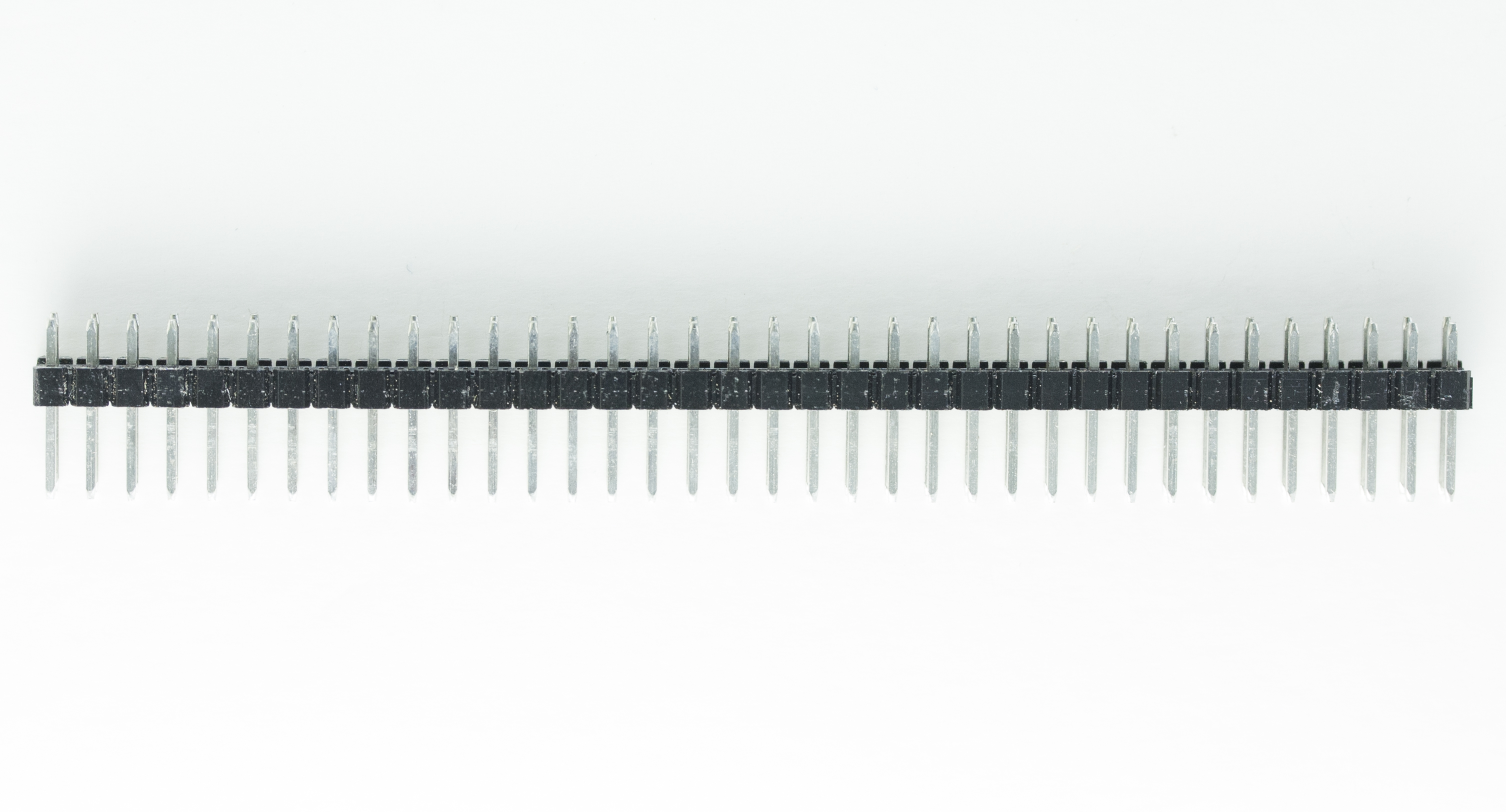

						72 Pin Header
Add (5) 72-pin headers?  $0.66 ea.





Colors	Dark on Yellow-Green Yellow-Green LED Backlight White on Blue White LED Backlight Dark on White White LED Backlight

Module Overall	width	height	depth
millimeters	148.02	120.24	15.6
inches	5.83	4.73	0.61

PCB Outline	width	height	depth
millimeters	148.02	120.24	15.6
inches	5.83	4.73	0.61

Viewing Area	Width	Height
millimeters	120.14	92.14
inches	4.73	3.63

Active Area	Width	Height
millimeters	115.18	86.38
inches	4.54	3.40

Dot Size	Width	Height
millimeters	0.34	0.34
inches	0.013	0.013

Dot Pitch	Width	Height
millimeters	0.36	0.36
inches	0.014	0.014

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Quantity	Unit Price
1	$141.28
10	$124.72
20 *	$120.50
50 *	$116.29
100 *	$114.60
200 *	$113.76
300 *	$107.93
500 *	$107.12
1000 *	$98.96
