[EOL] Blue 320x240 Graphic LCD from Crystalfontz

Product

Home » Products

                This product is discontinued please contact support to see if there is a replacement part available.

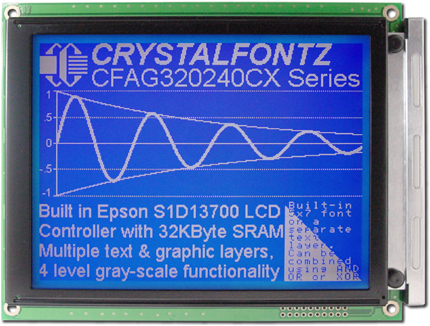

[EOL] Blue 320x240 Graphic LCDPart Number: CFAG320240CX-FMI-T320x240 graphic LCD module

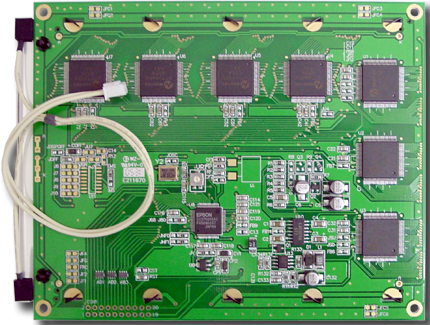

Built-in Epson S1D13700 controller and 32Kbyte SRAM
Multiple text and graphic layers
Available in several variations of backlight and polarizer  (minimum order may be required)
Wide temperature range: -20°C to 70°C (-4°F to 158°F)

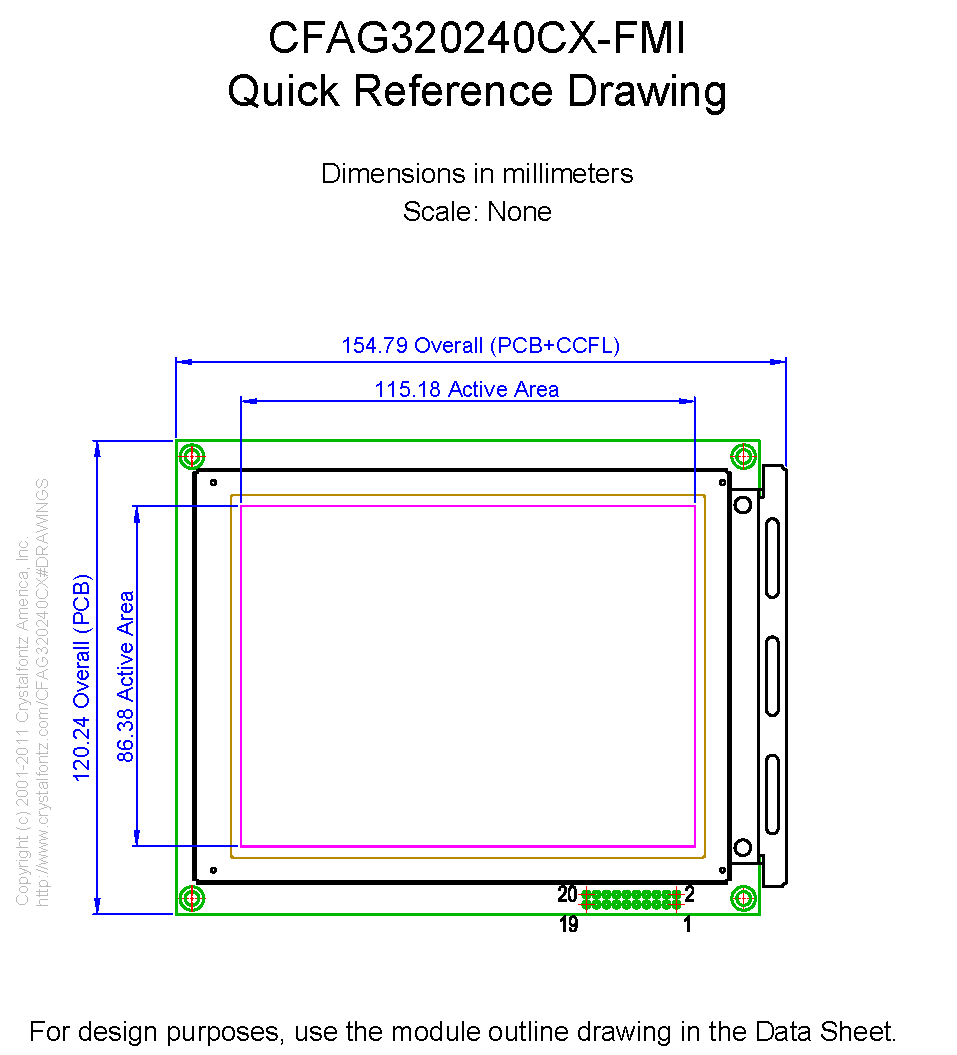

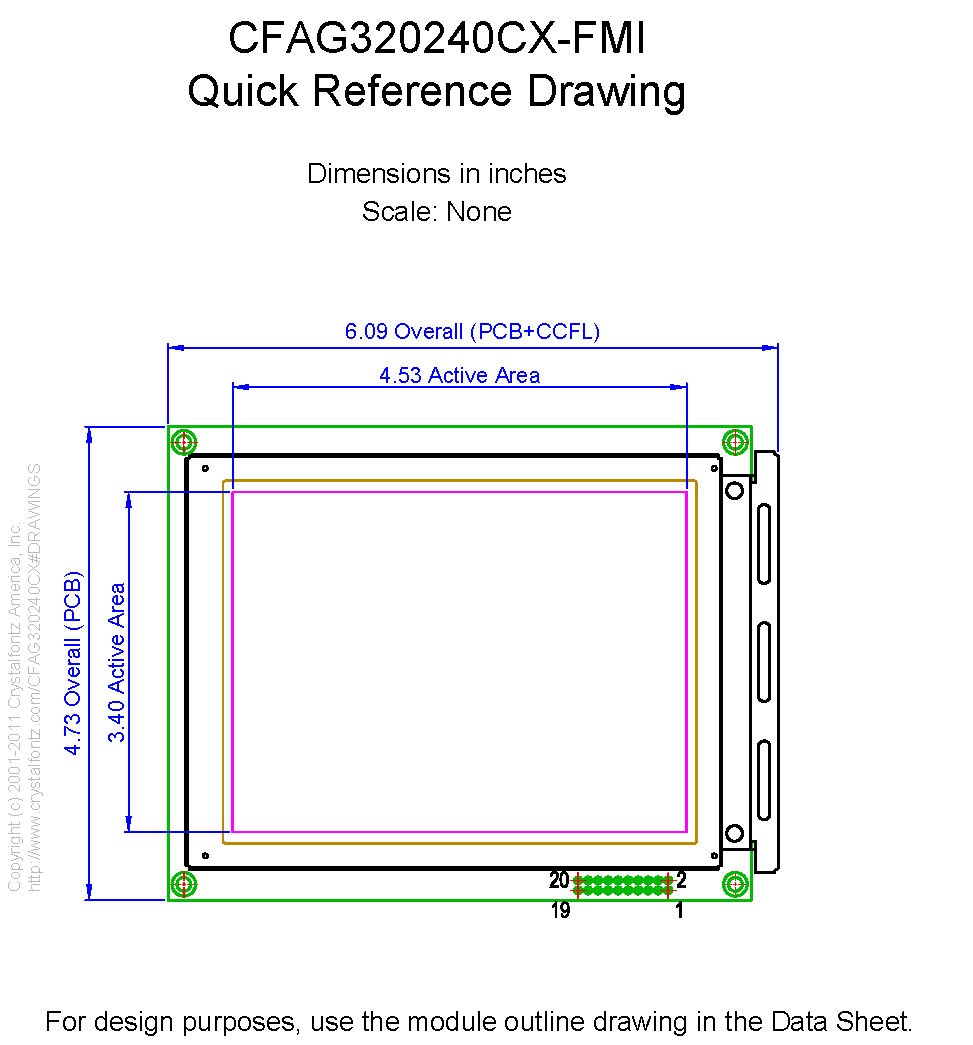

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            320 x 240

    Module Overall        width
        height
        depth

        millimeters
        148.02
        120.24
        15.6

        inches
        5.83
        4.73
        0.61

    PCB Outline        width
        height
        depth

        millimeters
        148.02
        120.24
        15.6

        inches
        5.83
        4.73
        0.61

    Viewing Area        Width
        Height

        millimeters
        120.14
        92.14

        inches
        4.73
        3.63

    Active Area        Width
        Height

        millimeters
        115.18
        86.38

        inches
        4.54
        3.40

    Dot Size        Width
        Height

        millimeters
        0.34
        0.34

        inches
        0.013
        0.013

    Dot Pitch        Width
        Height

        millimeters
        0.36
        0.36

        inches
        0.014
        0.014

        Weight
            238g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Blue
Polarizer
            Transmissive
View Direction
            6 o'clock

        Backlight Color
            White
Backlight Type
            CCFL
Mode
            Negative
Foreground Color
            White
Background Color
            Blue

 electric_bolt Electrical Specification
Electrical Specifications

        Module Connector Pitch
            0.1mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Controller Documents
            Epson S1D13700
Hardware Functional Specification

Interface
            8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAG320240CXFMIT v1.2.pdf
(Datasheet V 1.2, Hardware 1.0, Firmware 1.0)
picture_as_pdfCFAG320240CX-FMI-T v1.1.pdf

picture_as_pdfCFAG320240CX-FMI-T v1.0.pdf

 download Files and Downloads
folder_zip Software Source - 6800 ATMega2561
Demo Code
folder_zip CAD Export - CFAG320240CX-FMI 2D CAD
picture_as_pdf 1 to 1 Template - CFAG320240CX-FMI 1 TO 1.PDF

Other components worth considering

						LCD Starter Kit with Potentiometer
Everything you need to connect $12.59 ea.

Module Overall	width	height	depth
millimeters	148.02	120.24	15.6
inches	5.83	4.73	0.61

PCB Outline	width	height	depth
millimeters	148.02	120.24	15.6
inches	5.83	4.73	0.61

Viewing Area	Width	Height
millimeters	120.14	92.14
inches	4.73	3.63

Active Area	Width	Height
millimeters	115.18	86.38
inches	4.54	3.40

Dot Size	Width	Height
millimeters	0.34	0.34
inches	0.013	0.013

Dot Pitch	Width	Height
millimeters	0.36	0.36
inches	0.014	0.014

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Note
Notices

Product Note:

This product is End-of-Life and not recommended for new designs. Existing stock will be sold until it is gone. While we do not offer any direct replacement, we do have an LED backlight variant that will produce a very similar appearance - CFAG320240CX-TMI-T

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Product Update #10592: EL and CCFL backlight display modules End of Life

Products Affected:	CFAG12864B-WGH-N, CFAG12864B-WGH-V, CFAG320240CX-FMI-T, CFAG24064A-FMI-TZ, CFAG24064A-FTI-TZ, CFAX12864U1-WFH, CFAX12864T1-WFH, CFAX12864T-WFH, CFAX12864U-WFH
Date Issued:	June 13, 2014
Summary:	EL and CCFL backlight display modules End of Life
Last revision:	Varies
Description:	EL and CCFL backlight display module are going End Of Life 2014-06-31.
Reason:	Market trends and new product development have reduced demand for EL and CCFL backlights with a move to longer life and less expensive LED backlights. Backlight inverters that support EL and CCFL backlights are also EOL: https://www.crystalfontz.com/news/pcn.php?id=10591
Impact:	EL and CCFL backlight display modules will no longer be available.
Recommendation:	It is recommended that customers currently using EL or CCFL based modules to transition to an LED based counterpart. This will re
Availability:	Last orders must be received no later than 2014-06-31. Last shipments will be late September of 2014. Current inventory at Crystalfontz America will not be replenished and sold until exhausted.
Price Change:	No price change.
