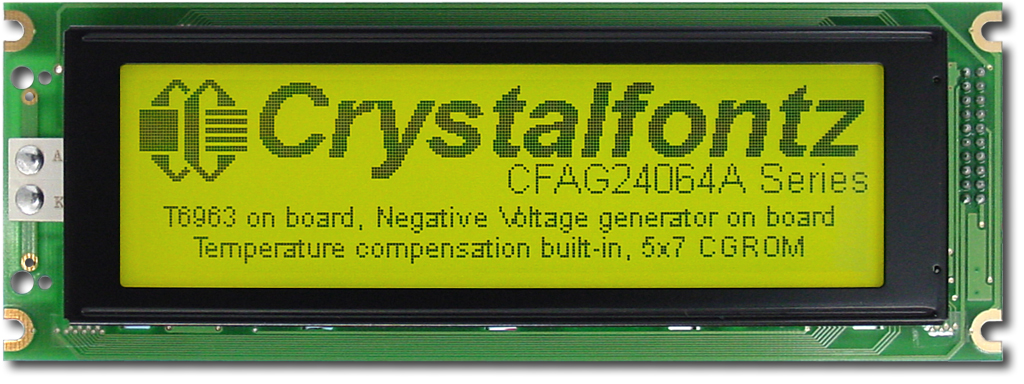

Sunlight Readable 240x64 Graphic LCDPart Number: CFAG24064A-YYH-TZSunlight readable 240x64 graphic LCD with negative voltage generator and temperature compensation.
Resolution: 240x64 pixels
Optics: 6:00 viewing direction
Backlight: Yellow-green LED
Glass: STN Positive, Transflective
Controller: RAiO Technology RA6963 (Toshiba T6963C Compatible) Controller
Operating Temp: -20°C to +70°C
Compliance: REACH & RoHS Compliant
Product VariationsColorsWhite on Blue
White LED backlightWhite on Dark
White LED backlightDark on Yellow-Green
Yellow-Green LED backlight

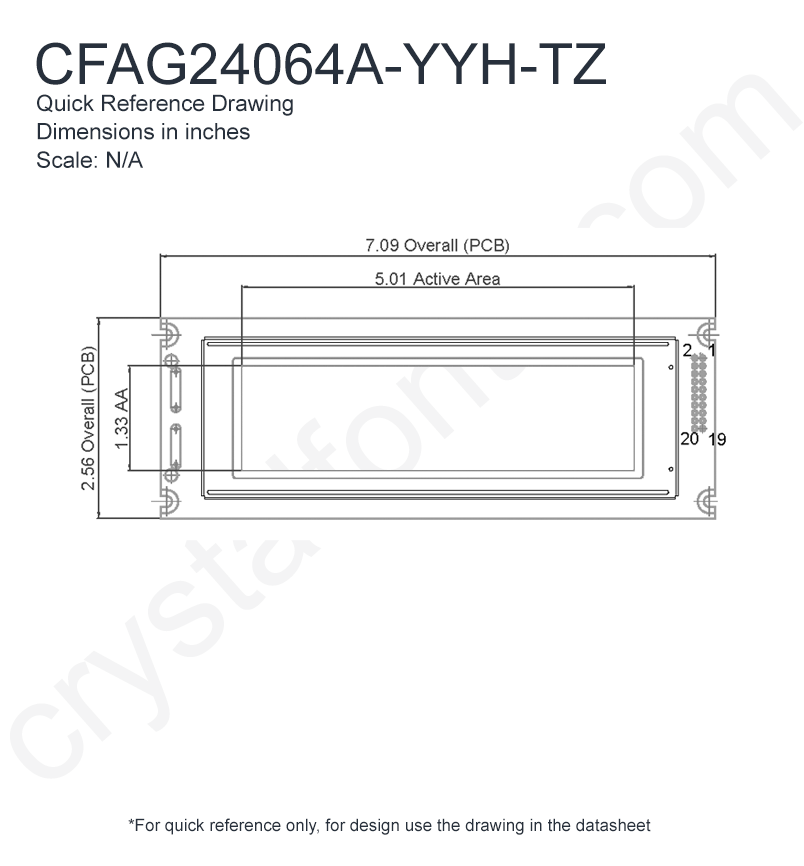

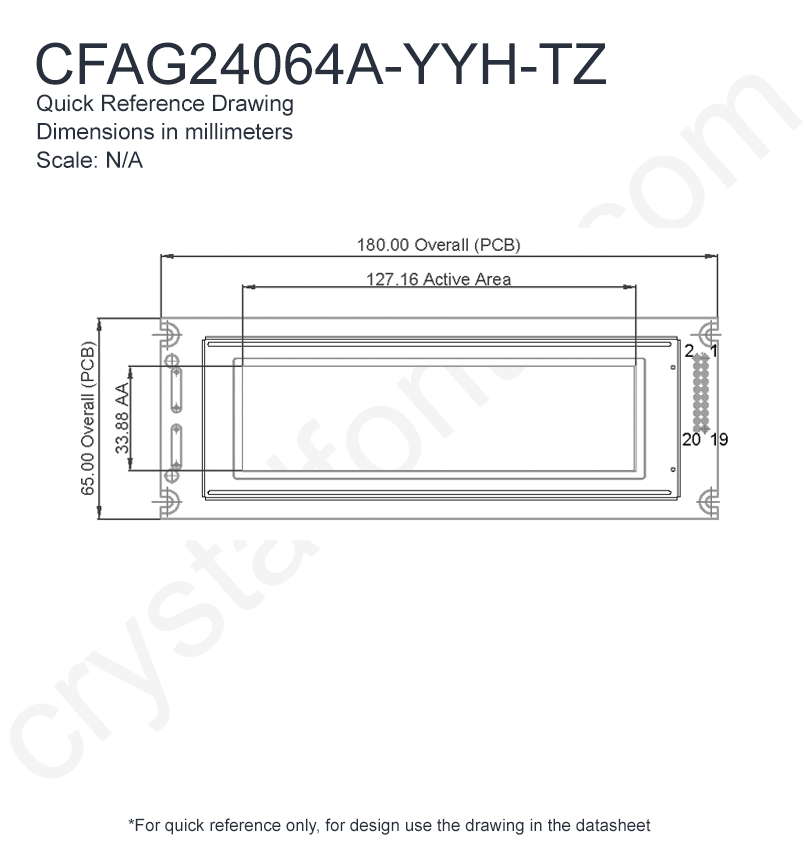

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            240 x 64

    Module Overall        width
        height
        depth

        millimeters
        180
        65
        16

        inches
        7.09
        2.56
        0.63

    PCB Outline        width
        height
        depth

        millimeters
        180
        65
        16

        inches
        7.09
        2.56
        0.63

        Diagonal Dimension
            5.18"

    Viewing Area        Width
        Height

        millimeters
        133
        39

        inches
        5.24
        1.54

    Active Area        Width
        Height

        millimeters
        127.16
        33.88

        inches
        5.01
        1.33

    Dot Size        Width
        Height

        millimeters
        0.49
        0.49

        inches
        0.019
        0.019

    Dot Pitch        Width
        Height

        millimeters
        0.53
        0.53

        inches
        0.021
        0.021

        Weight
            160g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Yellow-Green
Polarizer
            Transflective
View Direction
            6 o'clock

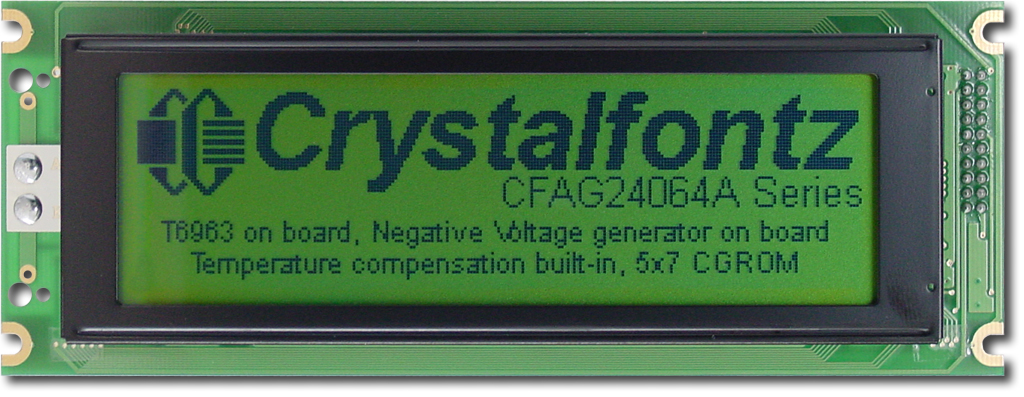

Sunlight Readable
            Yes

        Backlight Color
            Yellow-Green
Backlight Type
            LED
Mode
            Positive
Foreground Color
            Dark
Background Color
            Yellow-Green

 electric_bolt Electrical Specification
Electrical Specifications

        Module Connector Pitch
            2.54mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Controller Documents
            Raio Technology RA6963
RA6963 Dot Matrix LCD Controller Specification
Interface
            8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAG24064AYYHTZ Datasheet

Previous Versions of Datasheetpicture_as_pdfCFAG24064AYYHTZ Preliminary Data Sheet.pdf

 download Files and Downloads
folder_zip Software Source - Example code - ATMEGA2561
folder_zip Hardware Design - 3D Model
picture_as_pdf 1 to 1 Template - CFAG24064A-YYH 1 TO 1LF.PDF
picture_as_pdf 1 to 1 Template - CFAG24064A-YYH 1 TO 1RT.PDF
link RA6963 Demo Code Repository on Github
 assured_workload Compliance Documents
 picture_as_pdf Declaration of Conformity RoHS2
 picture_as_pdf Declaration of Conformity REACH

Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
 Quantity:

Price:

            Quantity
            Unit Price

            1
            $81.33

            5
            $75.08

            10
            $66.12

            20 *
            $64.18

            50 *
            $61.84

            100 *
            $61.07

            200 *
            $60.68

            300 *
            $57.26

            500 *
            $56.89

            1000 *
            $53.92

13 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
Other components worth considering

						LCD Starter Kit with Potentiometer
Everything you need to connect $12.59 ea.

						72 Pin Header
Add (5) 72-pin headers? $0.66 ea.

Colors	White on Blue White LED backlight White on Dark White LED backlight Dark on Yellow-Green Yellow-Green LED backlight

Module Overall	width	height	depth
millimeters	180	65	16
inches	7.09	2.56	0.63

PCB Outline	width	height	depth
millimeters	180	65	16
inches	7.09	2.56	0.63

Viewing Area	Width	Height
millimeters	133	39
inches	5.24	1.54

Active Area	Width	Height
millimeters	127.16	33.88
inches	5.01	1.33

Dot Size	Width	Height
millimeters	0.49	0.49
inches	0.019	0.019

Dot Pitch	Width	Height
millimeters	0.53	0.53
inches	0.021	0.021

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Quantity	Unit Price
1	$81.33
5	$75.08
10	$66.12
20 *	$64.18
50 *	$61.84
100 *	$61.07
200 *	$60.68
300 *	$57.26
500 *	$56.89
1000 *	$53.92

Notices

Part Change Notice

Subscribe to Part Change Notices by email or RSS

Part Change Notice #10936: The products listed above are being updated.

Products Affected:	CFAG24064A-YYH-TZ, CFAG24064A-TTI-TZ, CFAG24064A-TMI-TZ
Date Issued:	February 28, 2018
Summary:	The products listed above are being updated.

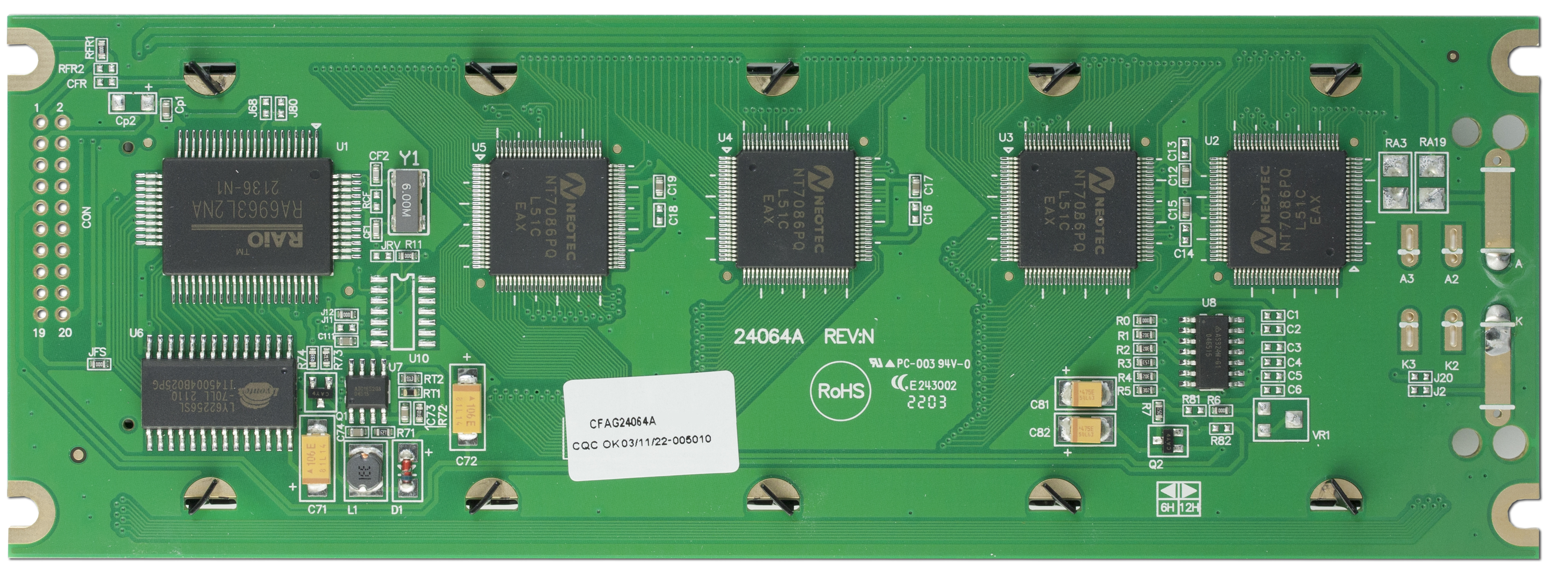

Description:	The printed circuit boards are being revised to improve operation and manufacturability.
Reason:	Continuing Product Improvement.
Impact:	The revision letter of the printed circuit board will change. The operation of the modules will not be affected.
Availability:	The revised modules will be available as current stocks are replenished.
